Presentation
Presentation

Our parallel bars and staircases for rehabilitation are modular and they are suitable for creating walking paths of various extensions and difficulties even with the use of additional accessories and elements.In addition they can be featured by an original  system called STandGO™ for an immediate and simultaneous height adjustment of the handrails from both sides.

The modular parallel bars of the PLUS Line are characterized by our original STandGOSystem™ for simultaneous and precise adjustment of the handrails on the two sides. The foot control activates gas springs for continuous movement, thus ensuring maximum precision and uniform adjustment, carried out even during the rehabilitation exercise.


THE HEIGHT ADJUSTMENT IS

  • IMMEDIATE
  • SIMULTANEOUS
  • CONTINUOUS
  • PRECISE
  • EASY-TO-DO
  • SINGLE CONTROL

Handrail height adjustment

Handrail width adjustment

Parallel bar tilt adjustment


Highlights
Highlights

ACCESSIBILITY FROM A SEATED POSITION

Without having to be transferred onto the main footboard

  1. When making height adjustments, also check the translation of the parallel bars. The dynamics of this function allow the user to comfortably place his/her forearms on the handrails while remaining seated, without having to be transferred onto the main footboard by wheelchair.

  2. In this manner, the patient can apply the levers and effort available for his/her natural verticalization while supported by the “STandGOSystem™”, and reduce the necessity for assistance from the therapist.

IMMEDIATE ADJUSTMENT FOR HEIGHT

Adaptation to the motor pattern that will be developed

The parallel bars with the STandGOSystem™ allow carrying out step training by optimizing patient locomotion as a result of the simple and immediate adjustment system for height and width, with adaptation to the motor pattern that will be developed.

  1. During the initial phase, maximum support is ensured to the upper limbs.
  2. Then, the handrail height is progressively reduced until the user’s hands just brush them or don’t touch them at all.
In this manner, the parallel bars will not be an obstacle for correct posture by the user when ambulating during functional recovery.


PARALLEL BARS MODULARITY

The modularity of our parallel bar systems allows the patient to be involved and motivated when ambulating, leaving the therapist more time to dedicate to observing and evaluating functional improvements during the exercise.

Therefore, the therapist can concentrate - especially in the case of subjects with extremely compromised neuro-motor characteristics - on continuously correcting gestures, rate, angles and the kinematic mechanism while the patient ambulates, until the most correct motor pattern is obtained.

This image illustrates an example of modularity by combining two 3-meter long modules (code 01326) and one 2-meter long module (code 01325), thus obtaining an 8-meter long walkpath.


ANTIBRACHIAL SUPPORT - THE GLIDER

During the initial phase of identifying the therapeutic rehabilitation program, use of an antibrachial support on the parallel bars allows an evaluation of how the patient ambulates in a completely safe environment.


It can be applied to all parallel bars in the new Plus and Standard Line. It offers greater support to the person during ambulation. When the trolley is used with a parallel bar system from the Plus Line, it is possible to indirectly, quickly and effectively adjust the height of the trunk support with the activation of the foot control by the operator. This allows the simultaneous adjustment of the handrails. In this case, adjusting the trolley trunk support can take also place while therapeutic exercise is being carried out. The trolley comes equipped with four limit switches and a connecting rod that can be used in the event a second trolley is purchased.


Easy to invert the walking path

This solution prevents possible interruptions while carrying out the therapeutic rehabilitative exercise and also ensures safe restraint of the person. Intervention by the operator is limited to watching over the patient. The two trolleys can be joined using elements supplied.


The trolley for parallel bars (code 01380) can be used with another identical trolley in order to allow the user to autonomously inverting the direction of therapeutic walkpath. Although turning around on the spot is a complex gesture, it can be learned by the patient if supported by the therapist.

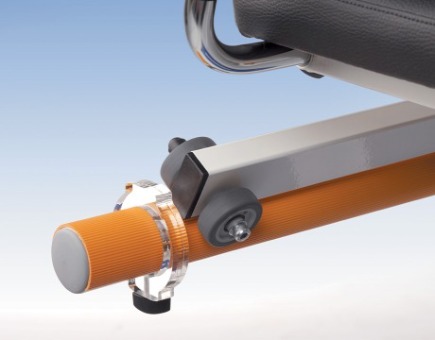

Limit switch element when used the glider code 01380.


Documents
Documents

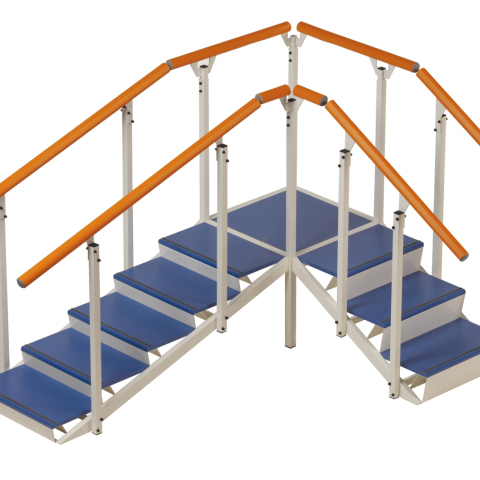

Parallel bars and staircases

Introduction to the parallel bars - Key features - STandGO™ system - Modularity - Plus line - STandGO™ system - Parallel bars for children - Parallel bars for adults - Standard line - Three meters parallel bars - Foldable parallel bars - Corner parallel bars - Accessories - Antebrachial support - Instability elements - Different density pads - Posture mirrors - Introduction to the staircases - Platform modules - Staircases modules - Configurations with STandGO™ system - Configurations with standard staircases

Chinesport Brochure, Edition October 2023.
English language, 44 pages.

Brochure
Language: English, German, French, Spanish
Document date: 31/10/2023
DOWNLOAD
PDF 4.1 MB
Video
Video
3 video see all >

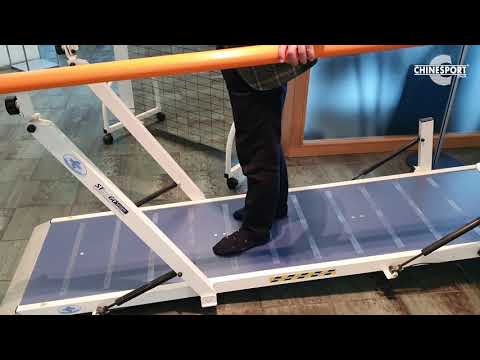

Parallel bars Plus line - An overview

Parallel bars Plus line - An overview

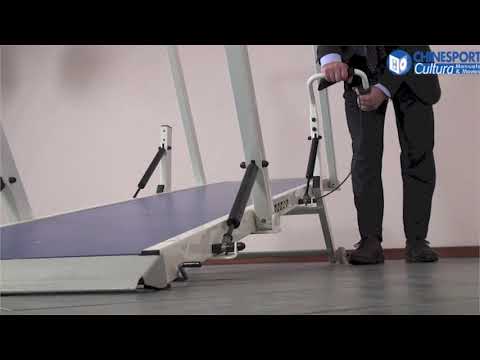

Parallel bars Plus 3M Tilt - Adjustments and key features

Parallel bars Plus 3M Tilt - Accessories
