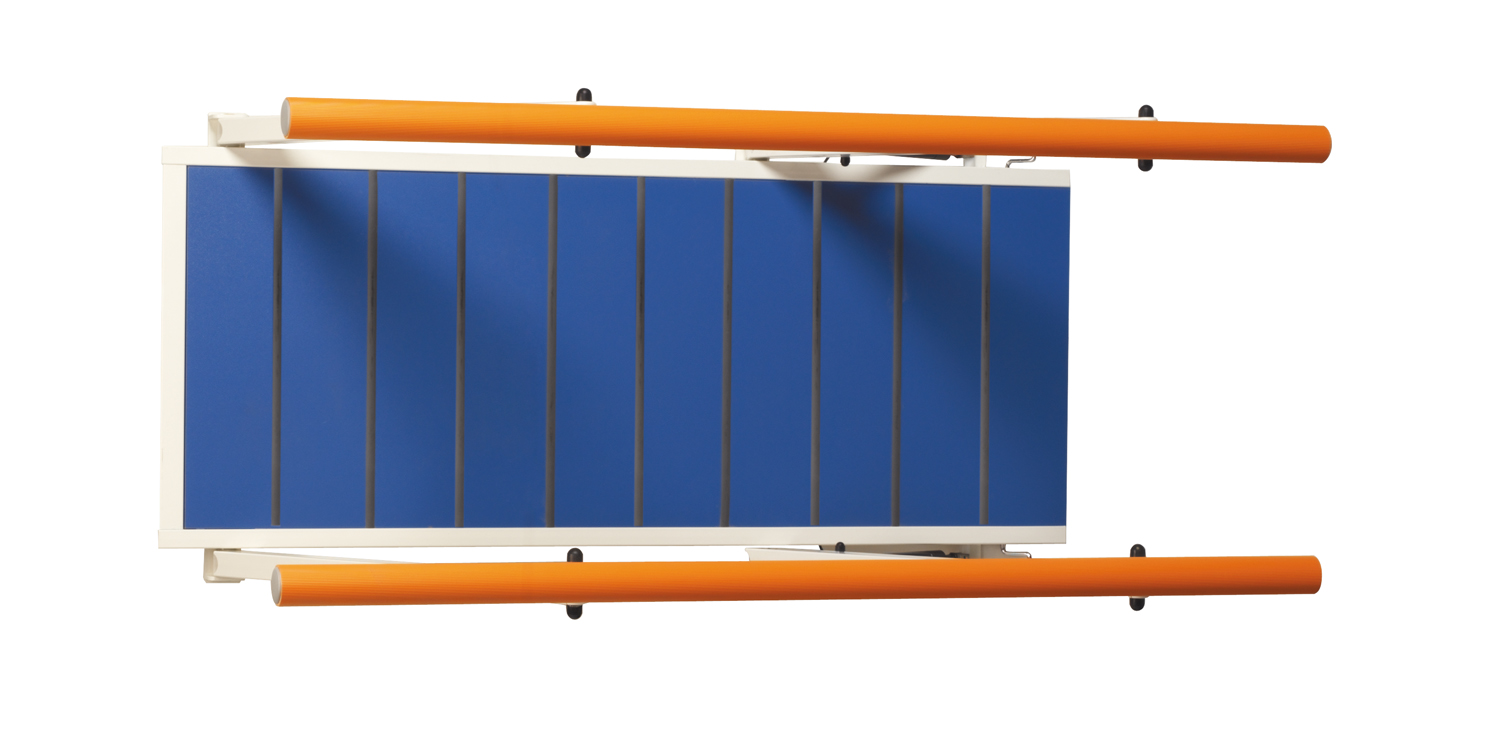

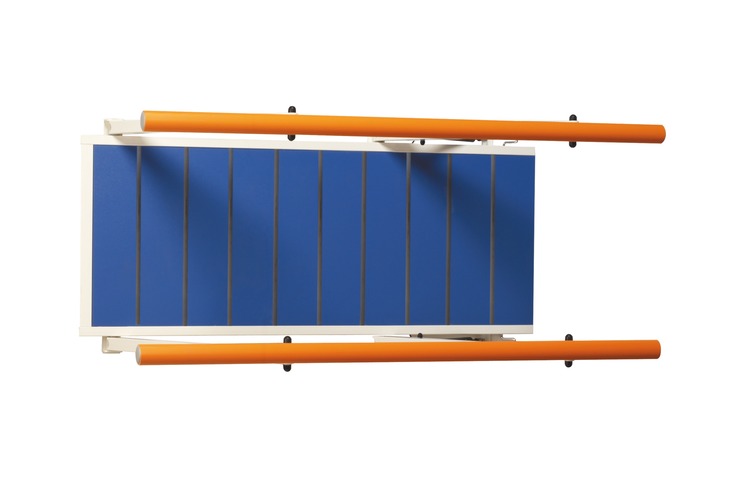

PLUS STAIRCASE WITH RAMP

0
1
3
4
3
Quantity:

Description

Staircase Plus Line equipped with ramp. Combined with the main platform, an inclination equal to 18° is obtained. Handrails can be adjusted through STandGO system.

In a progressive therapeutic exercise, the use of stairs for rehabilitation is aimed at reintegration to home and creation of possible difficult situations that might occur in the outside environment.



STRUCTURAL FEATURES

The staircase rehabilitation program makes use of a system consisting of a set of raised platforms and staircases, made up of a painted steel framework, with wear-proof bi-laminated wooden steps and platforms, and thermoplastic non-slip handrails. All parts can be easily washed.


SAFETY USE

The steps have a continuous design, with rounded corners and tread to facilitate positioning of the foot. In addition, the steps have an insert that reduces the possibility of slipping, while at the same time it’s a secure foothold during walking.


MODULARITY

The staircase modules must be paired with a platform module in order to compose a rehabilitation path. The choice of the configuration can be modified or integrated at a later stage. Check "Accessories" section to choose the right platform for your needs.

Accessories

Accessories

Straight Staircase Support

01336
Module intended for use with two staircases. Used to create a bridge-like structure.
Ask for quotation

Platform With 1 Staircase

01337
Module intended for use with a single staircase that can be chosen from among three alternatives: low or high steps, or a slide.
Ask for quotation

Platform With 2 Straight Staircases

01338
Module intended for use with two staircases. A bridge-like structure is created.
Ask for quotation

Platform With 2 Corner Staircases

01339
Module intended for use with two staircases. A corner structure is created.
Ask for quotation

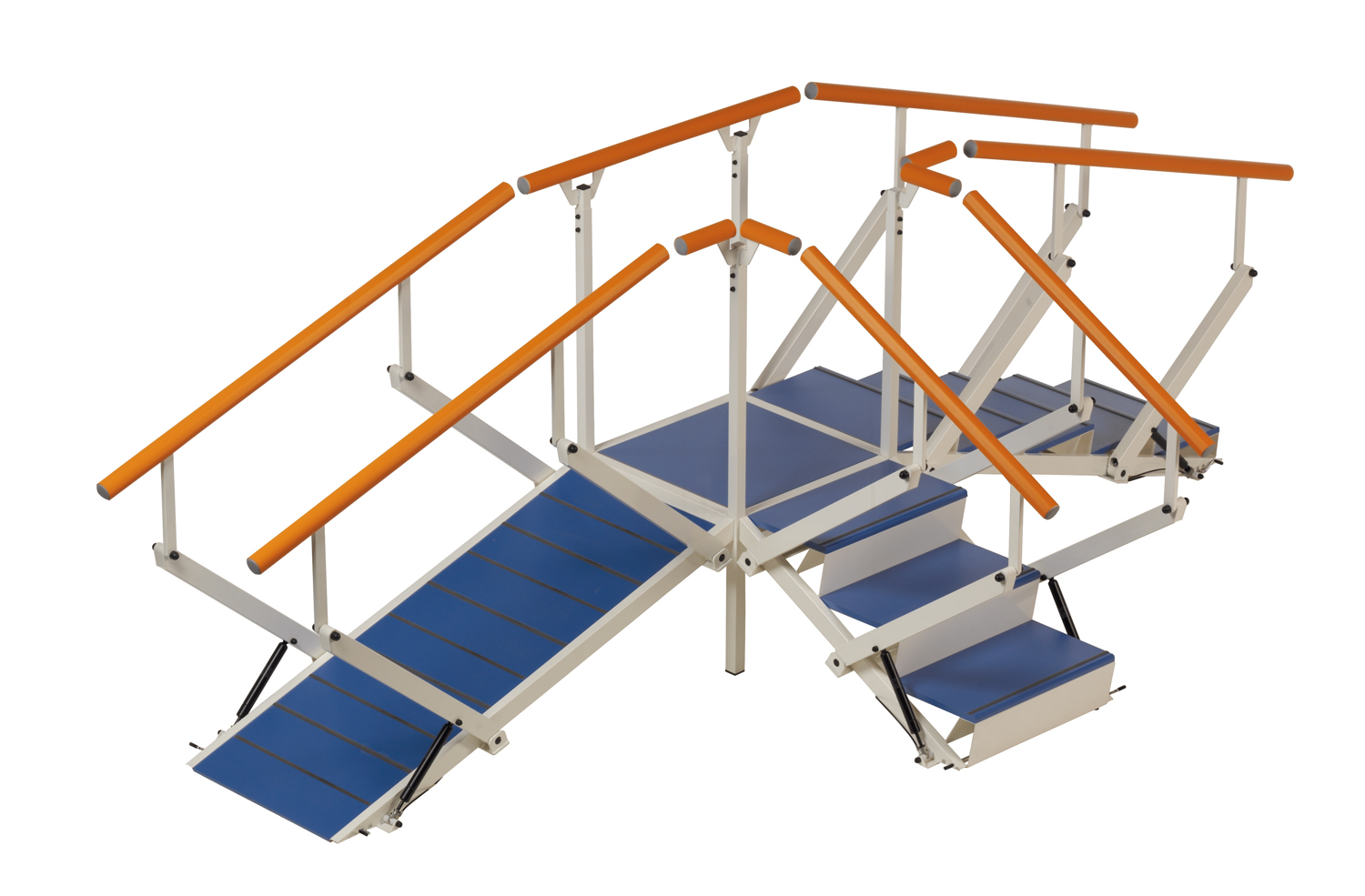

Platform With 3 Staircases

01340
Module intended for use with three staircases. A combined structure is created.
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
68 kg

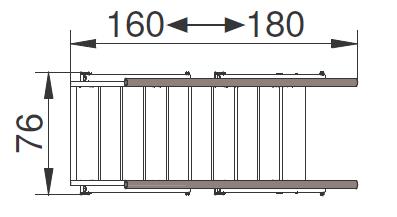

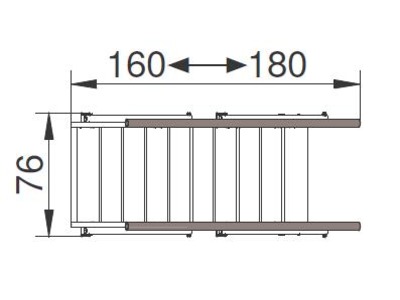

Max dimensions:
180 x 75 cm
Staircase and platform capacity:
180 kg
Single handrail capacity:
135 kg
Handrail height adjustment:
88 ÷ 104 cm
Inclination:
18°
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0085086

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 186 x 80 x 18 h kg 50 mc 0.26784
2 SCATOLA cm 155 x 40 x 10 h kg 10 mc 0.062
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Staircases standard and plus

DICO - EU declaration of conformity
Document date: 12/10/2023
Language: English
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB

Scale standard e plus

DICO - EU declaration of conformity
Document date: 12/10/2023
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB

Scale standard e plus

IFU - Instruction of use
Document date: 03/05/2023
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 4.63 MB

Staircases standard and plus

IFU - Instruction of use
Document date: 03/05/2023
Language: English
Version: 1.0.1
DOWNLOAD
PDF 4.63 MB

Trappor - standard och plus

IFU - Instruction of use
Document date: 03/05/2023
Language: Swedish
Version: 1.1.7
DOWNLOAD
PDF 4.63 MB

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 106.86 KB
Register to access the content

Manual de instrucciones

Manual - past Edition
Document date: 19/03/2012
Language: Spanish
Version: V 1.0
DOWNLOAD
PDF 523.34 KB
Register to access the content

Bedienungsanleitung

Manual - past Edition
Document date: 18/05/2011
Language: German
Version: V 1.0
DOWNLOAD
PDF 529.16 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 18/05/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 657.7 KB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 18/05/2011
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 523.7 KB
Register to access the content
