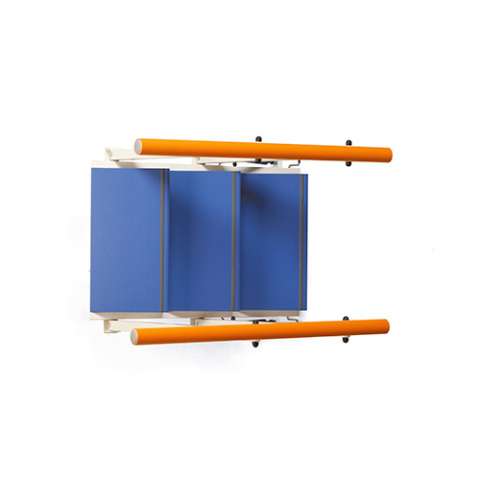

Staircases - plus line

Presentation

The modular staircases of the new PLUS Line feature the innovative STandGOSystem^TM, which allows simultaneous and precise adjustment of the two lateral handrails while keeping them perfectly parallel by using a single control that requires minimum effort to be operated.

A foot control activates gas springs for continuous movement, thus assuring maximum precision, and the adjustment can be quickly carried out during the rehabilitative exercise.

In a progressive therapeutic exercise, the use of stairs for rehabilitation is aimed at reintegration to home and creation of possible difficult situations that might occur in the outside environment.

The staircase modules must be paired with a platform module in order to compose a rehabilitation path. Check the "Accessories" section of each staircase page to choose the right platform for your needs.

Highlights

HANDRAILS HEIGHT ADJUSTMENT

The modular staircases of the Plus Line feature the innovative STandGOSystem which allows simultaneous and precise adjustment of the two lateral handrails while keeping them perfectly parallel by using a single control that requires minimum effort to be operated.

A foot control activates gas springs for continuous movement, thus assuring maximum precision, and the adjustment can be quickly carried out during the rehabilitative exercise. The stairs in the Plus Line can be simply and immediately adapted to the anthropometric measures of a person - both adults and children. In addition, the adjustment systemallows the height of the handrails to be immediately lowered when the patient is able to withstand a greater load of his/her own body weight and improves his/her motorpattern. In this manner, the parallel bars will not be an obstacle to correct posture for the ambulating user during functional recovery.

Structural features

The staircase rehabilitation program makes use of a system consisting of a set of raised platforms and staircases, made up of a painted steel framework, with wear-proof bi-laminated wooden steps and platforms, and thermoplastic non-slip handrails. All parts can be easily washed.

Safety

The steps have a continuous design, with rounded corners and tread to facilitate positioning of the foot. In addition, the steps have an insert that reduces the possibility of slipping, while at the same time is a secure foothold during walking.

Modularity

Three different types of staircase modules, with high or low steps or a ramp, and four platform modules are available in order to create a suitable configuration in relation both to the space available and specific therapeutic rehabilitation programs. The choice of the configuration can be modified or integrated at a later stage.

Documents

Parallel bars and staircases

Introduction to the parallel bars - Key features - STandGO™ system - Modularity - Plus line - STandGO™ system - Parallel bars for children - Parallel bars for adults - Standard line - Three meters parallel bars - Foldable parallel bars - Corner parallel bars - Accessories - Antebrachial support - Instability elements - Different density pads - Posture mirrors - Introduction to the staircases - Platform modules - Staircases modules - Configurations with STandGO™ system - Configurations with standard staircases

Brochure, Ed. April 2024, English. 44 pages.

Brochure

Document date: 01/04/2024

DOWNLOAD

PDF 4.06 MB

Paralelas y escaleras

Introducción a las paralelas - Características - Sistema STandGO™ - Modularidad - Línea Plus - Sistema STandGO™ - Paralelas para niños - Paralelas para adultos - Linea estándar - Paralelas de tres metros - Paralelas plegables - Paralelas de esquina - Accesorios - Soporte antebrazo - Elementos de inestabilidad - Almohadillas de diferentes densidades - Espejos posturales - Introducción a las escaleras - Módulos de plataforma - Módulos de escaleras - Configuraciones con sistema STandGO™ - Configuraciones con escaleras estándar

Chinesport, Ed. Junio 2024. español, 44 páginas.
