CHILDREN'S PARALLEL BARS PLUS 3M

0
2
9
9
6
Quantity:

Description

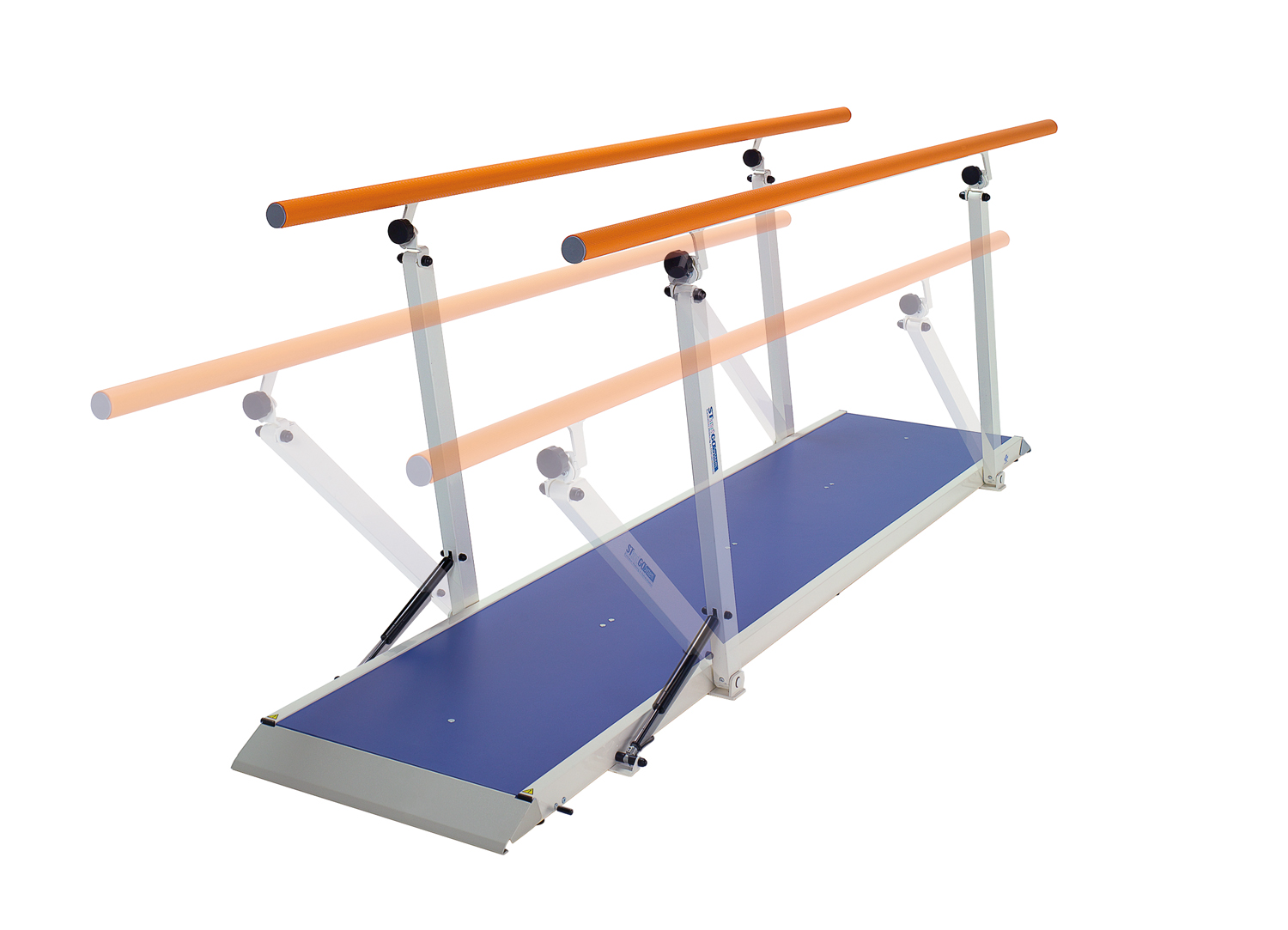

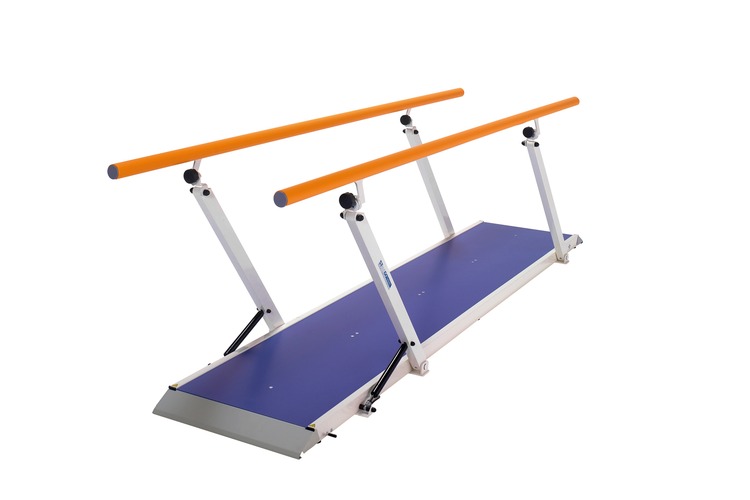

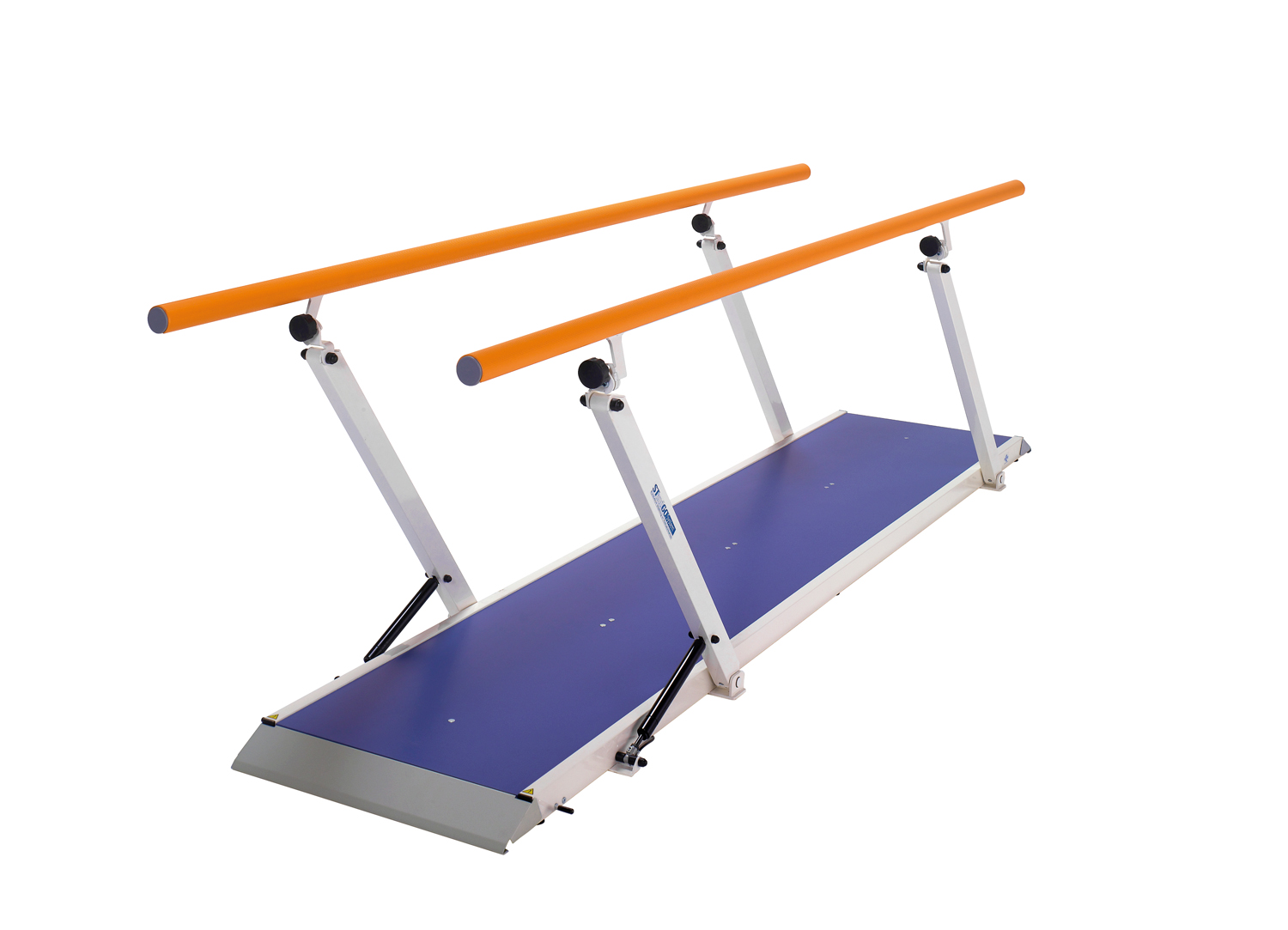

This is a 3-meter long parallel bar system for children, dedicated for the physical therapy and rehabilitation training activity. Height adjustment 64 ÷ 80 cmIt consists of a painted steel framework and a wearproof bi-laminated wooden platform, equipped with access ramps, thermoplastic and non-slip handrails. All parts can easily be washed.

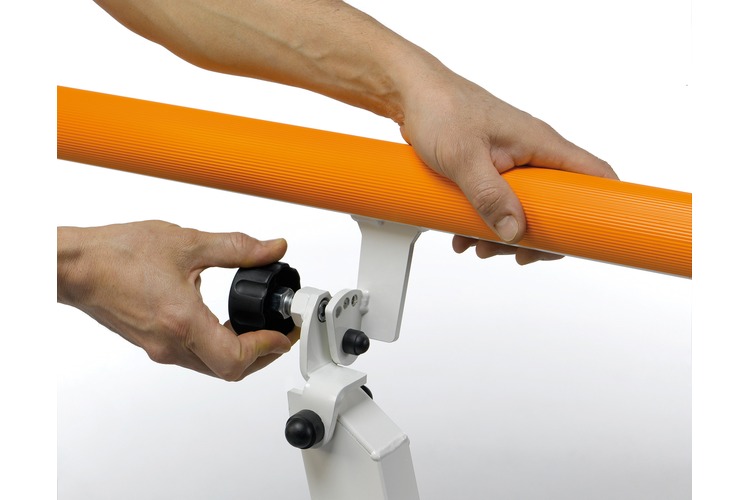

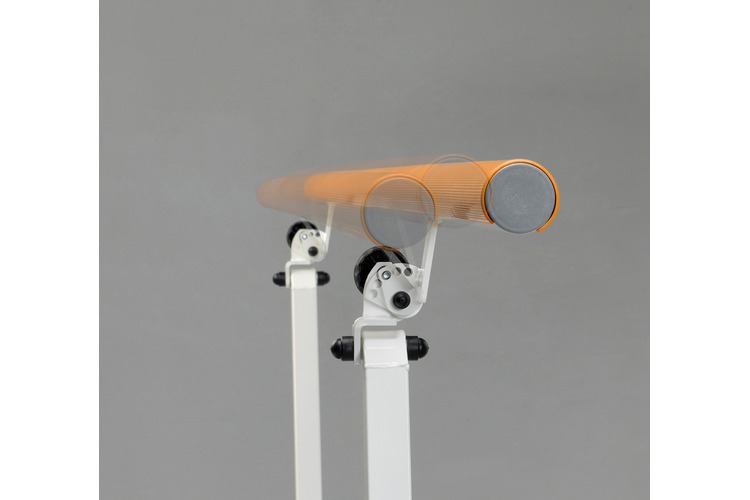

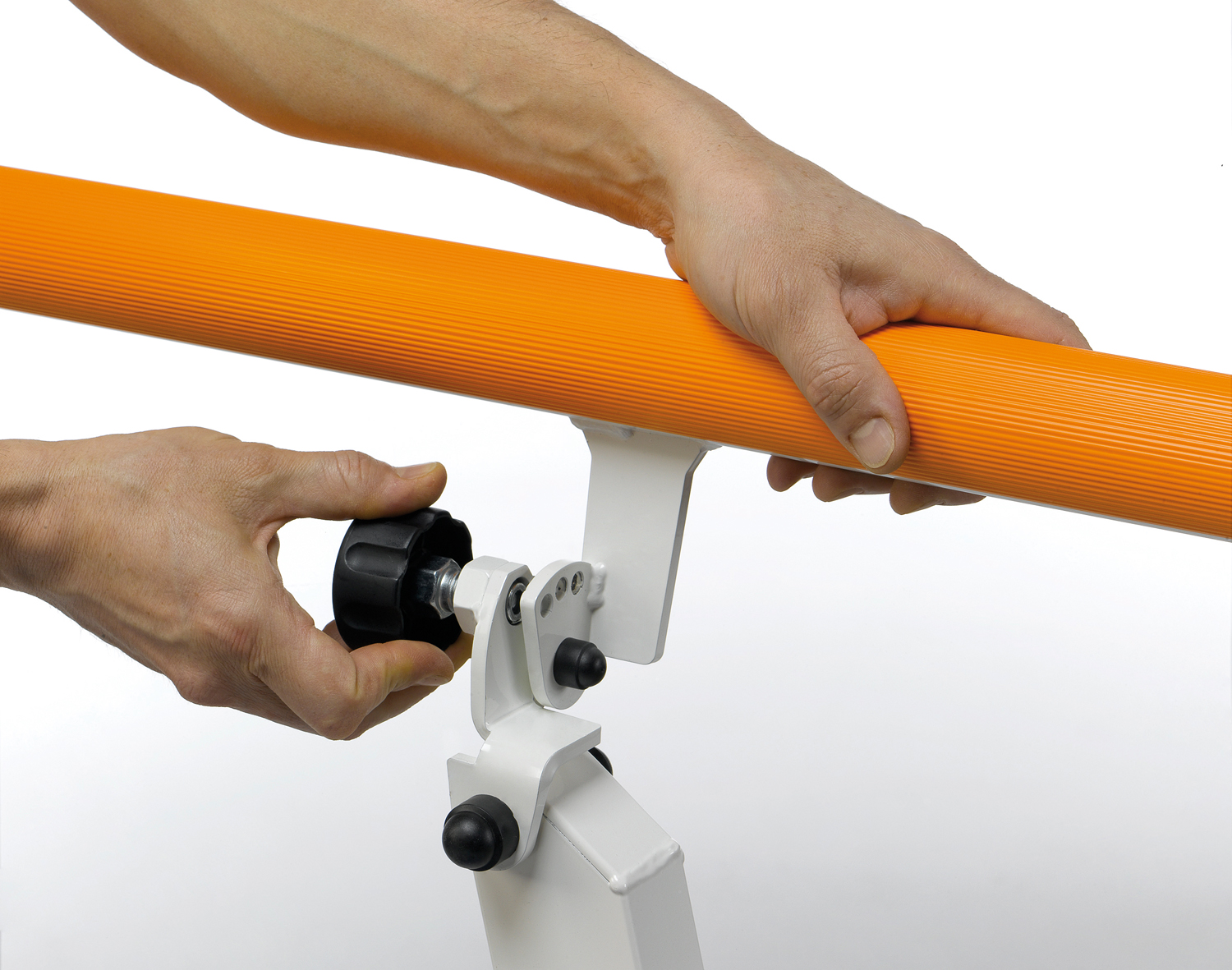

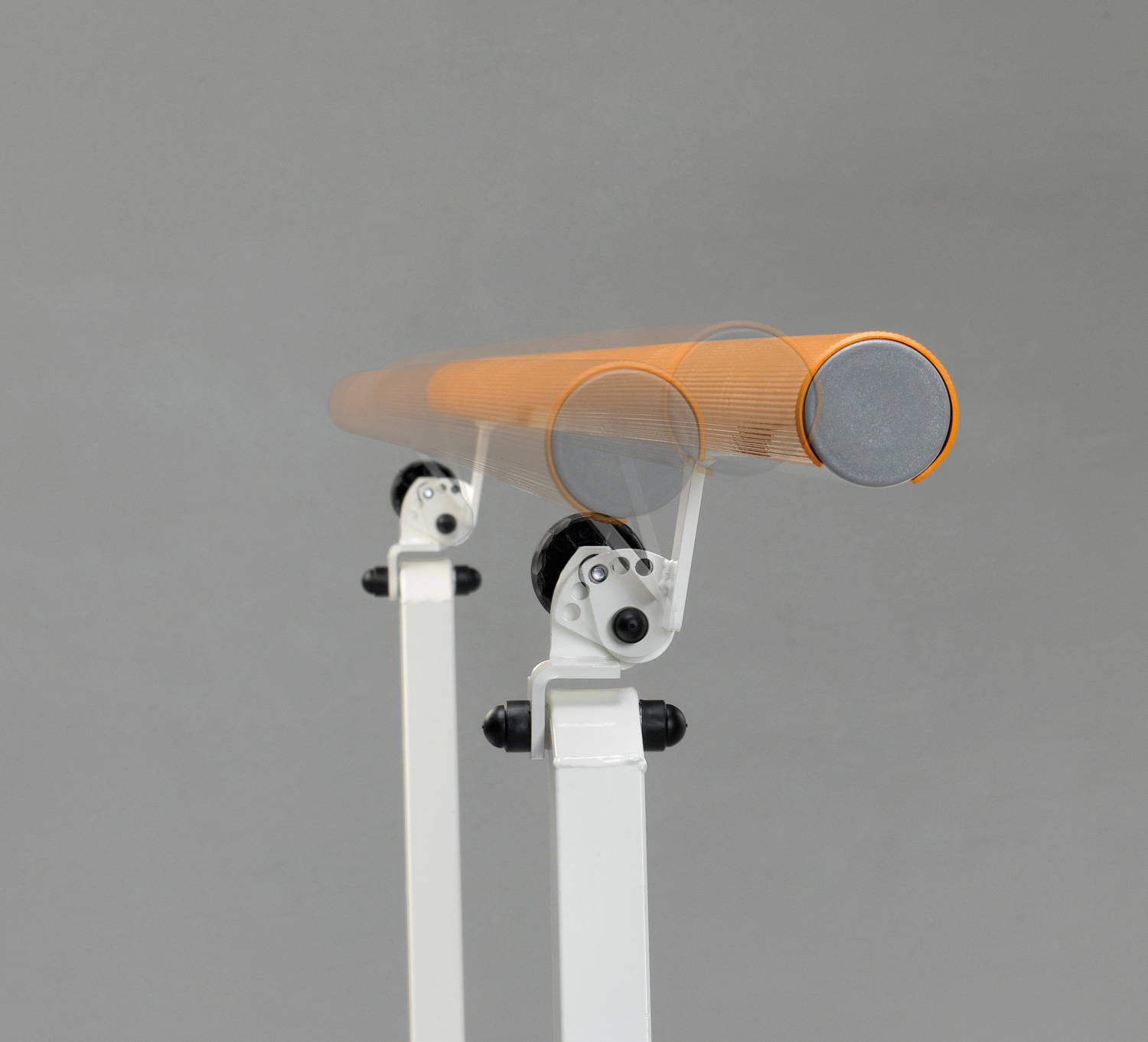

These parallel bars can be adjusted in height with the innovative “STandGOSystem™”, which allows immediate adaptation to the body of the user – both adults and children. The height of the handrails can also be modified during rehabilitation. Additionally, the distance between the handrails can be adjusted.



Thermoplastic modules or bags can be used on the platform to create specific therapeutic rehabilitation walk paths.


The modularity allows creating parallel bar systems of the desired length by removing the access ramps from the coupling side.



Accessories

Accessories

Obstacle-Hurdle Modules

01330
Thermoplastic modules useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Cart For Portable Walk Paths

01335
It is in painted steel and can be used for every type of module (empty).
Ask for quotation

Set Of Therapy Walk Paths

01379
A series of thermoplastic modules and bags containing different materials can be used as accessories to create ambulation walkpaths.
Ask for quotation

Parallel Bar Glider

01380
Parallel bar glider applicable to all parallel bars. It offers greater support to the person during ambulation.
Ask for quotation

1 Kg Gait Bag

02400
Walking sand bag, 1 kg
Ask for quotation

2 Kg Gait Bag

02410
Walking sand bag, 2 kg
Ask for quotation

3 Kg Gait Bag

02420
Walking sand bag, 3 kg
Ask for quotation

Set Of Gait Bags

02430
Set of 12 sand bags of different weights and sizes
Ask for quotation

300 G Motor Training Bag

02500
300 g motor training bag. Contains PVC granules. Four cover colors available.
Ask for quotation

Motor Training Bag Set

02510
Motor training bag set. It includes 16 motor training bags.
Ask for quotation

Set Of Sensory Bags

08585
It includes 12 bags containing different materials in order to offer different support sensibility.
Ask for quotation

Rolls And Bags

08586
Texturized thermoplastic modules with wooden roll and sensory bag. Useful to create walking exercises and perturbations during rehabilitation program. Set of...
Ask for quotation

Sensory Modules

08587
Texturized thermoplastic sensorial modules. Useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Hemispheres

08589
Texturized thermoplastic modules with hemispheres. Useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Concave-Convex

08591
Concave-convex thermoplastic modules. Useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Limit Bar

AC0550
The limit and support accessory can be requested to assist the user with changing the walking direction, and extending the therapeutic rehabilitation course.
Ask for quotation
Technical Spec.

Technical Spec.

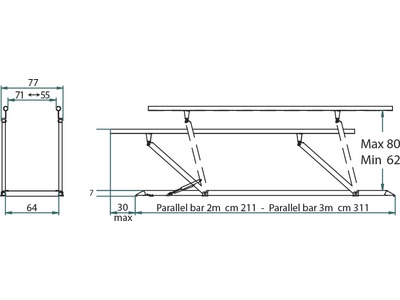

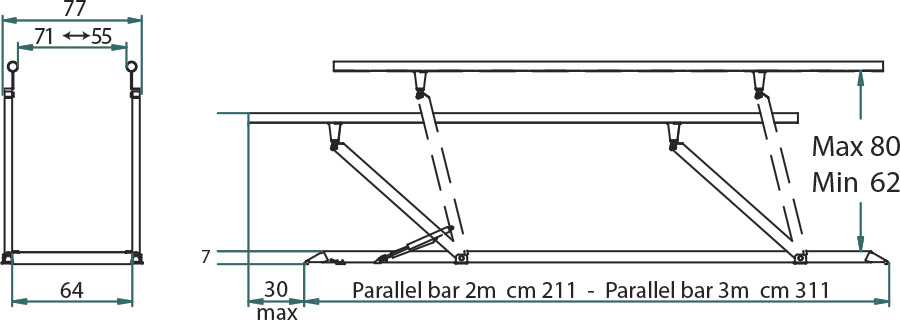

Max dimensions (cm):
311 x 81 x 87 H
Handrail height adjustment system:
double gas sprint
Min – max handrail height (cm):
64 ÷ 80
Handrail width adjustment system:
Manual, 3 positions
Handrail width min - max (cm):
55 ÷ 71
Individual handrail loadbearing capacity:
135 Kg
Modularity (combination of more parallel bars):
Removable access slide
Weight:
99 Kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0085086

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 300 x 21 x 17 h kg 20 mc 0.1071
2 SCATOLA SU BANCALE cm 320 x 83 x 11 h kg 70 mc 0.29216
Video

Video

TG NEWS - Cyberlegs Project
Parallel Bars 3 Mt. - Plus Line
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 09/04/2015
Language: Italian, English
DOWNLOAD
PDF 202.64 KB
Register to access the content

User and Maintenance Manual

Manual
Document date: 04/03/2015
Language: Italian, English
DOWNLOAD
PDF 1.26 MB
Register to access the content
