PARALLEL BARS PLUS 3M

0
1
3
2
6
Quantity:

Description

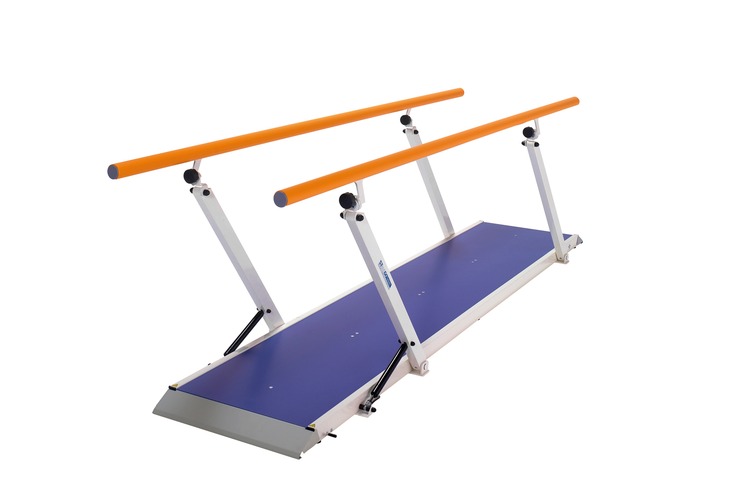

It is a 3-meter long parallel bar system used for rehabilitation walking. The painted steel framework has a wooden, laminated, wear-proof platform and is equipped with access ramps.

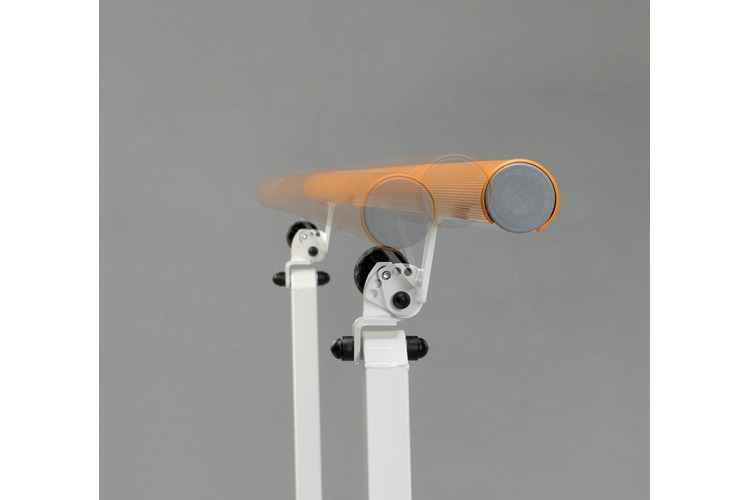

These parallel bars can be adjusted in height between 74 and 102 cm with the innovative STandGOSystem™”, which allows immediate adaptation to the build of the user - both adults and children. The height of the handrails can also be modified during rehabilitation. Additionally, the handrails can be adjusted in width from 55 to 71 cm. The handrails are thermoplastic and non-slip. All parts can be easily disinfected.

The modularity allows creating parallel bar systems of the desired length by removing the access ramps from the joining side (reference modules are items codes no. 01325 and no. 01326).

Thermoplastic modules, motor training, sensory bags and different density pads can be used on the parallel bars to create a challenging training environment and develop a variety of instability exercises. Weight: 99 kg.



EASIER VERTICALIZATION

When making height adjustments, also check the translation of the parallel bars. The dynamics of this function allow the user to comfortably place his/her forearms on the handrails while remaining seated, without having to be transferred onto the main platform by wheelchair. In this manner, the patient can apply the levers and effort available for his/her natural verticalization while supported by the “STandGOSystem™”, and reduce the necessity for assistance from the therapist.


OPTIMIZING PATIENT LOCOMOTION

The parallel bars with the STandGOSystem™ allow carrying out step training by optimizing patient locomotion as a result of the simple and immediate adjustment system for height and width, with adaptation to the motor pattern that will be developed. During the initial phase, maximum support is ensured to the upper limbs; then, the handrail height is progressively reduced until the user’s hands just brush them or don’t touch them at all. In this manner, the parallel bars will not be an obstacle for correct posture by the user when ambulating during functional recovery.


MODULARITY

The modularity of our parallel bar systems allows the patient to be involved and motivated when ambulating, leaving the therapist more time to dedicate to observing and evaluating functional improvements during the exercise. Therefore, the therapist can concentrate - especially in the case of subjects with extremely compromised neuro-motor characteristics - on continuously correcting gestures, rate, angles and the kinematic mechanism while the patient ambulates, until the most correct motor pattern is obtained.


PARALLEL BAR GLIDER

During the initial phase of identifying the therapeutic rehabilitation program, use of an antebrachial support on the parallel bars allows an evaluation of how the patient ambulates in a completely safe environment. This solution prevents possible interruptions while carrying out the therapeutic rehabilitative exercise and also ensures safe restraint of the person. Intervention by the operator is limited to watching over the patient.



NOTICE!

It is possible to request a colour customization for the handrails, and the footboard in case of a quantity purchase. The product picture with handrails and platform in white is available in the below photo gallery.

Accessories

Accessories

Yowalk Plus

XYW001
Mat with book bag certified as a medical device, designed for Progressive Plantar Reactivation. Reactivating blood circulation is the key to generating benef...
Ask for quotation

Obstacle-Spacer

01330
It can be placed transversely as an obstacle to walking and to be overcome, or as an element to help keep the patient's legs spread apart.
Ask for quotation

Rolls And Bags

08586
Texturized thermoplastic modules with wooden roll and sensory bag. Useful to create walking exercises and perturbations during rehabilitation program. Set of...
Ask for quotation

Sensory Modules

08587
Texturized thermoplastic sensorial modules. Useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Concave-Convex

08591
Concave-convex thermoplastic modules. Useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Hemispheres

08589
Texturized thermoplastic modules with hemispheres. Useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Set Of Therapy Walk Paths

01379
A series of thermoplastic modules and bags containing different materials can be used as accessories to create ambulation walkpaths.
Ask for quotation

Cart For Portable Walk Paths

01335
It is in painted steel and can be used for every type of module (empty).
Ask for quotation

Parallel Bar Glider

01380
Parallel bar glider applicable to all parallel bars. It offers greater support to the person during ambulation.
Ask for quotation

1 Kg Gait Bag

02400
Walking sand bag, 1 kg
Ask for quotation

2 Kg Gait Bag

02410
Walking sand bag, 2 kg
Ask for quotation

3 Kg Gait Bag

02420
Walking sand bag, 3 kg
Ask for quotation

Set Of Gait Bags

02430
Set of 12 sand bags of different weights and sizes
Ask for quotation

300 G Motor Training Bag

02500
300 g motor training bag. Contains PVC granules. Four cover colors available.
Ask for quotation

Motor Training Bag Set

02510
Motor training bag set. It includes 16 motor training bags.
Ask for quotation

Set Of Sensory Bags

08585
It includes 12 bags containing different materials in order to offer different support sensibility.
Ask for quotation

Limit Bar

AC0550
The limit and support accessory can be requested to assist the user with changing the walking direction, and extending the therapeutic rehabilitation course.
Ask for quotation

Anti-Slip Set For Parallel Bars

AC1257
Non-slip adhesive strips applicable to the base platform of any parallel bar. Particularly useful in the case of use without shoes. 16 pieces.
Ask for quotation

Soft Pad

AR12101
Soft density proprioceptive cushion with square dimensions 5 cm thick. The pad has imitation-leather upholstery with antibacterial treatment and it's easy to...
Ask for quotation

Medium Pad

AR12102
Medium density proprioceptive cushion with square dimensions 5 cm thick. The pad has imitation-leather upholstery with antibacterial treatment and it's easy ...
Ask for quotation

Hard Pad

AR12103
Hard density proprioceptive cushion with square dimensions 5 cm thick. The pad has imitation-leather upholstery with antibacterial treatment and it's easy to...
Ask for quotation

Set Of Proprioceptive Pads

AR12100
Set of 3 pads with identical dimensions but different density (soft, medium, hard) to be not identifiable by patients. They can be combined via a velcro system.
Ask for quotation

Kit Strap

AR12104
Set of 3 velcro straps. Designed for paths or composition of several pads, so that each pads is always firmly attached to its neighbor without any sudden sep...
Ask for quotation
Technical Spec.

Technical Spec.

Max dimensions (cm):
311 x 81 x 108 H
Handrail height adjustment system:
double gas sprint
Min – max handrail height (cm):
74 ÷ 102
Handrail width adjustment system:
Manual, 3 positions
Handrail width min - max (cm):
55 ÷ 71
Individual handrail loadbearing capacity:
135 Kg
Modularity (combination of more parallel bars):
Removable access slide
Weight:
99 Kg
Gallery

Gallery

Logistics

Logistics

Taric Code:
95069190
Code Repertoire:
0085086

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 320 x 80 x 12 h kg 78.1 mc 0.3072
2 SCATOLA cm 320 x 20 x 10 h kg 21.75 mc 0.064
Video

Video

Parallel bars Plus 3M Tilt - Adjustments and key features
Parallel bars Plus 3M Tilt - Accessories
Parallel bars Plus line - An overview
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Parallele standard e plus

DICO - EU declaration of conformity
Document date: 11/10/2023
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB

Parallel bars standard and plus

DICO - EU declaration of conformity
Document date: 11/10/2023
Language: English
Version: 1.0.2
DOWNLOAD
PDF 1.5 MB

Paralelas estÁndar y plus

IFU - Instruction of use
Document date: 03/05/2023
Language: Spanish
Version: 1.0.1
DOWNLOAD
PDF 4.67 MB

Parallel bars standard and plus

IFU - Instruction of use
Document date: 03/05/2023
Language: English
Version: 1.0.2
DOWNLOAD
PDF 4.62 MB

GÅbarr parallell standard och plus

IFU - Instruction of use
Document date: 03/05/2023
Language: Swedish
Version: 1.1.7
DOWNLOAD
PDF 4.62 MB

Parallele standard e plus

IFU - Instruction of use
Document date: 03/05/2023
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 4.63 MB

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 110.12 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 04/03/2015
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.26 MB
Register to access the content

Mode d'emploi

Manual - past Edition
Document date: 30/07/2013
Language: French
Version: V 1.0
DOWNLOAD
PDF 503.88 KB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 30/07/2013
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 581.4 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 30/07/2013
Language: English
Version: V 1.0
DOWNLOAD
PDF 282.84 KB
Register to access the content
Testimonials

Testimonials

“I feel that the simultaneous movement of the translation and the adjustment of the handrails for height provide greater safety both when standing up as well as when sitting down and less physical effort is required.  The system also facilitates the physical therapist’s...
