PARALLEL BARS 2.5 M

0
1
3
2
9
Quantity:

Description

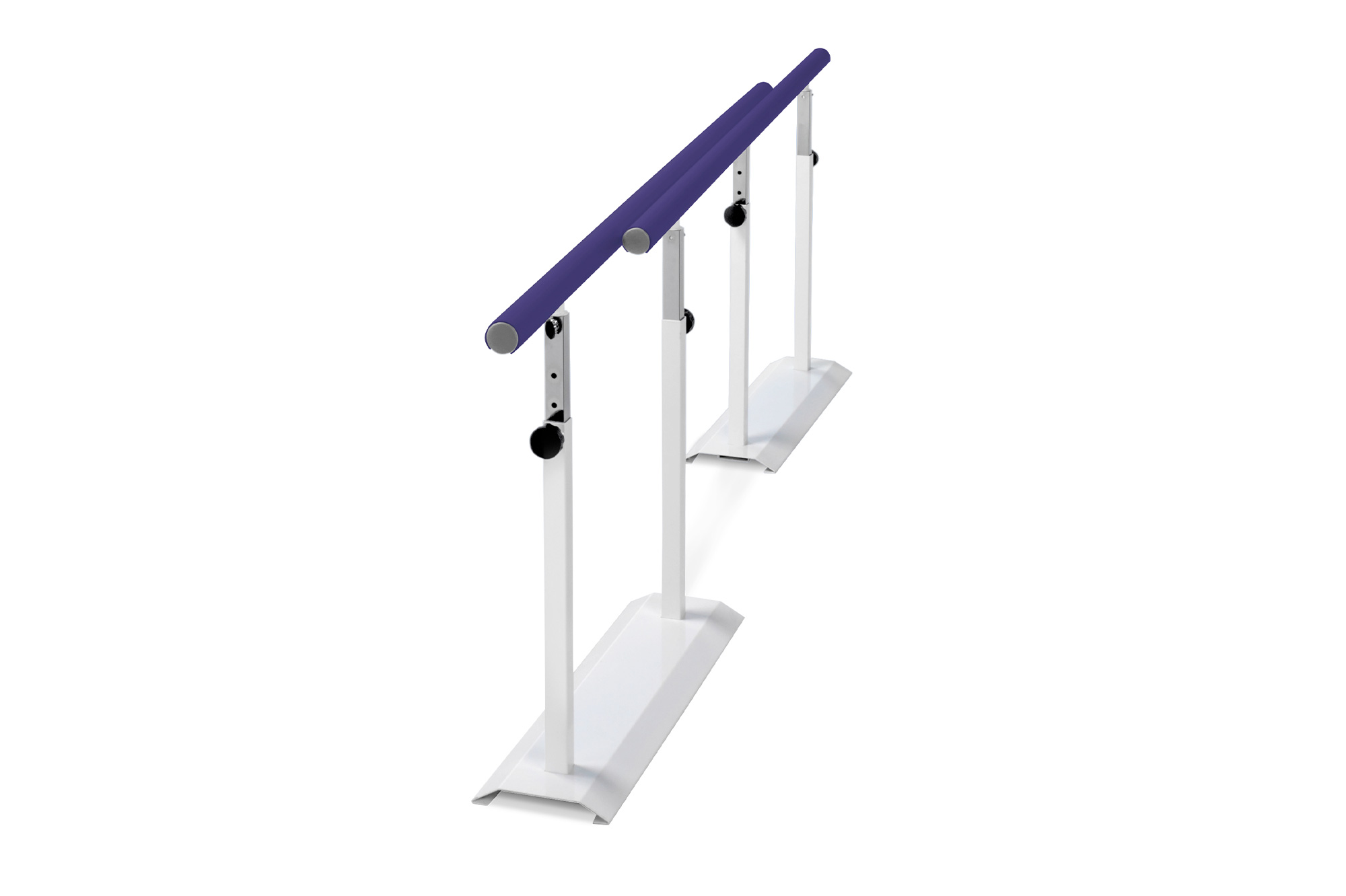

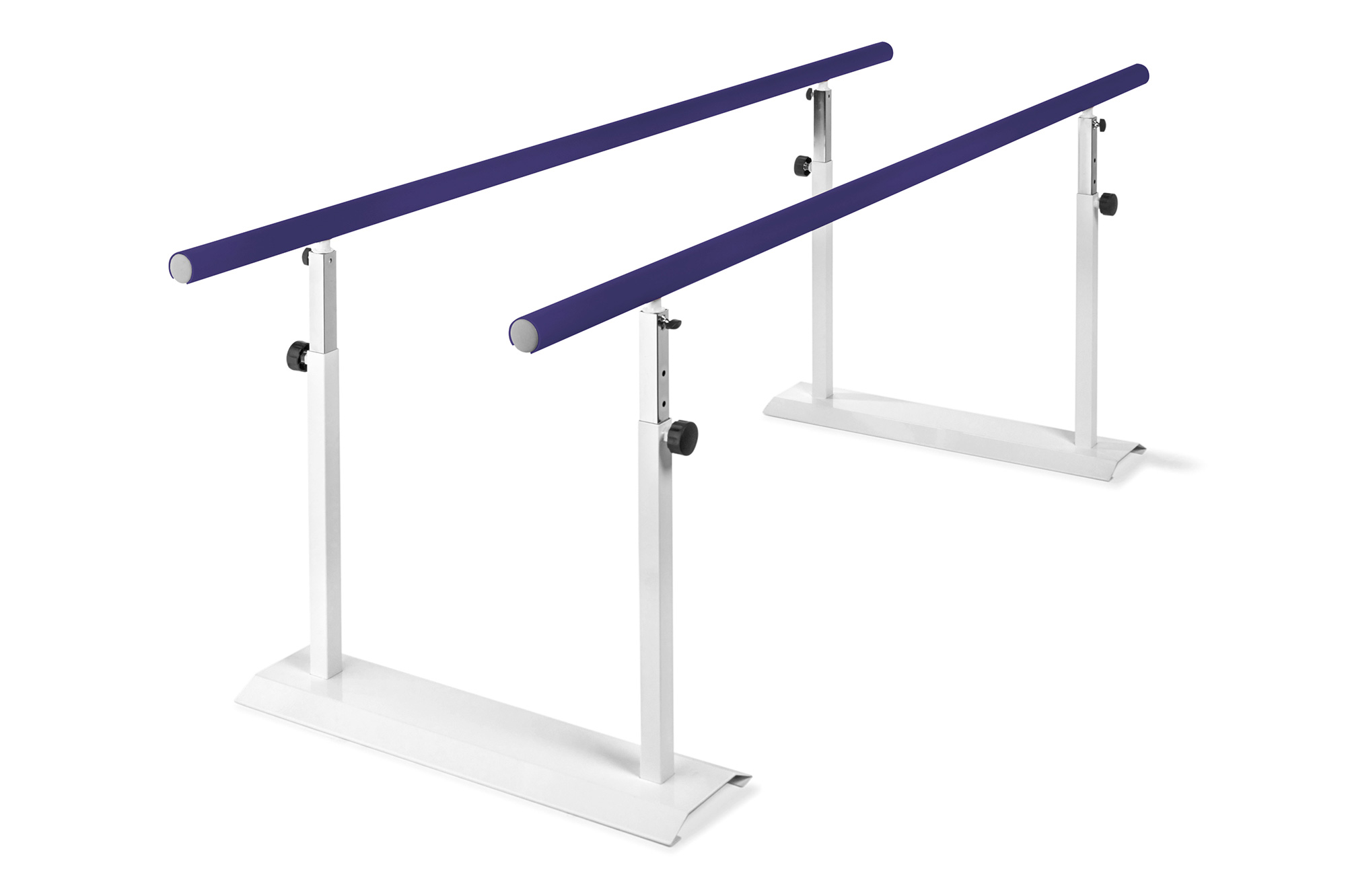

It is a 2.5-meter long parallel bar system used for rehabilitation walking. The painted steel framework has a wooden, laminated, wear-proof platform and is equipped with access ramps.

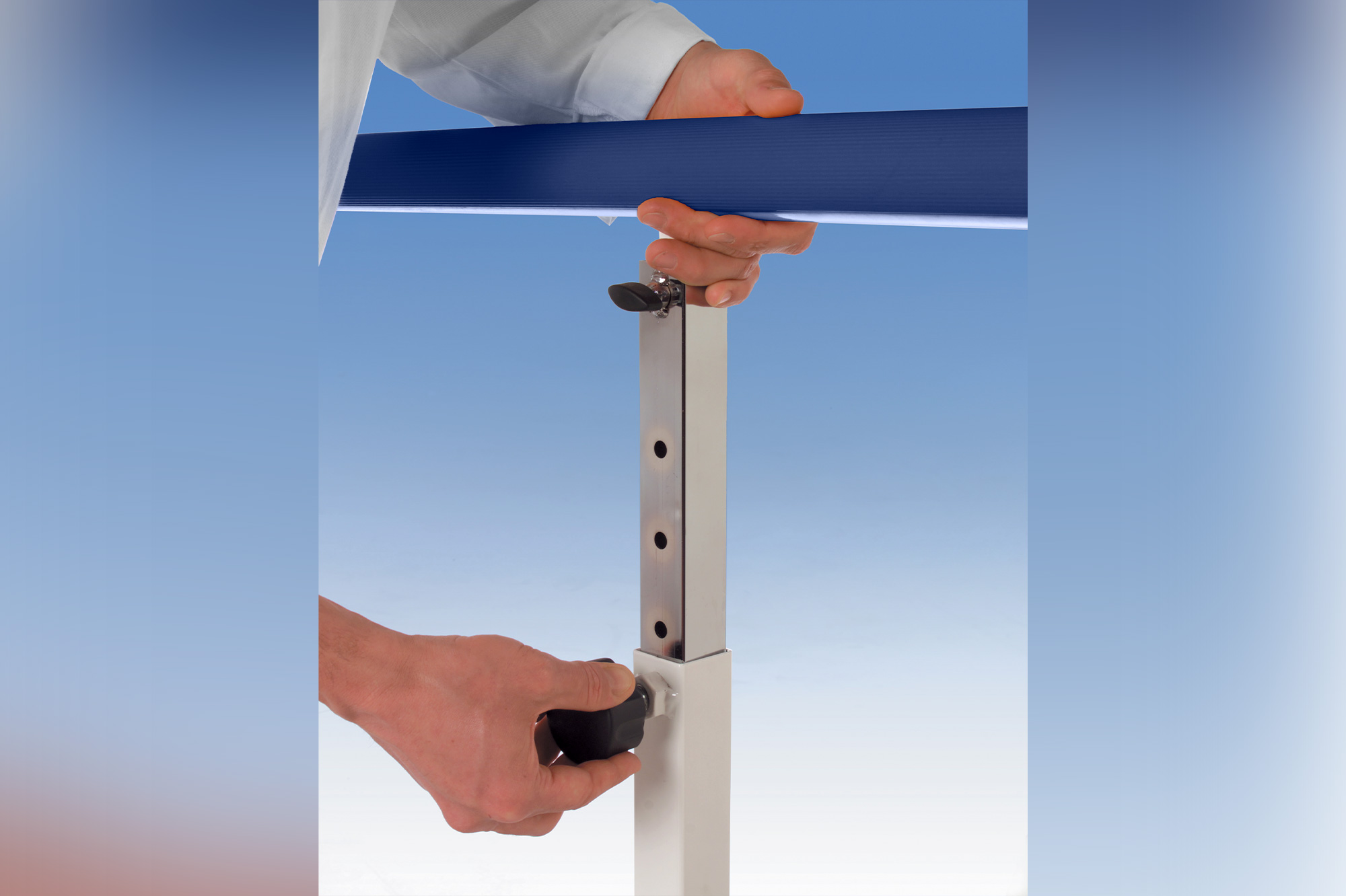

These parallel bars can be adjusted in height between 80 and 110 cm using a telescopic system. Locking is assured by a twin hand wheel that prevents both accidental loosening as well as possible slight settling of the uprights when the ambulating person is being loaded. The handrails are thermoplastic and non-slip. All parts can be easily disinfected.

Thermoplastic modules, motor training, sensory bags and different density pads can be used on the parallel bars to create a challenging training environment and develop a variety of instability exercises. Weight: 43 kg

The framework is foldable and is therefore suitable for use in small spaces and also allows for the reciprocal distance adjustment between the handrails.



MODULARITY

The modularity of our parallel bar systems allows the patient to be involved and motivated when ambulating, leaving the therapist more time to dedicate to observing and evaluating functional improvements during the exercise. Therefore, the therapist can concentrate - especially in the case of subjects with extremely compromised neuro-motor characteristics - on continuously correcting gestures, rate, angles and the kinematic mechanism while the patient ambulates, until the most correct motor pattern is obtained.


PARALLEL BAR GLIDER

During the initial phase of identifying the therapeutic rehabilitation program, use of an antebrachial support on the parallel bars allows an evaluation of how the patient ambulates in a completely safe environment. This solution prevents possible interruptions while carrying out the therapeutic rehabilitative exercise and also ensures safe restraint of the person. Intervention by the operator is limited to watching over the patient.



NOTICE!

Temporarily the colour of the handrails of this foldable parallel bar system model is available in blue. Do not hesitate to request the traditional orange colour of the handrails if necessary.

Accessories

Accessories

Yowalk Plus

XYW001
Mat with book bag certified as a medical device, designed for Progressive Plantar Reactivation. Reactivating blood circulation is the key to generating benef...
Ask for quotation

Obstacle-Spacer

01330
It can be placed transversely as an obstacle to walking and to be overcome, or as an element to help keep the patient's legs spread apart.
Ask for quotation

Rolls And Bags

08586
Texturized thermoplastic modules with wooden roll and sensory bag. Useful to create walking exercises and perturbations during rehabilitation program. Set of...
Ask for quotation

Sensory Modules

08587
Texturized thermoplastic sensorial modules. Useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Concave-Convex

08591
Concave-convex thermoplastic modules. Useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Hemispheres

08589
Texturized thermoplastic modules with hemispheres. Useful to create walking exercises and perturbations during rehabilitation program. Set of two pieces.
Ask for quotation

Set Of Therapy Walk Paths

01379
A series of thermoplastic modules and bags containing different materials can be used as accessories to create ambulation walkpaths.
Ask for quotation

Cart For Portable Walk Paths

01335
It is in painted steel and can be used for every type of module (empty).
Ask for quotation

Parallel Bar Glider

01380
Parallel bar glider applicable to all parallel bars. It offers greater support to the person during ambulation.
Ask for quotation

1 Kg Gait Bag

02400
Walking sand bag, 1 kg
Ask for quotation

2 Kg Gait Bag

02410
Walking sand bag, 2 kg
Ask for quotation

3 Kg Gait Bag

02420
Walking sand bag, 3 kg
Ask for quotation

Set Of Gait Bags

02430
Set of 12 sand bags of different weights and sizes
Ask for quotation

300 G Motor Training Bag

02500
300 g motor training bag. Contains PVC granules. Four cover colors available.
Ask for quotation

Motor Training Bag Set

02510
Motor training bag set. It includes 16 motor training bags.
Ask for quotation

Set Of Sensory Bags

08585
It includes 12 bags containing different materials in order to offer different support sensibility.
Ask for quotation

Soft Pad

AR12101
Soft density proprioceptive cushion with square dimensions 5 cm thick. The pad has imitation-leather upholstery with antibacterial treatment and it's easy to...
Ask for quotation

Medium Pad

AR12102
Medium density proprioceptive cushion with square dimensions 5 cm thick. The pad has imitation-leather upholstery with antibacterial treatment and it's easy ...
Ask for quotation

Hard Pad

AR12103
Hard density proprioceptive cushion with square dimensions 5 cm thick. The pad has imitation-leather upholstery with antibacterial treatment and it's easy to...
Ask for quotation

Set Of Proprioceptive Pads

AR12100
Set of 3 pads with identical dimensions but different density (soft, medium, hard) to be not identifiable by patients. They can be combined via a velcro system.
Ask for quotation

Kit Strap

AR12104
Set of 3 velcro straps. Designed for paths or composition of several pads, so that each pads is always firmly attached to its neighbor without any sudden sep...
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions max (cm):
247 x 90 x 110 H
Handrail height adjustment:
telescopic
Handrail height min - max (cm):
80 ÷ 110
Handrail width adjustment system:
Not available
Handrail width adjustment (cm):
Not available
Footboard incline adjustment:
Not available
Individual handrail loadbearing capacity (Kg):
135
Fold-away:
Minimum size 30 cm
Weight (Kg):
43
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0085086

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 93 x 30 x 80 h kg 27 mc 0.2232
2 SCATOLA cm 254 x 24 x 7 h kg 14 mc 0.042672
