STANDARD LONG STAIRCASE

0
1
3
4
5
Quantity:

Description

It includes 5 steps that are 9.5 cm high. The handrails are at a fixed height.

In a progressive therapeutic exercise, the use of stairs for rehabilitation is aimed at reintegration to home and creation of possible difficult situations that might occur in the outside environment.



STRUCTURAL FEATURES

The staircase rehabilitation program makes use of a system consisting of a set of raised platforms and staircases, made up of a painted steel framework, with wear-proof bi-laminated wooden steps and platforms, and thermoplastic non-slip handrails. All parts can be easily washed.


SAFETY USE

The steps have a continuous design, with rounded corners and tread to facilitate positioning of the foot. In addition, the steps have an insert that reduces the possibility of slipping, while at the same time it’s a secure foothold during walking.


MODULARITY

The staircase modules must be paired with a platform module in order to compose a rehabilitation path. Check "Accessories" section to choose the right platform for your needs.

Accessories

Accessories

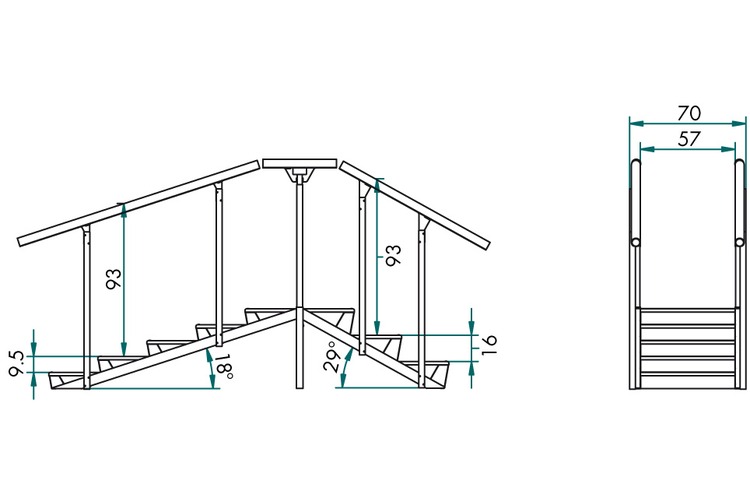

Straight Staircase Support

01336
Module intended for use with two staircases. Used to create a bridge-like structure.
Ask for quotation

Platform With 1 Staircase

01337
Module intended for use with a single staircase that can be chosen from among three alternatives: low or high steps, or a slide.
Ask for quotation

Platform With 2 Straight Staircases

01338
Module intended for use with two staircases. A bridge-like structure is created.
Ask for quotation

Platform With 2 Corner Staircases

01339
Module intended for use with two staircases. A corner structure is created.
Ask for quotation

Platform With 3 Staircases

01340
Module intended for use with three staircases. A combined structure is created.
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
50 kg
Max dimensions:
70x168 cm
Staircase and platform capacity:
180 kg
Single handrail capacity:
135 kg
Handrail height:
93 cm
Handrail center distance:
62 cm
Steps number:
5
Steps height:
9.5 cm
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0085086

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 165 x 75 x 19 h kg 48 mc 0.235125
