CPM LOWER LIMBS

Presentation

FISIOTEK 3000 Series

A range of models meets the operators’ various needs.It ranges from the model that allows you to work on three joints – knee, ankle and hip – to the more specific model for the knee including the simple and compact instrument suitable for rental.

Distinctive elements

Fisiotek 3000 is intended for use in rehabilitation to restore joint movement in both surgically and non-surgically treated medical conditions. It is therefore suitable for the needs of a considerable range of patients.
Its internal software has new programmable features that are useful and easy to use to customise therapy and promote the comfortable, gradual and effective recovery of joint mobility.
The line’s design makes use of high quality materials, such as aluminium and stainless steel to ensure greater dependability over time. The models’ linear frame and harmonic structure are pleasing to the patient and instil confidence.
The remote-control START & STOP functions and hand-held programmable keypad (optional) offer two ways to control the movement of the device: these two handsets are interchangeable and use the same connector.
Each model of the 3000 line is equipped with a Warm Up feature that can be used to warm the joint before therapy actually begins.

Treated pathologies

Arthrotomy, arthroscopy
Treatment following mobilization
Surgical treatment of fractures
Reconstructive surgery
Endoprosthetic implants
Operations on soft tissue

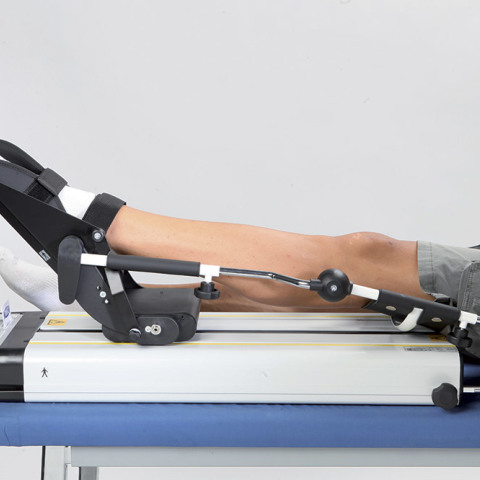

Plantarflexion of the ankle using Fisiotek 3000 TS

Dorsiflexion of the ankle using Fisiotek 3000 TS

Flexion-extension movement of the hip with Fisiotek 3000 E

Highlights

FISIOTEK 3000 MODEL COMPARISON

Technical features
ARTICLE CODE	XRI001 3000 GS	XRI002 3000 G	XRI003 3000 E	XRI004 3000 TS	XRI005 3000 N
Knee and hip mobilization	X	X	X	X	X
Ankle mobilization				X
Use of memory card	X			X
Speed control (flexion/extension)	X	X		X
Speed control			X		X
Workout duration control	X	X	X	X	X
Resistance	X	X	X	X	X
Automatic extension increase	X	X		X
Automatic flexion increase	X	X		X
Pause during extension	X	X		X
Pause during flexion	X	X	X	X	X
Warm up cycles	X	X	X	X	X
Adjustable foot rest	X	X	X
Knee movement range	-10° ÷ 120°	-10° ÷ 120°	-10° ÷ 120°	0° ÷ 110°	0° ÷ 110°
Ankle movement range				20° ÷ 0° ÷ 40°
Hip movement range	-7° ÷ 115°	-7° ÷ 115°	-7° ÷ 115°	-7° ÷ 115°	-7° ÷ 115°
Automatic extension increase limit	X	X		X
Automatic flexion increase limit	X	X		X
Repetitions at extension limit	X	X	X	X
Repetitions at flexion limit	X	X	X	X
