FISIOTEK LT-P

X
R
I
0
0
7
Quantity:

Description

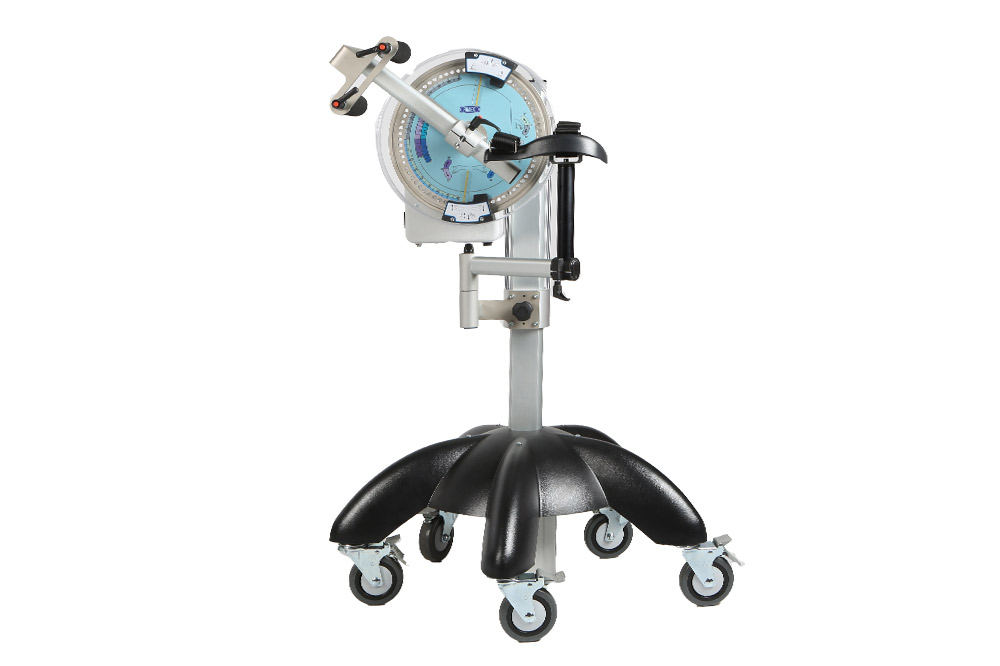

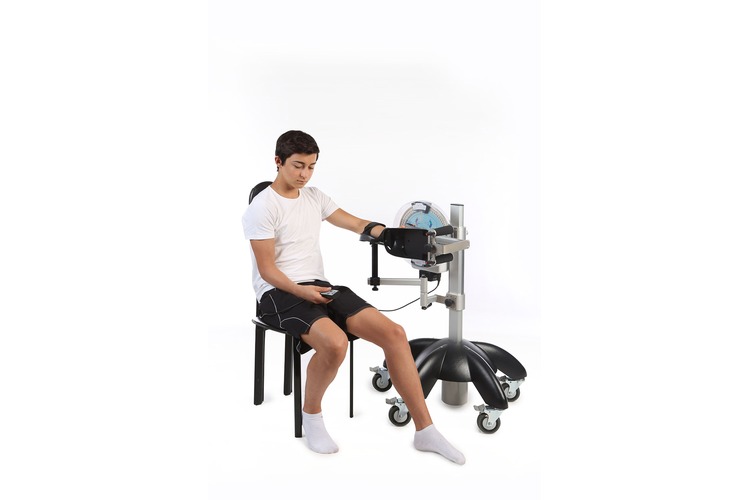

The Fisiotek LT-P is a mobilizer used for the passive rehabilitation of the wrist, by means of flexion-extension and ulnar-radial deviation movements.

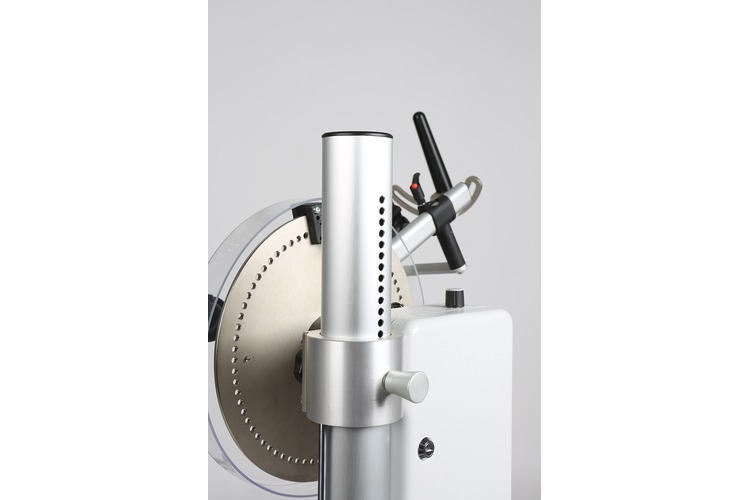

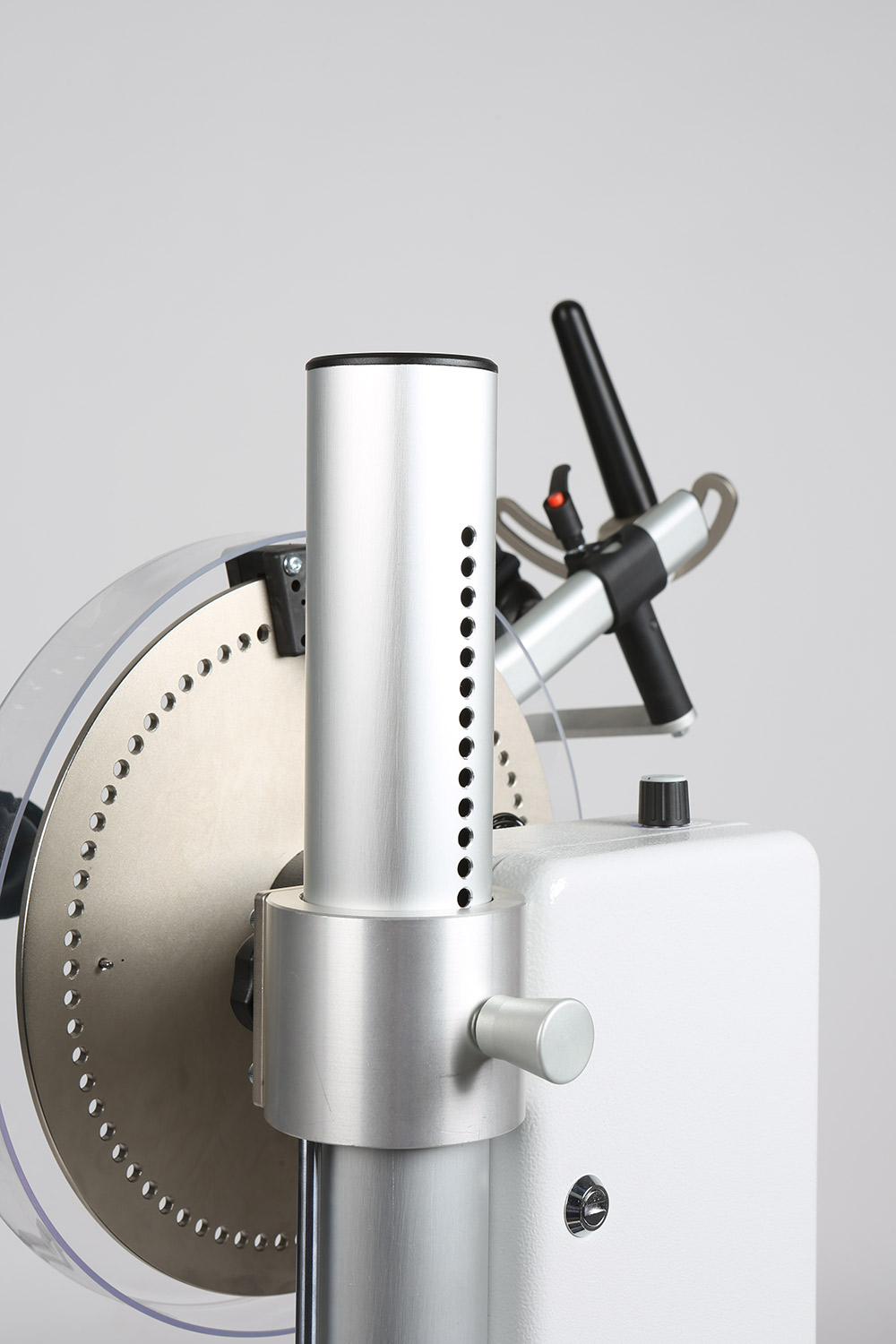

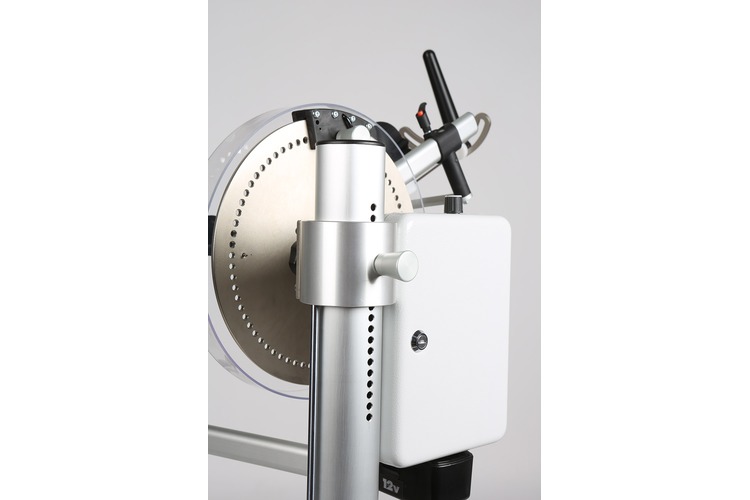

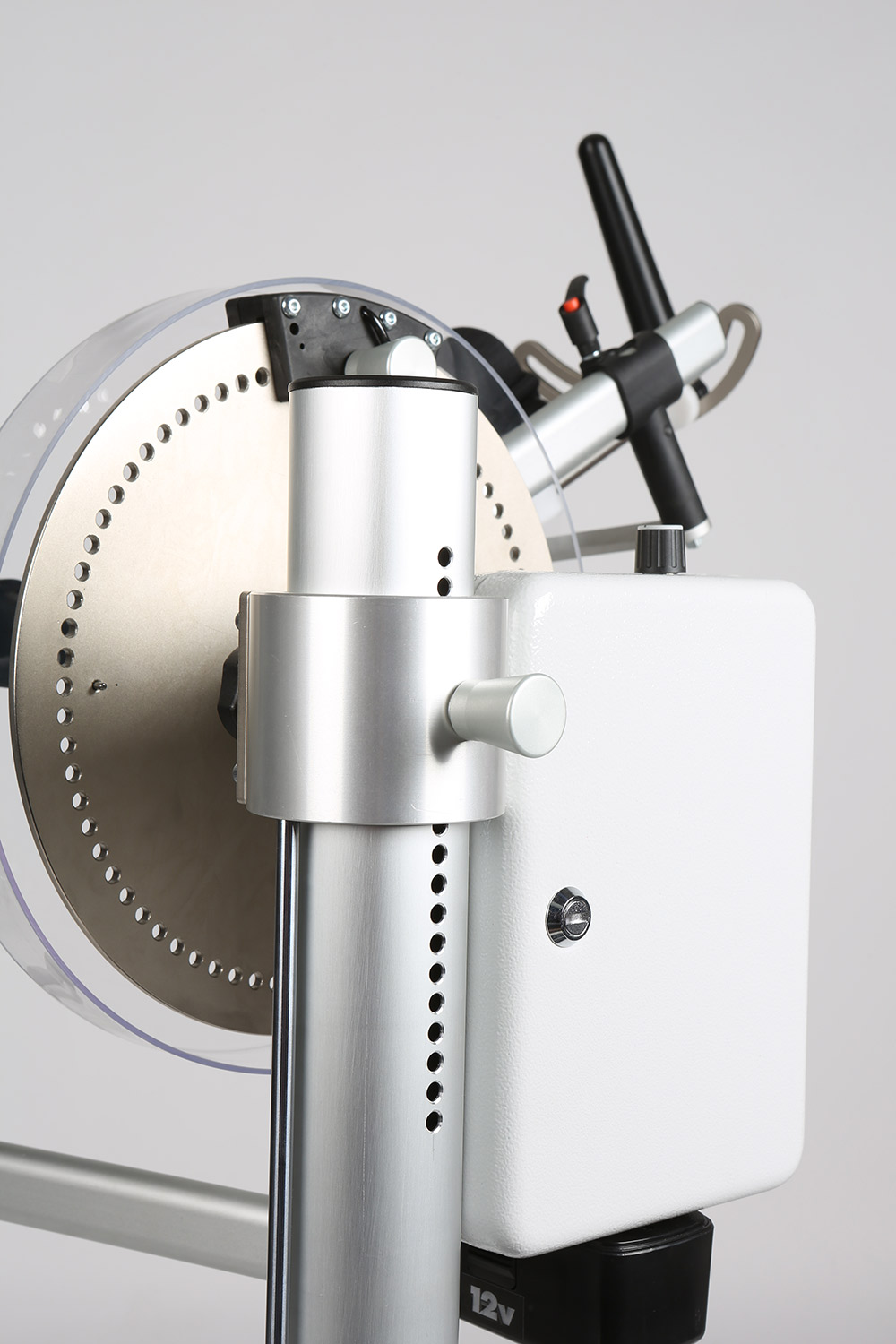

The structure of the device provides great stability and precision of movement to ensure effective recovery. The programming of the Range of Movement is done electro-mechanically. The graphic scale on the central disc makes programming easy and intuitive. It is possible to adjust the height of the unit; the movement can be supervised by remote control with Start & Stop. Quality mechanical parts ensure the correctness of the movement over time.



Movements carried out (with patient sitting):

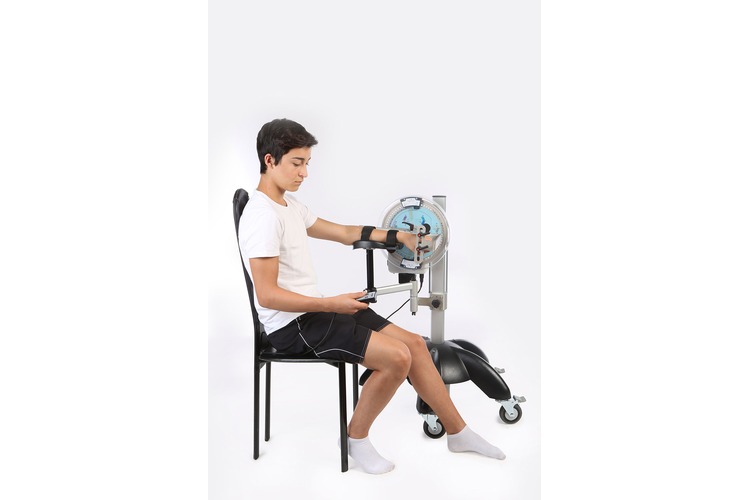

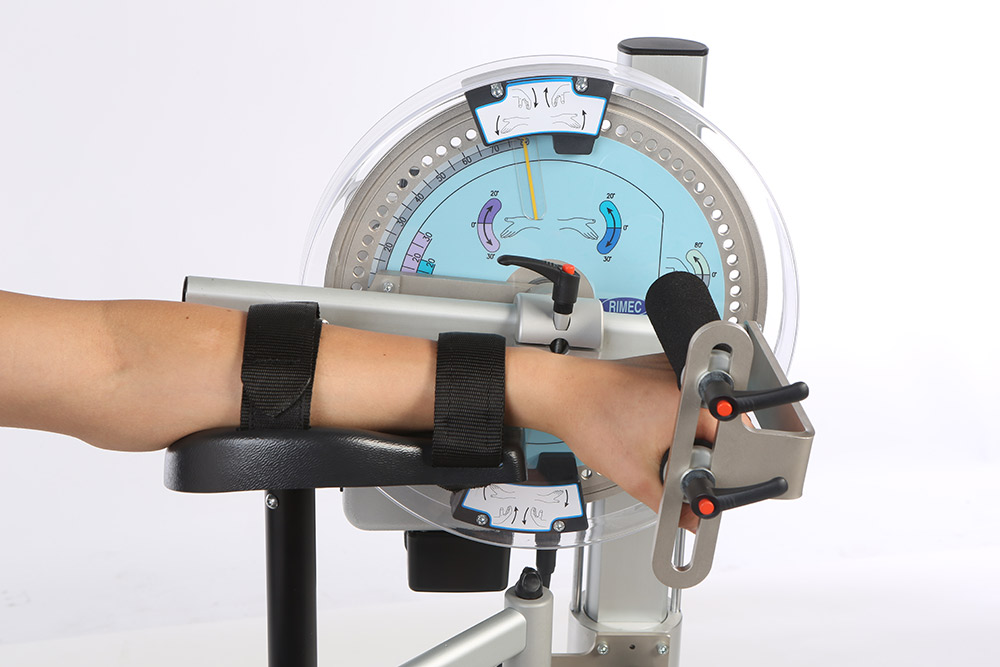

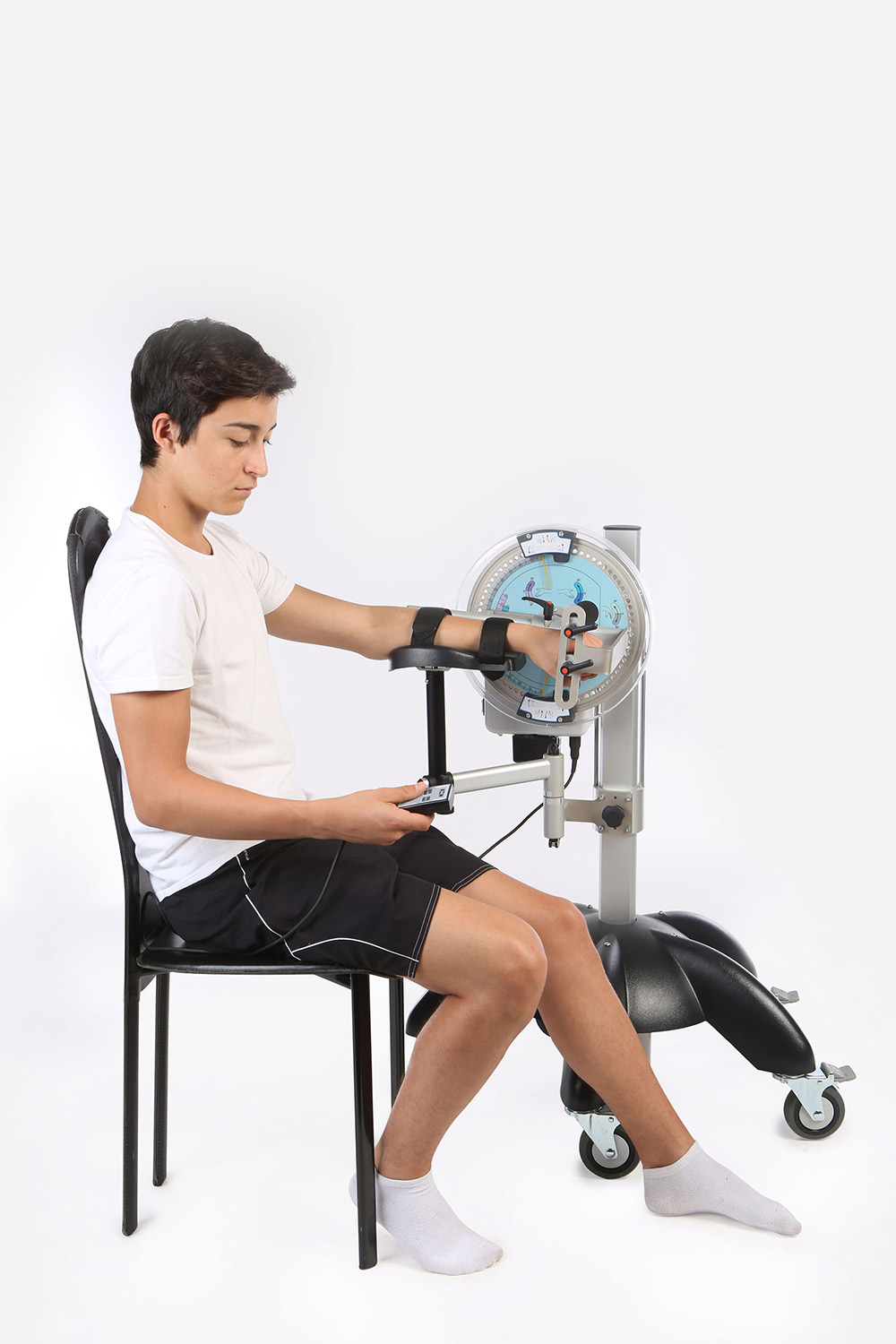

  • Flexion-extension : 80° ÷ 0° ÷ 80°

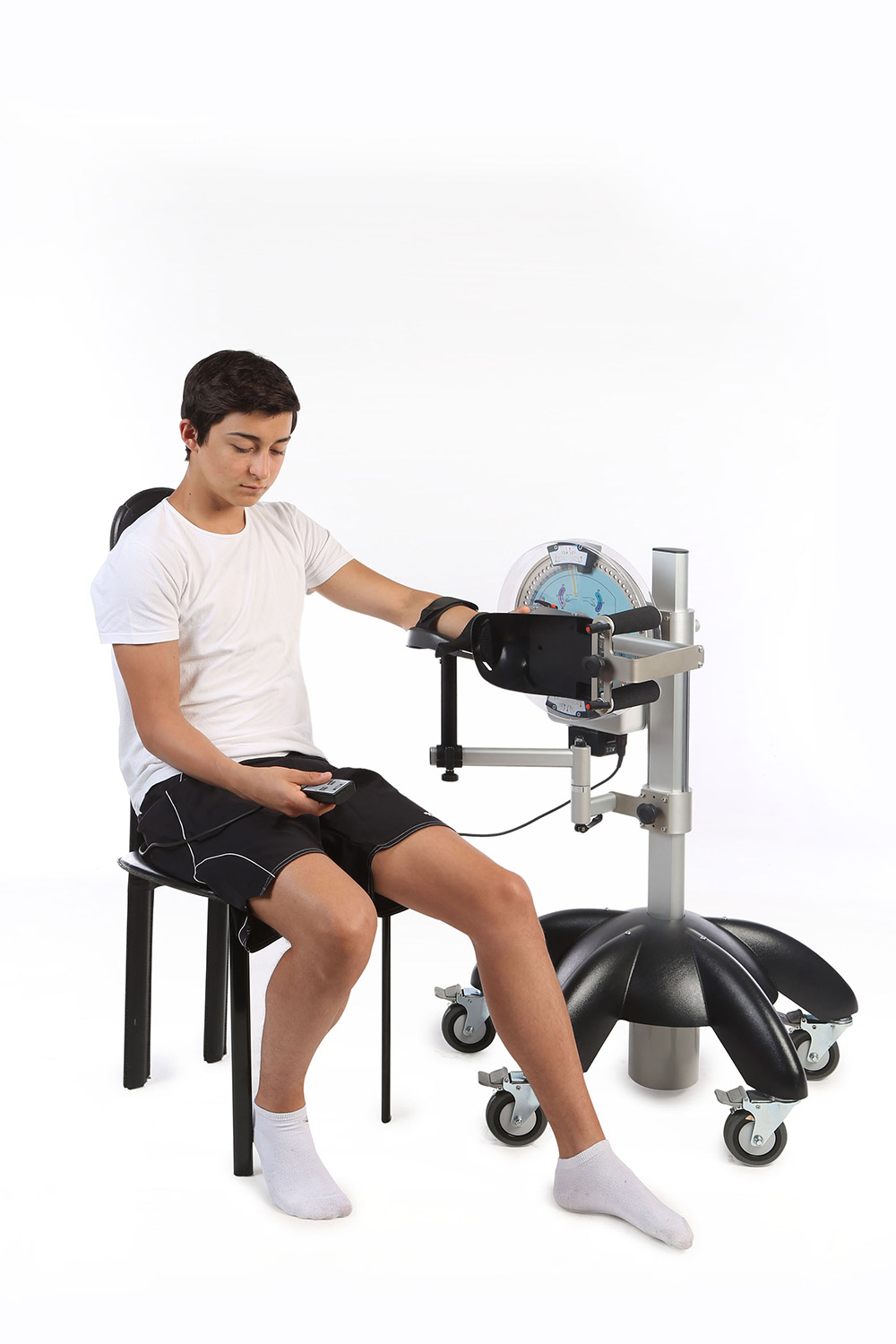

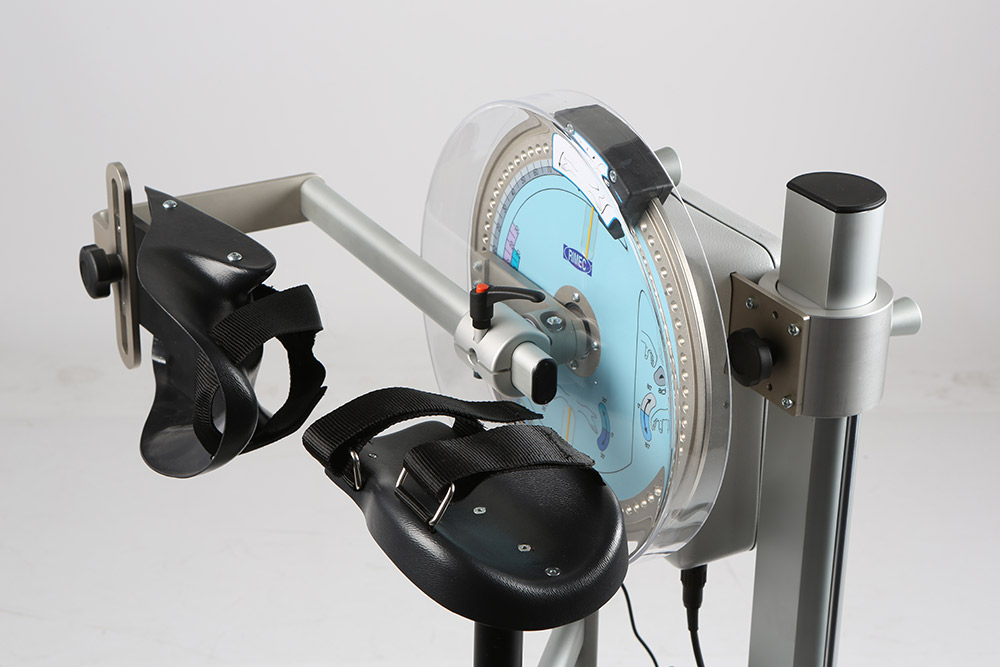

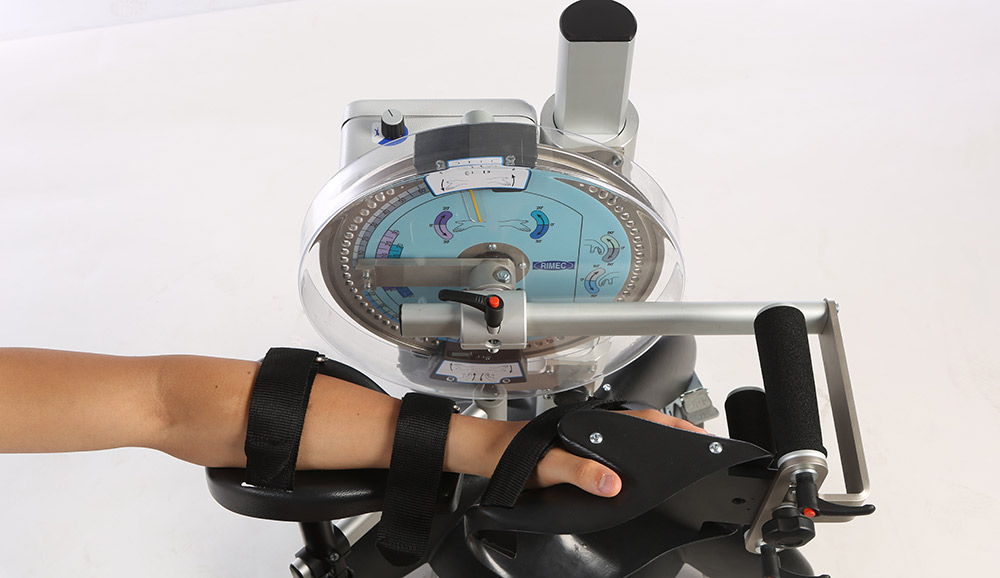

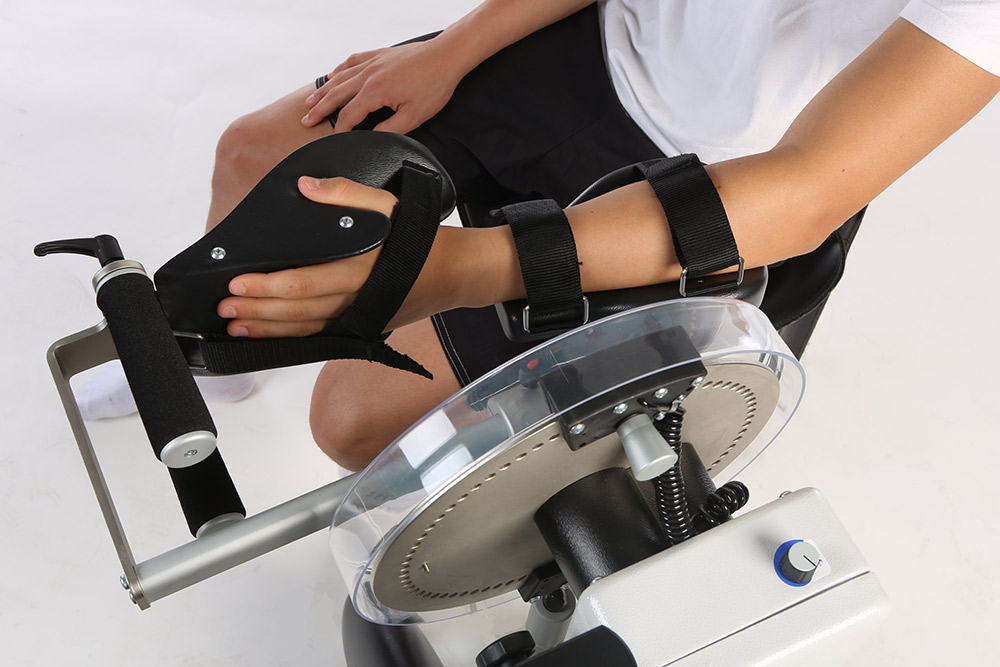

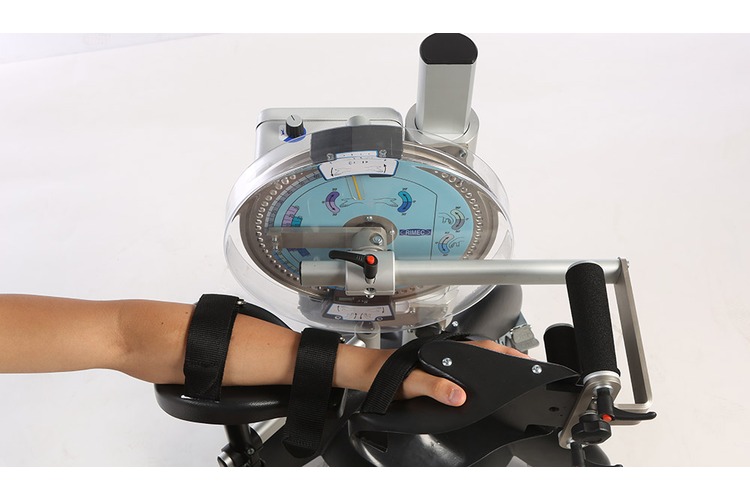

  • Ulnar/radial deviation: 20° ÷ 0° ÷ 30°


Programmable functions:

  • Speed: min. 2°/sec. – max. 4,5°/sec

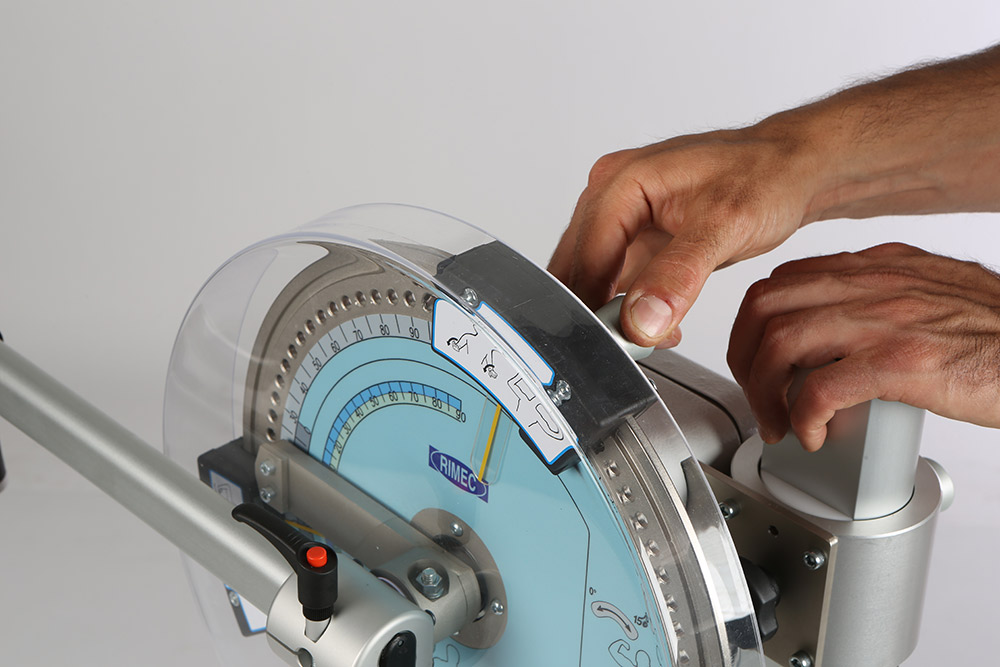

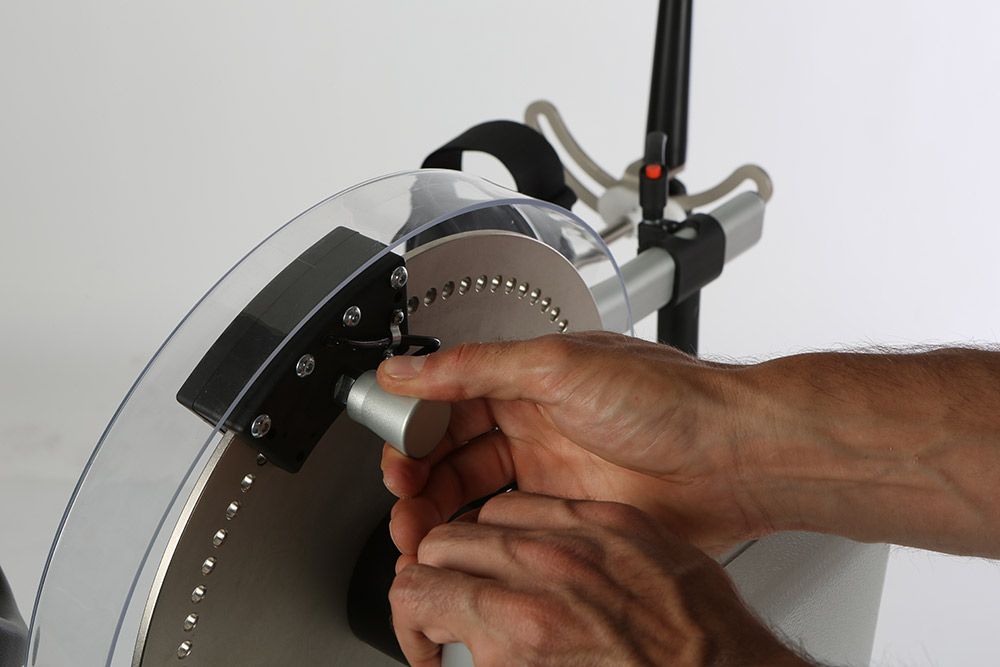

  • Range of movement: adjustment by electromechanical limit switch.



Treated pathologies:

  • Arthrotomy, arthroscopy
  • Treatment following mobilization
  • Surgical treatment of fractures
  • Reconstructive surgery
  • Endoprosthetic implants
  • Operations on soft tissue
Accessories

Accessories

Battery Charger

02115
External battery and battery charger for Fisiotek devices LT-G LT-P, LT
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
47 kg
Dimensions:
75 x 75 x 95 cm
Mains supply:
100÷240 V AC - 50÷60 Hz 400 mA
Input:
12 V DC 50/60 Hz - 4.8 W
Electric safety:
Class II BS EN 60601-1
Electromagnetic compatibility:
Group 1 Class BS EN 60601-1-2
Classification according to EEC Directive 93/42:
Class IIa
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
763408

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 135 x 80 x 80 h kg 48 mc 0.864
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Declaration of conformity

Compliance of statement - past edition
Document date: 22/09/2023
Language: English
Version: V 1.0
DOWNLOAD
PDF 228.13 KB
Register to access the content

Dichiarazione ce

Compliance of statement - past edition
Document date: 28/06/2023
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 154.8 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 19/10/2016
Language: English
Version: V 1.0
DOWNLOAD
PDF 2.45 MB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 19/10/2016
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 2.93 MB
Register to access the content
