FISIOTEK LT-G

X
R
I
0
0
6
Quantity:

Description

The Fisiotek LT-G is a mobilizer used for the passive rehabilitation of the elbow, by means of flexion-extension and pronosupination movements.


The structure of the device provides great stability and precision of movement to ensure effective recovery. The programming of the range of movement is done electro-mechanically. The graphic scale on the central disc makes programming easy and intuitive. It is possible to adjust the height of the unit; the movement can be supervised by remote control with Start & Stop. Quality mechanical parts ensure the correctness of the movement over time.



Movements carried out (with patient sitting):

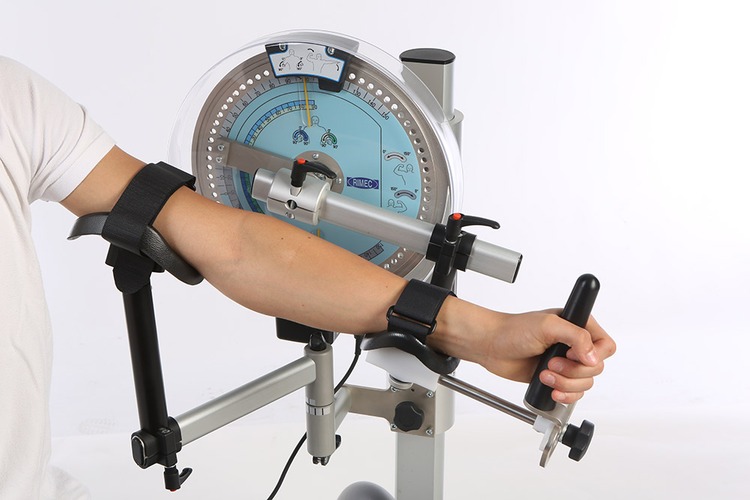

  • Flexion-extension : 0° ÷ 150°
  • Pronation-supination: 90° ÷ 0° ÷ 90°


Programmable functions:

  • Speed: min. 2°/sec. – max. 4,5°/sec

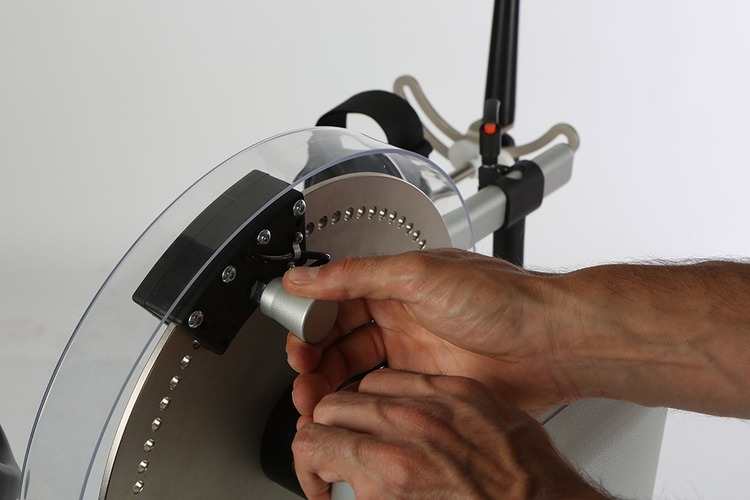

  • Range of movement: adjustment by electromechanical limit switch



Treated pathologies:

  • Arthrotomy, arthroscopy
  • Treatment following mobilization
  • Surgical treatment of fractures
  • Reconstructive surgery
  • Endoprosthetic implants
  • Operations on soft tissue



Attention! if you want to use the Fisiotek LT-G with battery without power cable, the Battery Kit accessory must be ordered together with the device. Otherwise the device is supplied to work only with mains power.

Accessories

Accessories

Battery Charger

02115
External battery and battery charger for Fisiotek devices LT-G LT-P, LT
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
47 Kg
Dimensions:
75 x 75 x 103 cm
Mains supply:
100÷240 V AC - 50÷60 Hz 400 mA
Input:
12V DC 50/60 Hz - 4.8 W
Electric safety:
Class II BS EN 60601-1
Electromagnetic compatibility:
Group 1 Class BS EN 60601-1-2
Classification according to EEC Directive 93/42:
Class IIa
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
763408

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 scatola su bancale cm 80 x 78 x 138 h kg 51 mc 0.86112
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Declaration of conformity

Compliance of statement - past edition
Document date: 22/09/2023
Language: English
Version: V 1.0
DOWNLOAD
PDF 228.13 KB
Register to access the content

Dichiarazione ce

Compliance of statement - past edition
Document date: 28/06/2023
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 154.8 KB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 19/10/2016
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 10.71 MB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 19/10/2016
Language: English
Version: V 1.0
DOWNLOAD
PDF 2.67 MB
Register to access the content
