FISIOTEK 3000GS

X
R
I
0
0
1
Quantity:

Description

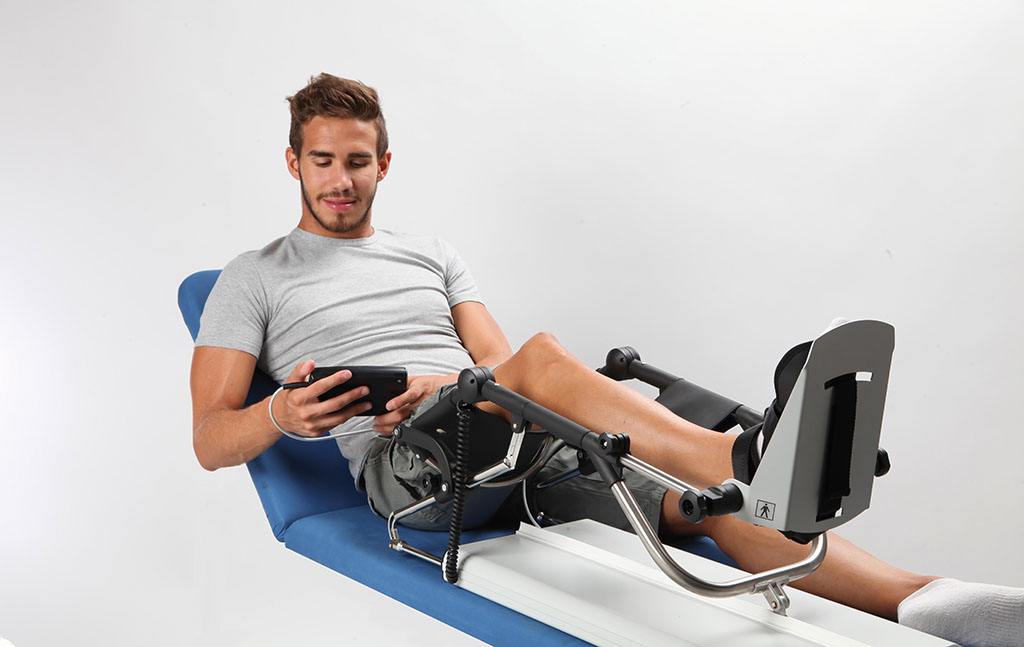

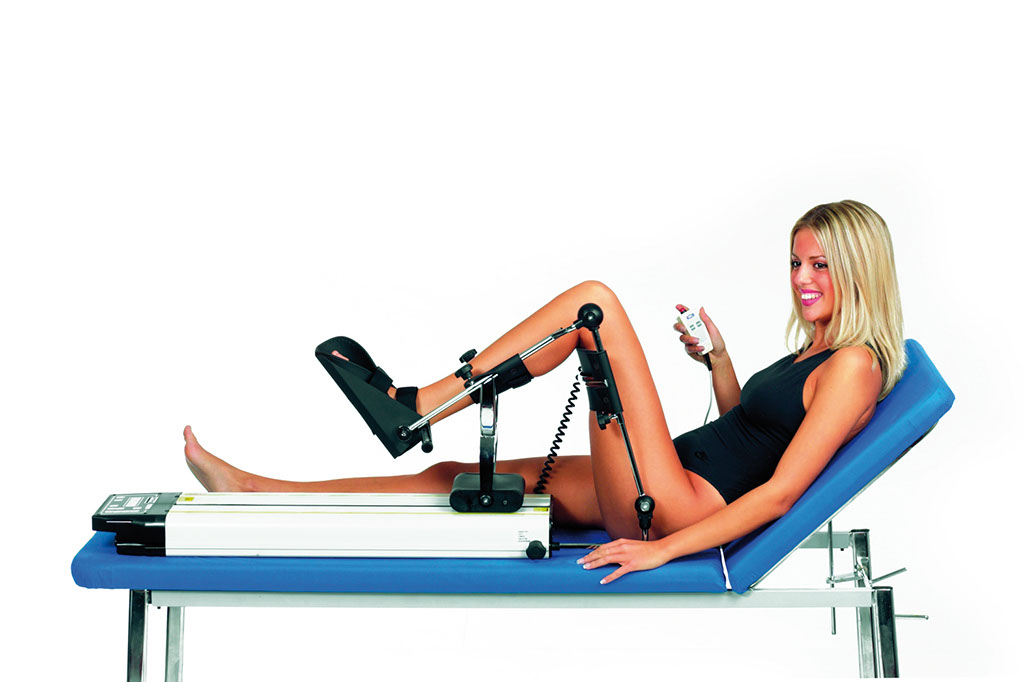

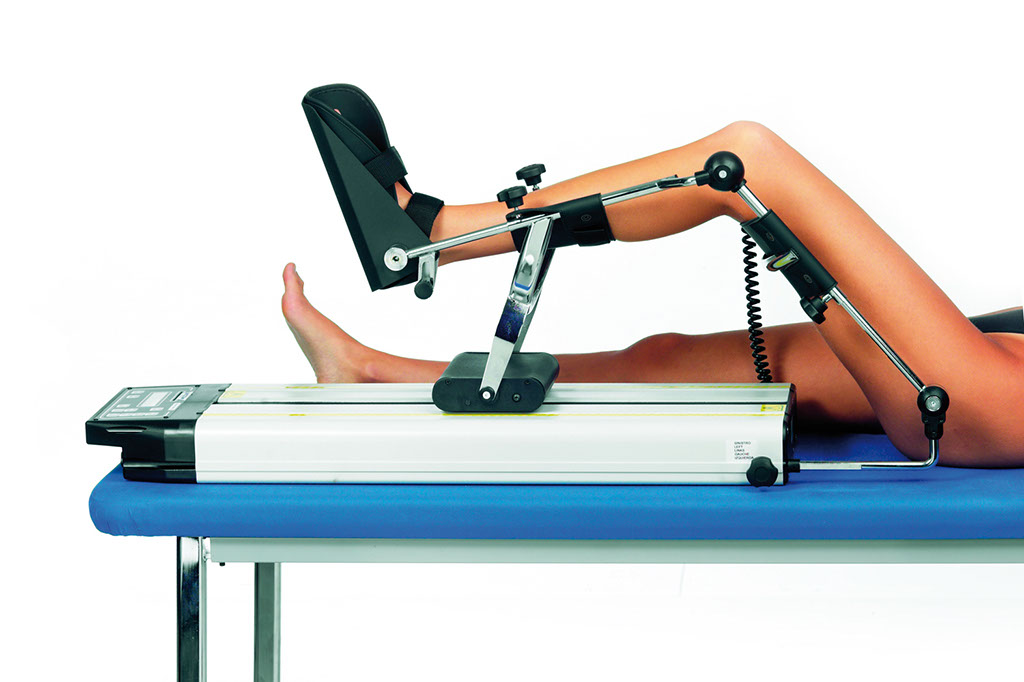

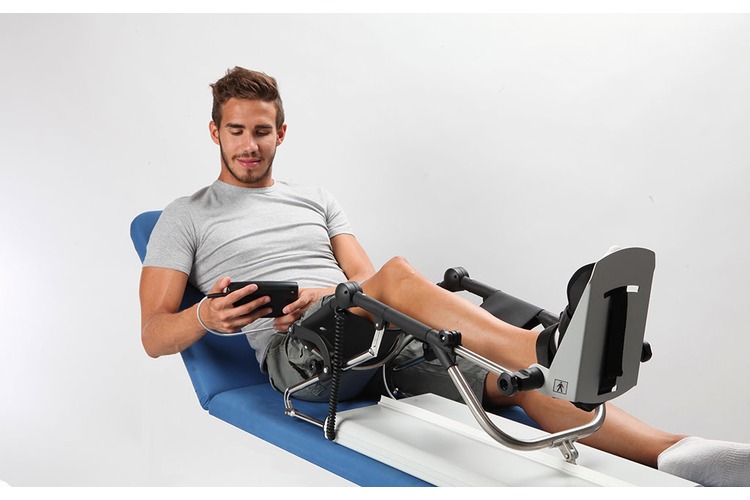

Model 3000 GS allows to mobilize the knee and hip through a flexo-extension movement.



The equipment moves based on the correct adjustments made according to the patient's femur length, which is required before positioning the limb.

It can be used in the rehabilitation of limbs having a femur length between 32 cm and 49 cm.



The equipment can be programmed using its programming console or floating keypad. With their new graphics containing lots of self-explanatory symbols, both programming options provide high clarity of image and complete user friendliness. By programming the functions, it is possible to meet various rehabilitation requirements, for a tailor-made, more effective action.

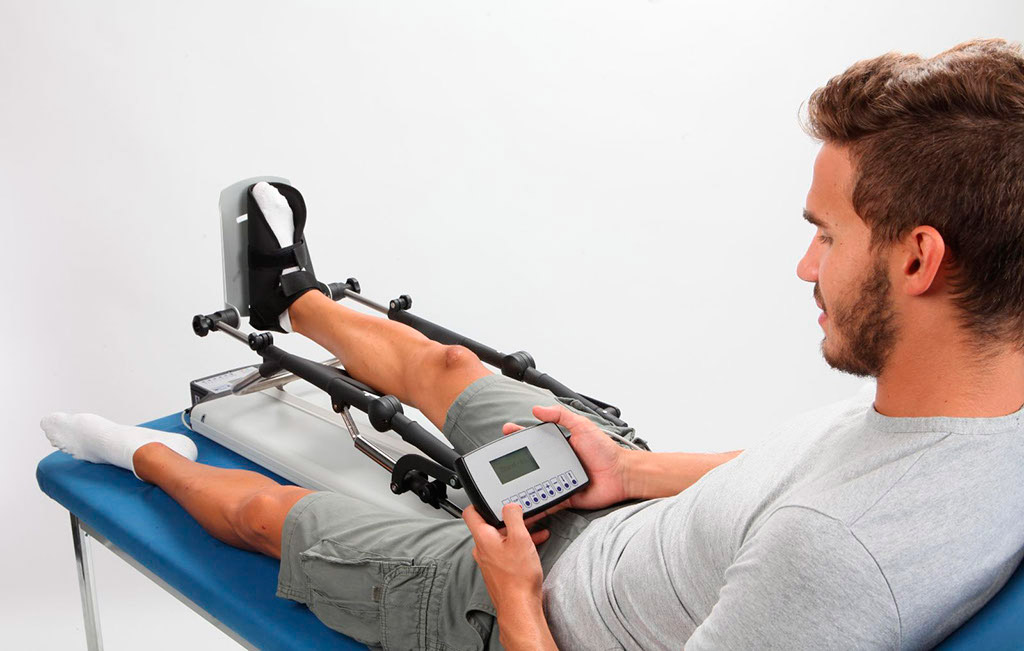

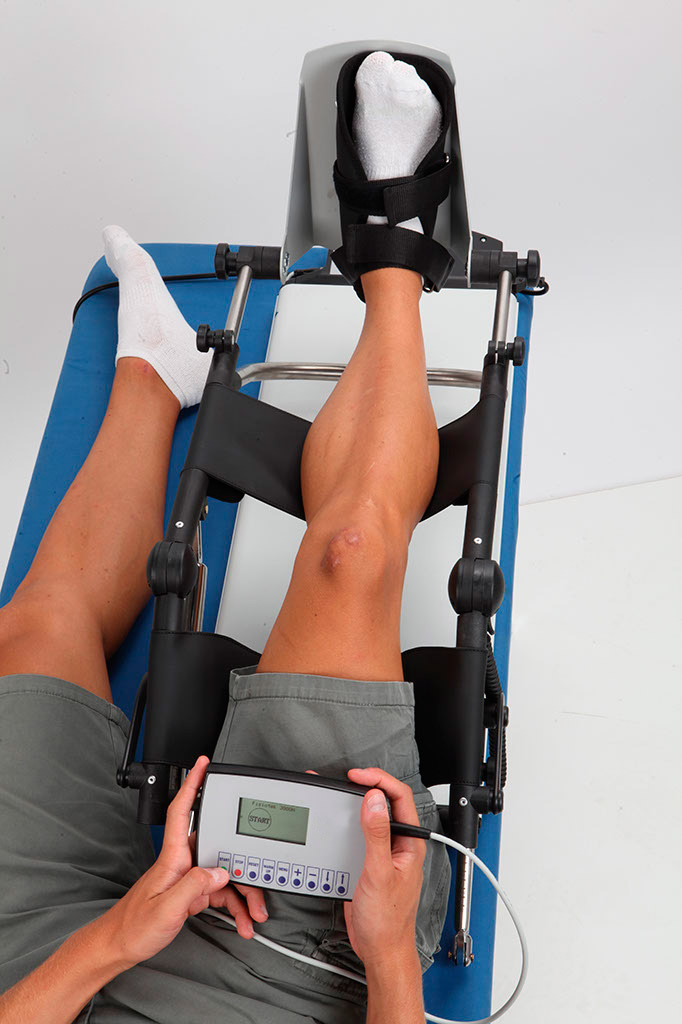

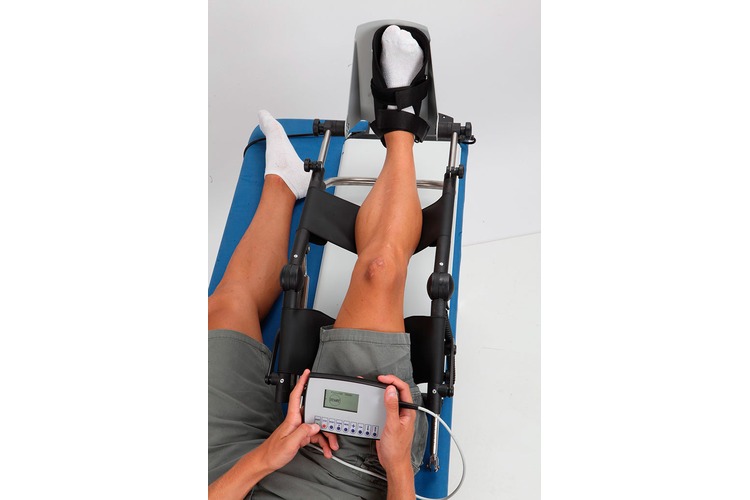

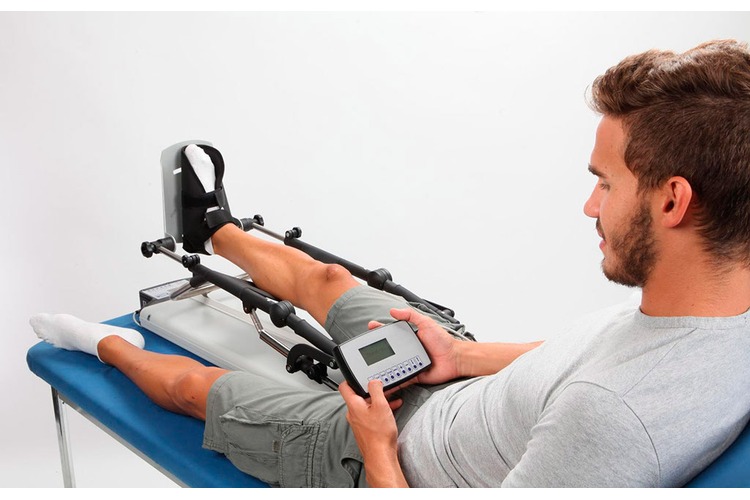

Programming console: the console programs the Fisiotek functions. The user-friendly display provides great image clarity, also thanks to the graphic symbols that increase clarity, as they can be understood intuitively.



START & STOP remote control: Patients can fully control the equipment movement using the START & STOP keys and can choose whether to actively take part in their rehabilitation therapy.



TECHNICAL FEATURES:



Knee and hip mobilization

Use of memory card

Speed control (flexion/extension)

Workout duration control

Resistance

Automatic extension increase

Automatic flexion increase

Pause during extension

Pause during flexion

Warm Up cycles

Adjustable foot rest

Knee movement range: -10° ÷ 120°

Hip movement range: -7° ÷ 115°

Automatic extension increase limit

Automatic flexion increase limit

Repetitions at extension limit

Repetitions at flexion limit



NOTES:



Foot rest: the foot rest can be adjusted to create the most comfortable position for the patient's ankle.

Memory card: allows to store the programmed parameters for each patient and keep track of progress made

Accessories

Accessories

Fisiotek Trolley

01841
Simple and functional, fi tted with non-slip supports for Fisiotek anda service shelf.
Ask for quotation

Floating Keypad

02099
With its graphic, user-friendly display, this keypad allows for the equipment to be fully programmed with great simplicity. The graphic symbols provided are ...
Ask for quotation
Technical Spec.

Technical Spec.

Net weight:
9.5 Kg
Gross weight:
13.5 Kg
Packaging Dimensions (LxLxH):
105 x 40 x 37h cm
Power supply:
90 ÷ 250 V - 50 ÷ 60 Hz
Electrical safety:
Class I BS EN 60601-1
Electromagnetic compatibility:
Group 1 BS EN 60601-1-2
Classification as per EEC Directive 93/42:
Class IIa
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
762647

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 105 x 40 x 30 h kg 14 mc 0.126
