FISIOTEK LT

0
1
3
9
0
Quantity:

Description

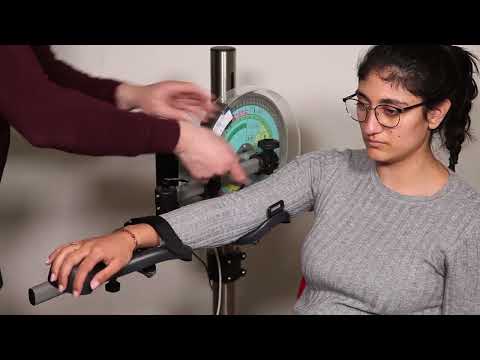

CPM device for left and right shoulder treatment, indicated whenever joint movement needs to be restored passively in both surgical or non-surgical pathologies. It allows rotation with patient sitting down or lying down and the possible movements carried out on the shoulder are: elevation in flexion, elevation in abduction, internal-external rotation. The device is easy to move and handle, suitable for home use. It consists of a base fitted on four swivel casters with brake and is height adjustable.

The possible shoulder movements carried out by the device: 1) elevation during flexion (range: 0°÷ 180°), 2) internal-external rotation (range: 90° ÷ 0° ÷ 90°) and 3) adduction-abduction (complete physiological range).

Therapeutic indications and possible treatments: arthrotomy, arthroscopy, treatment following mobilization, surgical treatment of fractures, reconstructive surgery, endoprosthetic implants, operations on soft tissue.

The device is provided with an arm support for internal-external rotation movement (the arm support is shown in pictures gallery).



Attention! if you want to use the Fisiotek LT with battery without power cable, the Battery Kit accessory must be ordered together with the device. Otherwise the device is supplied to work only with mains power.

Accessories

Accessories

Battery Charger

02115
External battery and battery charger for Fisiotek devices LT-G LT-P, LT
Ask for quotation
Technical Spec.

Technical Spec.

Mains supply:
100÷240 V AC - 50÷60 Hz 400 mA
Input:
12 V DC 50/60 Hz - 4.8 W
Medical device class:
IIa
Weight:
20 kg
SHOULDER MOVEMENTS
Elevation during flexion:
0°÷ 180°
Internal-external rotation:
90° ÷ 0° ÷ 90°
Adduction-abduction:
complete physiological range
PROGRAMMABLE FUNCTIONS
Min. Speed:
2°/sec
Max Speed:
4°/sec
Range of movement:
adjustable
Type of adjustment:
electromechanical limit switch
SAFETY STANDARDS
Electric safety:
Class II BS EN 60601-1
Electromagnetic compatibility:
Group 1 Class BS EN 60601-1-2
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
17858

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 135 x 80 x 80 h kg 50.5 mc 0.864
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Declaration of conformity

Compliance of statement - past edition
Document date: 09/07/2013
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 213.28 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 27/02/2013
Language: English
Version: V 1.0
DOWNLOAD
PDF 3.53 MB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 27/02/2013
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 3.54 MB
Register to access the content

Brochure

Brochure
Document date: 18/05/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 369.14 KB
