FISIOTEK 3000TS

X
R
I
0
0
4
Quantity:

Description

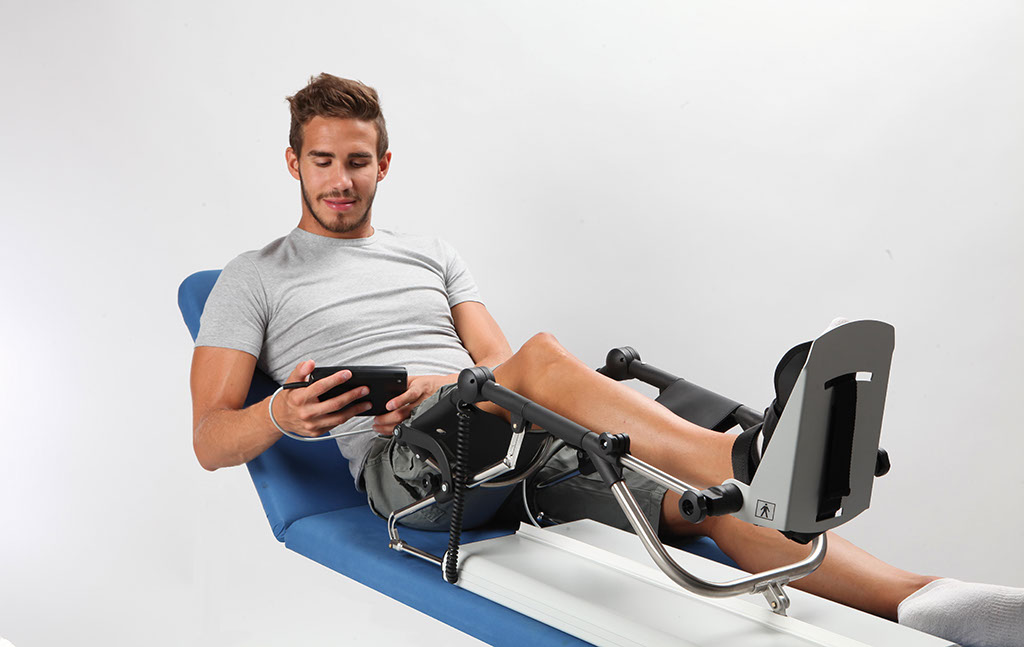

FISIOTEK 300 TS performs the same functions as model 3000 GS (code XRI001) but with the option of programming the parameters for the rehabilitation of the ankle.



It allows the passive mobilization of the knee, ankle and hip. This equipment runs on a direct current motor which transmits motion to a worm screw, while the motor itself is controlled by a circuit board with microprocessor. On the outside, there are a fixed keypad, which is used to program each function, and a floating keypad.



The equipment aims for the recovery of mobility in the joints of the lower limbs through the passive mobilization of the limb itself.



Fisiotek 3000 TS has a mobile memory card, which is a card containing a microchip. Equipment settings are stored on this card, which can also be used to enter patient data manually. A patient's individual memory card is also used to store the initial and final data entered for each rehabilitation session.

At the following session, the equipment can be set automatically by inserting the individual memory card.



You can also use one single memory card for several patients, but in this case you need to program the various equipment functions each time.





TECHNICAL FEATURES:



Knee and hip mobilization

Ankle mobilization

Use of Memory Card

Speed control (flexion/extension)

Workout duration control

Resistance

Automatic extension increase

Automatic flexion increase

Pause during extension

Pause during flexion

Warm Up cycles

Knee movement range: 0° ÷ 110°

Ankle movement range: 20° ÷ 0° ÷ 40°

Hip movement range: -7° ÷ 115°

Automatic extension increase limit

Automatic flexion increase limit

Repetitions at extension limit

Repetitions at flexion limit

Accessories

Accessories

Accessory For Limbs Smaller Than 72 Cm

01840
Rehabilitation exercises are possible for 61 – 72 cm long limbs with a 0° - 110° range .
Ask for quotation

Fisiotek Trolley

01841
Simple and functional, fi tted with non-slip supports for Fisiotek anda service shelf.
Ask for quotation

Floating Keypad

02093
With its graphic, user-friendly display, this keypad allows for the equipment to be fully programmed with great simplicity. The graphic symbols provided are ...
Ask for quotation
Technical Spec.

Technical Spec.

Net weight:
14 Kg
Gross weight:
17 Kg
Packaging Dimensions (LxLxH):
103 x 38 x 38 h cm
Power supply:
90 ÷ 250 V - 50 ÷ 60 Hz
Electrical safety:
Class I BS EN 60601-1
Electromagnetic compatibility:
Group 1 BS EN 60601-1-2
Classification:
as per EEC Directive 93/42 Class IIa
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
762708

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 100 x 40 x 40 h kg 16 mc 0.16
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Declaration of conformity

Compliance of statement - past edition
Document date: 22/09/2023
Language: English
Version: V 2.0
DOWNLOAD
PDF 215.33 KB
Register to access the content

Dichiarazione ce

Compliance of statement - past edition
Document date: 19/09/2023
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 153.23 KB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 15/07/2014
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 1.74 MB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 15/07/2014
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.69 MB
Register to access the content
