MOTOLIFE EVO

A
R
2
0
0
1
2
Quantity:

Description

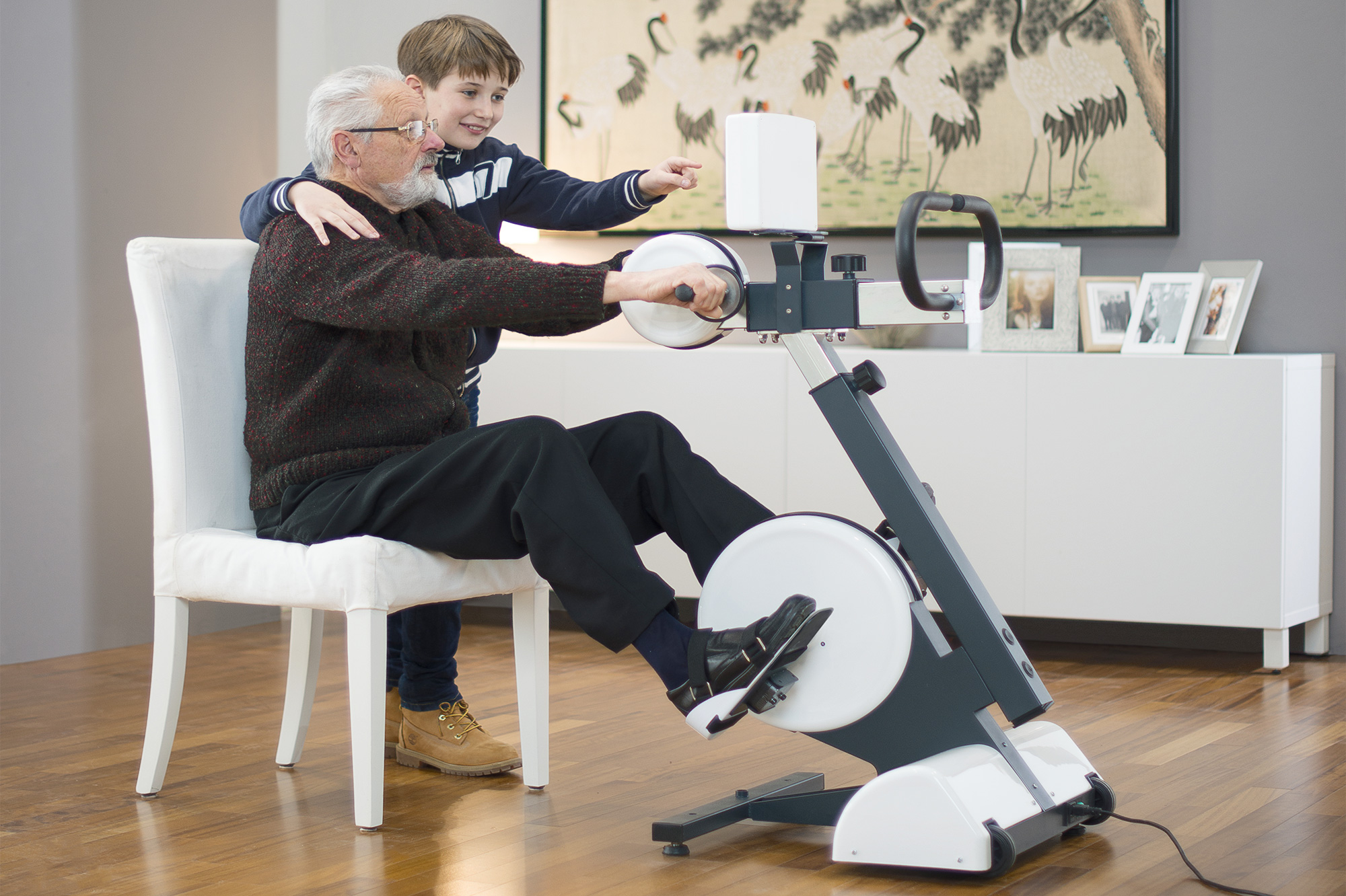

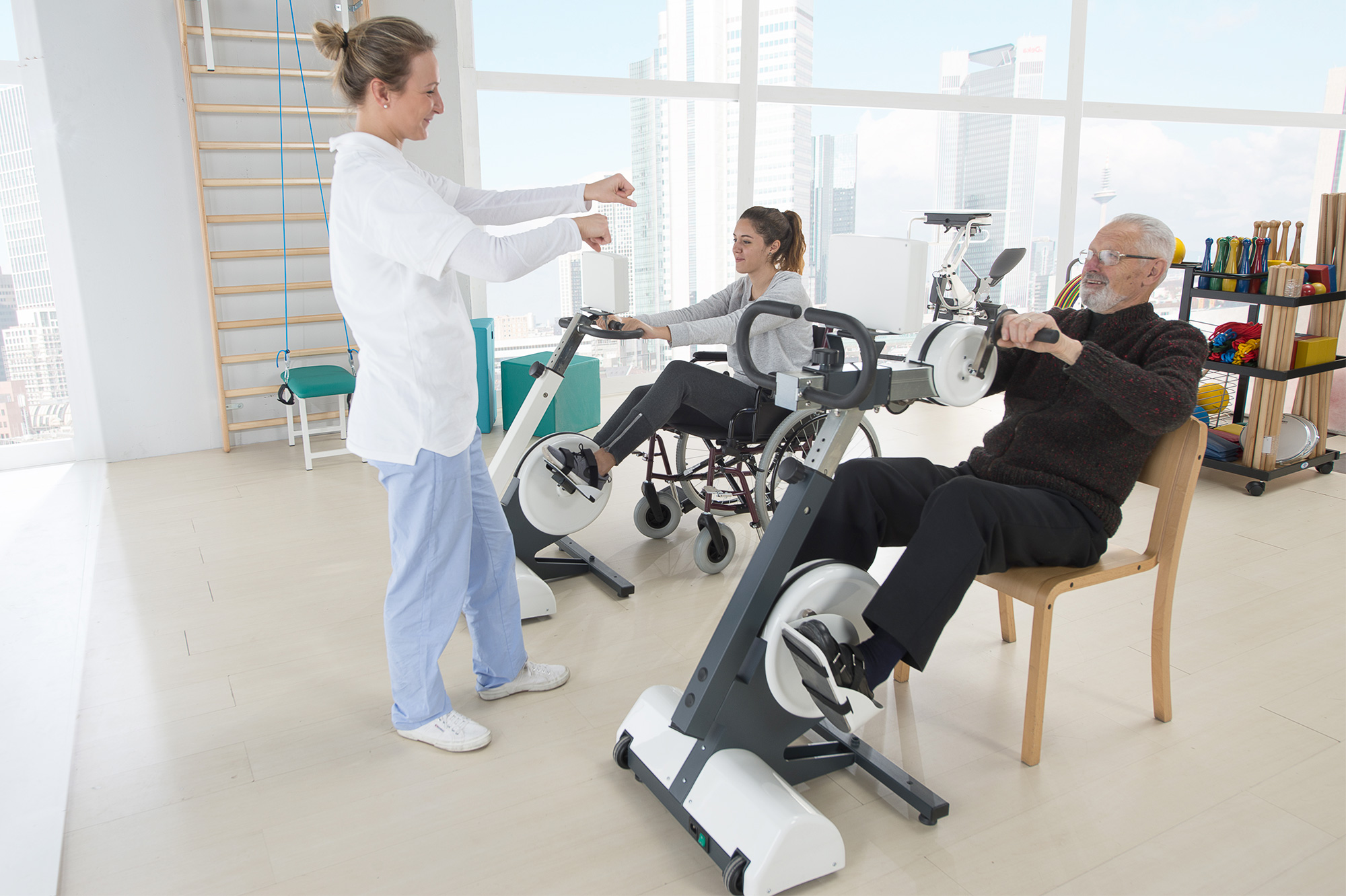

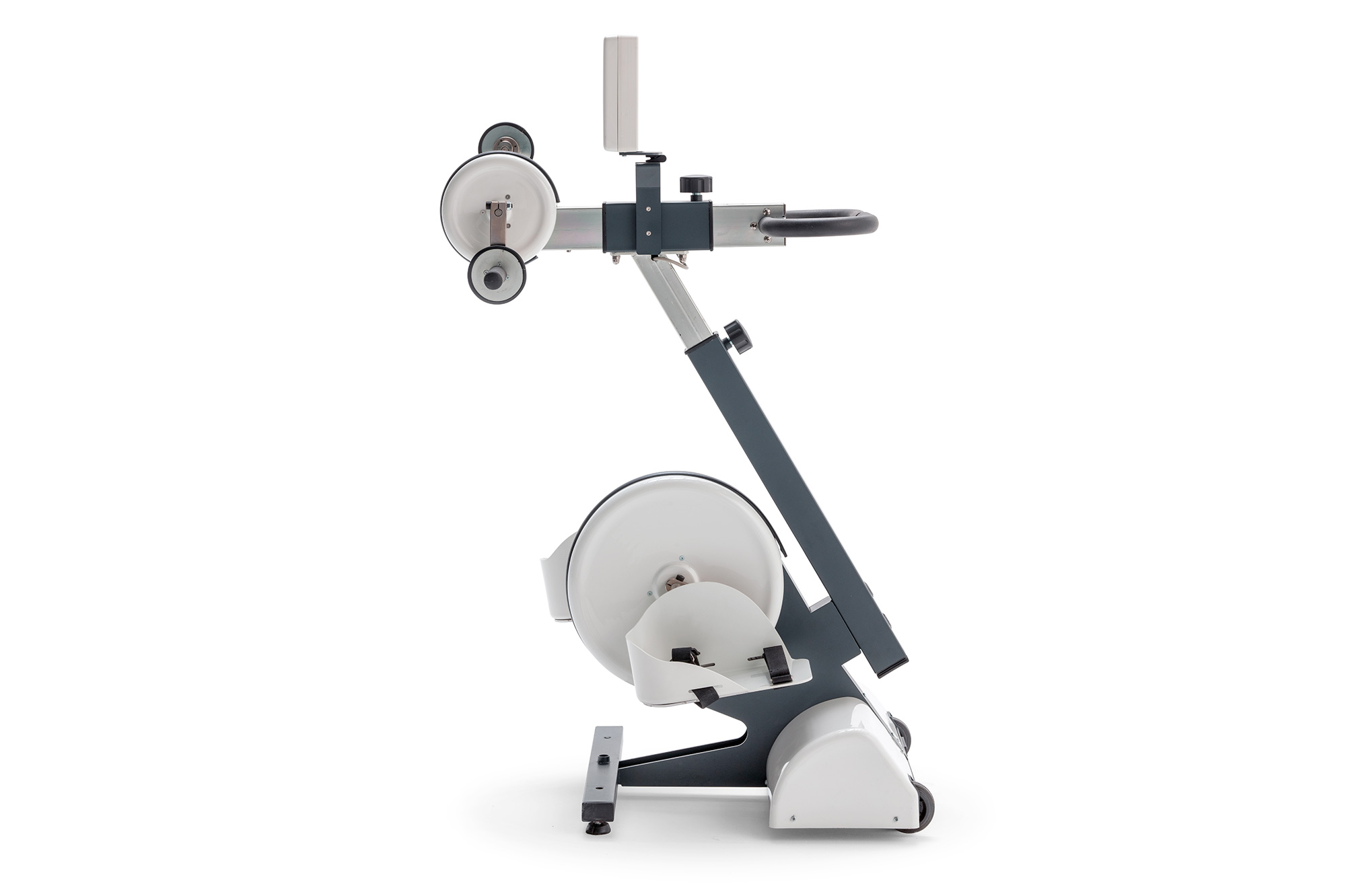

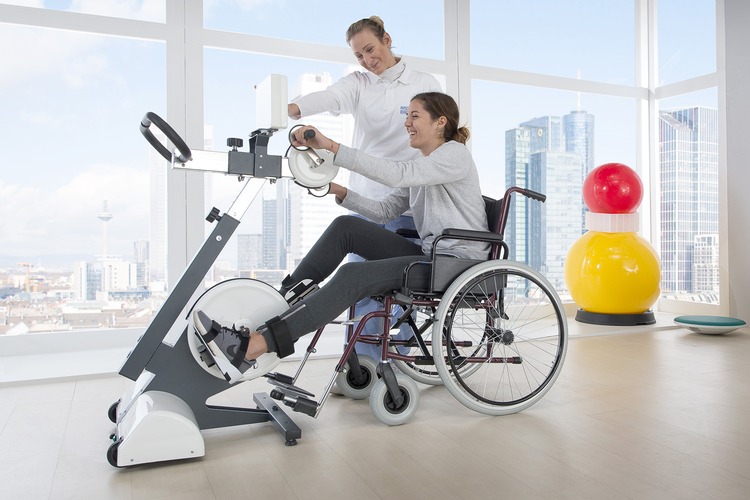

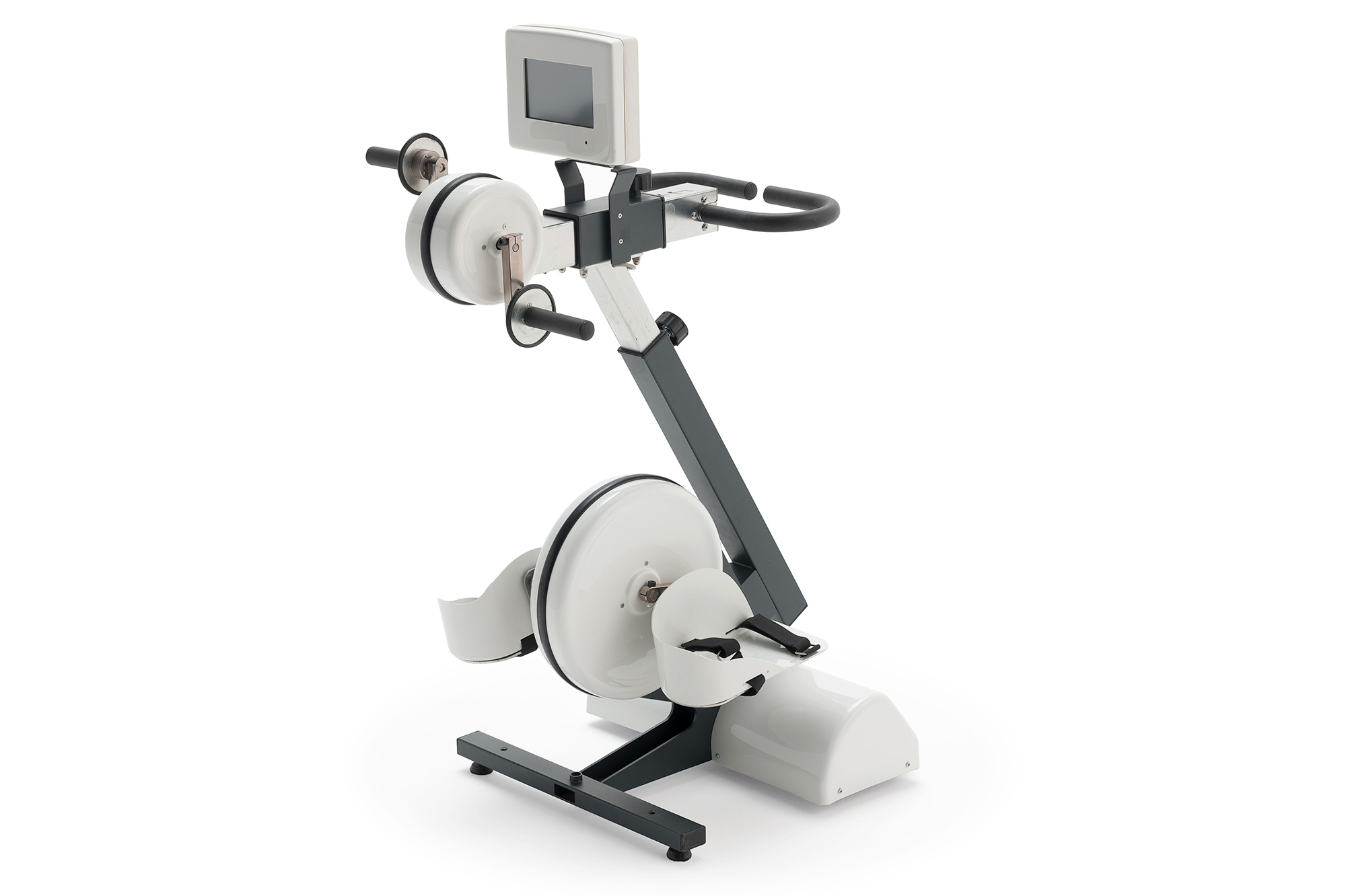

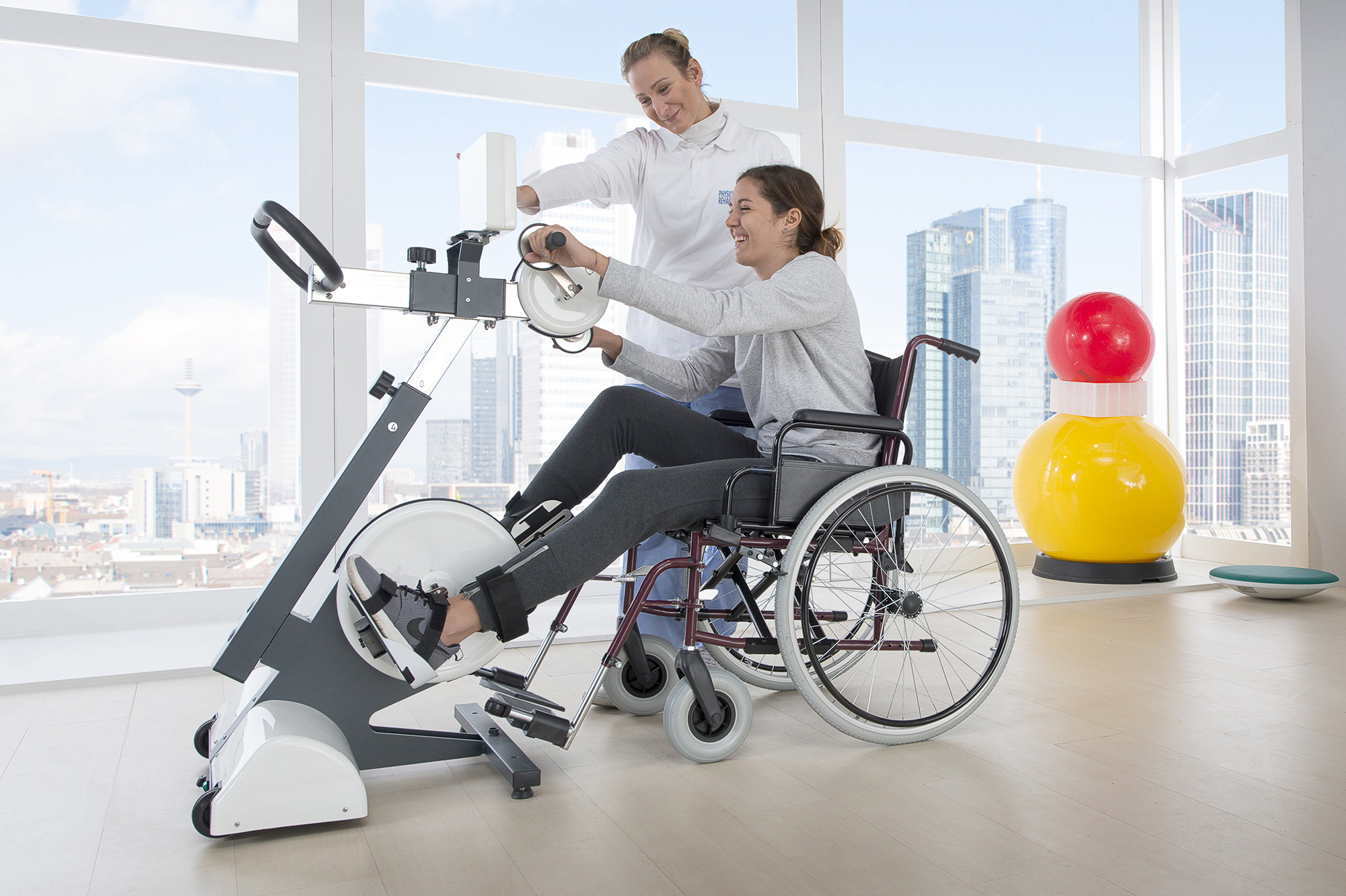

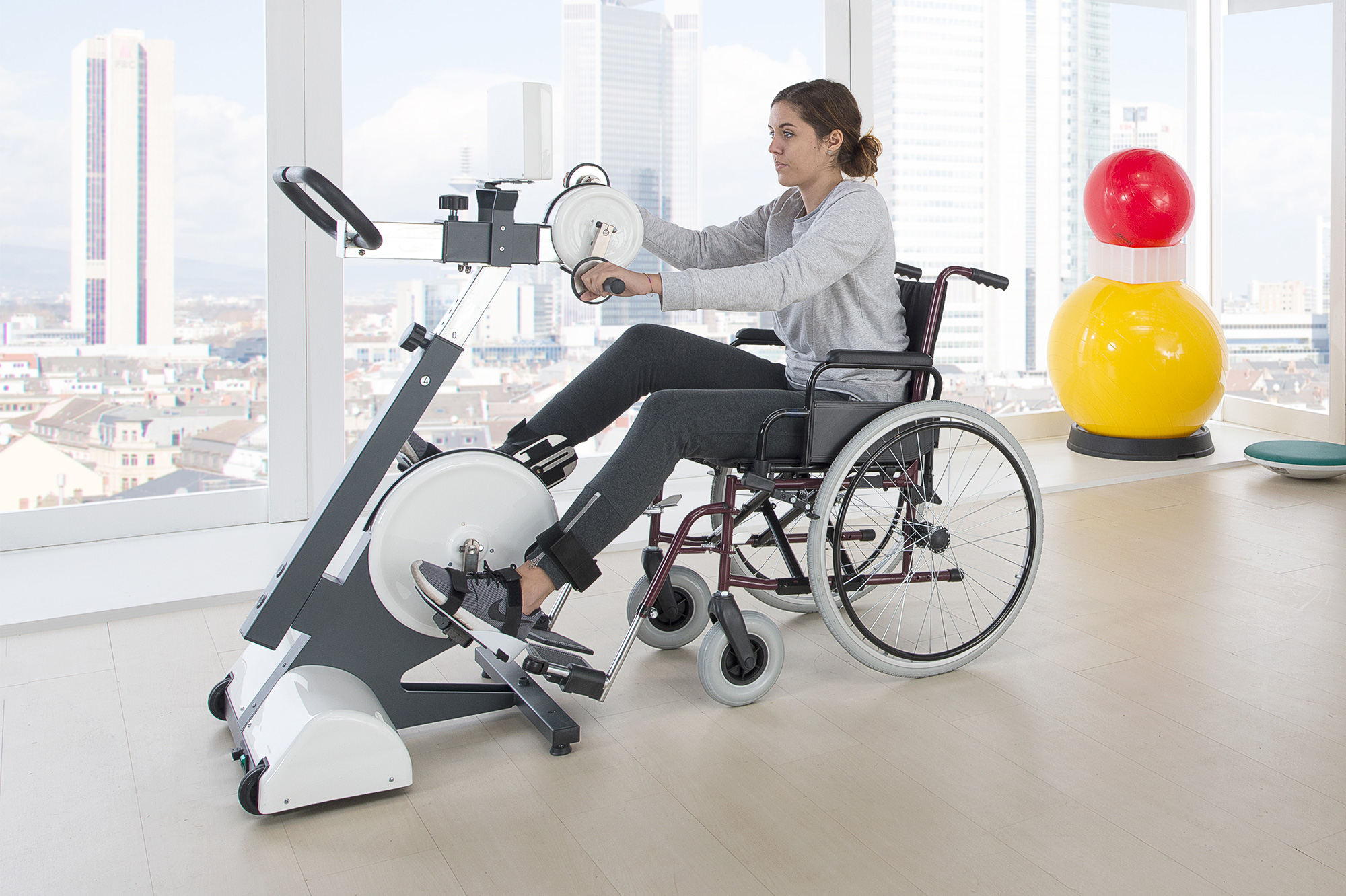

This is a cycle-ergometer for movement therapy of the upper and lower limbs. This model’s main feature is the arm-ergometer which features a second stand-alone motor for the movement of the upper limbs. This device provides the possibility of a cycling exercise by pedalling with the lower or upper limbs from a sitting and semi-reclined position. It is possible to access the device while sitting in the patient’s own wheel chair. In this model for exercising legs and arms, the structure holds also the arm-ergometer with its motor and handlebar, as well as the motor for the exercise of the lower limbs. When doing the exercises with the upper limbs, if there is no residual motorial activity, MotoLife® allows a passive pedalling motion for the arms. Whenever the user is capable of pedalling, even weakly with his or her own muscle strength the motor will provide assistance to start and maintain the motion at a pre-set speed (assisted movement). If the user is capable of reaching a higher speed than the one set the motor will create an adjustable resistance which can be set in order to improve the work of the muscles and the cardiopulmonary efficiency (active kinesitherapy).

Accessories

Accessories

Tip-Up Protections (A Pair)

AC1076
To fasten the wheelchair onto the MotoLife® and avoid movement or overturning during therapy. Adjustable hook anchoring to the chair's structure (two pieces).
Ask for quotation

Extra Belts (A Pair)

AC1077
Useful to fasten the device onto a wheelchair to avoid movements or tipping up, recommendable to save the structure of the chair from scratching (two pieces).
Ask for quotation

Leg Supports (A Pair)

AC1078
To allow the use by people with leg adduction or abduction problems keeping them safely anchored onto the pedals. (two pieces).
Ask for quotation

Shoe Pedals For Children (A Pair)

AC1079
Allows children or short-height people's use thanks to a smaller and less deep foot shell which keeps the pedal position closer to the user (two pieces).
Ask for quotation

Wristbands For Therapy Grip (A Pair)

AC1080
Allows training also for the people who have little or no hand-grip force, keeping the patient safely anchored onto the handgrip. (two pieces).
Ask for quotation

Armrests For Therapy Grip (A Pair)

AC1081
Armrest allows to hold and anchor the whole forearm to allow a correct training of the upper limbs even to tetraplegic patients. (two pieces).
Ask for quotation

Vertical Grip (Pair)

AC1234
Vertical handle, alternative to the standard one, horizontal. It may be indispensable for some specific patients. (two pieces)
Ask for quotation

Elastic Straps (Pair)

AC1240
Elastic straps for orthopedic footwear or other shoes of big dimensions that allows stabilization of the feet on the pedals. (two pieces)
Ask for quotation

Soft Insoles (Pair)

AC1241
Soft non-slip insoles to be applied to the pedals. They ensure greater comfort when using the Motolife™ without footwear. (two pieces)
Ask for quotation
Technical Spec.

Technical Spec.

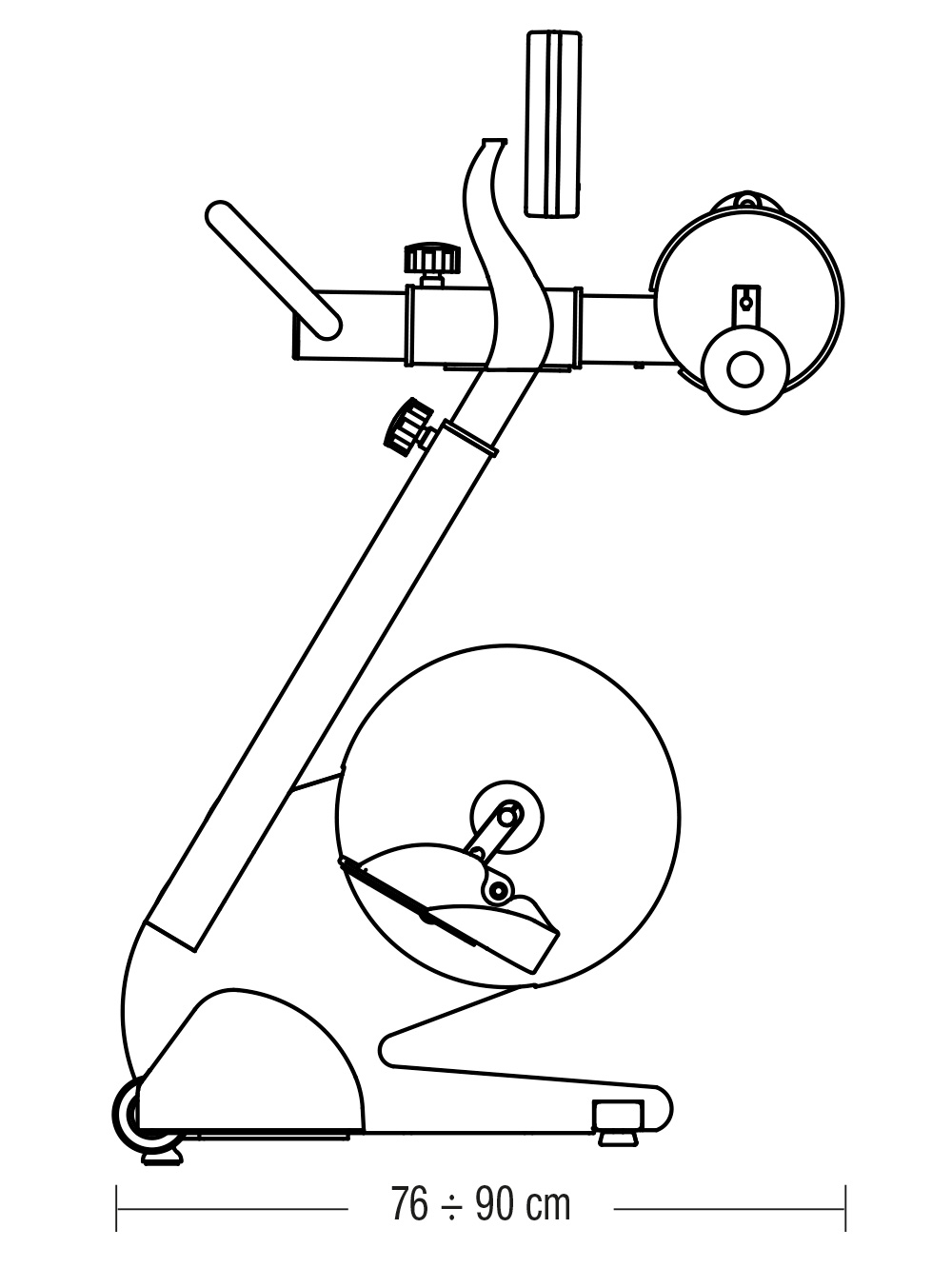

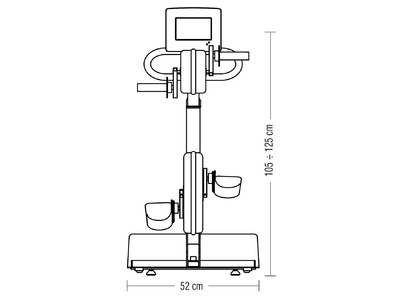

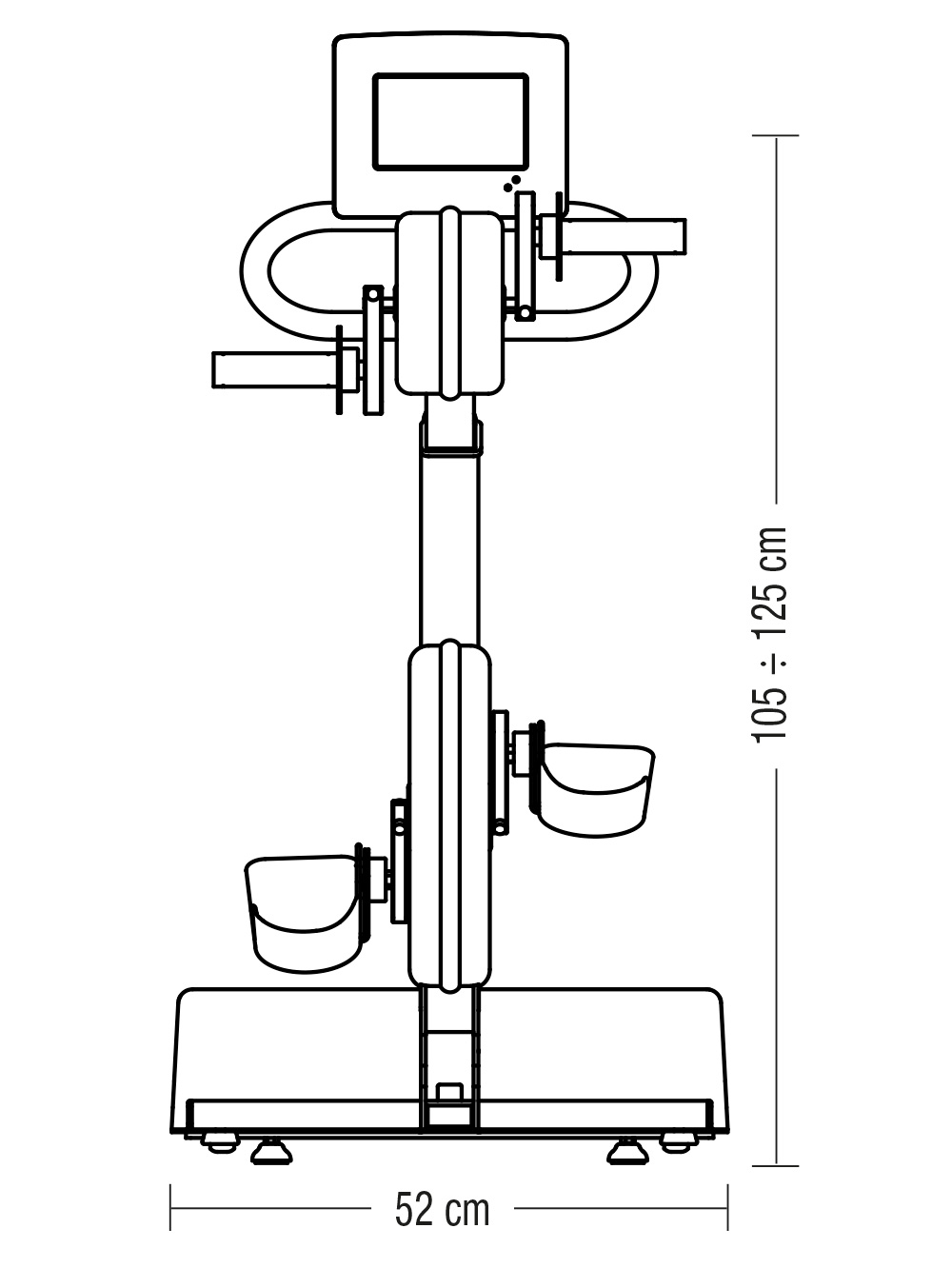

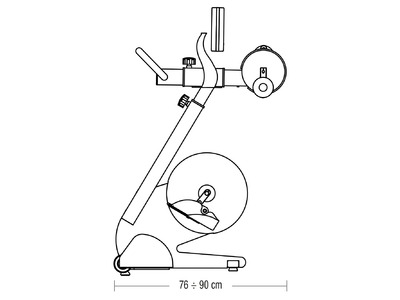

Dimensions (WxDxH):
58 x 76÷90 x 105÷125 cm
Weight:
56 kg
User inferface:
7'' colored display with touchscreen
Movement therapy:
active, assistive, passive
Resistence levels (lower limbs):
20 levels, 2-20 N / m
Resistence levels (upper limbs):
2-8 N / m
Standard passive motor speed:
60 RPM (rotation per minute)
Motor speed for Parkinson:
100 RPM upon specific request
Max active pedal speed:
100 RPM
Motor unit:
2 / alternative use
Power supply (Europe):
220-240V ~/50-60Hz - 0,83A
Power supply (USA, Canada):
110-120V ~/50-60Hz - 1,6A
Medical device class:
II a
Frame height adjustment:
90 ÷ 109 cm
Tilt display adjustment:
0 ÷ 90°
Handle radius:
2 different positions
Pedal radius:
3 different positions
Use modality:
on wheelchair / other suitable chair

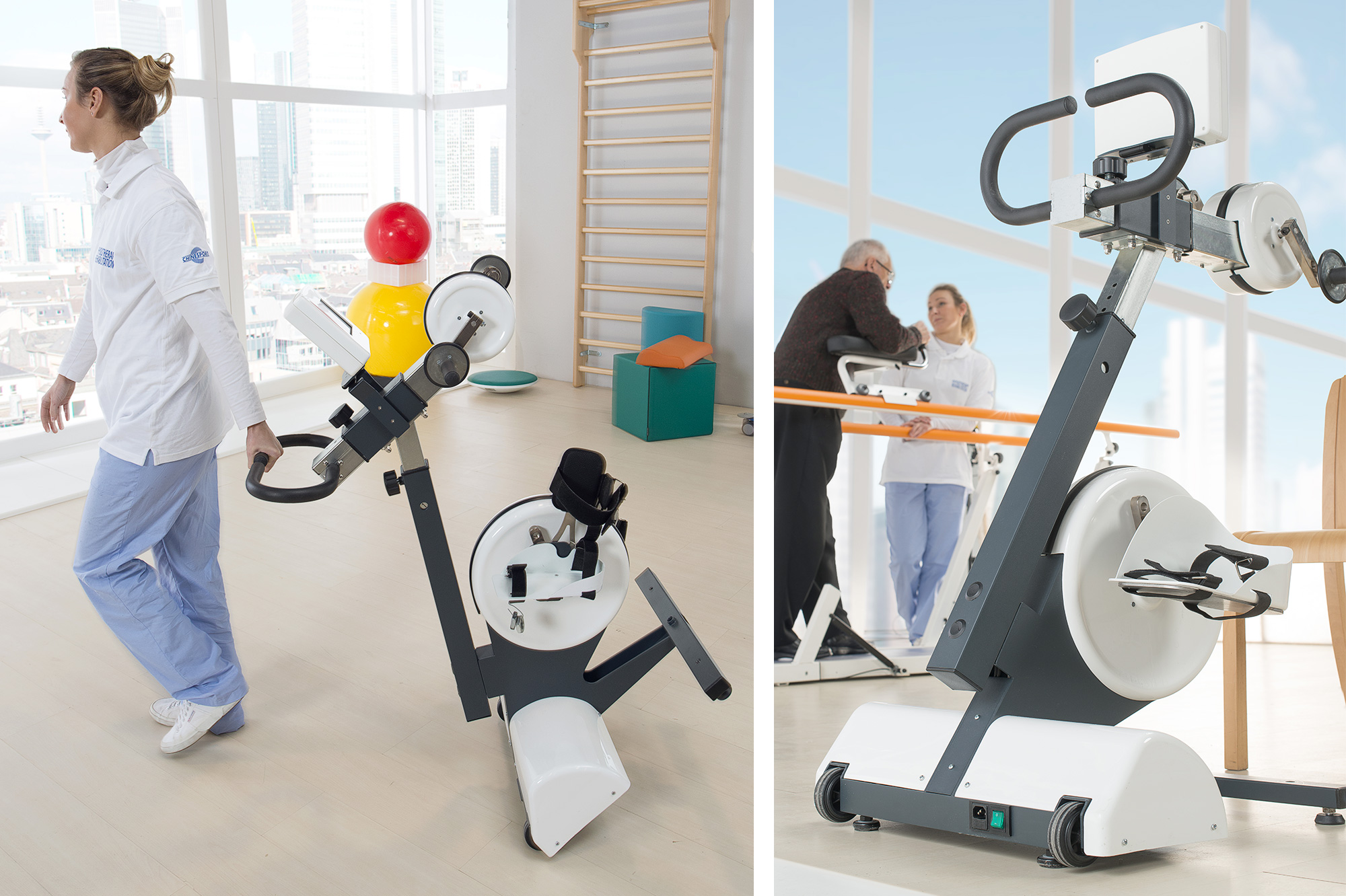

Transferring:
2 castors with rubber coating included
Spasticity control function:
3 control levels / inversion of rotation
Motivating training:
gaming / biofeedback
Individual data storage:
setting parameters and final outcomes
Software update / data export:
by USB key at home
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 100 x 75 x 134 h kg 74 mc 1.005
Video

Video

Motolife - A quick overview
Motolife - Presentation
Motolife - Some accessories
Documents

Documents


User and Maintenance Manual

Manual
Document date: 14/11/2019
Language: Italian, English

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 4.5 MB
Register to access the content

Manual de uso y mantenimiento

Manual
Document date: 01/11/2019
Language: Spanish
DOWNLOAD
PDF 2.56 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 12/12/2017
Language: Italian, English
DOWNLOAD
PDF 93.3 KB
Register to access the content

Mode d'emploi

Manual
Document date: 01/06/2017
Language: French
DOWNLOAD
PDF 2.67 MB
Register to access the content

Bedienungsanleitung

Manual
Document date: 01/06/2017
Language: German
DOWNLOAD
PDF 3.04 MB
Register to access the content
