LIFTPOOL SERIES - BEYOND THE LIMIT

The swimming pool, accessible for all.

Our lifting systems for swimming pools of the LIFTPOOL series allow the transfer of the person in the water with a suitable loop sling or in a sitting position. We have a wide range of loop slings available in five sizes. Please review standard or hygiene harnesses.


Floor application

For installation of the Liftpool model by the pool, you can choose between two solutions: 1) the socket with hole (accessory code 14185) or 2) the plate fixed at the floor (accessory code 14165). In this latter case the hoisting system raises of 20 cm.

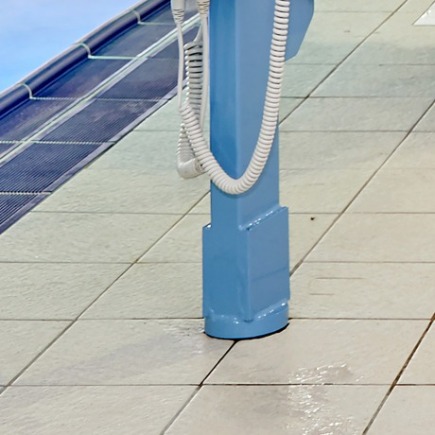

Pool socket with hole

Fixed plate to the floor


Both solutions therefore have their own accessory code. In case of inserted socket, a closing cap is included. Once installed, the pool hoist can be rotated 360 ° and the operator has comfortable grip handles. The safe working load is 135 kg.

In case of lifting with loops sling (Liftpool E model - code 14190) or in a sitting position (LiftPool Seat E - code 14250), the pool hoist can overcome barriers up to 60 cm height in case of installation with socket, or up to 80 cm if floor application is with plate. So the maximum height the pool hoist can reach is 204-205 cm or 222-223 cm respectively.



When the swiming pool edge is higher

If the pool edge is higher than 60-80 cm, there are other two models that can go beyond such a barrier: the LiftPool E MAXI - code 14230 with loops sling, or the alternative LiftPool Seat E MAXI - code 14240 with special seat.


In particular, these models are capable of going beyond barriers up to 120 or 140 cm in height depending on the configuration respectively with socket or plate.




When a sling is needed

When the person is unable to maintain a sitting position or is preference of the caregiver, the pool hoist is equipped with a spreader bar in the standard supply for applying a loops sling.

Chinesport has a range of loops slings available in five sizes and of two types: standard or hygiene series. The latter are more recommended at this use destination.




The wheelchair supplied as standard

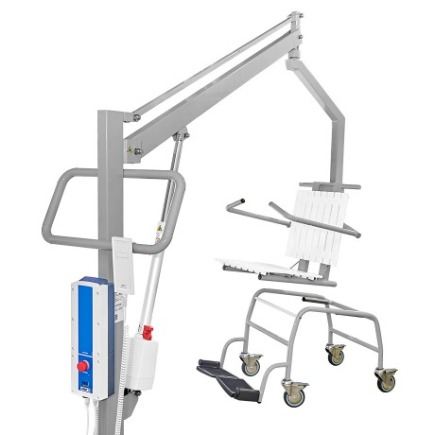

When the pool hoist is for getting into the water with seat, the model is supplied with a special wheelchair allowing the person to get into the pool without further intermediate transfers.

The wheelchair is equipped with armrests, folding footrests, and swivel wheels with individual parking brake. This wheelchair comes in same colour of the main structure of the LiftPool Seat model, if not chosen differently.



When you are already sitting

The upper frame with seat is quickly attached to the arm of the pool hoist leading the person fully assisted into the water.

The side armrests and the backrest itself offer the necessary containment of the person during the lifting and immersion phases.


A legs extension support

In this configuration of the LiftPool with seat, it is also possible to apply an extension to fully extend the legs . That's an accessory code 14255.


Discover now




Electrical lifting with battery

The lifting arm is assisted by an electric actuator powered by a rechargeable 24 V battery. The battery charger is supplied as standard. The electric height adjustment takes place with hand control, and the pool hoist is equipped with an emergency lowering mechanism.



A spare battery can always be useful to possibly avoid the risk of service interruptions. It is an accessory code AC0071.



The frame colour

From now also available three frame colour options!


 Blue colour

 Grey colour

 White colour


To meet personal preference in designing or harmonization with the existing color choices in the pool, the frame of the pool hoist can be chosen in three different colors: blue, white or gray.

Our LiftPool series are therefore configurable, meaning that the identification code of the frame colour must follow the model code of interest. In particular, B corresponds to the blue color, G corresponds to the gray, and W corresponds to white to be added to the code of the chosen pool hoist model.
