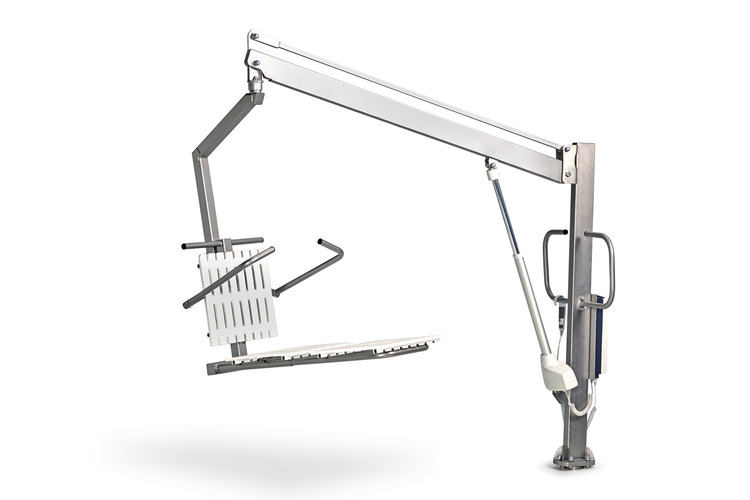

POOL HOIST 1

Pool hoist with 316L stainless steel structure which guarantees superior resistance to corrosion and atmospheric agents.

It can be fixed to the floor with a special socket (code 14165) or with a plate (code 14185). In case of purchase of this pool hoist, therefore, the preferred fixing solution as needed accessory must also be ordered. The hoist then is equipped with handles and can be freely rotated of 360°.

This pool hoist has been designed to carry a person into the water on a seat (code SH0003) or in a lying position on a stretcher (code SH004). The chosen support system must also be ordered with the hoist for a complete configuration at the set up.

The lifting system is electric with a removable and rechargeable 24V battery, and with hand control. The safe working load is up to 200 kg. The external battery charger is supplied as standard.

This type of hoist already in the basic configuration allows the possibility of passing raised pool edges. In particular, depending on the type of fixation solution chosen, it can overcome barriers of up to 80 cm when used with the socket or barriers of up to 100 cm if fixed to the floor with the plate.

In the case of higher barriers, a 50 cm frame extension can be applied to the pool hoist to overcome barriers higher than the heights indicated above. Please refer to the technical table.

The pool hoist is equipped with a double emergency lowering system, and in particular it is equipped with an additional knob for mechanical lowering in the event of a power failure. Furthermore, this lift is also equipped with an emergency lifting of the person from the water in the event of discharged battery.
