ALULIFT 180 P

A
S
1
3
P
0
0
0
Quantity:

Description

Alulift 180 P is a lift light weight and easily manoeuvrable by one person, due to the lift frame that is manufactured from aluminium.

This lift is designed to perform the basic functions safely and with hte least effort by the operator such as:

  1. lifting a patient from the floor
  2. lifting/lowering a patient to a bed
  3. lifting/lowering a patient onto an easy chair
  4. lifting/lowering a patient into a wheelchair
  5. lifting/lowering a patient onto a toilet

The working safety load is 180 kg, the lifting system is electro-mechanical powered by removable battery, with built-in battery charger.

Column is adjustable in three different height measures. If you don't need to lift the patient from the floor we advice to adjust the column height at the top of the three options in order to reach higher levels.

The base is adjustable in width to enable access around different size chairs and obstacles it thanks to an electric leg spread. The Alulift 180 P is fitted with 75 mm swivel castors with a mechanical brake on the rear castors. It is able to pass through a normal door with a patient attached in.

The lift operate from a control handset connected to the equipment. The control handset incorporate the lifting and lowering control switches. The control handset incorporate also battery status, overload and service warning.  The lift is fitted with a professional control box with display, controls on front panel, safety functions, information on overloading, maintenance service and technical data.



Supplied with slingbar. Possibility of applying loop slings or clip slings with the appropriate balance spreader bar connected (AC0288).



An emergency stop switch is provided to immediately stop any powered movement and a mechanical system provide emergency descent in case of motor fault.

Accessories

Accessories

Restraining Loops Sling

TCS24
Mesh slings with loops for hoist devices with polycarbonate supports to hold the garment. Strongtex mesh fabric with high toughness and breathability. Load c...
Ask for quotation

Restraining Clips Sling

TCS23
Mesh slings with clips for hoist devices with polycarbonate supports to hold the garment. Strongtex fabric with high toughness and breathability. Load capaci...
Ask for quotation

Hygiene Loops Sling

TCH24
Mesh slings with loops for hoist devices with head support for transfer and hygienic operations. Strongtex fabric with high toughness and breathability. Load...
Ask for quotation

Hygiene Clips Sling

TCH23
Mesh slings with clips for hoist devices with head support for transfer and hygienic operations. Strongtex fabric with high toughness and breathability. Load...
Ask for quotation

Continuous Loops Sling

TCC04
Mesh slings with loops suitable for the most common situations with head support. Strongtex fabric with high toughness and breathability. Capacity 250 kg.
Ask for quotation

Toileting Sling With Clips-M

XSL004
Toileting polyester sling, with clips. Size M. Capacity: 220 kg.
Ask for quotation

Toileting Sling With Clips-Xl

XSL006
Toileting polyester slings, with clips. Size XL. Capacity: 220 kg.
Ask for quotation

Alulift Balance Spreader Bar

AC0288
Alulift Balance spreader bar for clip slings. Max load: 220 kg
Ask for quotation

Alulift Weighing Kit

XP0000010
Weighing kit for Alulift lifts. Capacity 300 kg.
Ask for quotation

Spare Battery

01132
Additional extractable battery for a continuous use of the patient lifter.
Ask for quotation

Wall Battery Charger

AC0318
Professional wall-mounted battery charger. It comes with a standard SHUKO plug. By request a cable can be provided with another plug.
Ask for quotation

Portable Battery Charger

AC0319
Portable battery charger with compatible SHUKO socket. By request, it can be supplied with other type of plug.
Ask for quotation
Technical Spec.

Technical Spec.

Maximum load lifting capacity:
180 kg
Maximum load transporting capacity:
180 kg
Vertical movement actuator use:
10% 2 min. use - 18 min pause
Leg opening actuator use:
10% 2 min. use - 18 min pause
Battery charger:
built-in with the control box
Troubleshooting and maintenance panel:
on the control box display
Average battery charging time:
6/8 hours
Weight:
38 kg
Parking brake:
on the 2 rear wheels
Power supply:
Internal, with 24 V rechargeable battery
Fuses - Protective Devices:
internal - cannot be inspected
Protection:
IP X4
GMDN Code:
12330
CND Classification:
Y123603
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R0533308

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 129 x 67 x 38.5 h kg 46.5 mc 0.3327555
Video

Video

Alulift 180P mobile hoisting system - Passive patient transfer
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Sollevapersone professionali

DICO - EU declaration of conformity
Document date: 29/02/2024
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB
Register to access the content

Professional hoist

DICO - EU declaration of conformity
Document date: 29/02/2024
Language: English
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB
Register to access the content

Professional hoists

IFU - Instruction of use
Document date: 27/01/2023
Language: English
Version: 1.0.1
DOWNLOAD
PDF 6.1 MB
Register to access the content

Sollevapersone professionali

IFU - Instruction of use
Document date: 27/01/2023
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 6.11 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.0
DOWNLOAD
PDF 101 KB
Register to access the content

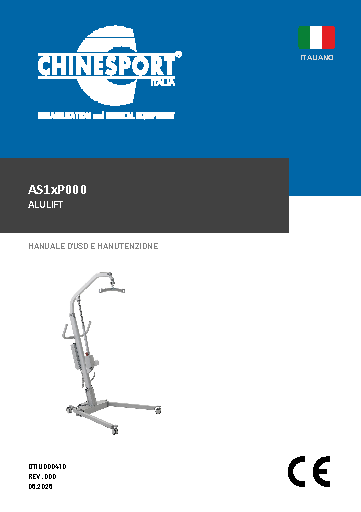

Manuale istruzioni

Manual - past Edition
Document date: 11/05/2012
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 1.35 MB
Register to access the content

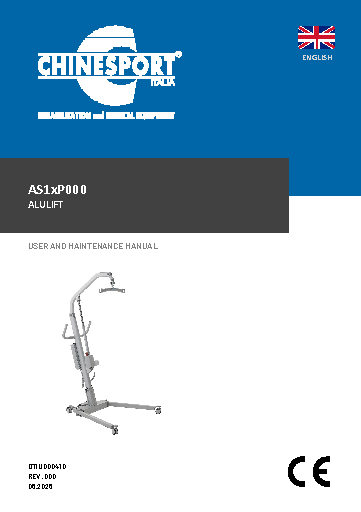

User and maintenance manual

Manual - past Edition
Document date: 11/05/2012
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.27 MB
Register to access the content
