You are here: Home > Professional Tables > Ther Line > Ther Plus Global
See similar products
Request information

THER PLUS GLOBAL

Configurable Product
L
H
1
2
6
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

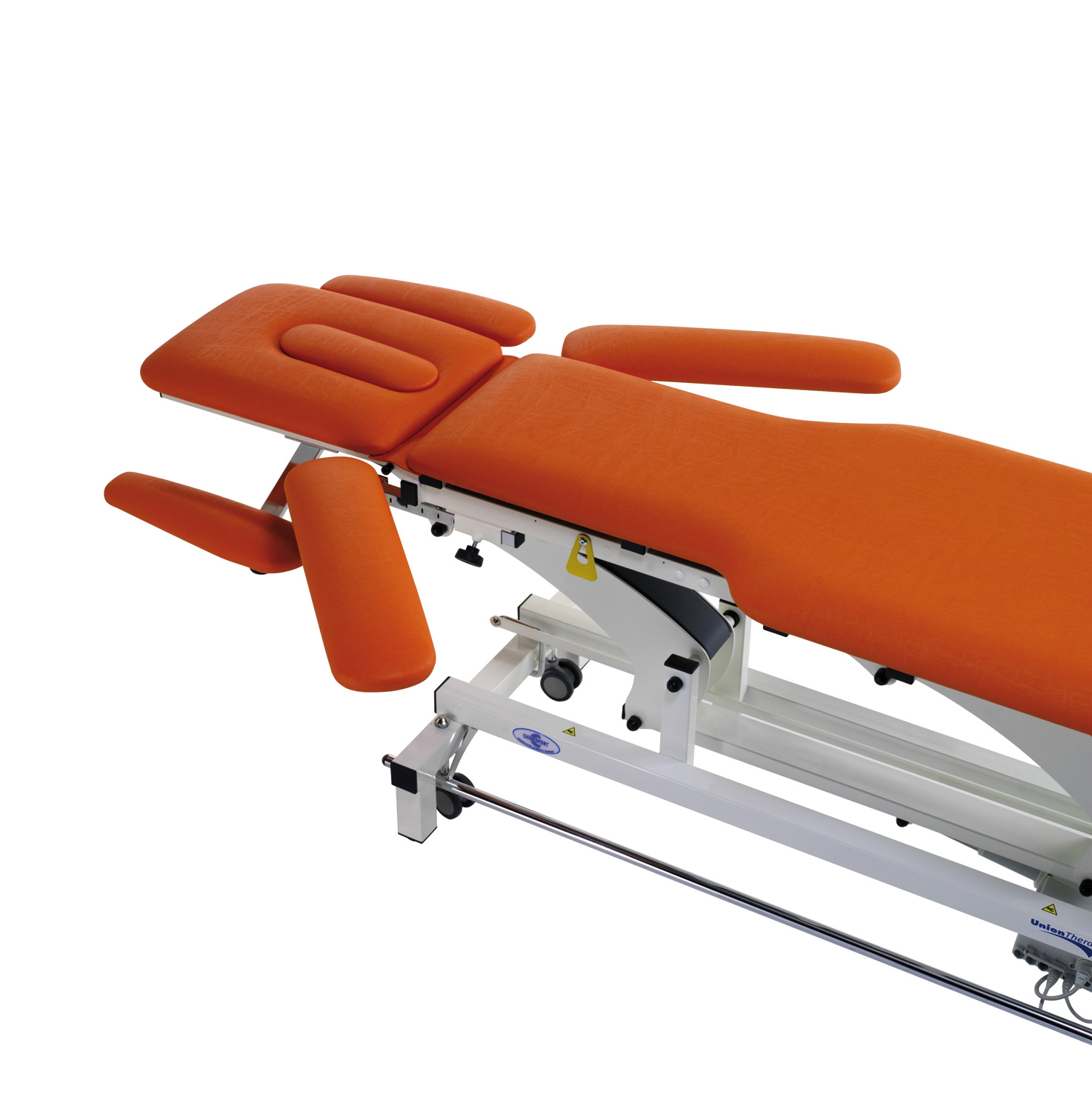

Examination, manipulation and treatment table for use with the Global Posture Re-education method. Hydraulic or electric height adjustment by means of a low voltage (24 V) foot switch or with foot rail. The couch has five movable sections, while another section is fixed. The head section, equipped with an elongated breathing hole, can be adjusted by using a gas spring assisted system, both in positive an in negative positions. The fixed section is 58 cm wide. Fully adjustable (height and rotation up to 180 degrees) side section arms, that can be shifted 12 cm to reach a specific posture.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Auxiliary Battery
AC0017
Auxiliary battery enables the table to be used without power supply. The battery comes with a support so it can be secured to the frame base.
Ask for quotation

Rpg Bar For Couch
AC0021
Height adjustable overhead bar, with rope and ankle straps. This bar can also be used for exercises from the Global Postural Re-education method
Ask for quotation

Wall-Mounted Bar
AC0022
Wall-mounted bar, height adjustable, with rope and ankle straps. Ideal for the apllication of the Global Posture Rehablitation method.
Ask for quotation

Paper Roll Holder F
AC0031
Paper roll holder adjustable to a variety of roll widths. Recommended for use with paper rolls from set AC0034.
Ask for quotation

Paper Roll Holder G
AC0032
A metal support that is attached to the foot end of the couch base. It allows for the paper roll to be placed vertically if required.
Ask for quotation

Standard Paper Roll Set
AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Protective Sheet Set
AC0036
This set contains 10 synthetic fabric sheets with elasticated border. This sheet can be used on any examination and treatment table with standard size/width.
Ask for quotation

Additional Foot Pedal 1
AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides
Ask for quotation

Additional Hand Control 1
AC0039
This additional hand control fits for therapy tables with a single eletric actuator.
Ask for quotation

Additional Control 1
AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Safety Device
AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Paper Roll Holder H
AC0699
Head end metal support with adjustable width, similar to AC0031.
Ask for quotation

Foot Switch Holder
AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation

Protection Mattress 150
AC1202
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for covering the legs and trunk sect...
Ask for quotation

Protection Mattress 205
AC1203
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for fully covering the sections of t...
Ask for quotation

Thermo-Regulating Cover 150
AC1204
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation

Thermo-Regulating Cover 205
AC1205
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
6
Max safety load (kg):
200
Height adjustment:
Electric/hydraulic
Min/max table height (cm):
47-97
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust (N):
6000
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Head section tilt:
+85° -35°
Wheels diameter (mm):
65
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness (mm):
40
Density (kg/m³):
50
Weight (kg):
76
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0389235
Video

Video

Luxury base
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Ther

DICO - EU declaration of conformity
Document date: 26/07/2023
Language: English
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Ther

DICO - EU declaration of conformity
Document date: 26/07/2023
Language: Italian
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Ther

DICO - EU declaration of conformity
Document date: 26/07/2023
Language: German
Version: 1.1.3
DOWNLOAD
PDF 1.51 MB
Register to access the content

Physiotherapie- und behandlungsliegen

IFU - Instruction of use
Document date: 24/11/2022
Language: German
Version: 1.1.6
DOWNLOAD
PDF 3.43 MB

UndersÖknings- och behandlingsbÄnkar

IFU - Instruction of use
Document date: 24/11/2022
Language: Swedish
Version: 4.0.3.0
DOWNLOAD
PDF 3.62 MB
Register to access the content

Lettini da visita e trattamento

IFU - Instruction of use
Document date: 24/11/2022
Language: Italian
Version: 1.1.5
DOWNLOAD
PDF 3.43 MB

Examination and treatment tables

IFU - Instruction of use
Document date: 24/11/2022
Language: English
Version: 1.1.4
DOWNLOAD
PDF 3.43 MB

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 3.1
DOWNLOAD
PDF 145.83 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 22/10/2020
Language: Italian, English
Version: V 2.0

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 889.59 KB
Register to access the content

Bedienungsanleitung

Manual - past Edition
Document date: 30/08/2010
Language: German
Version: V 1.0
DOWNLOAD
PDF 774.95 KB
Register to access the content
