THER PLUS 2

Configurable Product
L
H
1
2
2
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

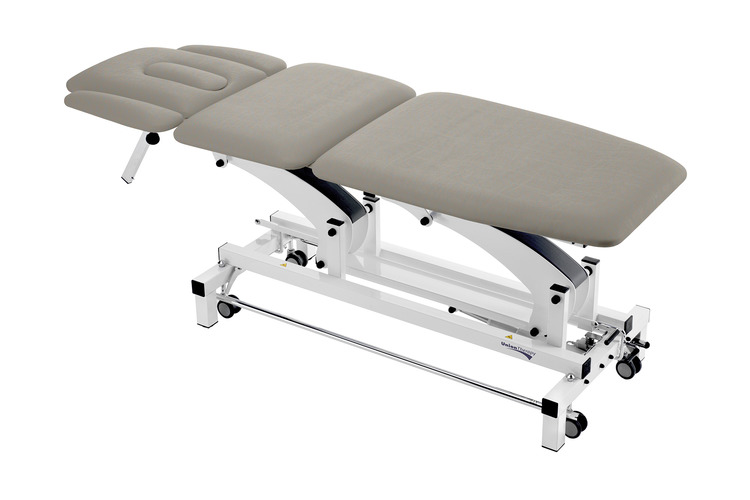

Examination, manipulation and treatment table, hydraulic or electric height adjustment by means of a low voltage (24V) foot switch or with foot rail. The couch has four movable sections: the leg/back section and the head section can be adjusted by using a gas spring assisted system. The couch can be set in "partial trendelenburg" and "sitting" positions, even with the patient on it. The head section, equipped with an elongated breathing hole, can be adjusted both in positive and in negative positions. Fully adjustable (height) side section arms.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Auxiliary Battery

AC0017
Auxiliary battery enables the table to be used without power supply. The battery comes with a support so it can be secured to the frame base.
Ask for quotation

Lateral Armrests

AC0018
Padded, fold-down side armrests, for extra surface space on the sides. They are used to improve comfort when positioning the arms.
Ask for quotation

Rpg Bar For Couch

AC0021
Height adjustable overhead bar, with rope and ankle straps. This bar can also be used for exercises from the Global Postural Re-education method
Ask for quotation

Paper Roll Holder F

AC0031
Paper roll holder adjustable to a variety of roll widths. Recommended for use with paper rolls from set AC0034.
Ask for quotation

Paper Roll Holder G

AC0032
A metal support that is attached to the foot end of the couch base. It allows for the paper roll to be placed vertically if required.
Ask for quotation

Standard Paper Roll Set

AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Maxi Paper Roll Set

AC0035
The set includes 2 x 90 cm wide rolls. Each roll is 100 meters long.
Ask for quotation

Protective Sheet Set

AC0036
This set contains 10 synthetic fabric sheets with elasticated border. This sheet can be used on any examination and treatment table with standard size/width.
Ask for quotation

Additional Foot Pedal 1

AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides
Ask for quotation

Additional Hand Control 1

AC0039
Additional hand control for models fitted with single motor. Provides the table height adjustment. It has a magnet so it can be easily attached to the table ...
Ask for quotation

Additional Control 1

AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Safety Device

AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Paper Roll Holder H

AC0699
Head end metal support with adjustable width, similar to AC0031. Available for 2015 therapy tables only.
Ask for quotation

Foot Switch Holder

AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
5
Max safety load (kg):
200
Height adjustment:
Electric/hydraulic
Min / max table height (cm):
47-97
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust (N):
6000
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Head section tilt:
+85° -35°
Wheels diameter (mm):
65
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness (mm):
40
Density (kg/m³):
30
Weight (kg):
82
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0389226
Video

Video

Luxury base
Therapy tables - How to order
Documents

Documents


User and Maintenance Manual

Manual
Document date: 22/10/2020
Language: Italian, English

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 889.59 KB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 04/08/2020
Language: Italian, English

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 113.99 KB
Register to access the content

Bedienungsanleitung

Manual
Document date: 30/08/2010
Language: German
DOWNLOAD
PDF 774.95 KB
Register to access the content
