ILIAC CRESTS ANALYSER

0
6
8
3
0
Quantity:

Description

The instrument basically consists of a lever at which main bar, curved, two further articulated bars are applied. The curvature of the first bar is intended to adapt to the anatomy of the lumbar back passage, the lateral bars are drawn to lean on the iliac crests and will be more or less open depending on the size of the basin.
Dimensions: 34 x 8 x 2 h cm; Weight: 1.8 kg



AN ADAPTIVE LEVER, STILL USEFUL TODAY

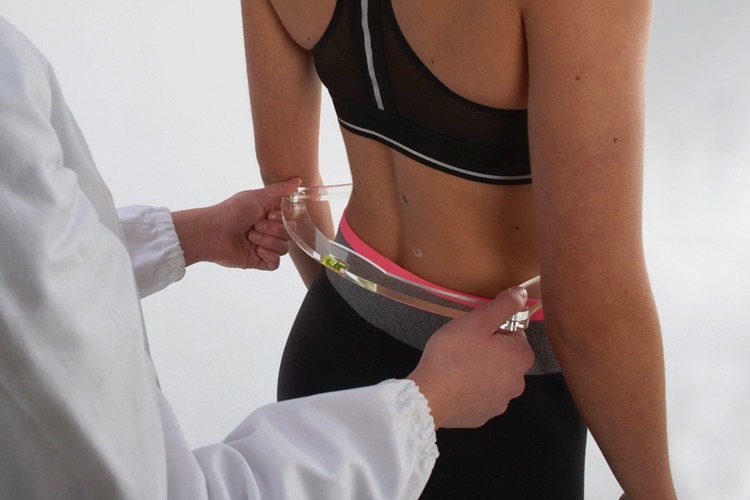

The bubble placed in the center of the main bar tells us essentially if the pelvis is levelled, when patient is positioned in orthostatism with load well distributed on the two lower limbs. Otherwise the operator will place one or more raises on the falling side, until the instrument will be levelled. At this point it will be possible to check the pelvis alignement and quantify the difference in length of the lower limbs. For this purpose, the raises kit 06730 can be useful.
Note that the evaluation of a difference in length of the lower limbs requires a lot of attention. Indeed mistakes are possible either for incorrect positioning of the subject but also for presence of anatomical variables, such as asymmetric skeletal pelvis, twisting of the lower limbs, laxity of one or more joints, musculotendinous retractions. To improve the evaluation accuracy it is therefore suggestable to use multiple measurements in different postures, now made possible by the different tools contained in this kit.

Accessories

Accessories

Set Of Shims G

06730
Set of shims G: n. 6 shims 1 cm, n. 1 shims 0,5 cm.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
34 x 8 x 2 h cm
Weight:
1.8 kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0198038

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 30 x 22 x 5 h kg 0.6 mc 0.0033
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
DOWNLOAD
PDF 98.86 KB
Register to access the content

User and Maintenance Manual

Manual
Document date: 07/02/2020
Language: Italian, English
DOWNLOAD
PDF 1.7 MB
Register to access the content
