DELTA LEG N

0
5
0
0
5
Quantity:

Description

The delta-leg is an original tool for lower limbs heterometry evaluation. It was designed to overcome the repeatability limits of traditional non-evaluation invasive methods, until now available, in particular the blocking method and the tape measure.

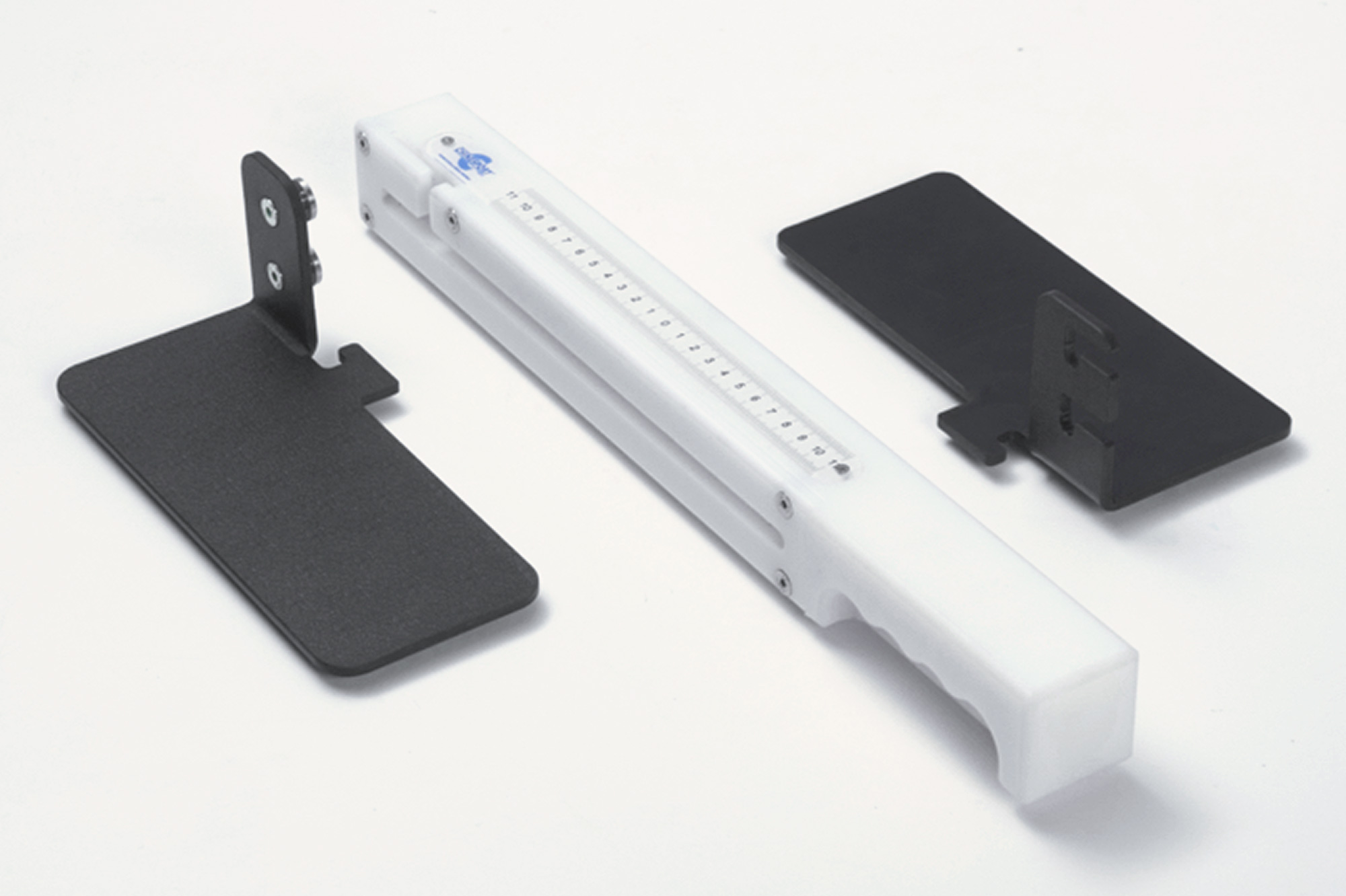

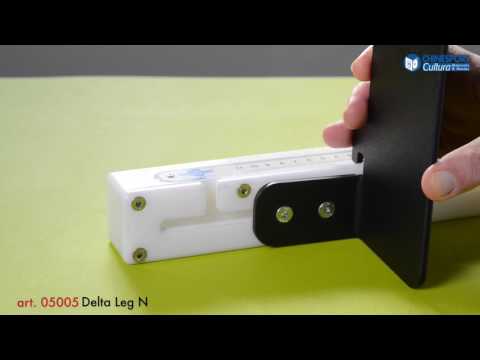

The tool consists of a bar on which two orthogonal platforms are applied: one is fixed and acts as a reference, the second is movable along the longitudinal axis of the bar and is equipped with a pointer which indicates the numerical value of the heterometry, positive or negative, on a millimeter scale placed on the surface top of the bar, with the “zero” value corresponding to the platform reference. In the carry-case version the instrument is equipped with removable footboards to reduce the footprint.
Dimensions: 45 x 25 x 22.5 h cm; Weight: 1.25 kg



FOR MEASURING THE LENGTH (HETEROMETRY) DIFFERENCE OF THE LOWER LIMBS

To measure, the patient is positioned supine and well aligned: head aligned with zenith nose, trunk aligned, lower limbs parallel with zenith positioned kneecaps. The operator therefore makes sure that the instrument has the longitudinal axis well aligned with the legs. Then he proceeds by placing the fixed platform next to the left foot, exerting moderate pressure to ensure good adhesion to the whole plant, and in particular to the heel. He approaches then the right, mobile platform, exerting equal pressure. The difference, on the millimeter scale, can be read at this point, or after removing the instrument (taking care not to alter the relation between the platforms). In case of retraction of the Achilles tendon we will only be able to measure functional heterometry.

Accessories

Accessories

Delta Leg Handbook

01462
User manual to "DELTA LEG", a non-invasive instrument for assessment of the heterometry of lower limbs. Printed in July 2006; 12 pages; Multi language edition.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
45 x 25 x 22.5 h cm
Weight:
1.25 kg
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 50 x 14 x 14 h kg 2 mc 0.0098
Documents

Documents


05005 - User and maintenance manual

User and Maintenance Manual
Language: Italian
DOWNLOAD
PDF 308.39 KB
Register to access the content

05005 - User and maintenance manual

User and Maintenance Manual
Document date: 07/02/2020
Language: English/Italian
DOWNLOAD
PDF 1.7 MB
Register to access the content

05005 - Declaration of Conformity

Declaration of conformity
Document date: 01/04/2019
Language: English/Italian
DOWNLOAD
PDF 83.27 KB
Register to access the content
