STRUZZO 500

A
V
3
2
2
1
B
3
4
4
2
C
Quantity:

Description

This device enables the user to assume and maintain an extreme upright position, and to move around indoor autonomously without assistance, for a more independent life at home or at work.

It’s indicated for users who have sufficient control over one hand movement to achieve performances and sensations equivalent to those of an able walker: the pleasure of moving at a fast pace while holding an upright position, of having the same access to high shelves as anyone and only a little less agility when through narrow passages.



The end user is lifted into a standing position by means of a (rechargeable) battery-powered electric motor operated by hand control, but he is also aided by the handles-thoracic support group and tray. They parts can be lowered down when the user is seated, providing great support to the upper body when the user is still sitting and during the lifting.

The device has a safety sensor for the user to stop the lifting sequence at any time. The aid is also provided with a Joystick unit and two motors that allow transfers to be carried out unaided.

A series of adjustments without tools ensure the aid suits the user’s morphological characteristics. In particular, the main frame can be adjusted to the user’s height electrically by means of a second electric actuator.

For better stabilization at trunk and hips level the handles can be adjusted in width and integrated with padded elements as accessory. The seat is adjustable in depth and can be applied to it a padded cover (accessory). The device is fitted with a service tray.

Similar devices without independent mobility by the user are the EASY UP 100 and EASY 200 models. These models are provided with wheels enabling to be transferred by the care giver.

Dimensions: 90 x 60 x 85 ÷ 127 h cm. Weight: 70 kg. Max load: 140 kg. User height: 140 ÷ 200 cm.




NOTE
A demonstration video of the main performances, and in particular for the lifting and adjustment methods of the entire frame to the height of the end user, is available with reference to a previous version corresponding to this model.
Accessories

Accessories

Adjustable Heel Rests

AC0686
Guidance for the user on the device. They offer a back support for the feet. Adjustable in their width independently and usable only with metal footplates. U...
Ask for quotation

Coloured Paddings

AC0689
Made of soft foamed material with synthetic leather upholstery. The padding is applied to the specific metal structure. Available in three colours. Available...
Ask for quotation

Adjustable Short Seat

AC0691
Hold the user safely while lifting. 24 cm long seat. Adjustable in depth.
Ask for quotation

Short Seat Padding

AC0543
Standard short padding seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.
Ask for quotation

Toilet Seat

AC0871
Removable toilet seat for Struzzo
Ask for quotation

Long Seat Padding

AC0544
Padding for long adjustable seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.
Ask for quotation

Pocket For Long Seat

AC0048
Pocket for long seat to facilitate the transfer from the wheelchair.
Ask for quotation

Lateral Supports

AC0049
Soft supports for the lateral restraint.
Ask for quotation

Adjustable Lateral Supports

AC0702
Soft supports for the lateral restraint. Adjustable in depth along the long handles.
Ask for quotation

Leg Strap

AC0014
Leg strap to stablize the leg. Available in pairs.
Ask for quotation

Back Strap

AC0783
Back restraint strap. Applied by an assistant. One size only.
Ask for quotation

Hand Anchor

01608
This ergonomic anchor can be applied to any smooth surface to achieve greater stability and safe positioning of the hand.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
90 x 60 x 85 ÷ 127 h cm
Base accessibility:
46.6 cm (compact)
Front wheels diameter:
Ø 15 cm (traction)
Front wheels diameter:
Ø 7.5 cm (transfer)
Height of the frame from the ground:
31 mm
Parking brake:
electro brake
Ground handling:
independent
Movement type:
motorized
Maximum step that can be overcome:
2.0 cm
Maximum practicable slope:
2 degrees
Type of command:
joystick
Maximum speed:
2.5km / h
Structure height adjustment:
electric
Servo-assisted verticalization:
electric
Autonomy of continuous use:
190 min
Internal / external base width:
44.6 - 60 cm
Capacity:
140 kg
Weight:
70 kg
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 scatola su bancale cm 100 x 75 x 114 h kg 94 mc 0.855
Video

Video

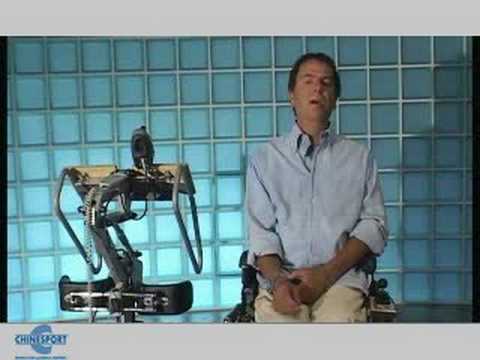

Electric stander paraplegic Struzzo
Struzzo demonstration by end user (Spain).
Documents

Documents


Benutzer- und Wartungshandbuch

Manual
Document date: 01/06/2018
Language: German
DOWNLOAD
PDF 2.88 MB
Register to access the content

Manual de uso y mantenimiento

Manual
Document date: 01/06/2018
Language: Spanish
DOWNLOAD
PDF 1.87 MB
Register to access the content

User and maintenance manual

Manual
Document date: 01/06/2018
Language: English
DOWNLOAD
PDF 2.03 MB
Register to access the content

Manuale d’uso e manutenzione

Manual
Document date: 01/06/2018
Language: Italian
DOWNLOAD
PDF 1.91 MB
Register to access the content

Manual de uso y mantenimiento

Manual
Document date: 01/06/2018
Language: Spanish
DOWNLOAD
PDF 1.9 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 15/06/2016
Language: Italian, English
DOWNLOAD
PDF 100.1 KB
Register to access the content
