You are here: Home > Standing & Mobility > Struzzo Series > Struzzo 2 4 2 0
See similar products
Request information

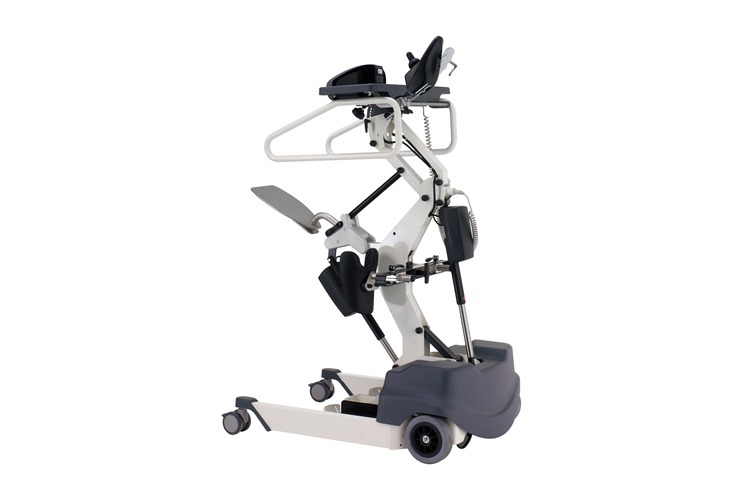

STRUZZO 2 4 2 0

A
V
2
3
2
4
2
0
Quantity:

Description



WARNING!
  The AV232420 model was replaced by the new product configuration AV3221B3342C, for a new equivalence you must add the adjustable heelrests (AC0686) and the anti-crushing safety system (AC0692), no longer standard. For accessories, we invite you to take vision of applicable accessories and options available in chapter 6 of the international edition catalogue.

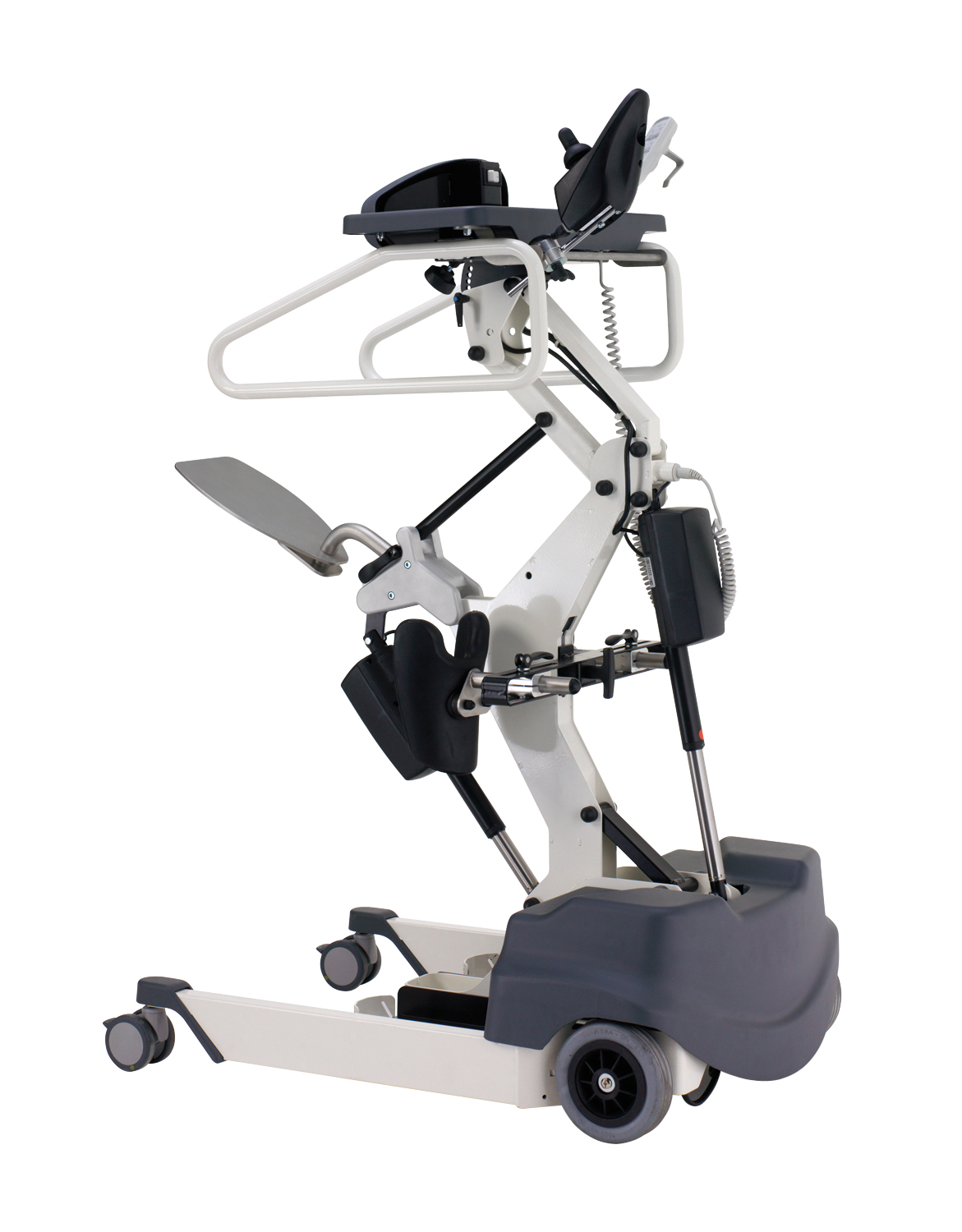

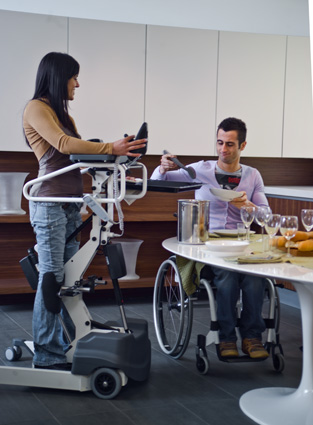

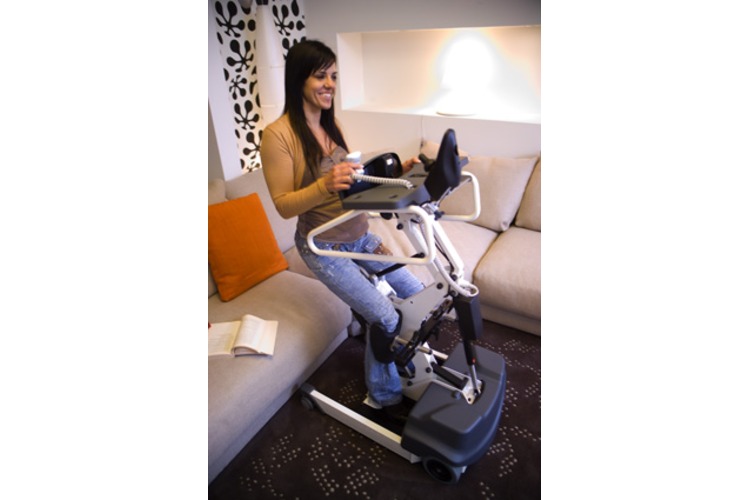

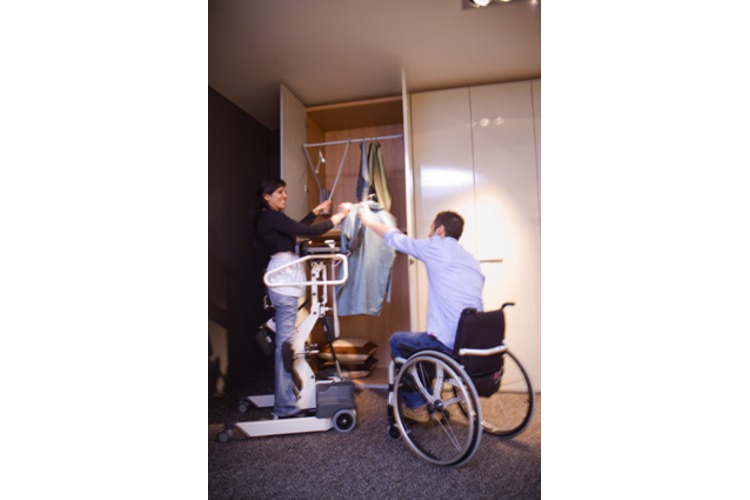

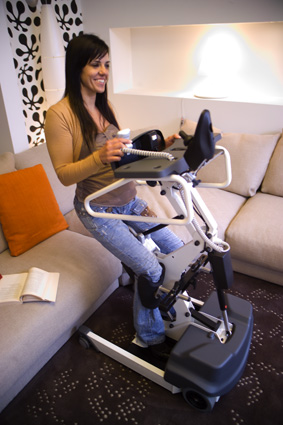

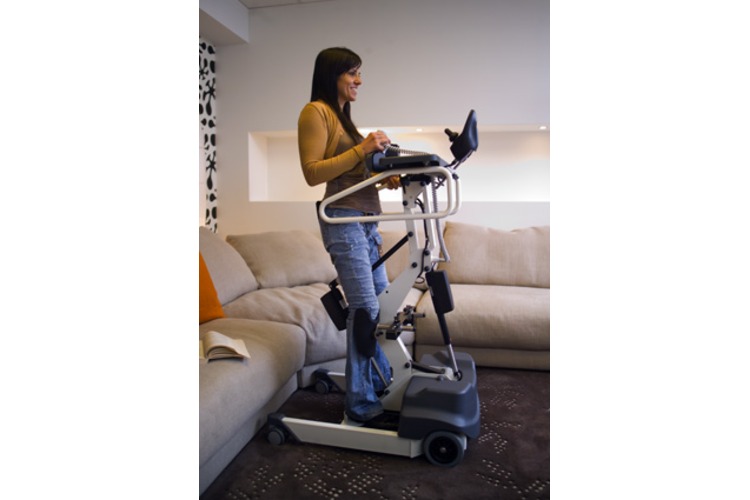

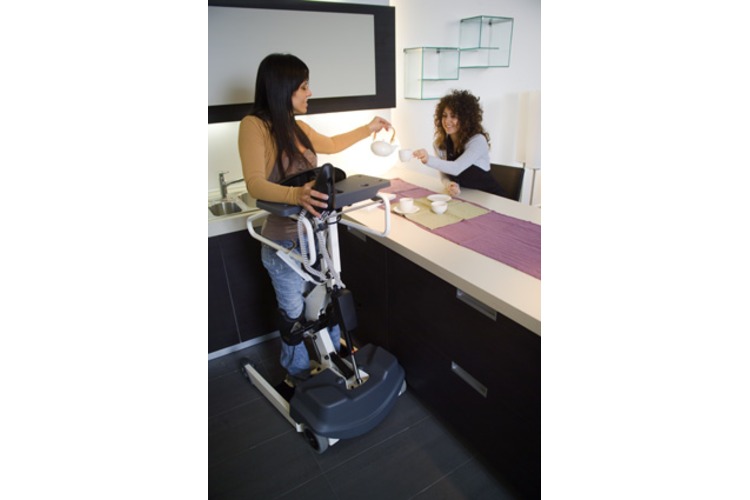

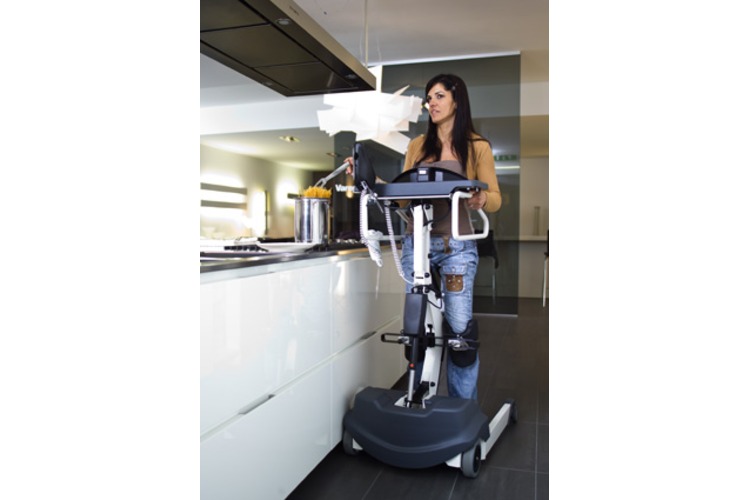

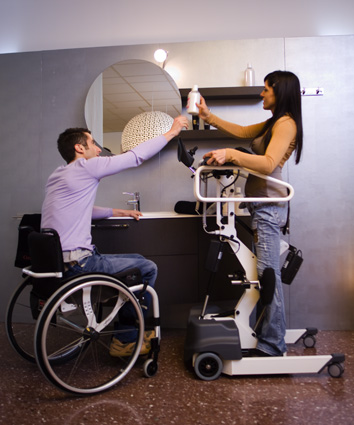

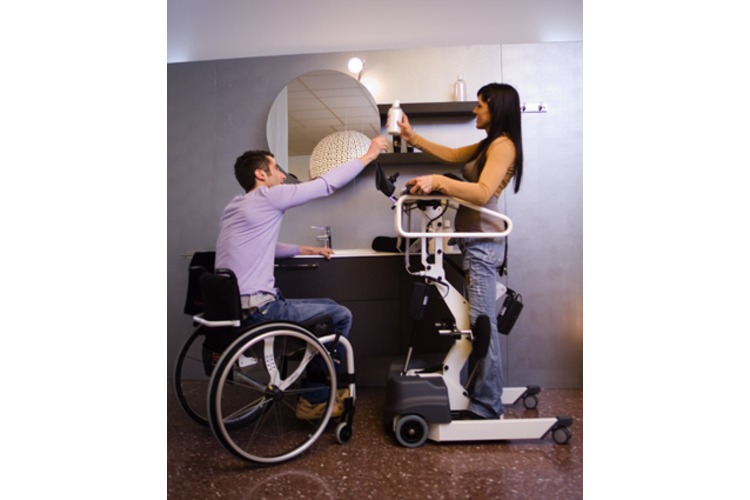

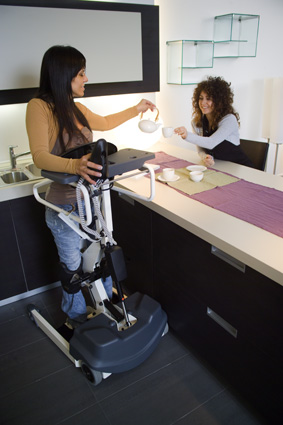

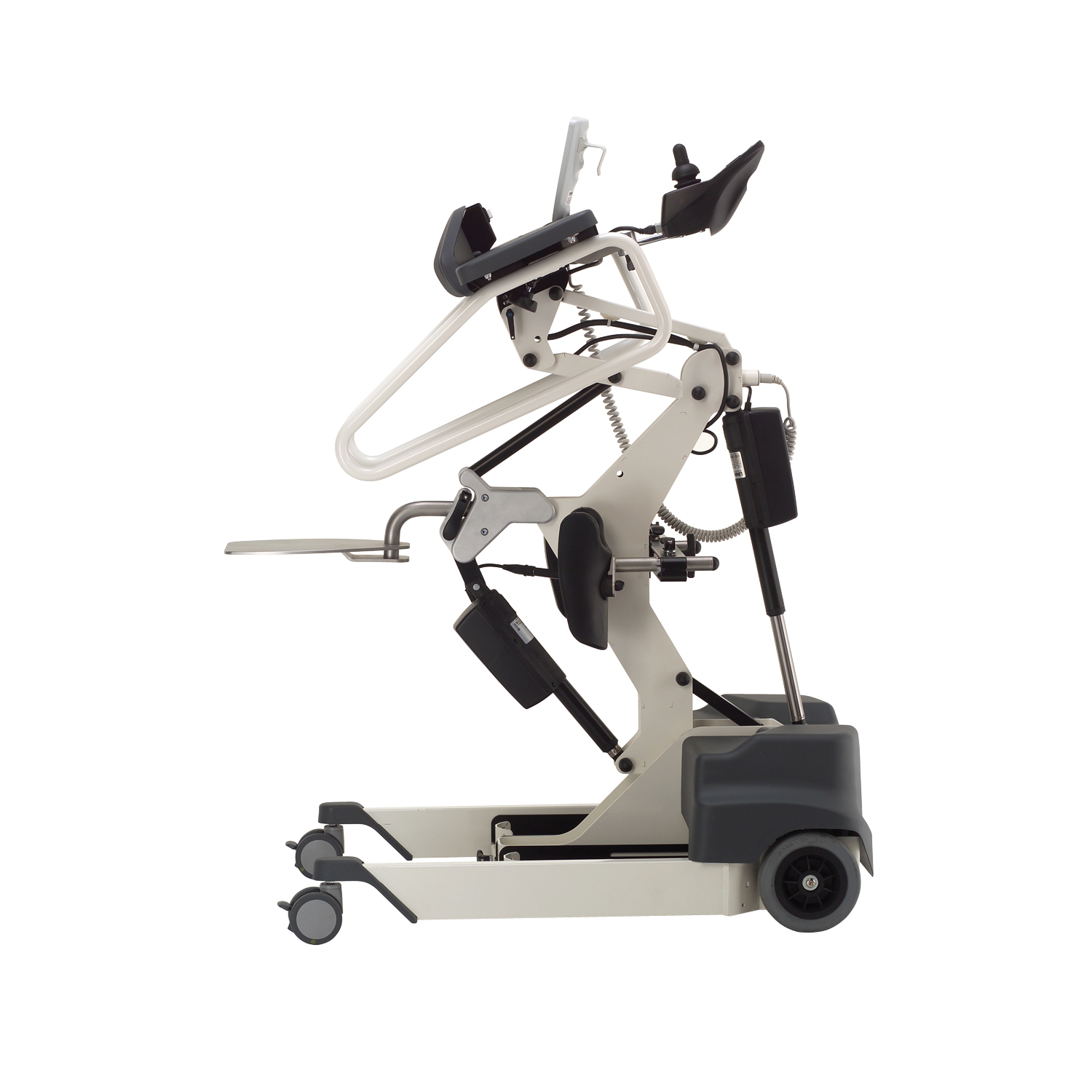

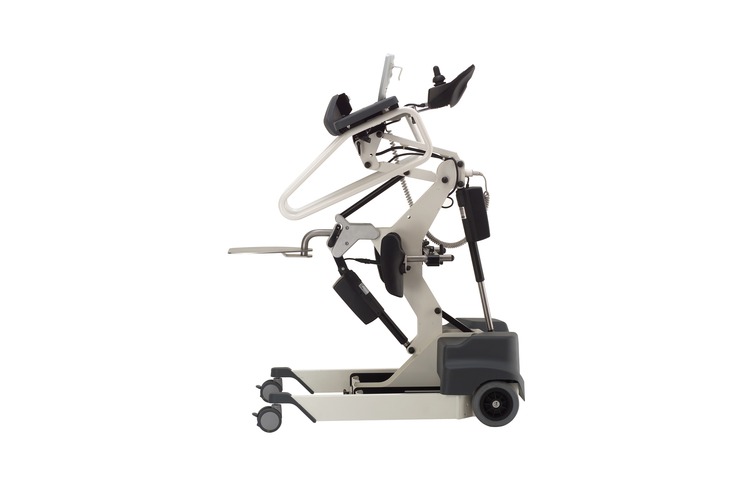

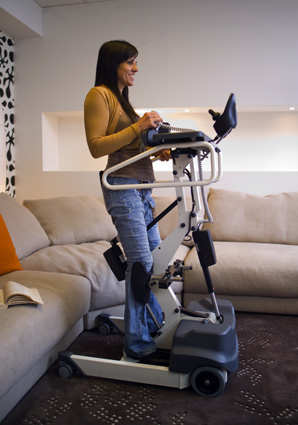

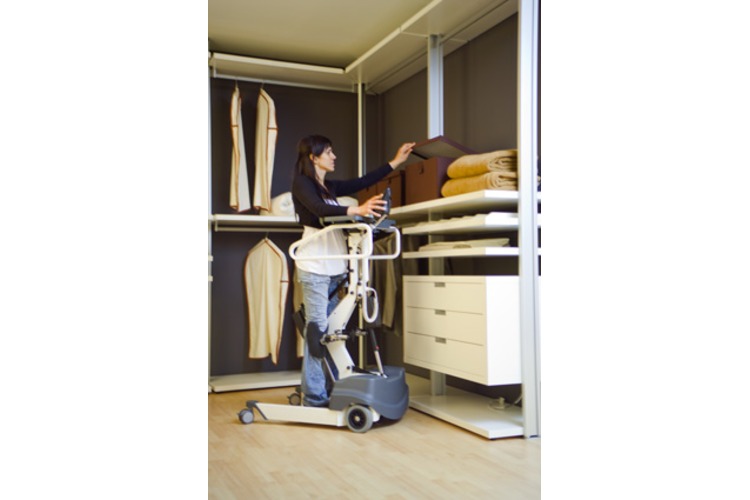

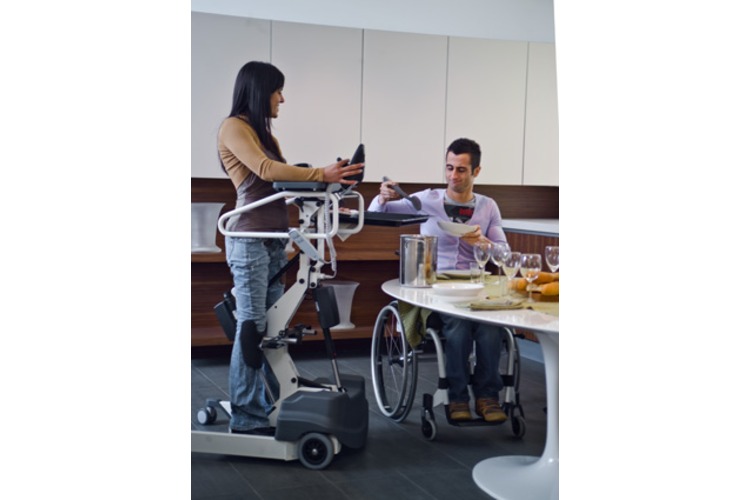

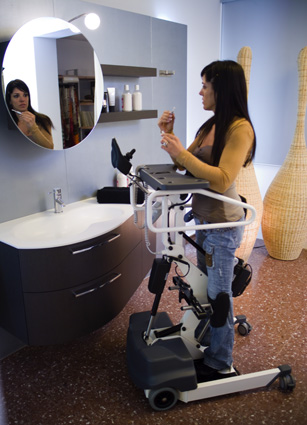

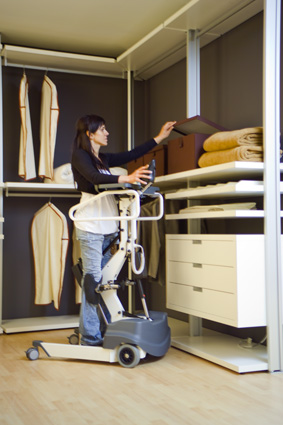

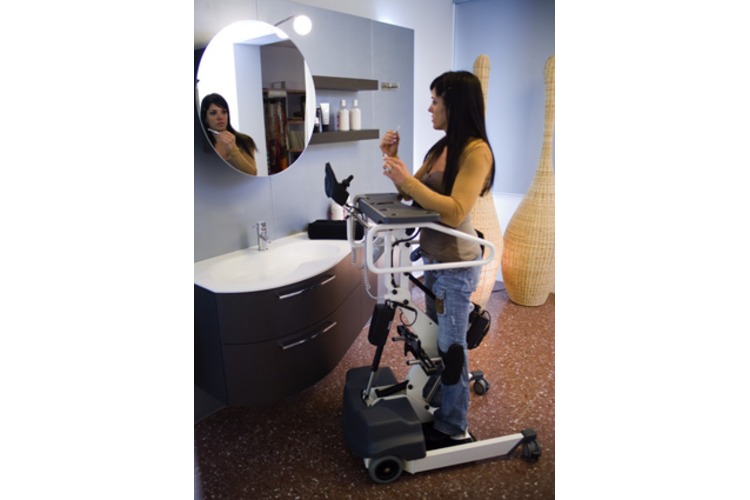

This device enables the user to assume and maintain an upright position, and to move around indoor independently without assistance from a carer.

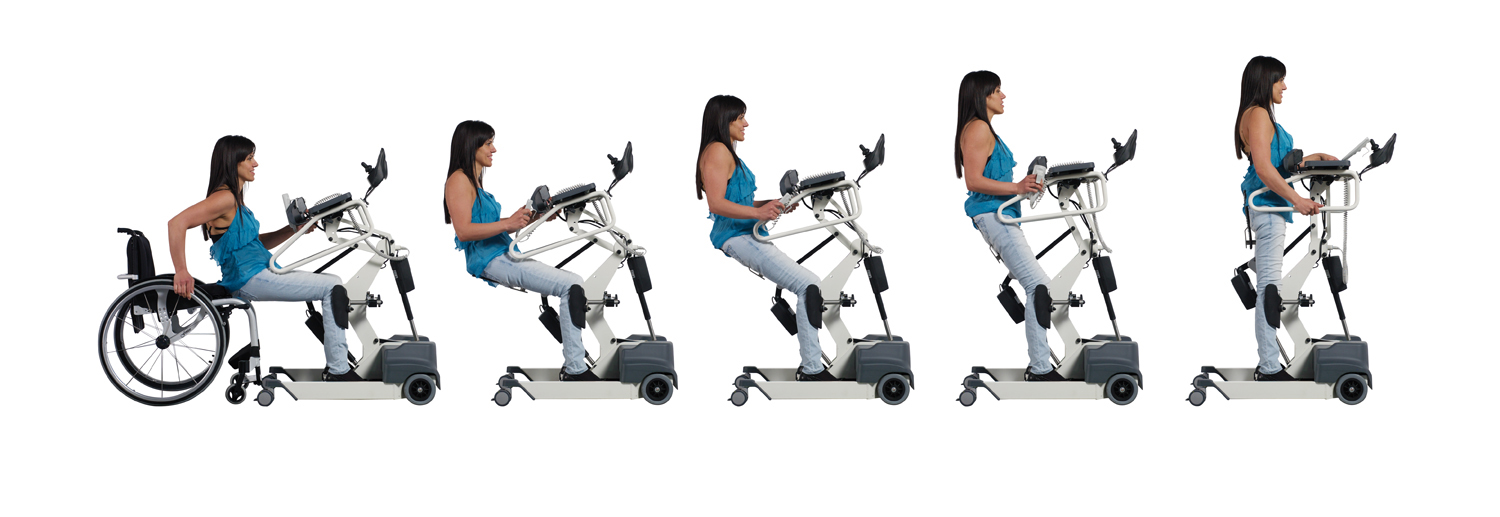

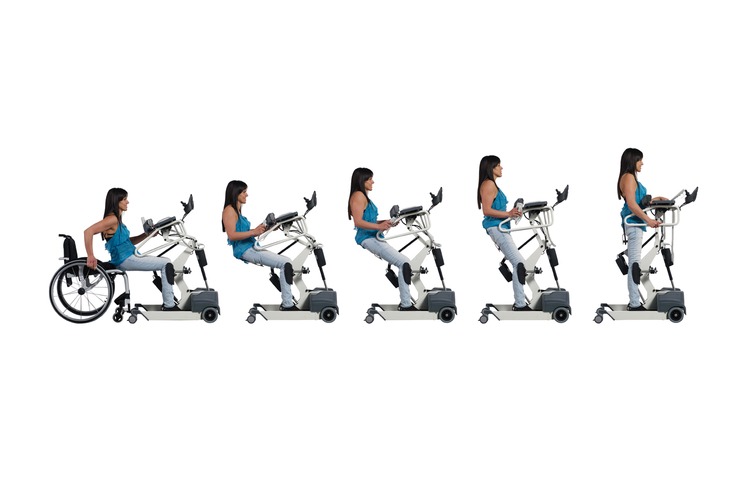

The user is lifted into a standing position by means of a (rechargeable) battery-powered electric motor operated by hand control, while the movement of the thoracic support has a safety sensor for the user to stop the standing sequence at any time.

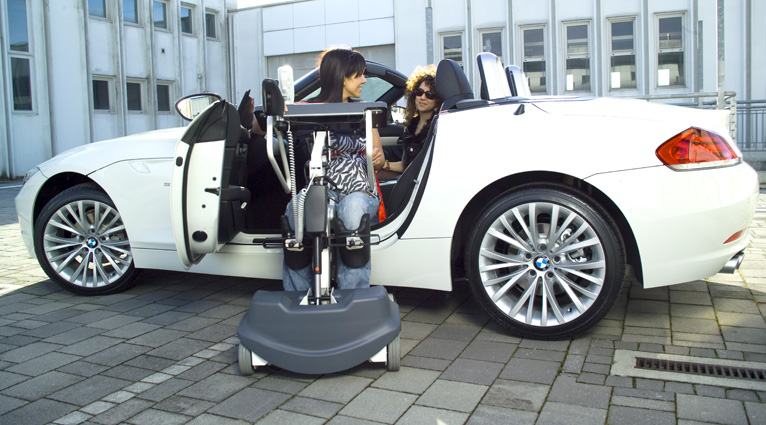

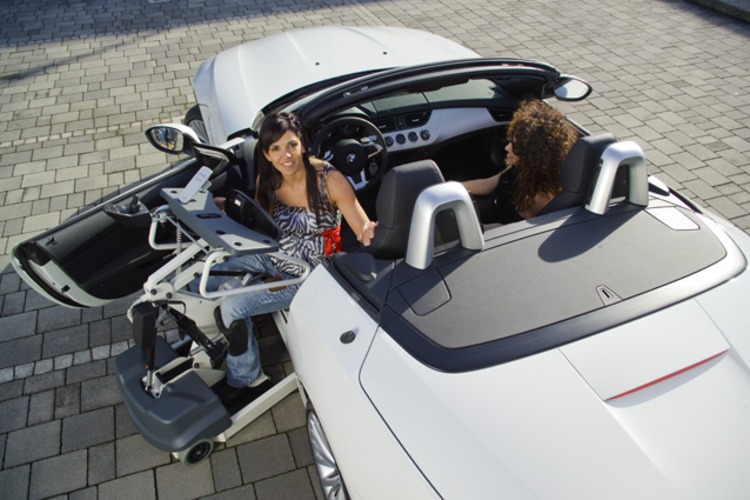

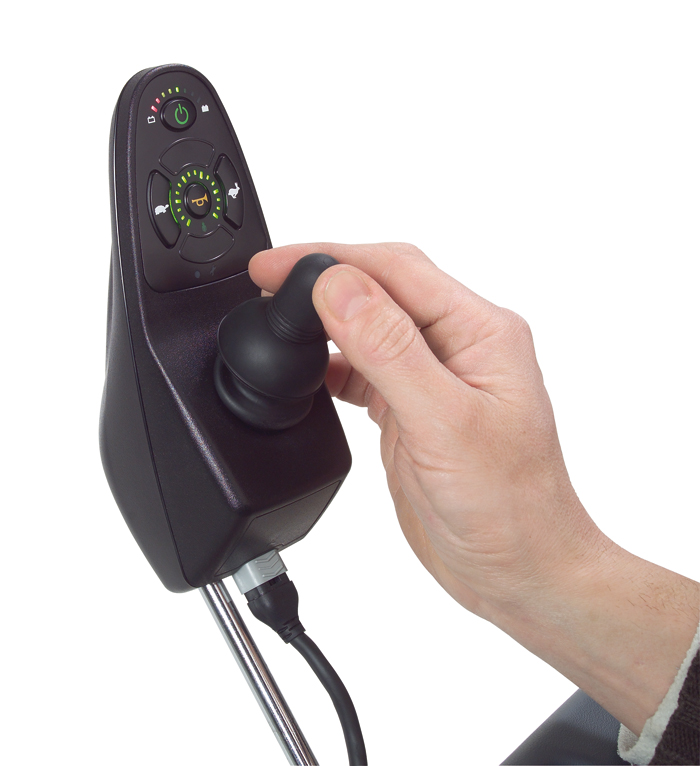

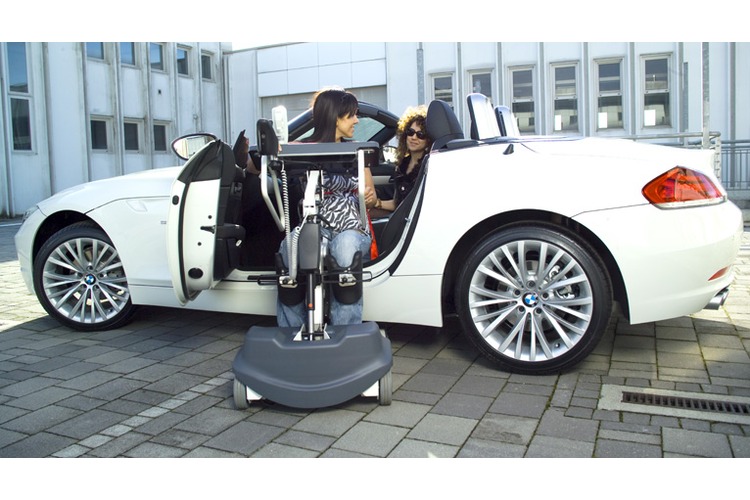

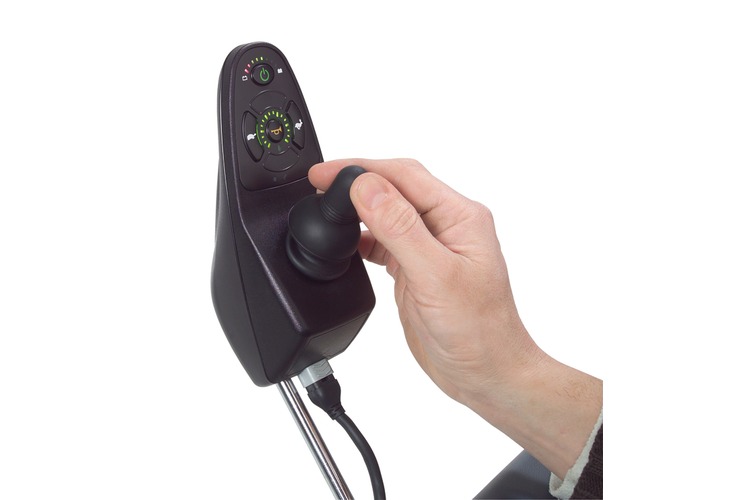

The aid is also provided with a Joystick unit and two motors that allow for the transfers to be carried out unaided.
A series of adjustments ensure the aid suits the user's morphological characteristics. In particular, the main body can adjust to the user's height electrically by means of a motor unit.

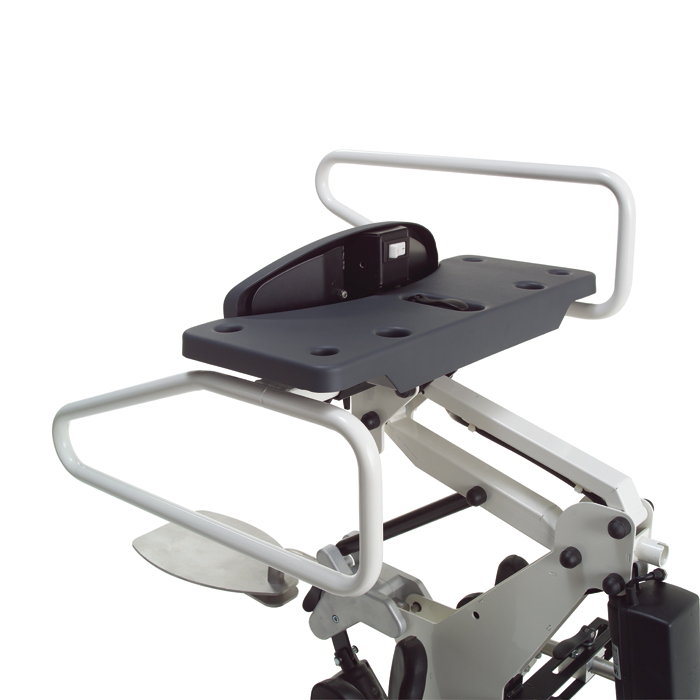

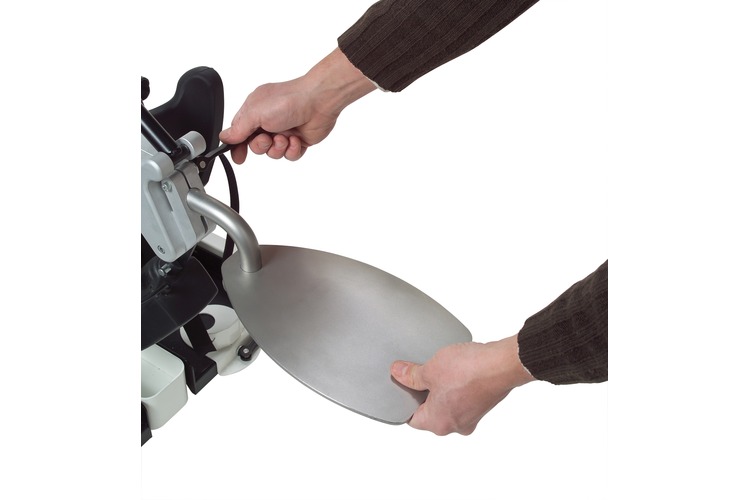

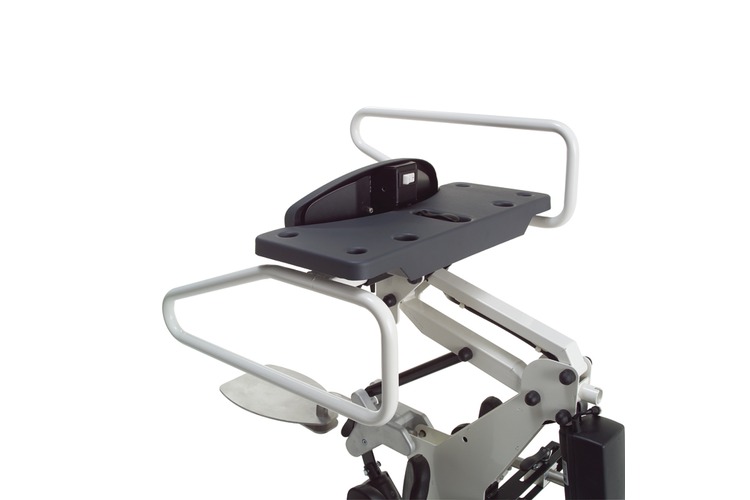

To better hold the trunk at the sides, the handles can be tilted and adjusted in width. The flat seat is adjustable in depth.

Accessories

Accessories

Leg Strap
AC0014
Leg strap to stablize the leg. Available in pairs.
Ask for quotation

Lateral Supports
AC0049
Soft supports for the lateral restraint.
Ask for quotation

Lateral/Posterior Supports
AC0050
Soft supports for better lateral and posterior restraint.
Ask for quotation

Elongated Seat
AC0054
Elongated seat for an easier access of the user
Ask for quotation

Front Body Support
AC0073
Front body support
Ask for quotation

Stability Grip
AC0440
Stability grip for more stability in case of specific needs.
Ask for quotation

Short Seat Padding
AC0543
Standard short padding seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.
Ask for quotation

Back Restraint Sling
AC0783
Back restraint strap. Applied by an assistant. One size only.
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
70 kg
Max load:
140 kg
User height:
min 140 cm - max 200 cm
Handles-thoracic support assembly:
movable - can be lifted up
Servo-assisted lift:
electric
Structure height adjustment:
electric
Overload protection:
electronic
Overload indicator:
acoustic
Parking brake:
on back caster
Max speed of movement:
2.5 km/h (adjustable)
Frame height from ground:
31 mm
Max climbable step:
20 mm
Max climbable slope:
2 degrees
Operation time (lift/transfer):
3-4 days normal usage (2 h 30 min uninterrupted use for movement)
Average battery charging time:
8 hours
Battery charging level:
multi-color display on joystick
Speed adjustment:
digital on joystick
Auto off:
as standard
Fault diagnostic and maintenance:
on display

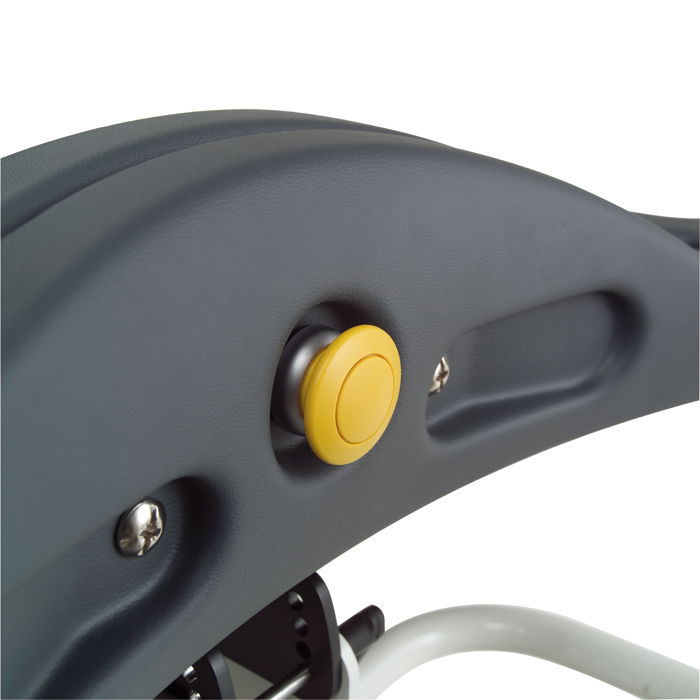

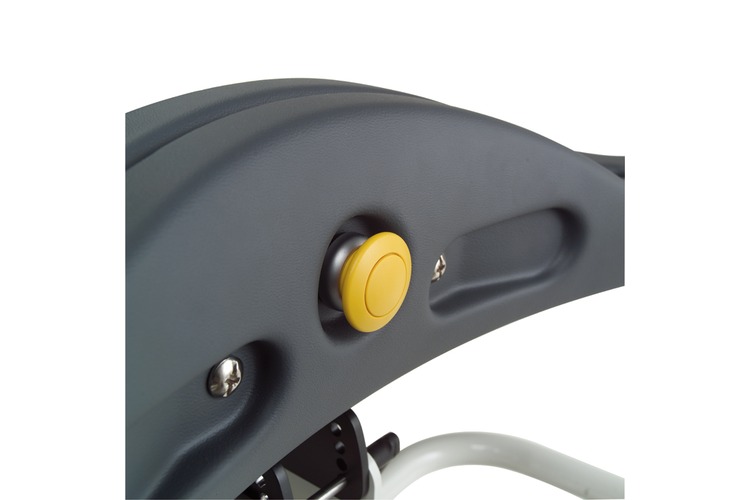

Lift stop button:
as standard
Lift stop button inhibit:
as standard

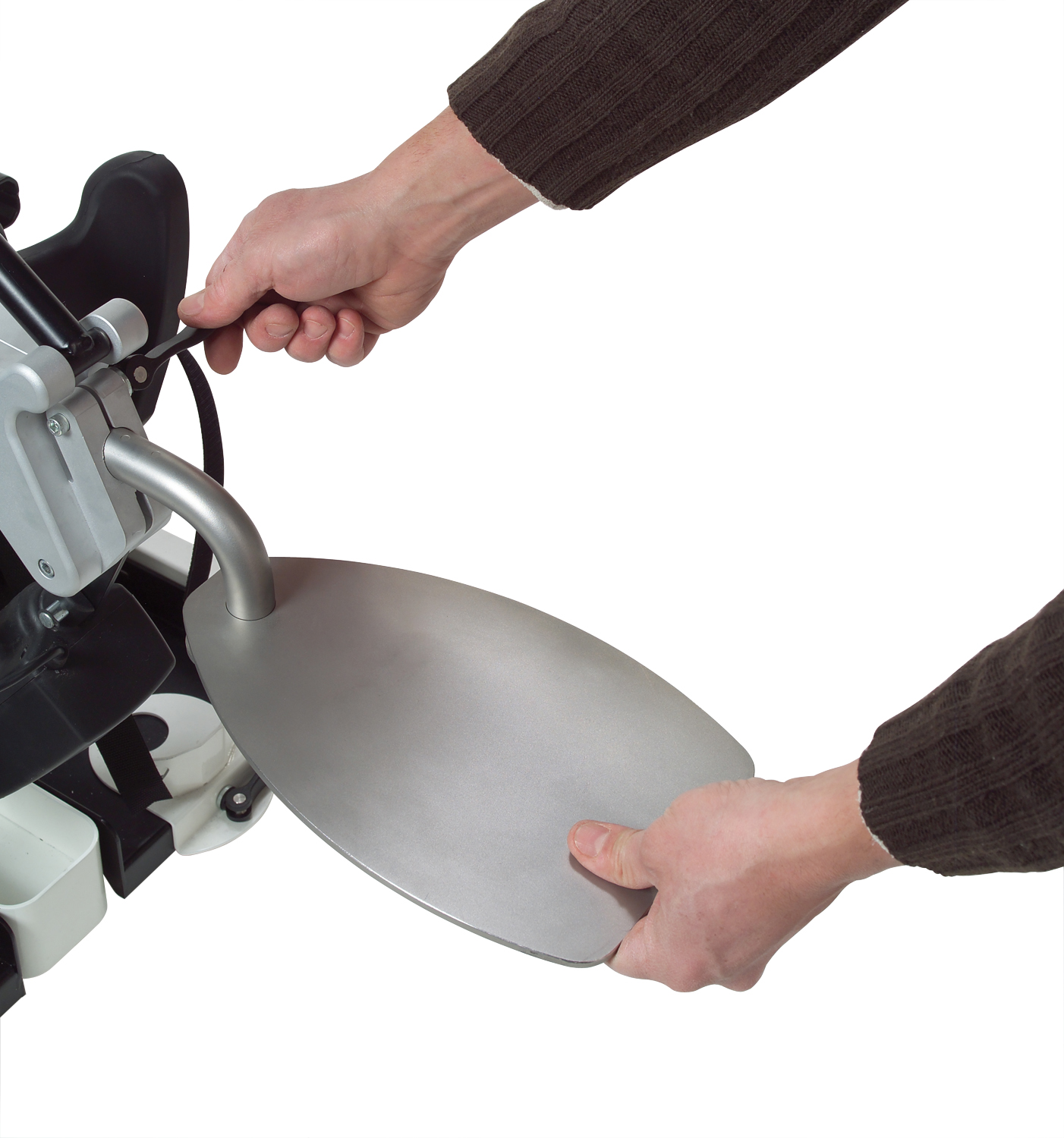

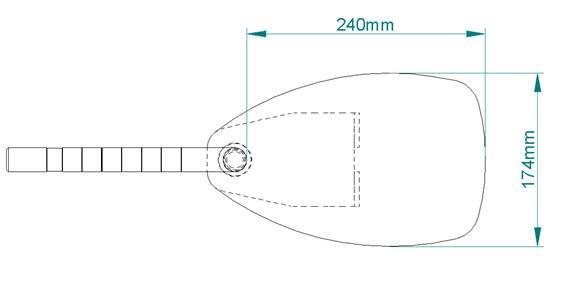

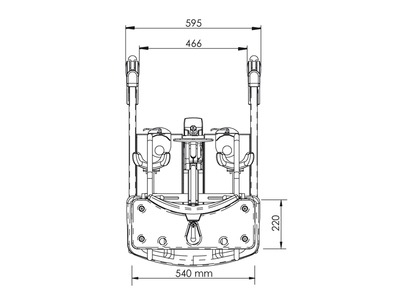

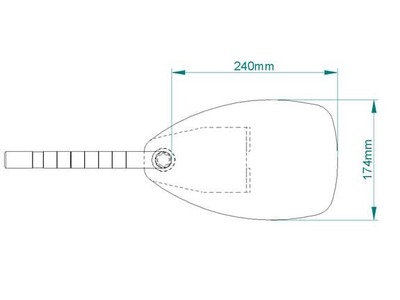

STANDARD SEAT
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0376016
Video

Video

Chinesport presents the new model of Struzzo
Struzzo demonstration at the 2010 Exposanità fair in Bologna (Italy)
Struzzo and me - Struzzo demonstration by end user at home (Italy).

Other videos

Struzzo demonstration by end user (Holland).
Chris met de Struzzo - Struzzo demonstration by end user at home (Holland).
Struzzo demonstration by end user (Spain).
Struzzo demonstration (Spain).
Dutch Struzzo presentation
Testimonianza Struzzo di Tessa (Olanda)
Struzzo's testimonial - Tim Wijngaarden
Struzzo's Testimonial - Myriam de Koning
Struzzo's Testimonial - Hans Nelemans
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Declaration of conformity

Compliance of statement - past edition
Document date: 07/03/2014
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 176.71 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 06/03/2014
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.96 MB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 27/08/2010
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 816.36 KB
Register to access the content

Manual de instrucciones

Manual - past Edition
Document date: 27/08/2010
Language: Spanish
Version: V 1.0
DOWNLOAD
PDF 791.71 KB
Register to access the content

Bedienungsanleitung

Manual - past Edition
Document date: 28/07/2010
Language: German
Version: V 1.0
DOWNLOAD
PDF 882.9 KB
Register to access the content

Mode d'emploi

Manual - past Edition
Document date: 28/07/2010
Language: French
Version: V 1.0
DOWNLOAD
PDF 911.82 KB
Register to access the content
Testimonials

Testimonials

The new Struzzo plus stands out in terms of functionality... (Italy - March 2010) "The new Struzzo plus certainly stands out in terms of functionality when it comes the possibility of adjusting the supports under the patella and seating tilt, even for positioning very low seats such as...
I stand twice a day for 15 minutes and feel very good with it... "I write a blog about my experience sofar and I'm delighted to become your Struzzo ambassador. I stand twice a day for 15 minutes and I feel very good with it, also psychologically. And it is done in a minute!"   (Holland -...
Maintenant je peux de nouveau voir le monde d'en haut " Aujourd'hui, après deux opérations et beaucoup d'annèes d'entrainements, j'ai retrouvé beaucoup de mobilité et équilibre dans le tronc, épaules, bras, et sourtout triceps...
" I am working again in my studio thanks to the Struzzo. I can make photographs from a standing position which allows a normal perspective when I shoot photo's. This gives me so much more freedom. The first days I could stand for about 5 to 10 minutes maximum. My spasms became less and less the...
Struzzo Club party during the exhibition SUPPORTS in Utrecht. Both have a spinal cord injury. Holland – May 2012
Here you can find a series of Youtube testimonials that are demonstrating the use of the standing frame "Struzzo".
" My name is Tessa, and I’m 43 years old. Because of a car accident,  some 6 years ago, I’m  now sitting in a wheelchair,  due to a complete spinal cord injury at T11, After the accident my right shoulder has a limitation that makes transfers more difficult....

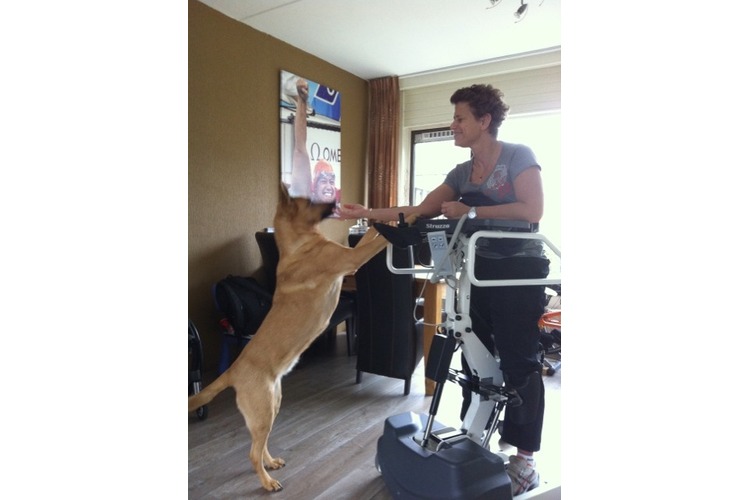

Mirjam de Koning is a famous dutch paraplegic swimmer, gold medal winner at the paralympics 2008 and 2012.  In the video she is using the Struzzo at a concert with a famous dutch pop-rock group, the Bløf. At the end of the exhibition, she met and greet with the band ! Mirjam...
