You are here: Home > Standing & Mobility > Easy Up Series > Easy Up 2310

Description



WARNING!
  The AV152310 model was replaced by the new product configuration AV3121A3342G, for a new equivalence you must add this accessory adjustable heelrests (AC0686), no longer standard. For accessories, we invite you to take vision of applicable accessories and options available in chapter 6 of the international edition catalogue.





Gas spring height adjustment, electric lift.

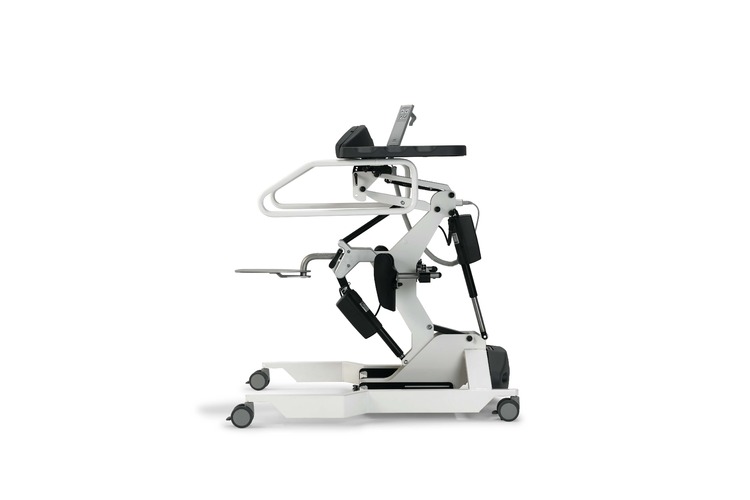

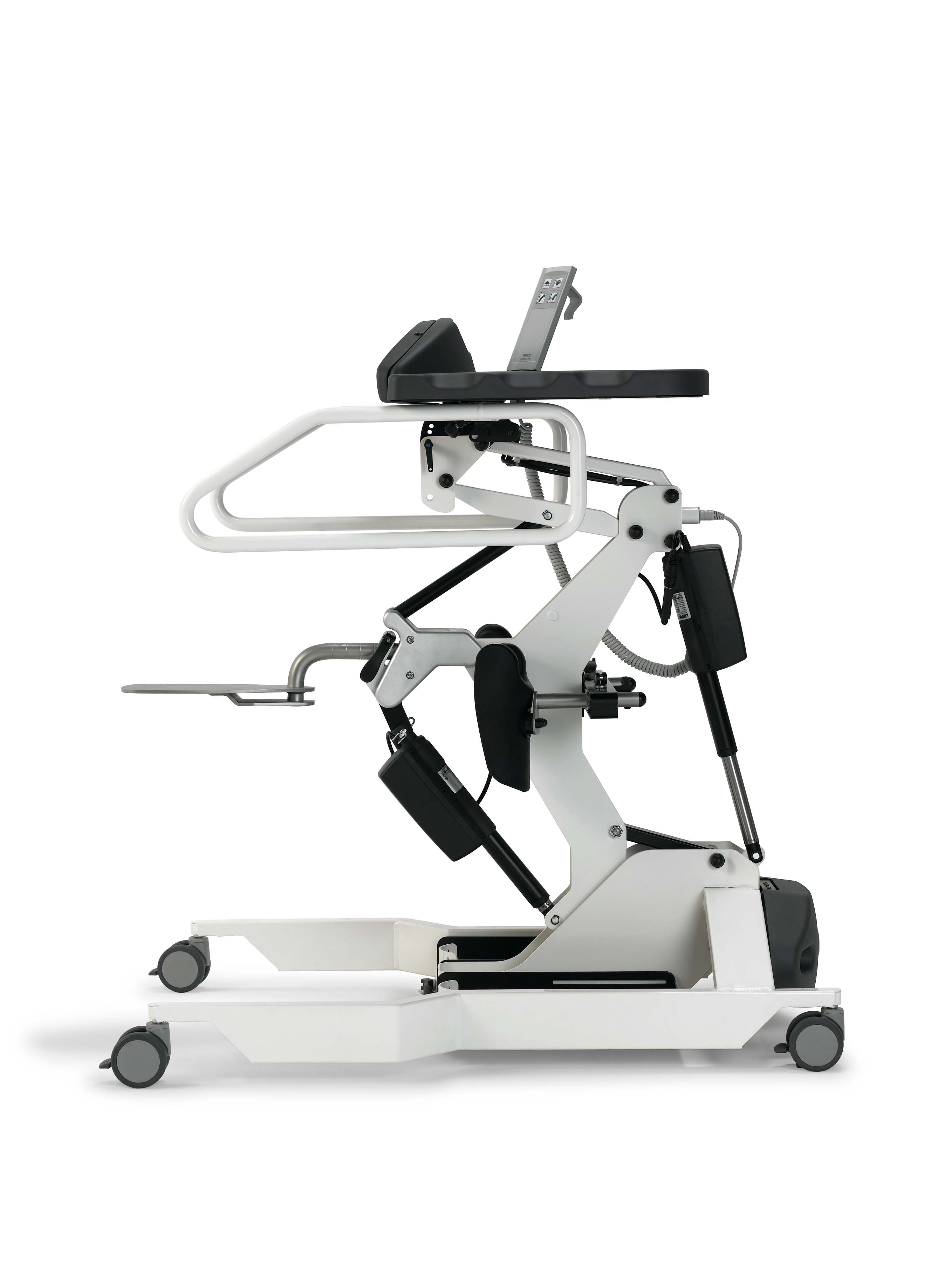

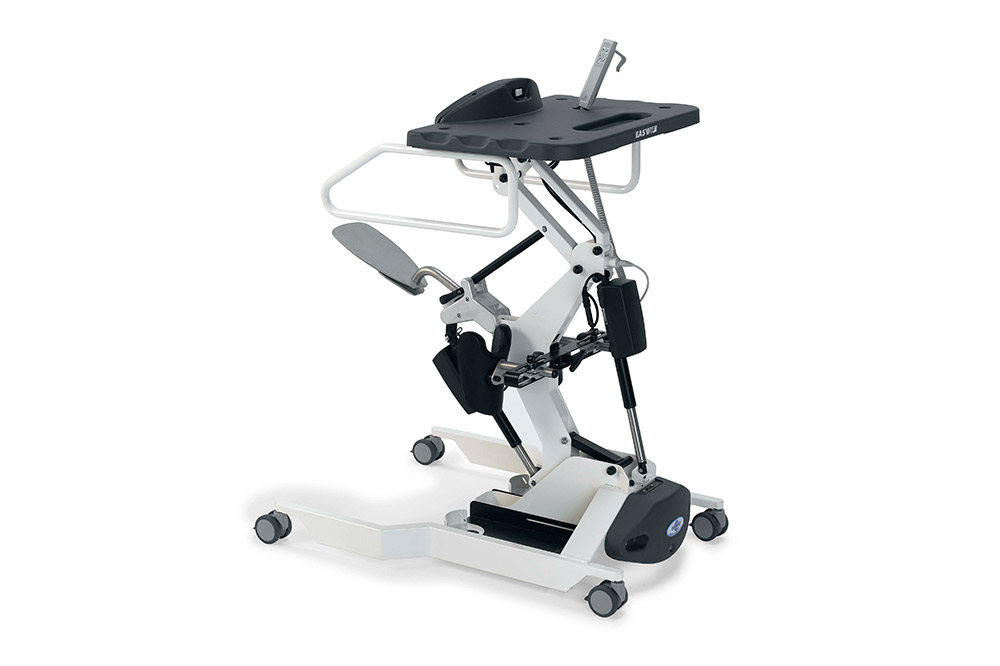

(The product pictures referes to item code AV 15 2410)

This technology enables the user to assume and maintain an upright position, and to move indoors with the assistance of a carer.
The user is lifted into a standing position by means of a (rechargeable) battery-powered electric motor operated by hand control, while the movement of the movement of the thoracic support accompanies them throughout the lift.
The thoracic support has a safety sensor for the user to stop the standing sequence at any time. A series of adjustment ensure the aid can be adapted to the user's morphological characteristics. Bigger tray.
In particular, the main body can adjust to the user's height by means of a gas spring assisted system, or electrically via a motor unit. To better restrain the trunk at the sides, the handles can be tilted and adjusted in depth. The seat is depth adjustable.
Accessories

Accessories

Leg Strap
AC0014
Leg strap to stablize the leg. Available in pairs.
Ask for quotation

Lateral Supports
AC0049
Soft supports for the lateral restraint.
Ask for quotation

Lateral/Posterior Supports
AC0050
Soft supports for better lateral and posterior restraint.
Ask for quotation

Long Handles
AC0051
Long handles with supports for lateral and posterior restriant.
Ask for quotation

Elongated Seat
AC0054
Elongated seat for an easier access of the user
Ask for quotation

Axillary Support
AC0072
Axillary support.
Ask for quotation

Stability Grip
AC0440
Stability grip for more stability in case of specific needs.
Ask for quotation

Short Seat Padding
AC0543
Standard short padding seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.
Ask for quotation

Back Restraint Sling
AC0783
Back restraint strap. Applied by an assistant. One size only.
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
53 kg
Maximum load:
140 kg
User height:
min 140 cm - max 200 cm
Handles-thoracic support assembly:
movable - can be lifted up
Servo-assisted lift:
electric
Structure height adjustment:
gas
Overload protection:
electronic
Overload indicator:
acoustic and visual
Parking brake:
on all 4 casters
Frame height from ground:
31 mm
Operation time (lift):
about 30 lift cycles with user weighing 140 kg and charged batteries
Average battery charging time:
6 - 8 hours
Battery charging level:
multi-color display on equipment
Auto off:
as standard
Fault diagnostic and maintenance:
on display
Lift stop button:
as standard
Lift stop button inhibit:
as standard

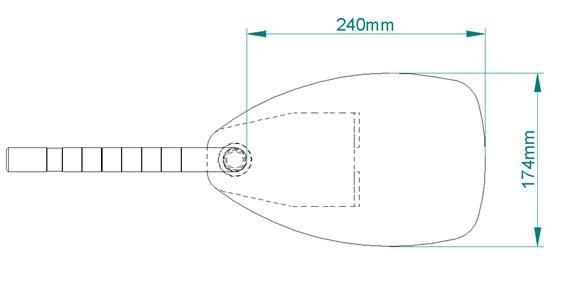

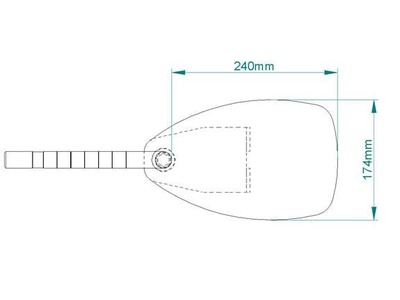

STANDARD SEAT
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0397874
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

User and maintenance manual

Manual - past Edition
Document date: 28/03/2014
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.7 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 07/03/2014
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 176.56 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 24/11/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.95 MB
Register to access the content

Manual de instrucciones

Manual - past Edition
Document date: 27/08/2010
Language: Spanish
Version: V 1.0
DOWNLOAD
PDF 791.71 KB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 27/08/2010
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 816.36 KB
Register to access the content
