BOBATH S TILT 2ET

Configurable Product
L
B
4
9
2
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

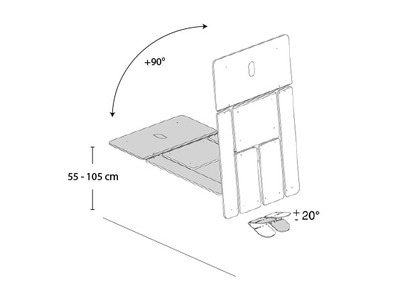

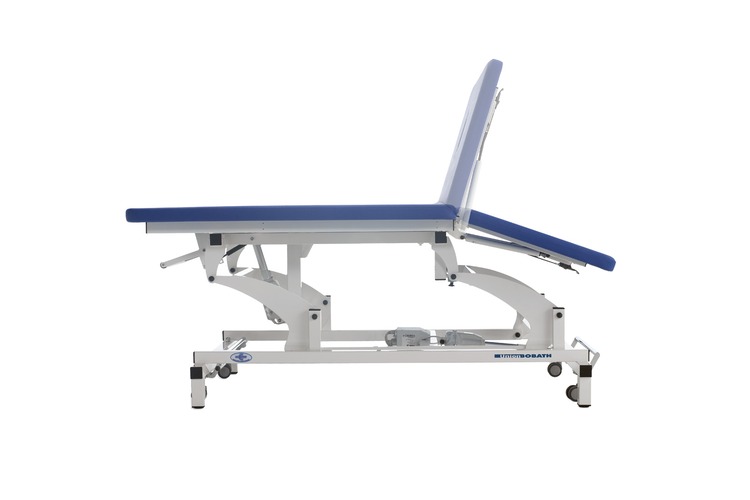

Four-section tilt table used for supine position static exercises, examination and physical therapy for up to 180 kg. It can be adjusted in height and tilt up to 90°, with wall power supply, 24V low voltage, and operated by hand control. It is fitted with a tilt angle indicator which can be applied freely by the caregiver in the preferable position. Height from ground is 56 cm. Head end section can be adjusted in positive (+80°) and in negative (-20°) by gas spring system with ergonomic lever, and it’s provided with padded plug for the nose-mouth breathing hole in the standard supply.

The table does not come with any containment band, which must be chosen from among the accessories available. A central guide between the two lower limbs support sections allows for the restraining strap to be better fitted and secured.

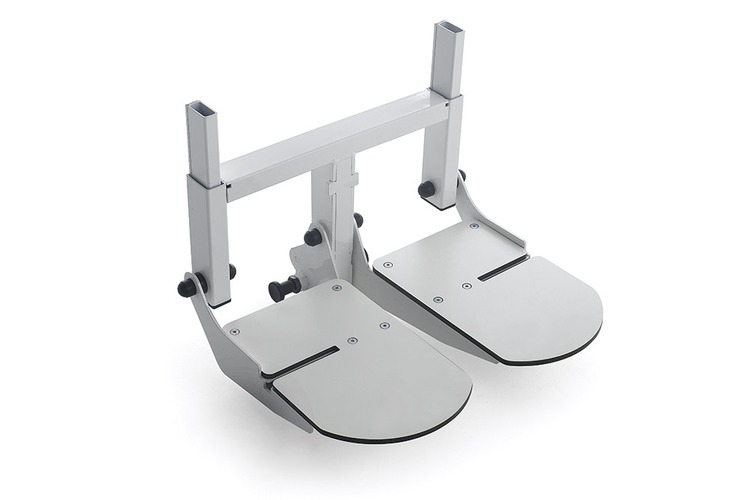

Transport is made easier by the wide diameter, braked casters, one of them being directional. Footplates can be independently adjusted by +/- 20°. A specific safety procedure is fitted to allow for the table to be lowered manually in case of power interruption.





HEIGHT AND TILT ADJUSTMENT

Bobath tilt tables series are electrically adjustable, both in height and tilt, allowing thus to perform treatments of physical therapy and static exercises in a supine position. Adjustment is done by using a handset with magnets. The motors used are extremely reliable and work with a wall-power supply or with a battery supply.


A WIDE RANGE OF RESTRAINTMENT STRAPS AND SIDE SUPPORTS

In case of order for all Chinesport tilt table, free choice is left for the number and type of containment bands and any additional lateral support accessories. There are numerous accessories for variety of solutions and they've been gradually introduced over time by constant discussion with professionals and the need to give an answer to the specific cases.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Goniometer

AC1134
Goniometer with graduated scale +/- 90 degrees supplied with magnets for quick application to the tilt table's structure.
Ask for quotation

Fastening Strap

AC0005
Provides better restraint for the patient; can be fitted at the desired height by means of special guides (single piece).
Ask for quotation

Strap Cushion

AC0006
Padded cushion offering greater and more comfortable support to the patient. To be used in combination with strap code AC0005 (single piece).
Ask for quotation

Guide For Legs Strap

AC0912
Hand grip fixed onto a central rail located between the legs section of the static table. Easily mountable without the use of any tools. It allows to keep an...
Ask for quotation

Abduction Block

AC0911
Padded wedge, can be mounted on a central rail to keep the patient's legs apart. Easily mountable without the use of any tools. Improves the restraining of t...
Ask for quotation

Intra-Extra Sandals

AC0002
Allow the foot to be adjusted for intra/extra rotation, anteroposterior, adduction and abduction and along the anteroposterior axis.
Ask for quotation

Wedge For Club Feet

AC0096
The foot rests can be adapted to provide a greater incline of the footrest that can go to -30° for extension and +10° for flexion, where required for patie...
Ask for quotation

Handset 2 (El)

AC0742
For models fitted with two motors, electric version. Ergonomic handset with magnets, attachable to metal parts of the frame of the table. It comes with power...
Ask for quotation

Safety Device

AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Shaped Supports

AC0003
Side supports made from soft material, adjustable in height, width and depth. (2 pieces)
Ask for quotation

Padded Supports

AC0517
Shaped side supports that offer a larger contact surface with the patient. Can be adjusted in height, width, and depth.
Ask for quotation

Hand Grips

AC0004
Side handles to allow the patient to grip and support themselves while exercising in a static supine position. They can be adjusted in height and depth. (2 p...
Ask for quotation

Forearms Supports

AC0090
Forearm supports with hand grips for a comfortable hold.
Ask for quotation

Work Table For Static Exercises

AC0308
Work table for BOBATH tilt table. The table is contoured to provide comfortable support to forearms.
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
6
Max safety load:
250 kg hoisting / 190 kg tilt table
Height adjustment:
Electric
Min / max table height:
55-105 cm
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust:
10000 N
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Head section tilt:
-20° +75°
Wheels diameter:
65 mm
braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness:
4 cm
Density:
30 kg/m³
Weight:
170 kg
Gallery

Gallery

Logistics

Logistics

CDN Code:
Z451616
Code Repertoire:
R1240641
Video

Video

Bobath Tilt Table 2ET
