You are here: Home > Standing & Mobility > Easy Up Series > Easy Up 4420

Description



WARNING!
  The AV144420 model was replaced by the new product configuration AV3121B3242C,  for a new equivalence you must add the adjustable heelrests (AC0686) and the anti-crushing safety system (AC0692), no longer standard. For accessories, we invite you to take vision of applicable accessories and options available in chapter 6 of the international edition catalogue.

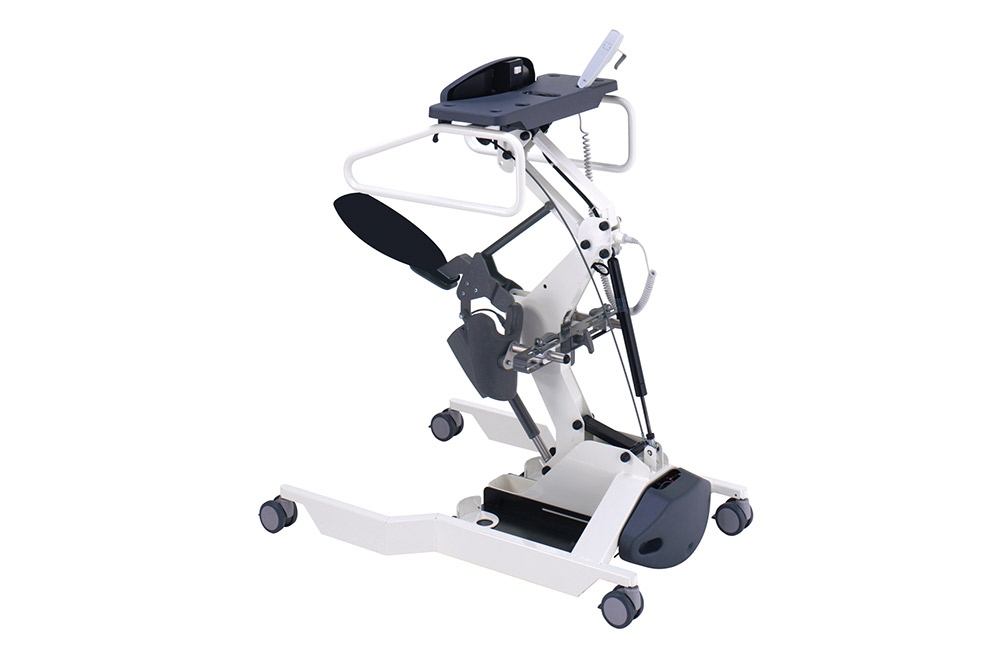

Electric height adjustment, electric lift with elongated seat.


This technology enables the user to assume and maintain an upright position, and to move indoors with the assistance of a carer.

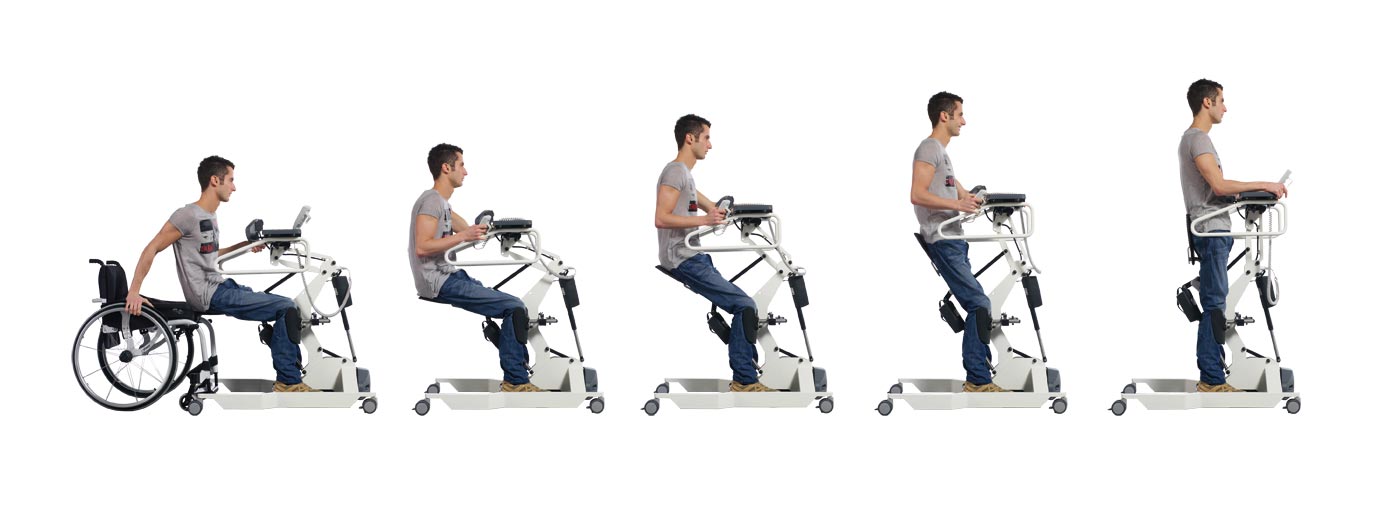

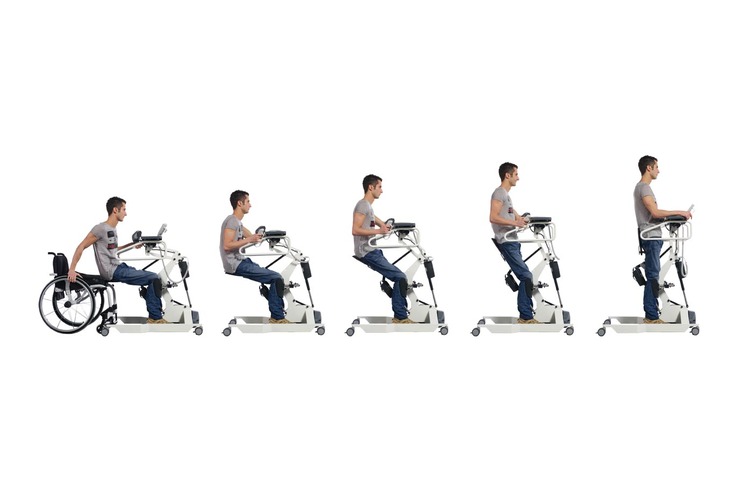

The user is lifted into a standing position by means of a (rechargeable) battery-powered electric motor operated by hand control, while the movement of the movement of the thoracic support accompanies them throughout the lift.

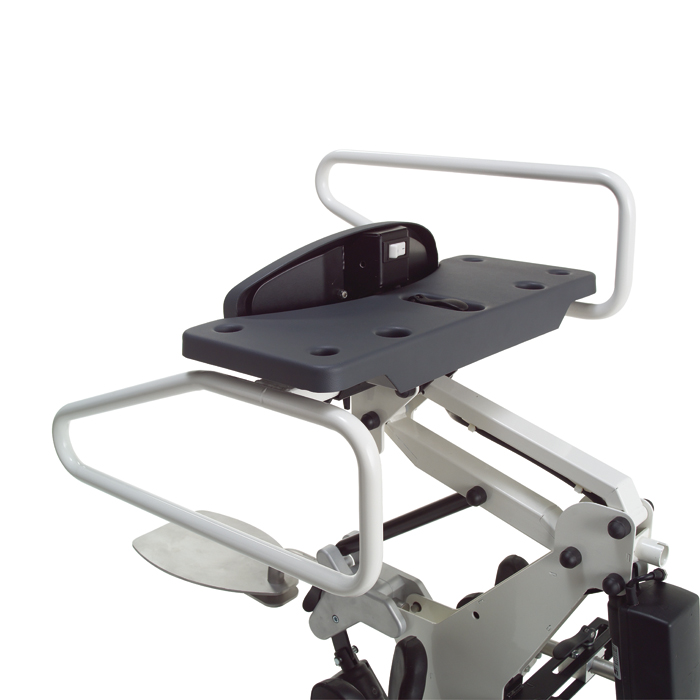

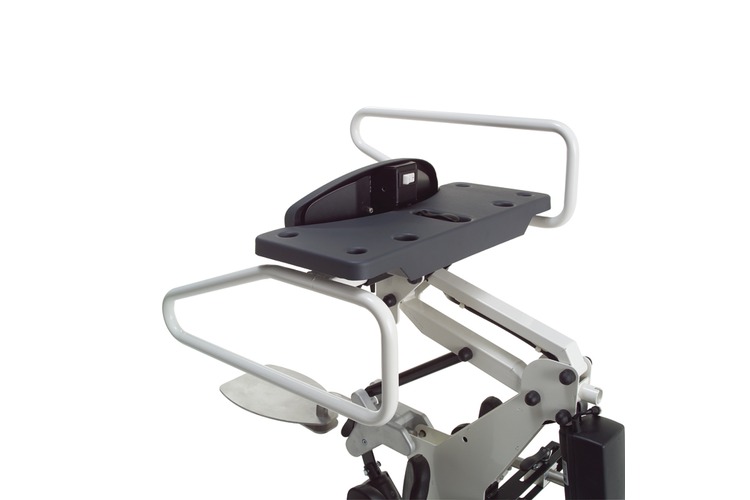

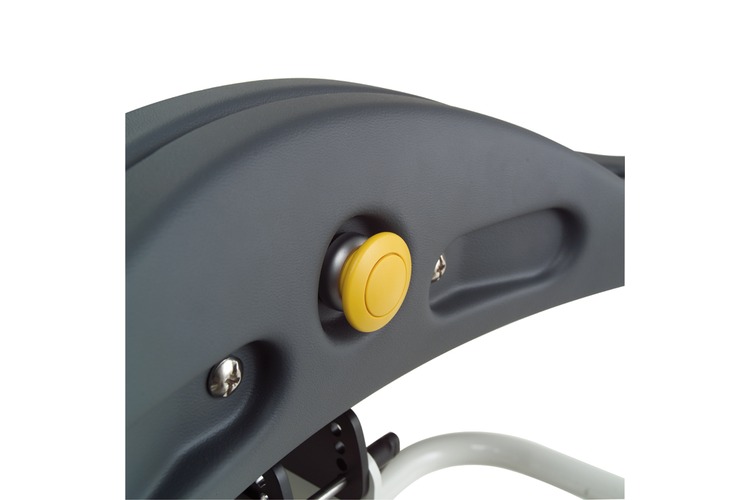

The thoracic support has a safety sensor for the user to stop the standing sequence at any time. A series of adjustment ensure the aid can be adapted to the user's morphological characteristics.

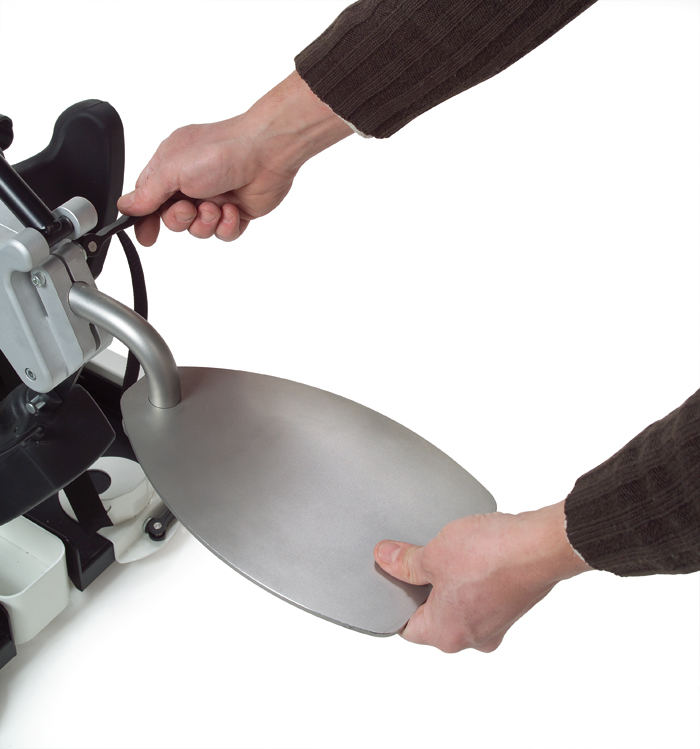

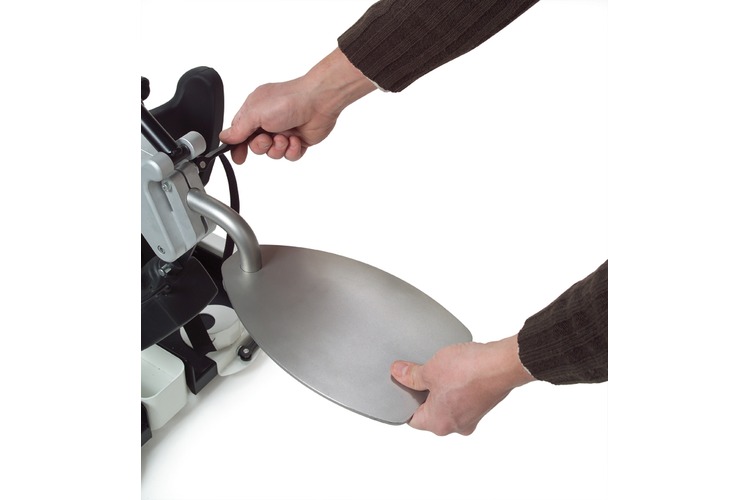

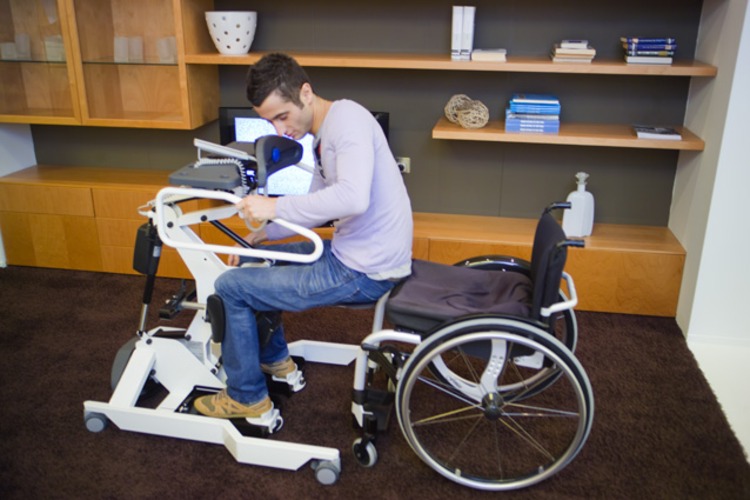

In particular, the main body can adjust to the user's height by means of a gas spring assisted system, or electrically via a motor unit. To better restrain the trunk at the sides, the handles can be tilted and adjusted in depth. The seat, elongated and fixed, is designed to help the user transfer from their wheelchair to the aid.


Accessories

Accessories

Leg Strap
AC0014
Leg strap to stablize the leg. Available in pairs.
Ask for quotation

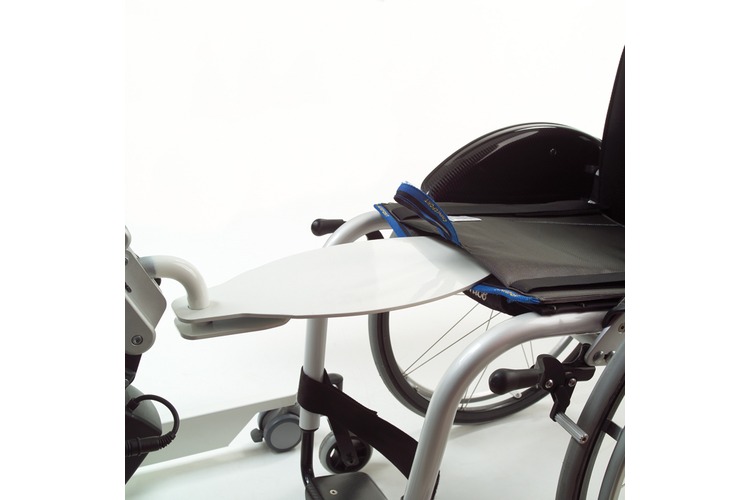

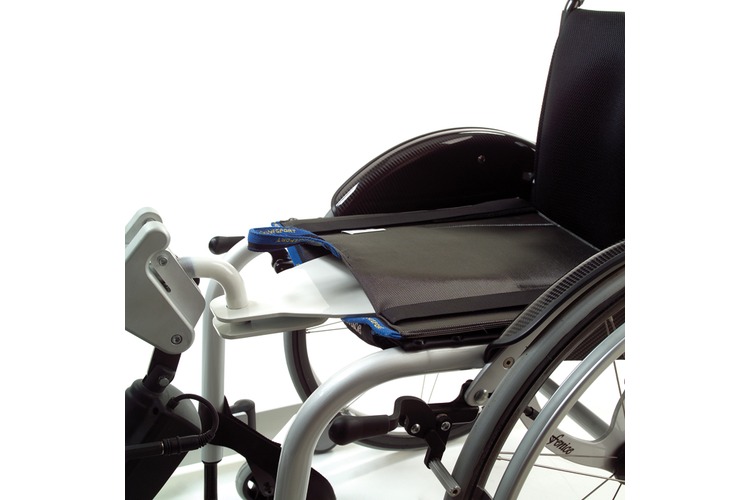

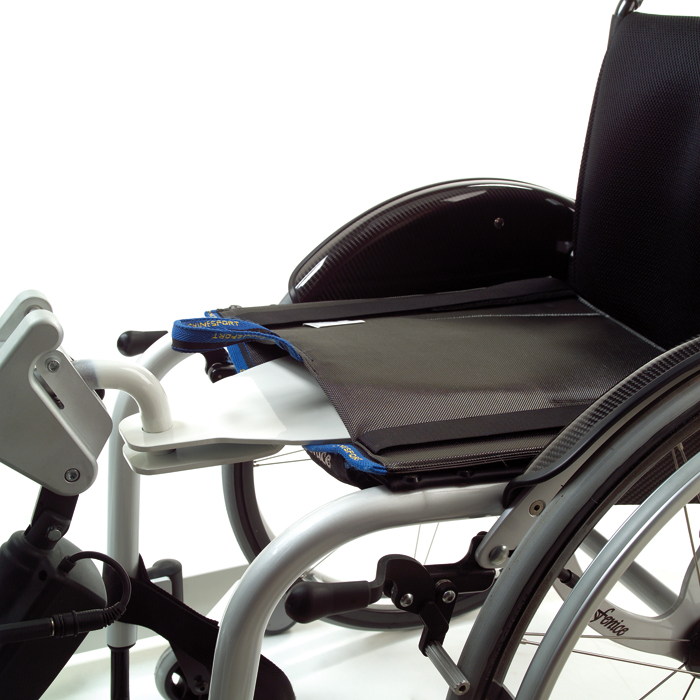

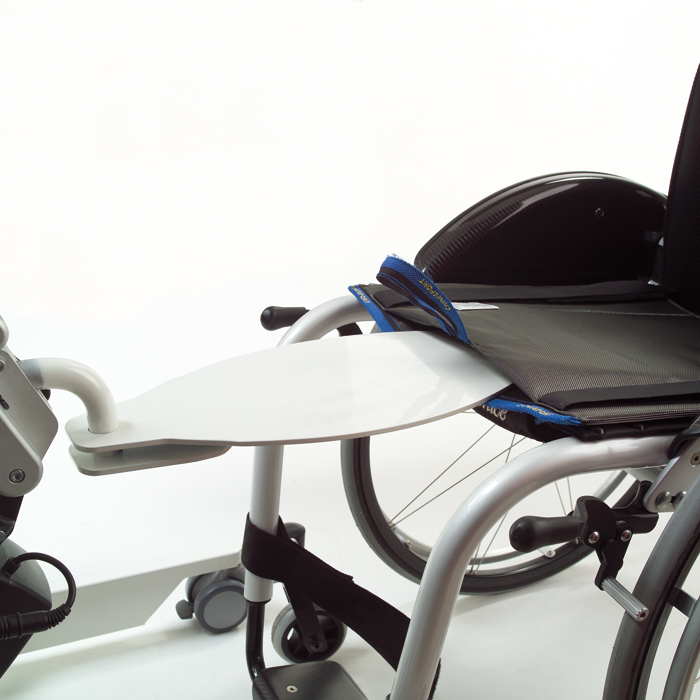

Pocket For Long Seat
AC0048
Pocket for long seat to facilitate the transfer from the wheelchair.
Ask for quotation

Lateral Supports
AC0049
Soft supports for the lateral restraint.
Ask for quotation

Lateral/Posterior Supports
AC0050
Soft supports for better lateral and posterior restraint.
Ask for quotation

Long Handles
AC0051
Long handles with supports for lateral and posterior restriant.
Ask for quotation

Axillary Support
AC0072
Axillary support.
Ask for quotation

Front Body Support
AC0073
Front body support
Ask for quotation

Long Seat Padding
AC0544
Padding for long adjustable seat for more comfort. For those who consider themselves high-risk where decubitus is concerned or with pain problems while seating.
Ask for quotation

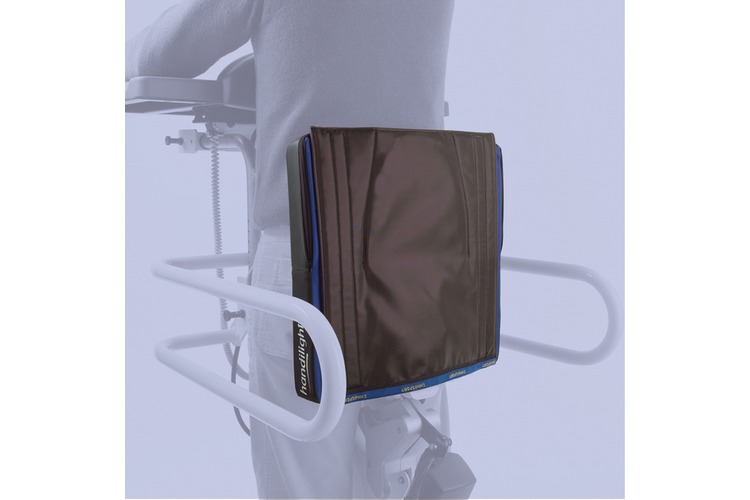

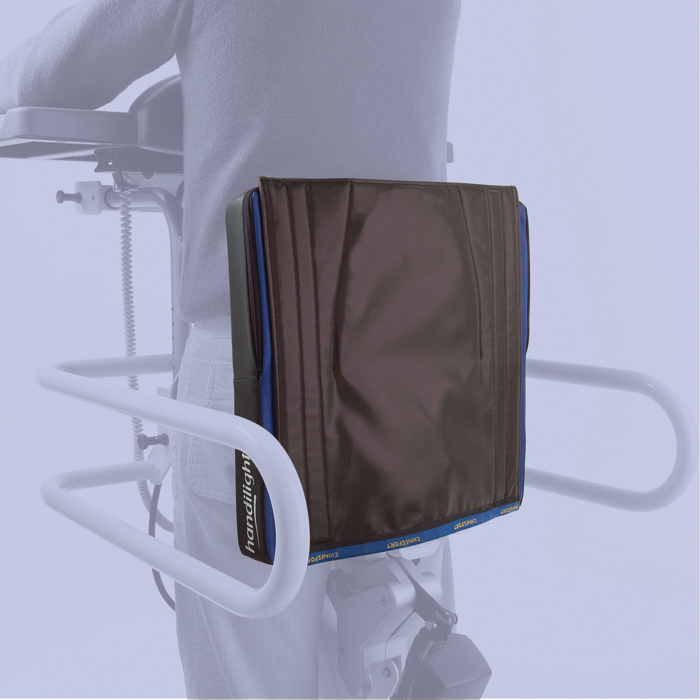

Back Restraint Sling
AC0783
Back restraint strap. Applied by an assistant. One size only.
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
53 kg
Maximum load:
140 kg
User height:
min 140 cm - max 200 cm
Handles-thoracic support assembly:
movable - can be lifted up
Servo-assisted lift:
electric
Structure height adjustment:
electric
Overload protection:
electronic
Overload indicator:
acoustic and visual
Parking brake:
on all 4 casters
Frame height from ground:
31 mm
Operation time (lift):
about 30 lift cycles with user weighing 140 kg and charged batteries
Average battery charging time:
6 - 8 hours
Battery charging level:
multi-color display on equipment
Auto off:
as standard
Fault diagnostic and maintenance:
on display

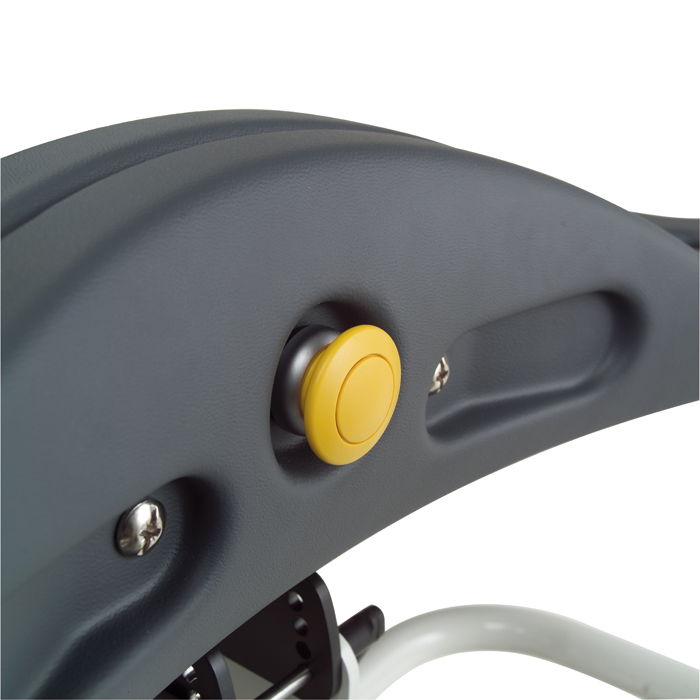

Lift stop button:
as standard
Lift stop button inhibit:
as standard

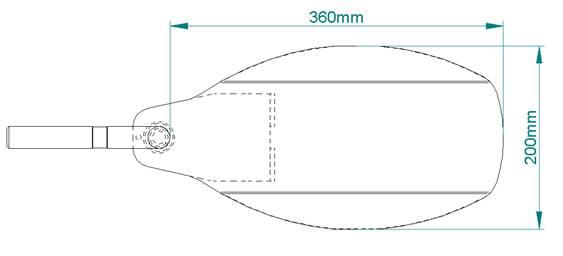

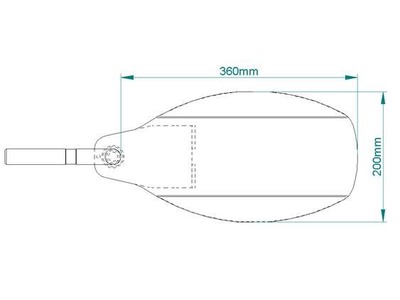

ELONGATED SEAT
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0397871
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

User and maintenance manual

Manual - past Edition
Document date: 28/03/2014
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.7 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 07/03/2014
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 176.75 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 24/11/2011
Language: English
Version: V 1.0
DOWNLOAD
PDF 1.95 MB
Register to access the content

Manuale istruzioni

Manual - past Edition
Document date: 27/08/2010
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 816.36 KB
Register to access the content

Manual de instrucciones

Manual - past Edition
Document date: 27/08/2010
Language: Spanish
Version: V 1.0
DOWNLOAD
PDF 791.71 KB
Register to access the content

Mode d'emploi

Manual - past Edition
Document date: 27/08/2010
Language: French
Version: V 1.0
DOWNLOAD
PDF 829 KB
Register to access the content

Bedienungsanleitung

Manual - past Edition
Document date: 27/08/2010
Language: German
Version: V 1.0
DOWNLOAD
PDF 802.62 KB
Register to access the content
Testimonials

Testimonials

"- the standing frame is a key rehabilitation companion; - has many, easy adjustments; - requires a bit of practice to be used unaided (mostly to get on and off) because the front access isn't suitable for everybody; - its design is visually pleasant and 'light', which is something not be...
