You are here: Home > Professional Tables > Test Line > Test Plus Urogyn
See similar products
Request information

TEST PLUS UROGYN

Configurable Product
L
E
3
5
1
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

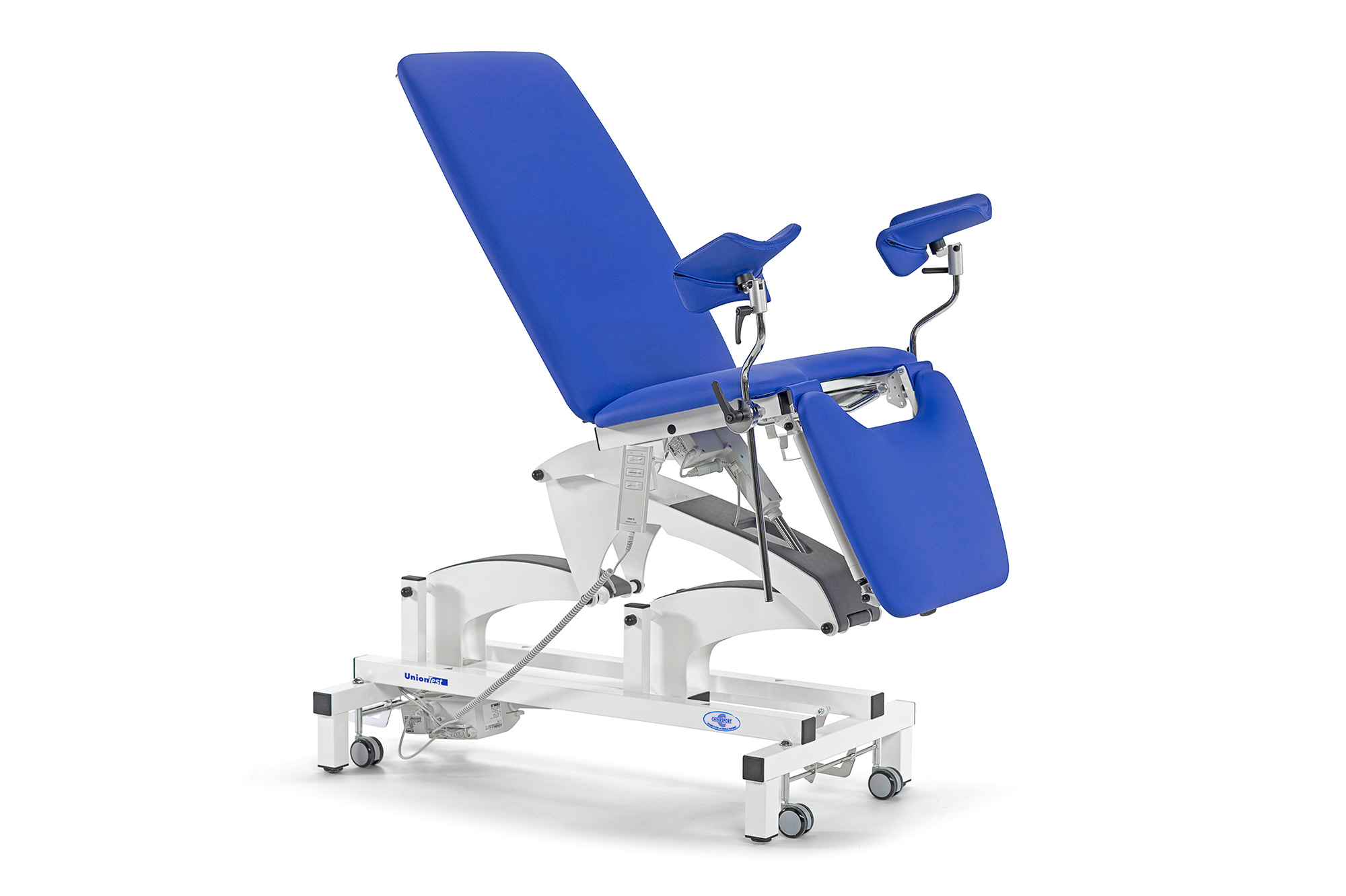

Two-motor table for diagnosis and treatment purposes, ideal for gynecology and urology procedures, electrically height adjustable by means of a low voltage (24 V) foot switch for two motors. The couch has three movable sections: the back and the leg rest can be adjusted by using a gas spring assisted system, while the seat is electrically adjustable by means of the foot switch.

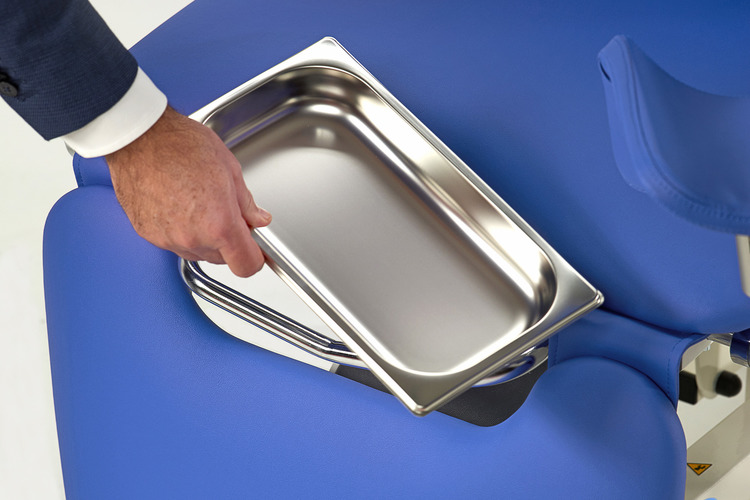

The couch can be set in "seated"-armchair style, "relaxed", "trendelenburg" and "reverse trendelenburg" positions, even with the patient on it, requiring no effort by the operator. The couch is fitted with two leg supports, which can be adjusted for height and rotation, and a removable stainless steel bowl. The couch can be further integrated with a wide range accessories.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Fastening Device
AC0026
Clamp used to configure the table/armchair with various types of armrests and other accessories (I.V. drip pole, chair loop arm, phlebotomy arm)
Ask for quotation

Drip Stand
AC0027
Chromed steel drip stand that is attached to models from the Visit and Test series. Must be paired with AC0313 support for Visit Series and AC0026 for Test S...
Ask for quotation

Armchair Armrest
AC0028
Armchair armrest made from thermoplastic material that can be easily disinfected. To be fitted with fastening device AC0026.
Ask for quotation

Padded Armrest
AC0710
Padded, synthetic leather armrest for greater comfort. When fitted into the fastening device AC0026, it can be easily adjusted in height and rotation
Ask for quotation

Phlebotomy Armrest
AC0029
Phlebotomy armrest made from thermoplastic material that can be easily disinfected. To be fitted with fastening device AC0026 or AC0850.
Ask for quotation

Cervical Cushion lt4
AC0949
Padded shaped cushion for lateral restraining and stabilization of the patient’s head. Quick application with velcro strap. Adjustable in height. Please sp...
Ask for quotation

Cervical Cushion
AC0023
Cervical cushion for a more comfortable posture.
Ask for quotation

Additional Foot Pedal 2
AC0038
The additional foot pedal provides another way to control the table height adjustment, as well as the motorized sections.
Ask for quotation

Additional Hand Control For 2 Motor
AC0040
Additional hand control for models fitted with 2 motors. Provides the table height adjustment as well as the motorized sections adjustment. It has a magnet s...
Ask for quotation

Additional Control 1
AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Foot Switch Holder
AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation

Safety Device
AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Leg Supports
AC0324
Leg support replacement for gynecology and urology therapy tables. Sold in pairs, metal supports not included.
Ask for quotation

Plug For Urology Table
AC0545
Special plug for models code LE151 - Test Urogyn and code LE351 Test Plus Urogyn for comfortable use of the couch with the patient on and in supine posture.
Ask for quotation

Paper Roll Holder F
AC0031
Paper roll holder adjustable to a variety of roll widths. Recommended for use with paper rolls from set AC0034.
Ask for quotation

Drip Stand Support
AC1226
Painted metal support that allows the use of other accessories in the available application points. It can be added to all models of the Test series equipped...
Ask for quotation

Standard Paper Roll Set
AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Maxi Paper Roll Set
AC0035
The set includes 2 x 90 cm wide rolls. Each roll is 100 meters long.
Ask for quotation

Protective Sheet Set
AC0036
This set contains 10 synthetic fabric sheets with elasticated border. This sheet can be used on any examination and treatment table with standard size/width.
Ask for quotation

Protection Mattress 150
AC1202
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for covering the legs and trunk sect...
Ask for quotation

Protection Mattress 205
AC1203
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for fully covering the sections of t...
Ask for quotation

Thermo-Regulating Cover 150
AC1204
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation

Thermo-Regulating Cover 205
AC1205
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation

Auxiliary Battery
AC0017
Auxiliary battery enables the table to be used without power supply. The battery comes with a support so it can be secured to the frame base.
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
3
Max safety load (kg):
200
Height adjustment:
Electric
Min / max table height (cm):
65 -115
Mains supply:
220V 50-60Hz / 24V 70VA
Actuator thrust (N):
6000
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Head section tilt:
+75°
Wheels diameter (mm):
65
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness (mm):
40
Density (kg/m³):
30
Weight (kg):
92
LE351 - TEST PLUS UROGYN - TILTED ANGLES
