SINTHESI MI.TO.

Configurable Product
L
S
3
7
4
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

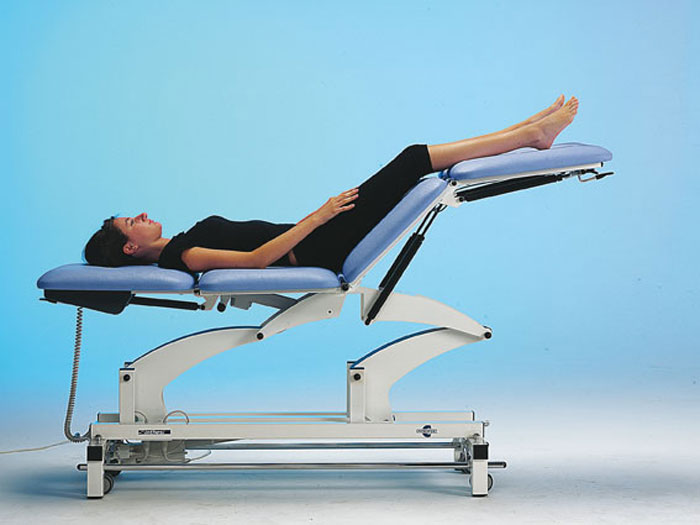

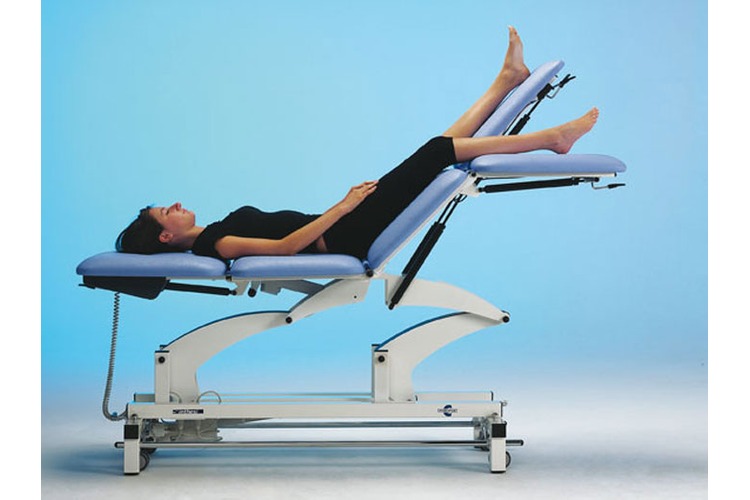

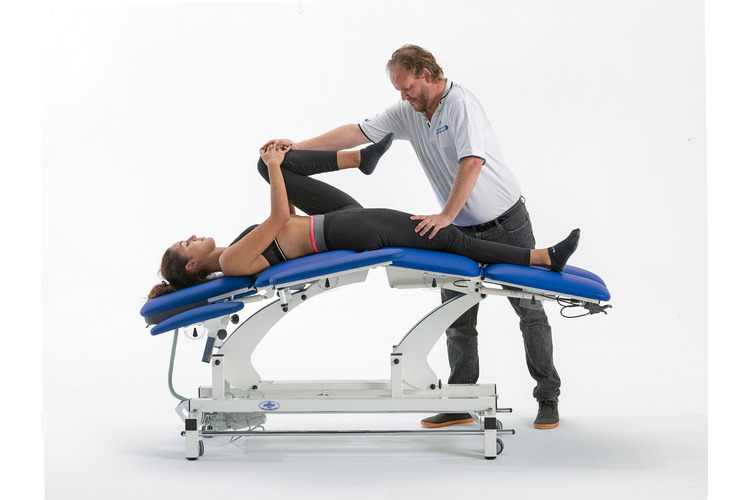

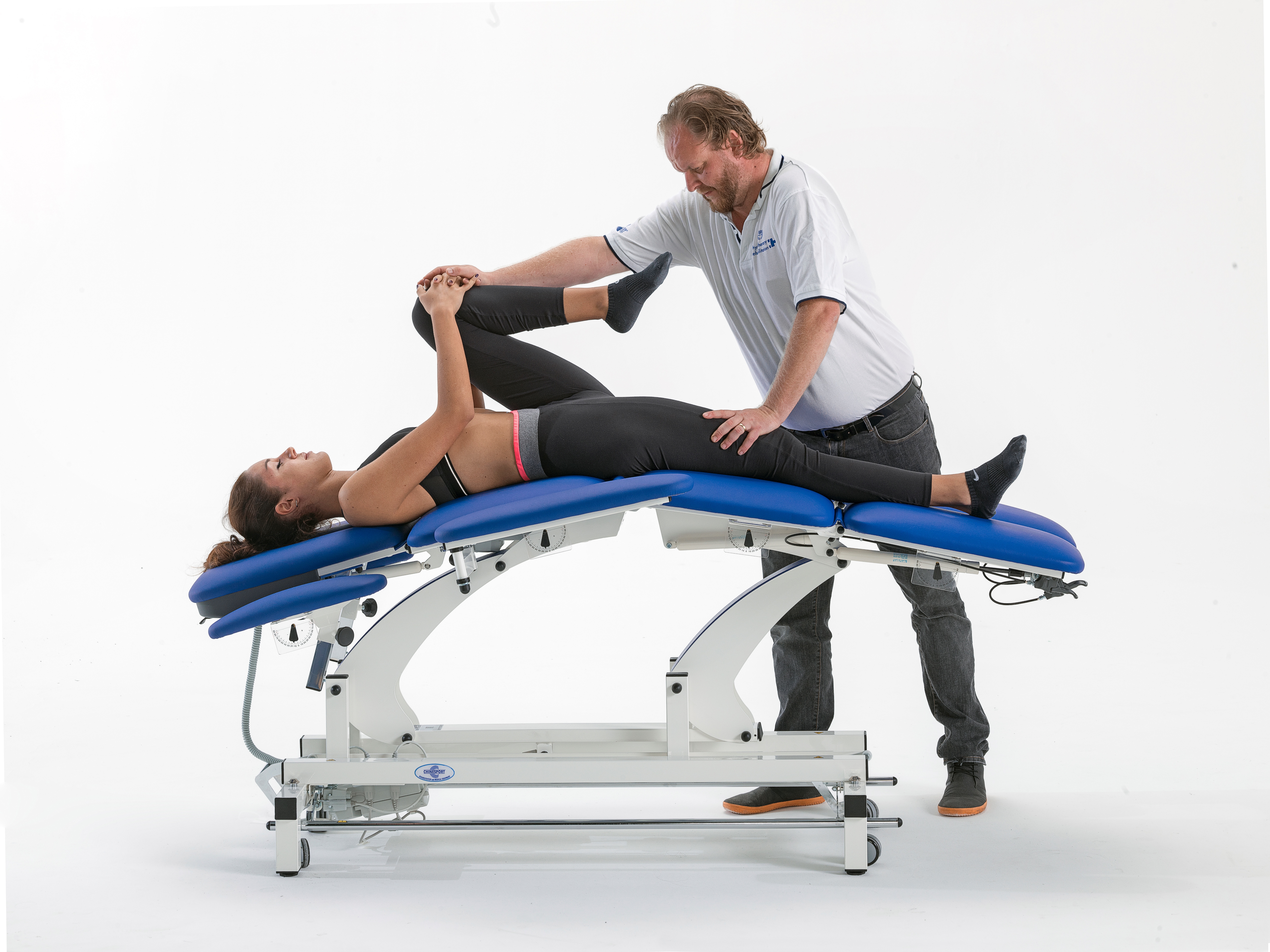

Two-motor examination, manipulation and treatment table, electric height adjustment by means of a foot rail or a low voltage (24 V) foot switch for 1 motor or for 2 motors.



The couch has six movable sections. The trunk section can be adjusted electrically; the other sections can be adjusted by means of servo-system with one or more gas springs. The motor-driven adjustment requires no effort by the operator to adjust the trunk section while the patient undergoes a treatment.



The head section is equipped with an elongated breathing hole for a higher comfort of operator and patient, the plug is standard. It's a dedicated therapy table for the myofascial release techniques and postural analysis. A wide range of possible positions in flexion/extension, symmetrical or asymmetrical. A manual containing various postural education exercises is supplied with the couch.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Auxiliary Battery

AC0017
Auxiliary battery enables the table to be used without power supply. The battery comes with a support so it can be secured to the frame base.
Ask for quotation

Wall-Mounted Bar

AC0022
Wall-mounted bar, height adjustable, with rope and ankle straps. Ideal for the apllication of the Global Posture Rehablitation method.
Ask for quotation

Paper Roll Holder G

AC0032
A metal support that is attached to the foot end of the couch base. It allows for the paper roll to be placed vertically if required.
Ask for quotation

Standard Paper Roll Set

AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Additional Foot Pedal 1

AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides
Ask for quotation

Additional Foot Pedal 2

AC0038
The additional foot pedal provides another way to control the table height adjustment, as well as the motorized sections.
Ask for quotation

Additional Hand Control 1

AC0039
This additional hand control fits for therapy tables with a single eletric actuator.
Ask for quotation

Additional Hand Control For 2 Motor

AC0040
Additional hand control for models fitted with 2 motors. Provides the table height adjustment as well as the motorized sections adjustment. It has a magnet s...
Ask for quotation

Additional Control 1

AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Safety Device

AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Protective Sheet Set

AC0784
This set contains 10 synthetic fabric sheets with elasticated border. For Sinthesi therapy tables.
Ask for quotation

Foot Switch Holder

AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation

Goniometers Set

AC1133
Set of 4 protractor elements with graduated scale +/- 90 degrees supplied with magnets for quick application to the various segments of a therapy table.
Ask for quotation

Protection Mattress 150

AC1202
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for covering the legs and trunk sect...
Ask for quotation

Protection Mattress 205

AC1203
Open-cell mattress allows air flow and dissipation of heat and sweat produced by the body. Elastic edges in lycra. Ideal for fully covering the sections of t...
Ask for quotation

Thermo-Regulating Cover 150

AC1204
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation

Thermo-Regulating Cover 205

AC1205
Provide comfort sensation and prevents thermal shocks when getting in contact with the uphoplstery of the table. It keeps body temperature constant during tr...
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
6
Max safety load (kg):
180
Height adjustment:
Electric
Minimum/maximum table height (cm):
48-100
Mains supply:
220V 50/60 Hz - 24V 70VA
Actuator thrust (N):
6000
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Backrest adjustment:
Electric
Head section tilt:
+54° -52°
Wheels diameter (mm):
65
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness (mm):
40
Density (kg/m³):
30
Weight (kg):
101
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0389534
Video

Video

Some pulley therapy resistance exercises – lower limbs pt 4 of 5
Mi.TO Therapeutic Table - Therapeutic table treatments for spine pathologies
Mi.TO Therapeutic Table - Mi.TO is a therapeutic table

Other videos

Mi.TO Therapeutic Table - Active Recovery Position
Mi.TO Therapeutic Table - Restoring Abdominal Breathing
Mi.TO Therapeutic Table - Spinal Decompression
Mi.TO Therapeutic Table - Neurodynamic Mobilisation
Mi.TO Therapeutic Table - Releasing the Hip Flexors and Posterior Myofascial Chain

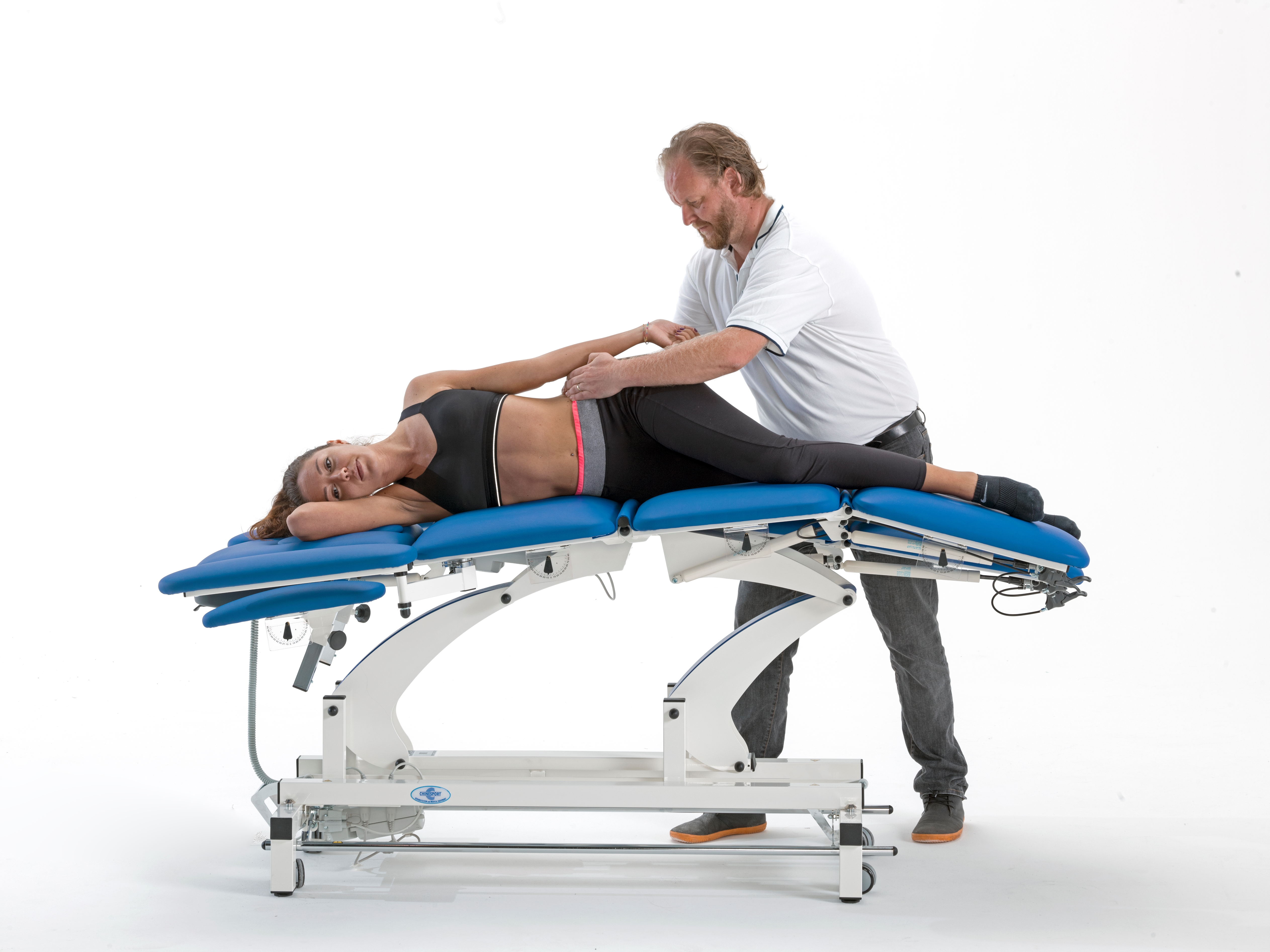

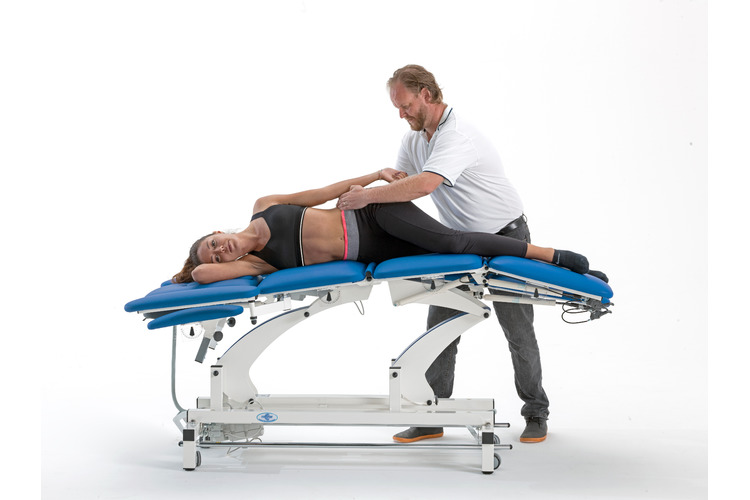

Mi.TO Therapeutic Table - Spinal Mobilisation in Sidelying
Mi.TO Therapeutic Table - Posterior to Anterior Spinal Mobilisation
Mi.TO Therapeutic Table - Spinal Mobilisations into Extension
Mi.TO Therapeutic Table - Ending the treatment
Mi.TO Therapeutic Table - Mi.TO Handbook
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Sinthesi

DICO - EU declaration of conformity
Document date: 27/07/2023
Language: Italian
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Sinthesi

DICO - EU declaration of conformity
Document date: 27/07/2023
Language: English
Version: 1.1.2
DOWNLOAD
PDF 1.51 MB

Visit and treatment tables

IFU - Instruction of use
Document date: 09/12/2022
Language: English
Version: 6.0.1.0
DOWNLOAD
PDF 4.34 MB
Register to access the content

Stol za preglede i terapijski

IFU - Instruction of use
Document date: 09/12/2022
Language: Croatian
Version: 1.1.3
DOWNLOAD
PDF 1.76 MB

Lettini da visita e trattamento

IFU - Instruction of use
Document date: 09/12/2022
Language: Italian
Version: 6.0.1.0
DOWNLOAD
PDF 4.37 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 138.19 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 06/04/2020
Language: Italian, English
Version: V 2.0

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 1.52 MB
Register to access the content

Manual de instrucciones

Manual - past Edition
Document date: 14/09/2010
Language: Spanish
Version: V 1.0
DOWNLOAD
PDF 522.86 KB
Register to access the content

Bedienungsanleitung

Manual - past Edition
Document date: 14/09/2010
Language: German
Version: V 1.0
DOWNLOAD
PDF 722.19 KB
Register to access the content
F.A.Q.

F.A.Q.

"I do have one question about the MiTo table. How easy or difficult is it to adjust the two legs together as a single unit? I imagine that I’ll be using the legs together more than I will be isolating a single leg for static manipulations.  I do a lot more of passive unwinding, muscle energy and dynamic release work than bolstering one leg for extended positional release. My big concern is that I will become frustrated trying to keep the two leg segments of the table working in unison. Thanks!" (Glen Weimer – U.S. - November 2018)

I had a similar issue with the table as you are asking. More specifically, I never knew whether I’d put all the segments back to complete horizontal… So together with Chinesport we made a very simple goniometer that is attached by magnet to all the segments. You can buy packets of 4 or 8 goniometers. Using these goniometers you will always be sure the angulation of the leg segments are identical. In practice, I don’t really have much problems moving the leg segments as a single unit. There will be some slight differences, maybe because of hand dominance of the therapist, but I find they are negligible. At the end of each leg segment there are 2 little handles that you simply (and lightly!) press to release the leg segments. The hydraulic systems then really take over, so you are simply guiding the movement. You are not doing actually much lifting. I have many basketball players in my practice. You can imagine a centre’s legs are will into 40-50 kg and I don’t really have a problem mobilising them with the hydraulic system. If you do have problems with that, then I would simply tie my mobilising belt around both leg segments and ensure they move together…. Regards - Stef Harley
