SINTHESI SPLIT

Configurable Product
L
S
3
7
3
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

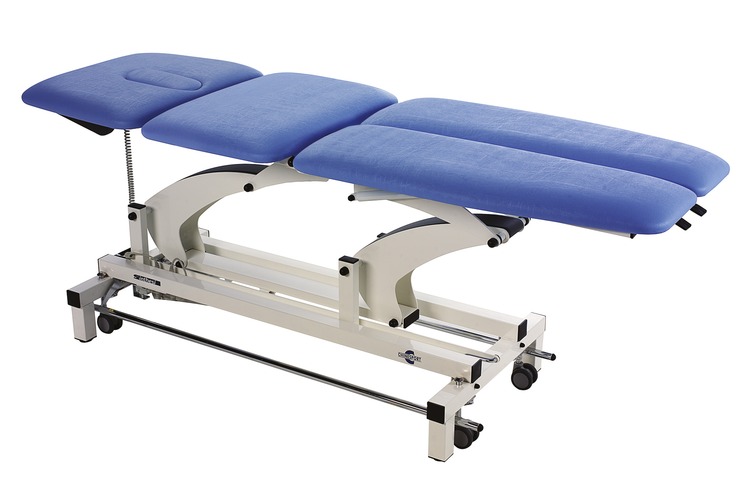

Two-motor examination, manipulation and treatment table,electric height adjustment by means of a foot rail or a low voltage (24 V) foot switch for 1 motor or for 2 motors.



The couch has four movable sections, with split leg section. The trunk section can be adjusted electrically; the other section can be adjusted by means of a servo-system with one or more gas springs. The motor-driven adjustment requires no effort by the operator to adjust the trunk section while the patient undergoes a treatment.



The head section is equipped with an elongated breathing hole for a higher comfort of the operator and the patient, the plug is standard. A wide range of possible positions in flexion/extension, symmetrical or asymmetrical.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Auxiliary Battery

AC0017
Auxiliary battery enables the table to be used without power supply. The battery comes with a support so it can be secured to the frame base.
Ask for quotation

Wall-Mounted Bar

AC0022
Wall-mounted bar, height adjustable, with rope and ankle straps. Ideal for the apllication of the Global Posture Rehablitation method.
Ask for quotation

Paper Roll Holder G

AC0032
A metal support that is attached to the foot end of the couch base. It allows for the paper roll to be placed vertically if required.
Ask for quotation

Standard Paper Roll Set

AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Maxi Paper Roll Set

AC0035
The set includes 2 x 90 cm wide rolls. Each roll is 100 meters long.
Ask for quotation

Additional Foot Pedal 1

AC0037
The additional foot pedal provides another way to control the table height adjustment. It can be used on both sides
Ask for quotation

Additional Foot Pedal 2

AC0038
The additional foot pedal provides another way to control the table height adjustment, as well as the motorized sections.
Ask for quotation

Additional Hand Control 1

AC0039
Additional hand control for models fitted with single motor. Provides the table height adjustment. It has a magnet so it can be easily attached to the table ...
Ask for quotation

Additional Hand Control For 2 Motor

AC0040
Additional hand control for models fitted with 2 motors. Provides the table height adjustment as well as the motorized sections adjustment. It has a magnet s...
Ask for quotation

Additional Control 1

AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Safety Device

AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Protective Sheet Set

AC0784
This set contains 10 synthetic fabric sheets with elasticated border. For Sinthesi and Alux therapy tables.
Ask for quotation

Foot Switch Holder

AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation

Goniometers Set

AC1133
Set of 4 protractor elements with graduated scale +/- 90 degrees supplied with magnets for quick application to the various segments of a therapy table.
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
4
Max safety load (kg):
180
Height adjustment:
Electric
Minimum/maximum table height (cm):
48-100
Mains supply:
220V 50/60 Hz - 24V 70VA
Actuator thrust (N):
6000
IP Protection:
54
Head section adjustment:
Gas spring-assisted
Backrest adjustment:
Electric
Head section tilt:
+54° -52°
Wheels diameter (mm):
65
Braking system:
Central
Upholstery safety rating:
1 IM
Padding thickness (mm):
40
Density (kg/m³):
30
Weight (kg):
97
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0389522
Video

Video

MI.TO. Therapy table - Sinthesi Line - Introduction
The MI.TO Postural table - Sinthesi Line - Possible positions and exercises
MI.TO. Therapy table - Sinthesi Line

Other videos

Luxury base
Therapy tables - How to order
Documents

Documents


User and Maintenance Manual

Manual
Document date: 06/04/2020
Language: Italian, English

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 1.52 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 09/09/2019
Language: Italian, English
DOWNLOAD
PDF 152.83 KB
Register to access the content

Manual de instrucciones

Manual
Document date: 14/09/2010
Language: Spanish
DOWNLOAD
PDF 522.86 KB
Register to access the content

Bedienungsanleitung

Manual
Document date: 14/09/2010
Language: German
DOWNLOAD
PDF 722.19 KB
Register to access the content
