THER DROP

Configurable Product
L
M
2
1
1
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

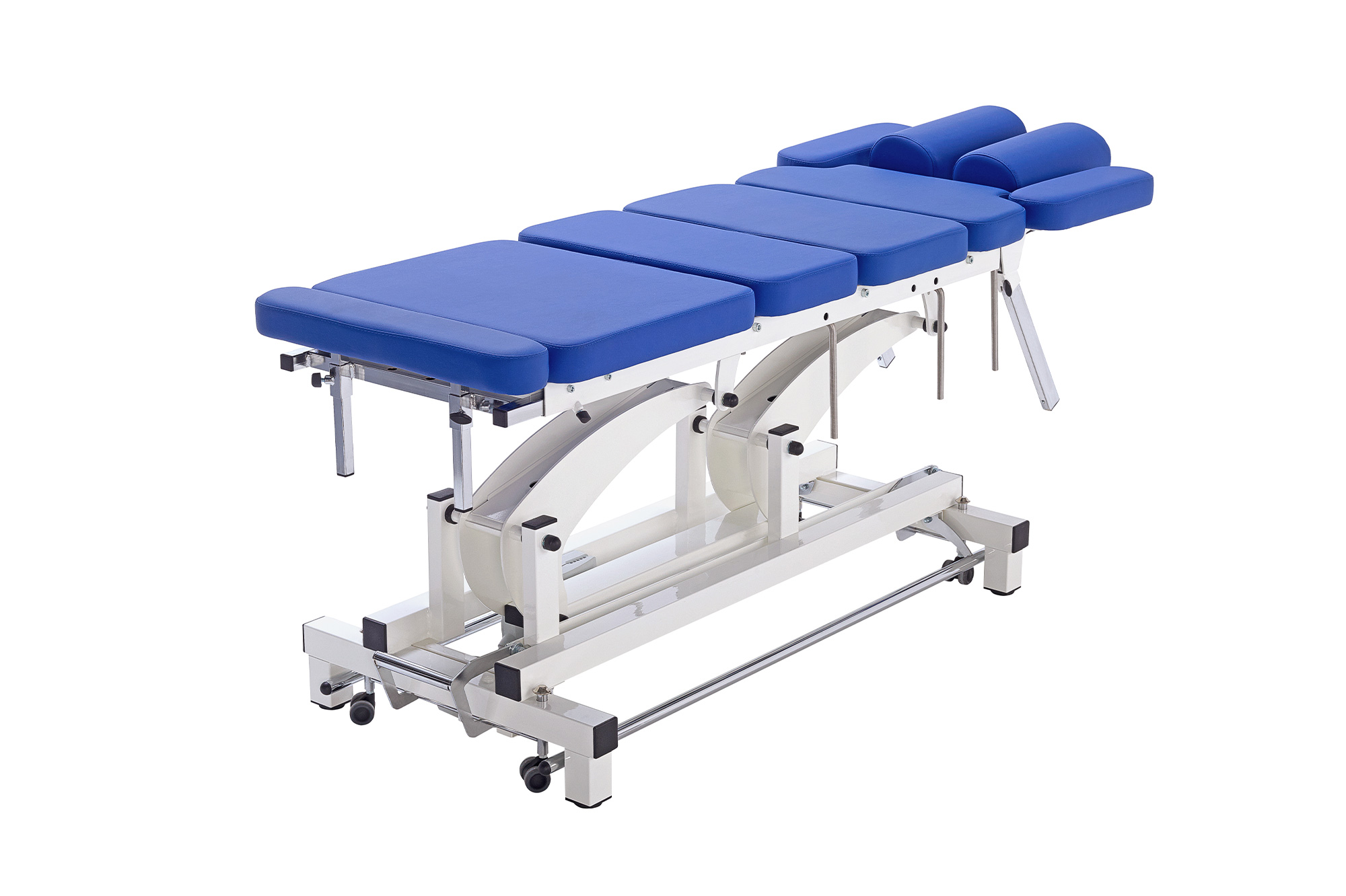

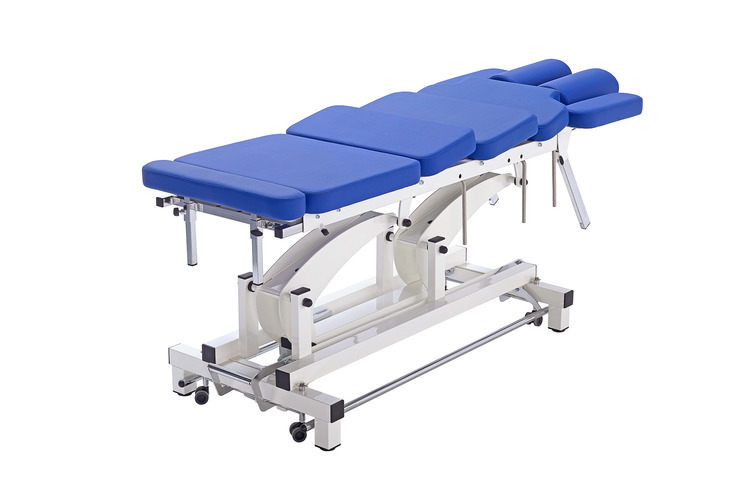

It’s a multi-sections manual therapy table for chiropractic, manipulation treatments. Its particular configuration allows the chiropractic drop-table technique.

This model is electrically height-adjustable from 56 to 93 cm by means of all around perimetral bar and mains power. The painted metal frame is sturdy, stable, silent in movement, with all the rotating points sliding on self-lubrification bushings. The safe working load is of 200 kg.

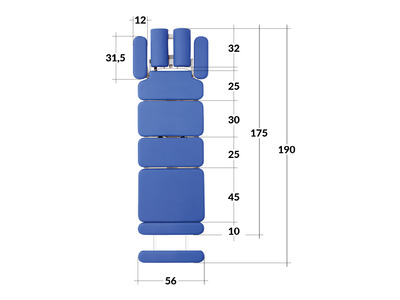

The padded sections are 56 cm width with a thickness of 40 mm. Several padded section are adjustable for drop movements at cervical, thoracic, lumbar and pelvic level. The related padded sections can be in different configuration options.

The head section is with armrests and nose-mouth breathing hole. Some options for the head section are available. The final padded foot rest section is adjustable in depth and height. Therefore the full extension of the table is 190 cm with the adjustment of the padded final legs segment.

This table is equipped as standard with 40 mm retractable castors and central braking system so that therapist can be easily transfer it if needed. The navy blue is the standard colour.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Technical Spec.

Technical Spec.

Safe working load (SWL):
200 kg
Mains supply:
230V 50/60Hz (Schuko standard plug)
IP protection:
54
Padded section width:
56 cm
Padding thickness and density:
4 cm - 40 kg/m³
Height adjustment (min/max):
52 ÷ 96 cm
Frame height adjustable:
electric, all around operation bar
Head section tilt adjustment:
+30° ÷ -25°, by gas springs
Castors:
4 cm
Braking system:
centralized
Weight:
90 kg
Upholstery colour:
navy blue
Gallery

Gallery

Video

Video

Ther Drop Swing table - Active flexion-distraction therapy
Ther Drop Swing - Presentation
Ther Drop Swing - Use
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Ther drop swing - ther drop

DICO - EU declaration of conformity
Document date: 27/07/2023
Language: English
Version: 1.0.2
DOWNLOAD
PDF 1.5 MB

Ther drop swing - ther drop

DICO - EU declaration of conformity
Document date: 27/07/2023
Language: Italian
Version: 1.0.2
DOWNLOAD
PDF 1.5 MB

DropbÄnk swing | dropbÄnk

IFU - Instruction of use
Document date: 11/01/2023
Language: Swedish
Version: 1.3.2
DOWNLOAD
PDF 5.14 MB
Register to access the content

Ther drop swing | ther drop

IFU - Instruction of use
Document date: 11/01/2023
Language: English
Version: 1.3.1
DOWNLOAD
PDF 5.13 MB
Register to access the content

Ther drop swing | ther drop

IFU - Instruction of use
Document date: 11/01/2023
Language: Italian
Version: 1.3.1
DOWNLOAD
PDF 5.14 MB
Register to access the content

Lettini per terapia manuale

Lettini con sezioni drop e flexion distraction
Brochure
Document date: 07/04/2022
Language: Italian
Version: V 1.2
DOWNLOAD
PDF 1.38 MB
