THER DROP SWING

Configurable Product
L
M
1
1
1
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

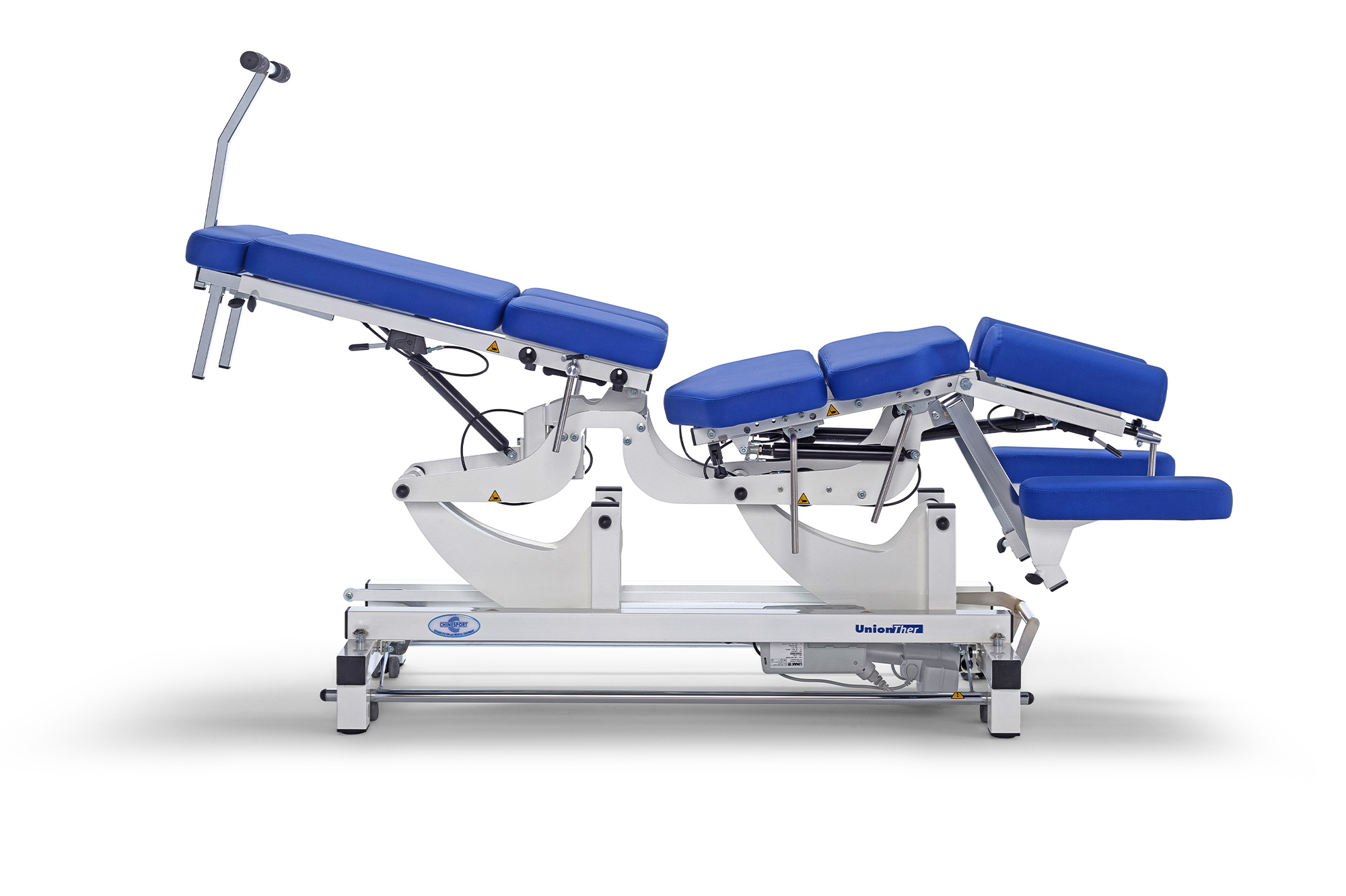

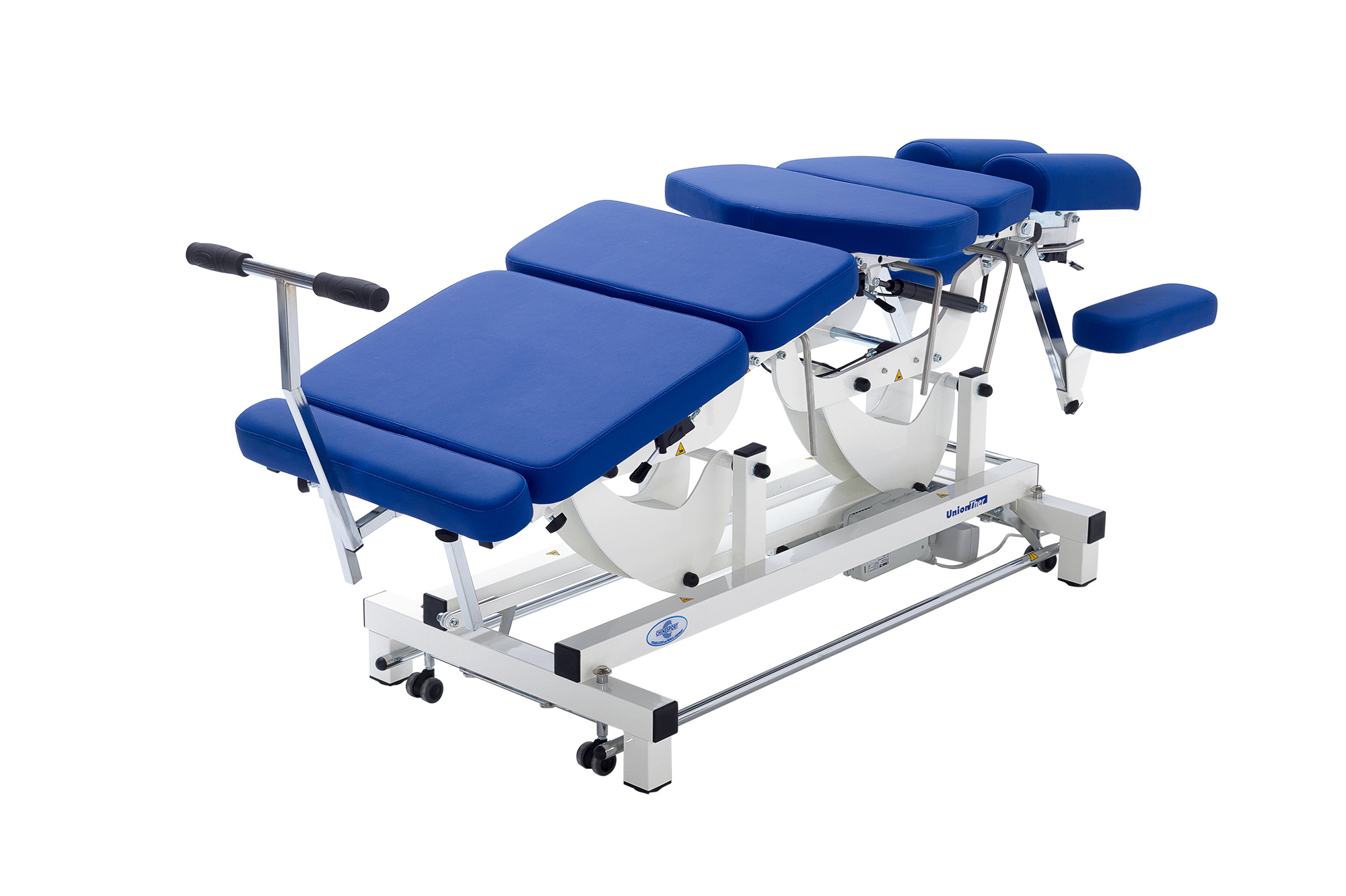

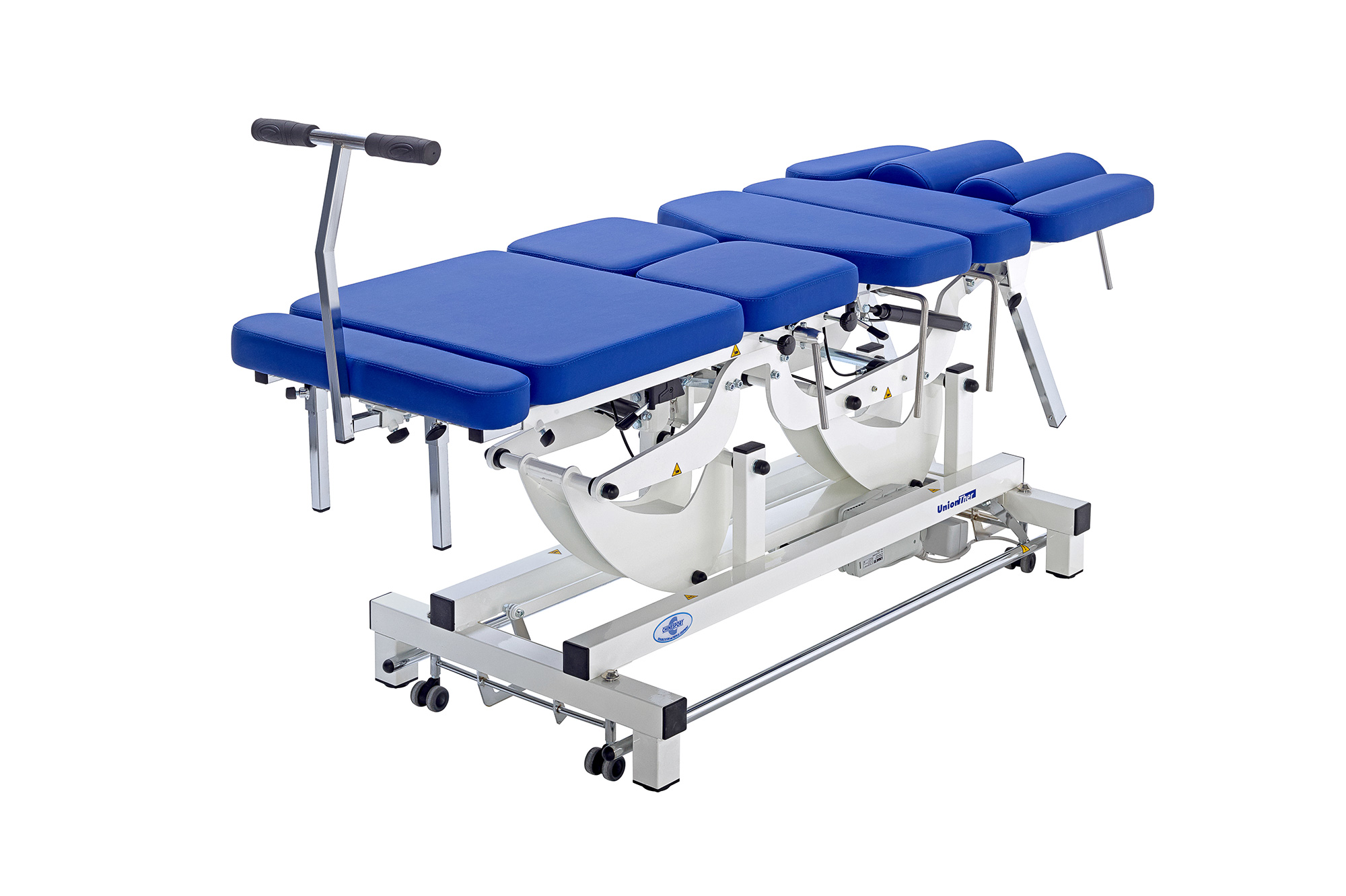

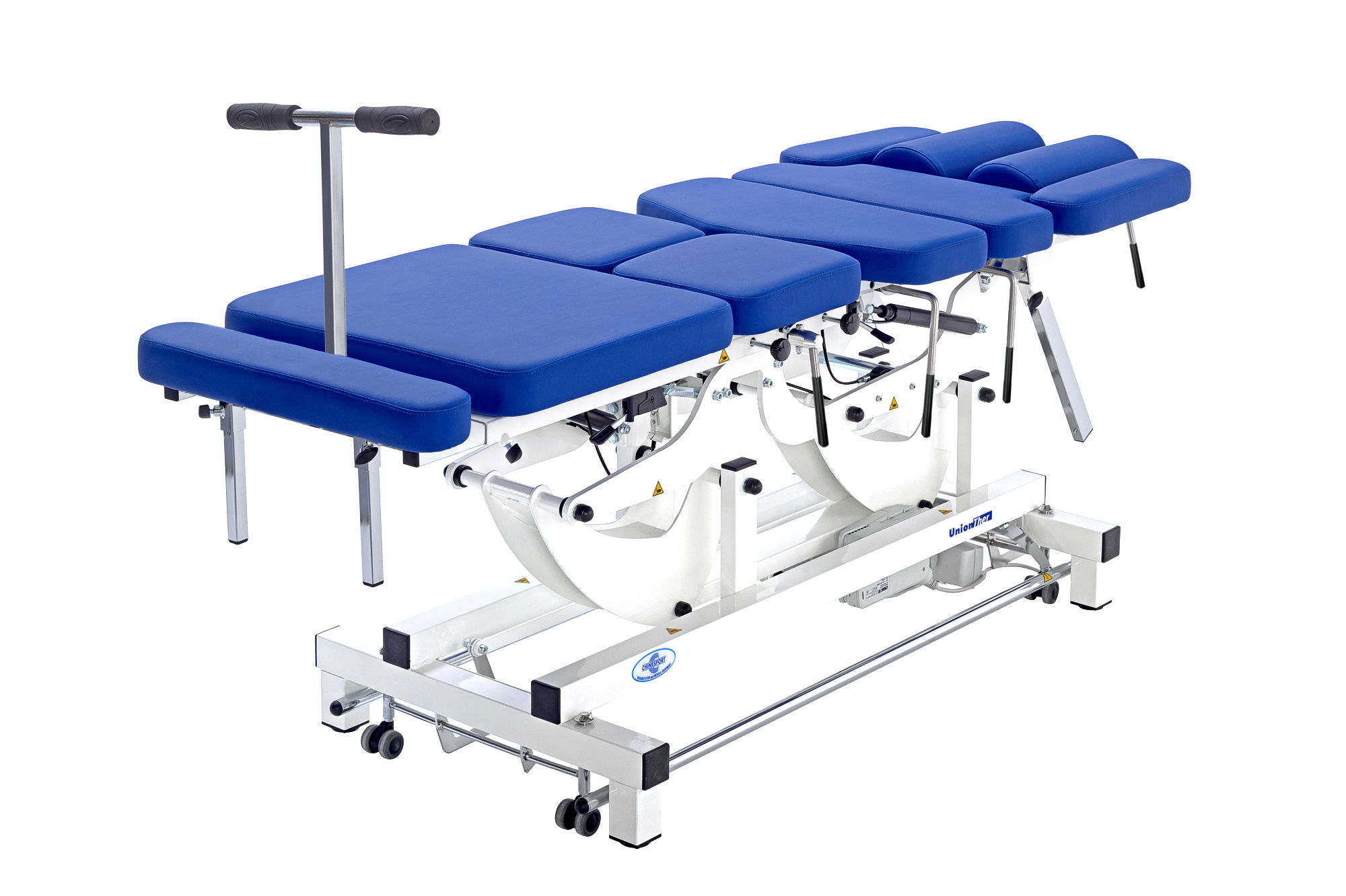

This multi sections table is intended for physiotherapists, osteopaths and chiropractors. Its features make it optimal for professionals who practices manual therapy. This table offers more functionality compared to the Ther Drop model code LM211.

This model is electrically height-adjustable from 56 to 93 cm by means of all around perimetral bar and mains power. The painted metal frame is sturdy, stable, silent in movement, with all the rotating points sliding on self-lubrification bushings. The safe working load is of 200 kg.

In particular it allows the chiropractic drop-table technique for cervical, thoracic, lumbar and pelvic treatments. Flexion-distraction technique is also possible representing an added value of this model. Side bending movements are allowed to be combined with. Lastly it’s available a breakaway system to allow a more comfortable supine patient position as well.

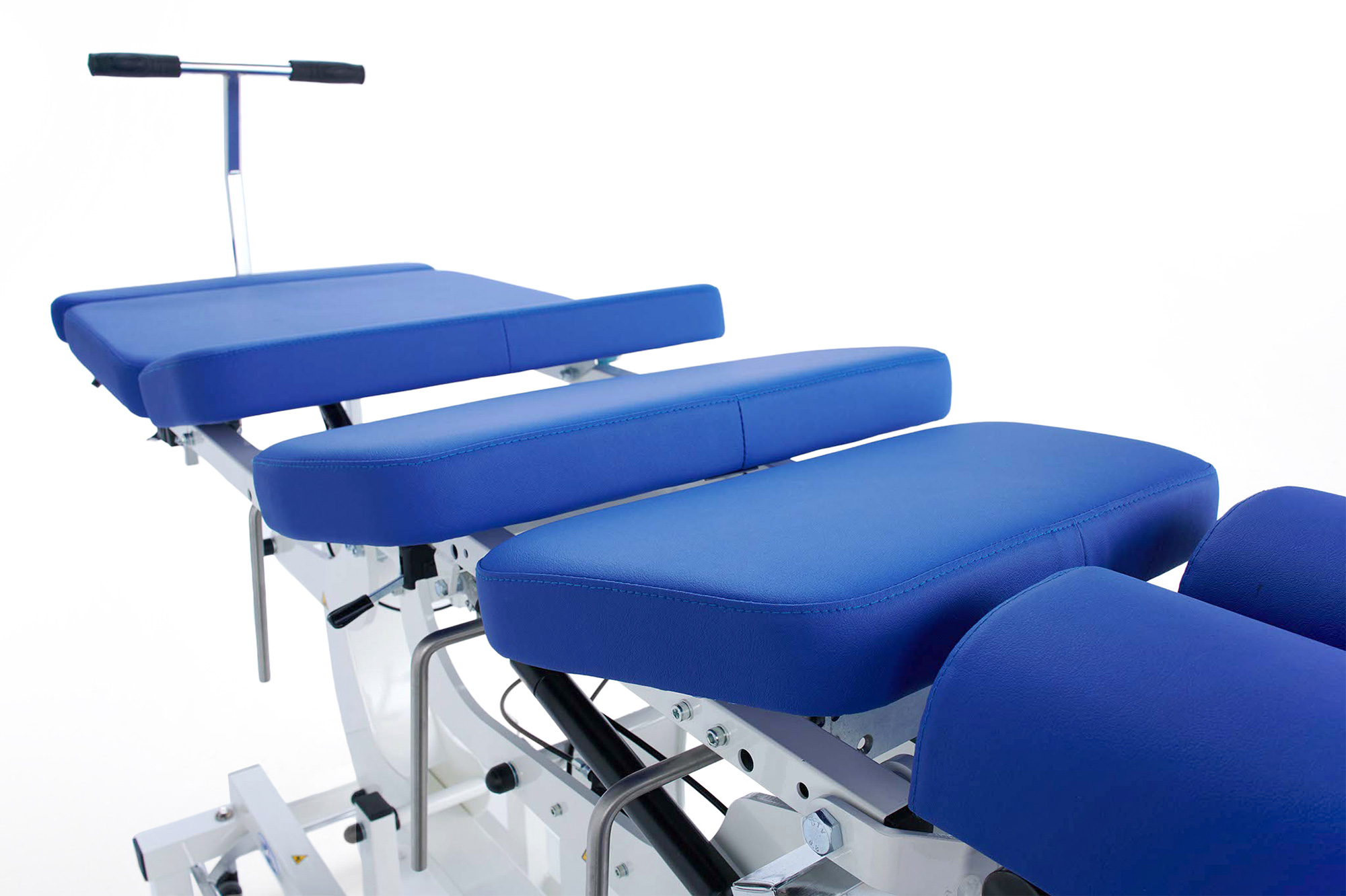

The padded sections are 56 cm width with a thickness of 40 mm. Several padded section can be ajdusted for drop movements at cervical, thoracic, lumbar and pelvic level. The related padded sections can be in different configuration options.

The legs section is also adjustable to make possible the flexion-distraction movements and side bending. The head section is with armrests and nose-mouth breathing hole. Options for the head section are also available.

The final foot rest section is adjustable in depth and height. So the total length can become of 218 cm in the extreme depth adjustment of the padded final legs rest segment. In this case the table is also provided with a height-adjustable double handle that’s essential to proceed with the flexion-distraction technique and side-bending.

This table is equipped as standard with 40 mm retractable castors and central braking system so that therapist can be easily transfer it if needed. the upholstery colour is navy blue as standard.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Technical Spec.

Technical Spec.

Safe working load (SWL):
200 kg
Mains supply:
230V 50/60Hz (Schuko standard plug)
IP protection:
54
Padded section width:
56 cm
Padding thickness and density:
4 cm - 40 kg/m³
Height adjustment (min/max):
56 ÷ 93 cm
Frame height adjustable:
electric, all around operation bar
Head section tilt adjustment:
+30° ÷ -25°, by gas springs
Castors:
4 cm
Braking system:
centralized
Weight:
90 kg
Upholstery colour:
navy blue
Gallery

Gallery

Video

Video

Ther Drop Swing table - Active flexion-distraction therapy
Ther Drop Swing - Presentation
Ther Drop Swing - Use
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Ther drop swing - ther drop

DICO - EU declaration of conformity
Document date: 27/07/2023
Language: English
Version: 1.0.2
DOWNLOAD
PDF 1.5 MB

Ther drop swing - ther drop

DICO - EU declaration of conformity
Document date: 27/07/2023
Language: Italian
Version: 1.0.2
DOWNLOAD
PDF 1.5 MB

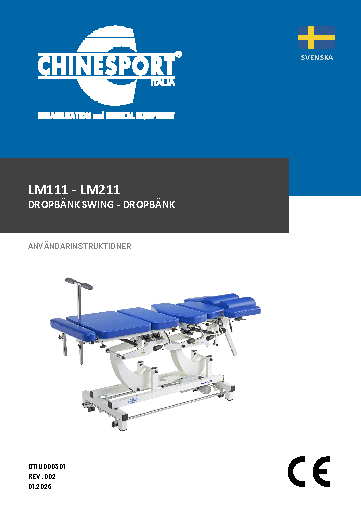

DropbÄnk swing | dropbÄnk

IFU - Instruction of use
Document date: 11/01/2023
Language: Swedish
Version: 1.3.2
DOWNLOAD
PDF 5.14 MB
Register to access the content

Ther drop swing | ther drop

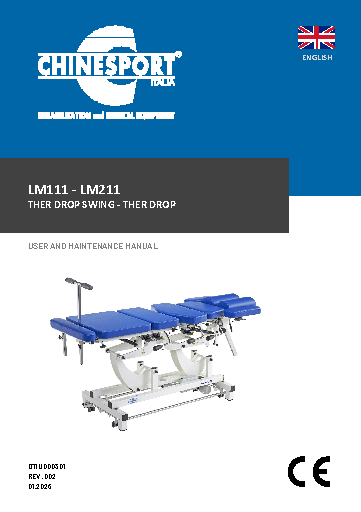

IFU - Instruction of use
Document date: 11/01/2023
Language: English
Version: 1.3.1
DOWNLOAD
PDF 5.13 MB
Register to access the content

Ther drop swing | ther drop

IFU - Instruction of use
Document date: 11/01/2023
Language: Italian
Version: 1.3.1
DOWNLOAD
PDF 5.14 MB
Register to access the content

Lettini per terapia manuale

Lettini con sezioni drop e flexion distraction
Brochure
Document date: 07/04/2022
Language: Italian
Version: V 1.2
DOWNLOAD
PDF 1.38 MB
