ALUX EVA 41

Configurable Product
L
A
2
4
1


075
3


X

Discontinued

Description

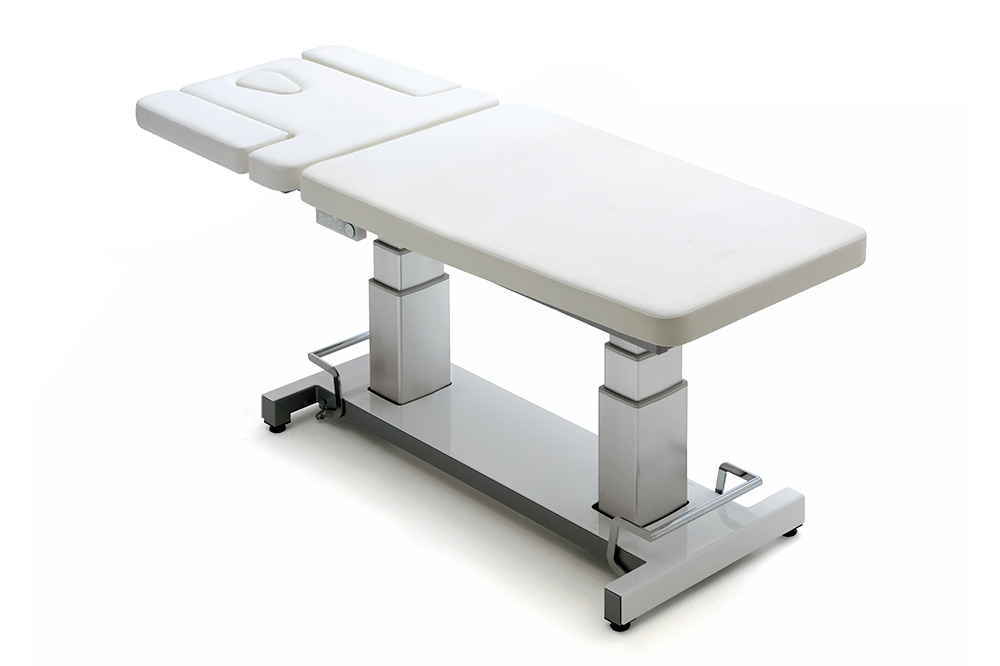

Head section with armrests, adjustable by electric motor. Single combined trunk-leg section.

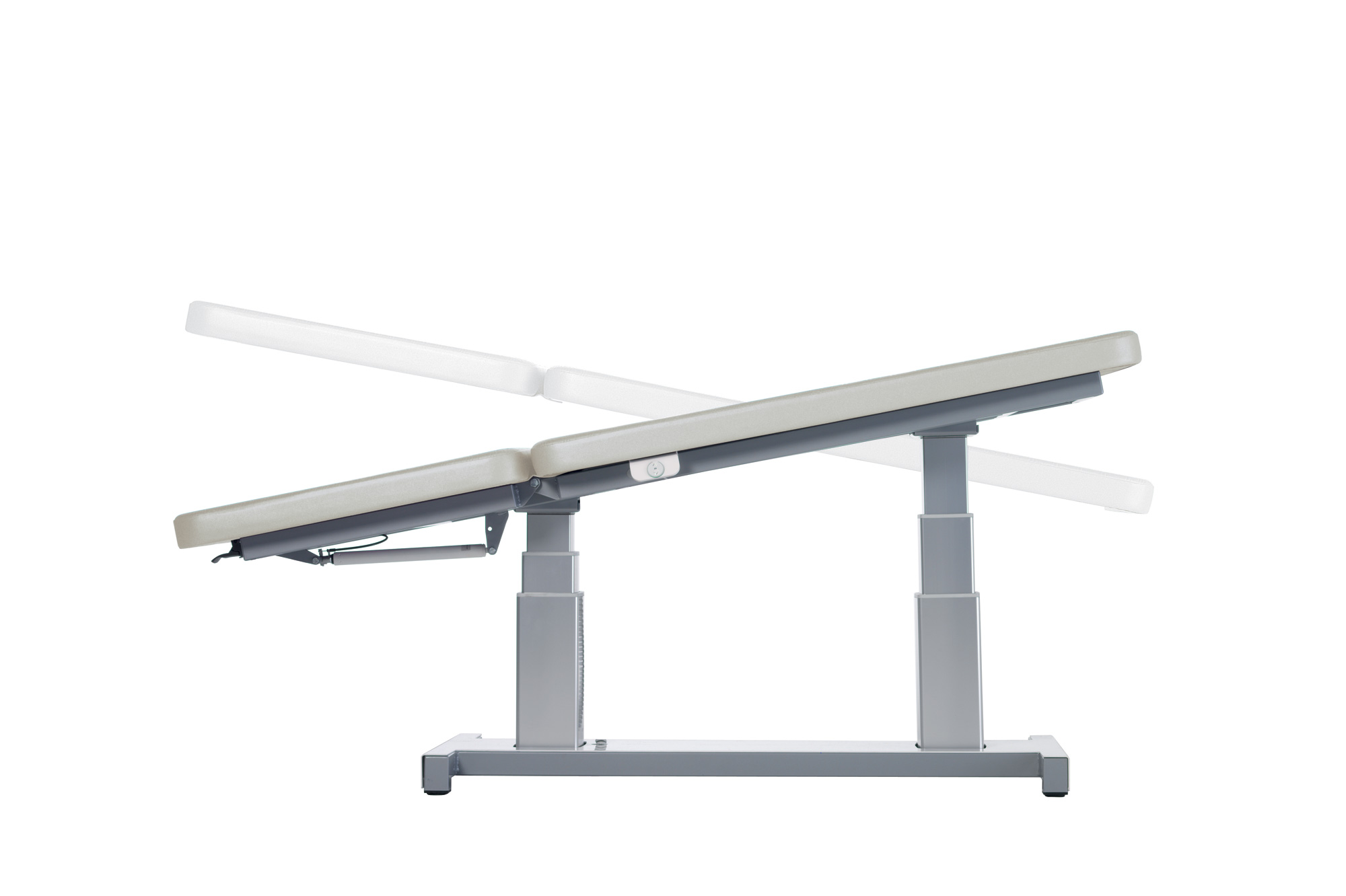

Professional therapy and massage table designed for manipulations, spa and beauty treatments. It's based on two mobile sections, electrically driven by two motors, which facilitates the therapy procedures through positions such as trendelenburg (tilt plane of + 30 °) and anti-trendelenburg (tilt plane of -30 °): this is possibile by means of dual telescopic column system. The head section is configurable with a convenient nose/mouth hole and can be used as a backrest (+70° tiltable) by means of a gas-spring assisted control.



Possible configuration choices:

  • height adjustment command (by means of hand control or a side command panel)
  • table base type (with or without LED lighting, with wheels or fixed)
  • heating control of the padded sections
  • nose/mouth hole on the head section
  • a wide range, 24 upholstery sections colors
Configurator

Configurator

HEIGHT ADJUSTMENT

with hand control
F
The adjustment is done by means of a hand control with magnet.
with hand control and fixed control panel
M
This option includes the magnet hand control as well as a fixed control panel on both sides.

OPTIONS

no options
1
with transfering wheels
2
Retractable wheels with centralized brake system lever activation. The wheels enable easy transferring without person lying on it
with led illumination
8
Intensity can be programmed up to 20 ways of illumination by means of a specific wireless control.
with wheels and led illumination
9

PADDED PANELS WIDTH

section width : 75 cm
075
Section width: 75 cm

PADDING DENSITY AND THICKNESS

thickness 50mm, density 30 kg/m³
3

HEATING

no heating
A
Padded sections with no heating system
with heating
B
Padded sections with heating system, three different temperatures can be chosen

NOSE / MOUTH BREATHING HOLE

head section without breathing hole
1
head section with breathing hole
2
Breathing hole plug provided as accessory

PADDING TYPE

sections with side band
X
Fire-retardant synthetic leather, with a resistant structure easy to maintain. It comes with a leather effect surface and a shiny finish. Side padding with squared edges.

LINING AND PADDING TYPE

1
2
3
4
6
7
8
9
A
B
E
F
G
H
K
L
M
N
P
Q
R
S
T
Z
Accessories

Accessories

Face Cushion - W 31 X D 23 X H 6

AC0024
Face pillow that allows a more comfortable posture.
Ask for quotation

Standard Paper Roll Set

AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
Ask for quotation

Breathing Hole Plug

AC0770
Dimensions: L 31 x P 23 x H 6
Ask for quotation

Protective Sheet Set

AC0784
This set contains 10 synthetic fabric sheets with elasticated border. For Sinthesi therapy tables.
Ask for quotation
Gallery

Gallery

Logistics

Logistics

CDN Code:
V0801
Code Repertoire:
R1338270
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Declaration of conformity

Compliance of statement - past edition
Document date: 21/09/2015
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 248.88 KB
