You are here: Home > Posture Analysis > Podoscopes > Podoscope Colored Light
See similar products
Request information

PODOSCOPE COLORED LIGHT

0
2
9
9
7
Quantity:

Description

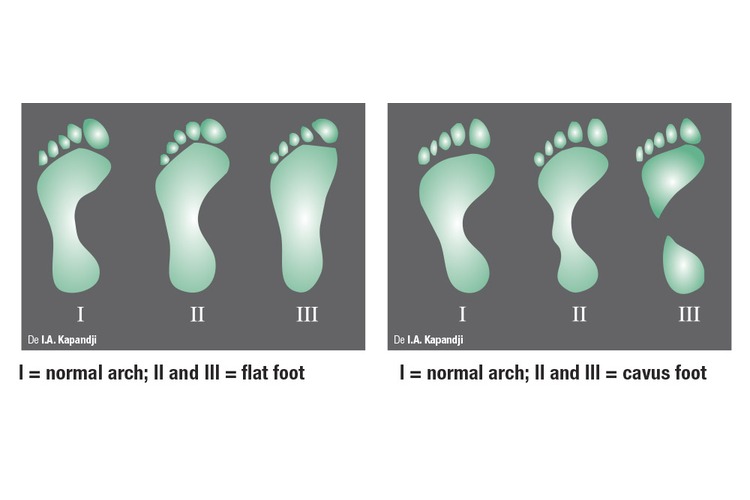

It is a typical device for analysing the foot type (normal / cavus / flat) of the subject being examined. It consists of a lacquered wood frame, a crystal surface and a mirror below. The safe working load is of 200 kg.

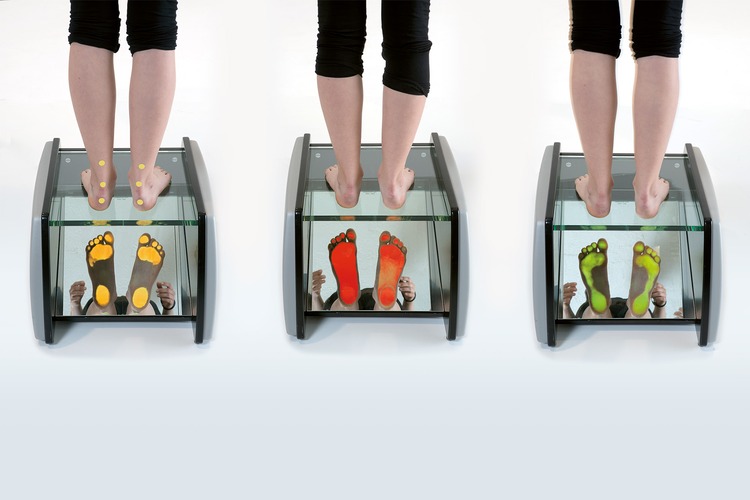

The double side lighting provides a visual image of the foot pressure with a representation of patient load distribution. The colour reproduction of the feet on the mirror can be changed in a wide variety by remote hand control unit according to specialist’s preference.

“Postural Safe” - code 03006 can be ordered as an accessory to help patient feels safe while standing on the platform.

Accessories

Accessories

Rearfoot Goniometer
02049
Tool designed to measure the alignment of the child’s hindfoot. The value of the valgus or the varus is shown in degrees.
Ask for quotation

Postural Safe
03006
It consists of a base, aluminum side bars and handrail and provides greater safety to the individual when he stands on a podoscope.
Ask for quotation

Set Of Shims G
06730
Set of shims G: n. 6 shims 1 cm, n. 1 shims 0,5 cm.
Ask for quotation
Technical Spec.

Technical Spec.

THE FRAME
Frame:
birch wood, black painted
Surface:
tempered glass
Illumination:
LED lights
LEDs colour light:
multi-colour, by remote control
Maximum capacity:
200 kg

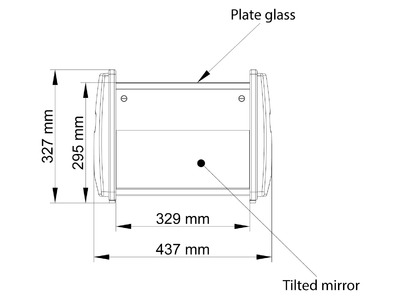

DIMENSIONS AND WEIGHT
Overall dimensions:
46 x 55 x 33 h cm
Surface:
32.5 x 36 cm
Weight:
15 kg
ELECTRIC FEATURES
Primary power supply:
50/60Hz 0.25 A
Secondary power supply:
12 Vdc 1.25 A
Cable:
removable
Plug:
Schuko (other types of plug are available upon request)
Gallery

Gallery

Logistics

Logistics

CDN Code:
V9099

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 60 x 51 x 42 h kg 16.5 mc 0.12852
Video

Video

Foot Analysis
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Lux podoscope - rgb podoscope

DICO - EU declaration of conformity
Document date: 14/12/2023
Language: English
Version: 1.0.2

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 1.5 MB
Register to access the content

Podoscopio lux - podoscopio color

DICO - EU declaration of conformity
Document date: 14/12/2023
Language: Italian
Version: 1.0.2

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 1.5 MB
Register to access the content

Device for the analysis of plantar support

IFU - Instruction of use
Document date: 28/04/2023
Language: English
Version: 1.0.2
DOWNLOAD
PDF 4.41 MB
Register to access the content

Dispositivo per l’analisi plantare dei piedi

IFU - Instruction of use
Document date: 28/04/2023
Language: Italian
Version: 1.0.2
DOWNLOAD
PDF 4.41 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 98.55 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 20/07/2015
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.2 MB
Register to access the content
