LUX PODOSCOPE

You are here: Home > Posture Analysis > Podoscopes > Lux Podoscope

Print card

Download photos

See similar products

Request information

LUX PODOSCOPE

Quantity:

Description

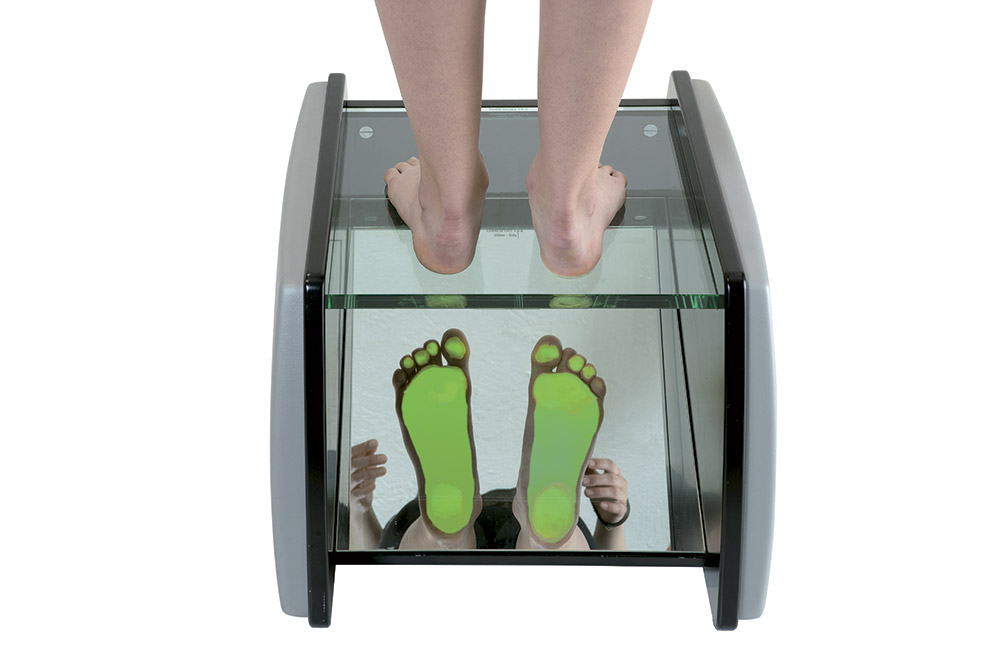

It is a typical device for analysing the foot type (normal / cavus / flat) of the subject being examined. It consists of a lacquered wood frame, a crystal surface and a mirror below.

The double side lighting provides a visual image of foot pressure and a representation of load distribution points. The colour reproduction of the patient feet on the mirror is slightly green. The safe working load is of 200 kg.

“Postural Safe” - code 03006 can be ordered as an accessory to help patient feels safe while standing on the platform.

Accessories

Rearfoot Goniometer

02049

Tool designed to measure the alignment of the child’s hindfoot. The value of the valgus or the varus is shown in degrees.

Ask for quotation

Postural Safe

03006

It consists of a base, aluminum side bars and handrail and provides greater safety to the individual when he stands on a podoscope.

Ask for quotation

Set Of Shims G

06730

Set of shims G: n. 6 shims 1 cm, n. 1 shims 0,5 cm.

Ask for quotation

Normal Foot

M30

"Normal" anatomical foot model displaying skin, bone, and muscle structures of the foot.

Ask for quotation

Flat Foot

M31

"Flat" anatomical foot model displaying skin, bone, and muscle structures of the foot.

Ask for quotation

Cavus Foot

M32

"Cavus" anatomical foot model displaying skin, bone, and muscle structures of the foot.

Ask for quotation

Technical Spec.

THE FRAME

Frame:

birch wood, black painted

Surface:

tempered glass

Illumination:

LED lights

LEDs colour light:

white

Maximum capacity:

200 kg

DIMENSIONS AND WEIGHT

Overall dimensions:

46 x 55 x 33 h cm

Surface:

32.5 x 36 cm

Weight:

15 kg

ELECTRIC FEATURES

Primary power supply:

50/60Hz 0.25 A

Secondary power supply:

12 Vdc 1.25 A

Cable:

removable

Plug:

Schuko (other types of plug are available upon request)

Gallery

Logistics

CDN Code:

V9099

Code Repertoire:

R0762096

Weight, size and volume

Weight, size and volume (+/- 10%)

N° Package	Package type	Dimension	Weight	Volume
1	SCATOLA	cm 60 x 50.5 x 42 h	kg 16.5	mc 0.12726
2		-	-	-

Video

Foot Analysis

Documents

Declaration of conformity

Compliance statement

Document date: 28/05/2021

Language: Italian, English, German, French, Spanish

Version: V 2.1

DOWNLOAD

PDF 98.55 KB

User and Maintenance Manual

Manual

Document date: 20/07/2015

Language: Italian, English

Version: V 1.0

DOWNLOAD

PDF 1.2 MB
