POSTURAL ANALYSER 3.0

0
3
0
3
2
Quantity:

Description

It is a metal  frame composed of two aluminum side rods both equipped with a reference scale, an upper mirror with a median line, and one plumb line. It is also possible to add as an accessory a set of three horizontal and two vertical elastics (code AC0870), respectively adjustable in height and width by sliding.

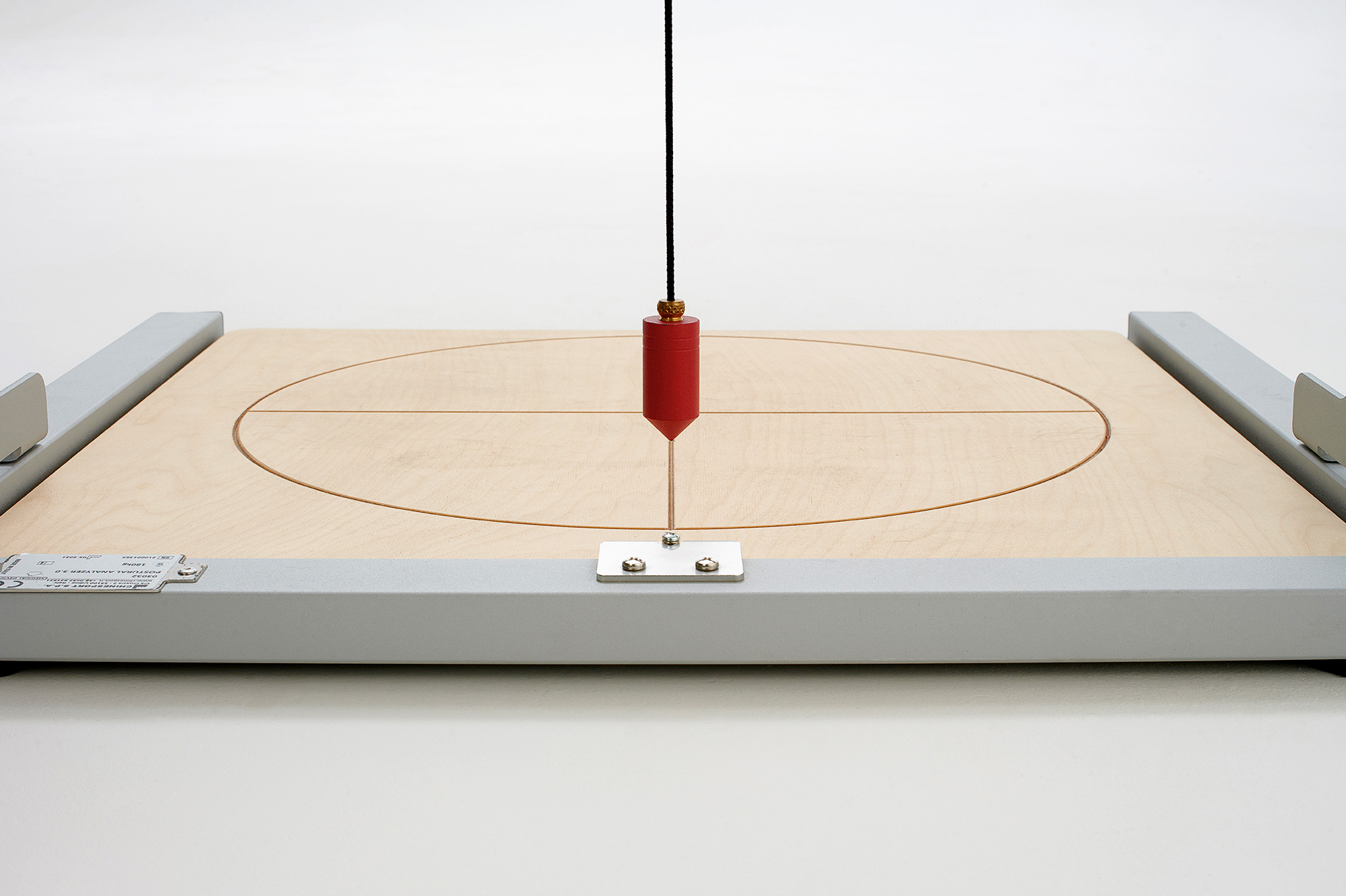

These elastics can be used as reference lines in the observation of the patient's upright posture, and in the search for asymmetries and deviations. The central plumb line represents the first reference to align the malleolus to this vertical on the sagittal plane.

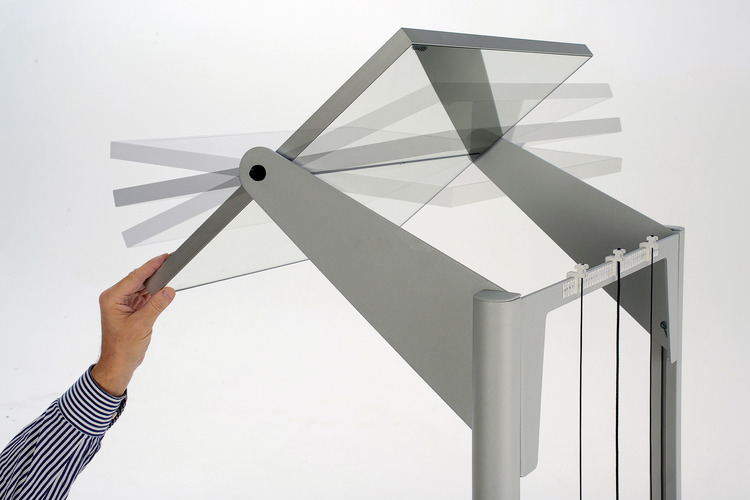

The person is then invited to stay on the platform and follow some rules for its correct positioning. An accessory adhesive (code AC1046) can be applied to the base, which guides the patient to position himself autonomously for the acquisition of the four main images. This device therefore allows a visual control of posture in the frontal and sagittal planes. In addition, the upper inclined mirror allows the observation of possible shoulders rotation.

The device can be purchased as a stand-alone device and later be part of one of our posture analysis laboratories with specific software and electronic patient folder to store results of several visits.

It is suitable for people up to 207cm tall and the safe working load is 180kg.

Accessories

Accessories

Elastic Grid Kit

AC0870
Set of elastics to be used as reference lines in the observation of the patient's upright posture
Ask for quotation

Foot Positioning Adhesive

AC1046
Adhesive to guide the patient in positioning during frontal and sagittal planes posture observation.
Ask for quotation
Technical Spec.

Technical Spec.

THE BASE
The base frame:
in steel
Feet of the base:
adjustable
Removable support platform:
wooden, in birch
Base references for feet positioning:
milled
Adhesive for feet positioning:
accessory AC1046
Overall dimensions:
76 x 69 x 235 h cm
Max patient height:
207 cm
Safe working load:
180 kg
Weight:
25 kg
THE UPPER FRAME
Side columns with reference scale:
in aluminum
Plumb line:
adjustable, horizontally
Reference elastics grid:
accessory AC0870
Manually adjustable elastics:
by sliding
Nr. Vertical elastics:
2
Nr. Horizontal elactics:
3
THE MIRROR
Upper metal support:
in steel
Upper mirror with midline:
tilting
Mirrow dimensions:
63 x 50 x 2.2 h cm
