You are here: Home > Patient Transport > Patient Transfer Chairs > Elba 3
See similar products
Request information

ELBA 3

Configurable Product
A
P
1
0
0
0
3
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

Hospital chair for patient transport within hospital or community environment, suited for admission, accident & emergency department (A&E) and ward transfer purposes. With footrest fully touching the ground and backrest up, it enables the patient to safely perform any activities involving sitting or standing up. This position also triggers an additional locking system.

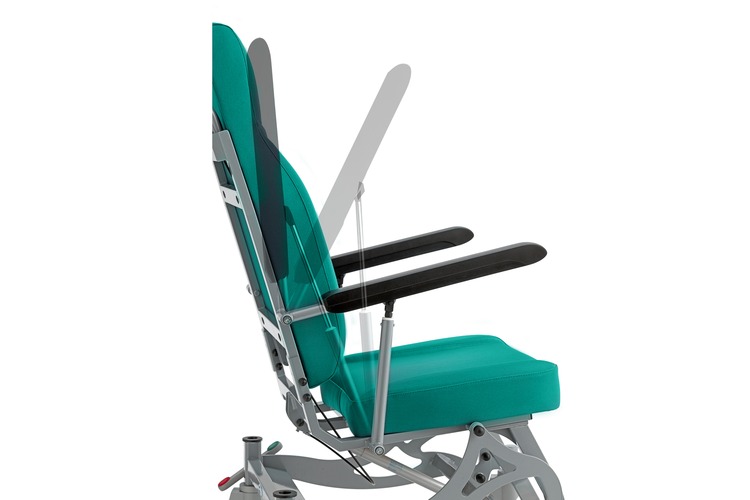

Armrests can be flipped back to enter the hospital chair from the side. The backrest can be reclined via gas spring control. This movement creates a seat tilt that allows for a better position for the patient to rest and relax.

The hospital chair has a “central braking system” on the two rear wheels. Using the same foot pedal control, it is also possible to activate a steering lock system on the rear wheels. The carer can easily move the hospital chair with patient on board, even in extremely small spaces. The hospital chair has a push handle and convenient back pocket. A series of accessories is available for more functions.
Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Cervical Cushion lt4
AC0949
Padded shaped cushion for lateral restraining and stabilization of the patient’s head. Quick application with velcro strap. Adjustable in height. Please sp...
Ask for quotation

Extractable Leg Rest
AC0061
For comfort of the patient when adopting a relaxed position the extractable leg rests are adjustable in depth independently. The knee rests can be tilted to ...
Ask for quotation

Service Tray
AC0063
The service tray can be easily mounted or removed. It has telescopic adjustment in depth. The surface is smooth, in plastic material, wide and easy to clean.
Ask for quotation

Drip Stand
AC0065
The drip stand can be inserted whenever necessary on its place either on the right or the left side. Height and rotation adjustable.
Ask for quotation

Canister Holder
AC0066
The metal structure which holds the canister can be attached to the frame of the backrest, but an extra support hook code AC0067 is necessary.
Ask for quotation

Support Hook
AC0067
It must be requested along with acessory item code AC0066 anytime you are intended to apply the metal structure to hold the canister. The hook is black.
Ask for quotation
Technical Spec.

Technical Spec.

Weight:
42 kg
Max load:
160 kg
Chair frame:
painted steel
Paint:
scratch and corrosion resistant
Armrests:
flip-back
Reclining backrest:
by gas spring
Seat tilt:
- 33° / + 6 °
Synthetic leather upholstery:
anti-bacterial, Class I M fire-resistant
Central braking system:
yes, on two rear castors
Steering lock system:
activated on rear castors
Jumping over obstacles:
not suitable
Wheels:
4 swiveling castors (Ø 12.5 cm)
Gallery

Gallery

Video

Video

ELBA
ISCHIA AND ELBA ACCESSORIES
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Elba - ischia

DICO - EU declaration of conformity
Document date: 05/02/2024
Language: English
Version: 1.0.1
DOWNLOAD
PDF 1.51 MB
Register to access the content

Elba - ischia

DICO - EU declaration of conformity
Document date: 05/02/2024
Language: Italian
Version: 1.0.1
DOWNLOAD
PDF 1.5 MB
Register to access the content

Patient transfer chairs

IFU - Instruction of use
Document date: 19/01/2023
Language: English
Version: 1.0.2
DOWNLOAD
PDF 3.58 MB
Register to access the content

Carrozzine per ospedali

IFU - Instruction of use
Document date: 19/01/2023
Language: Italian
Version: 1.0.2
DOWNLOAD
PDF 3.58 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
Version: V 2.1
DOWNLOAD
PDF 121.63 KB
Register to access the content

User and maintenance manual

Manual - past Edition
Document date: 04/10/2019
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 713.42 KB
Register to access the content
