ALFATRAC

0
9
3
2
4
Quantity:

Description

Fixed height table specifically designed for tractions, with two sections and fixed height. The construction is made from coated metal with high density padding and synthetic leather upholstery.

Both lumbar and cervical tractions can be applied. The table is supplied with a specific support frame to be fitted to the EUROTRAK traction unit - code 09337 or other electronic device. The support plate is height-adjustable.

The table has a chromed mini-frame with anchoring hooks fitted to the head section, two more padded supports for the underarm area and a height-adjustable spreader bar for the traction rope. For lumbar tractions, there is a sliding section underneath that reduces rubbing between patient and table surface. This section can also be tilted laterally by hand up to a 10° angle, so the trunk can be rotated during traction. The supply includes a series of belts in various sizes for application to the cervical, pelvic and thoracic area, and some cushions so the patient can be comfortably positioned and a correct longitudinal traction of the spine is achieved.



SUPPLIED ACCESSORIES

  • 1 medium thoracic belt
  • 1 large thoracic belt
  • 1 medium pelvic belt
  • 1 large pelivc belt
  • 1 chin belt
  • 1 semi-cilindrical cushion
  • 1 wedge cushion
  • 1 trapezium cushion


It's possible to apply a different electronic traction unit after having made the suitable holes to the metal support. See below the technical drawing with indication of the standard holes.


Note: the postural cushions included in the standard supply come in the same color as the table upholstery, unless otherwise specified.

Accessories

Accessories

Traction Bag 0.5 Kg

08035
Synthetic leather traction bag, 0.5 kg.
Ask for quotation

Traction Bag 1 Kg

08045
Synthetic leather traction bag, 1 kg.
Ask for quotation

Traction Bag 2 Kg

08055
Synthetic leather traction bag, 2 kg.
Ask for quotation

Traction Bag 3 Kg

08065
Synthetic leather traction bag, 3 kg.
Ask for quotation

Traction Bag 4 Kg

08075
Synthetic leather traction bag, 4 kg.
Ask for quotation

Traction Bag 5 Kg

08085
Synthetic leather traction bag, 5 kg.
Ask for quotation

Eurotrak

09337
Touchscreen equipment used to perform lumbar and cervical tractions. Tractions can be applied in a “static”, “dynamic” or “intermittent dynamic” ...
Ask for quotation

Traction Pelvic Belt M

09350
Pelvic traction belt - medium size (120 cm length). Circumference: 60 - 100 cm.
Ask for quotation

Traction Pelvic Belt L

09360
Pelvic traction belt - large size (150 cm length). Circumference: 70 - 130 cm
Ask for quotation

Traction Thoracic Belt M

09370
Chest traction belt - medium size (120 cm length). Circumference: 60 - 100 cm.
Ask for quotation

Traction Thoracic Belt L

09380
Chest traction belt - large size (150 cm length). Circumference: 70 - 130 cm.
Ask for quotation

Leather Chin Belt

09400
Leather chin belt for cervical tractions, with application support. Dimensions: 70 x 7 cm (stretched)
Ask for quotation

Trapezoid Cushion

09430
Support the patient’s lower limbs in raised position. Ensure minimum load on the vertebral level during lumbar/cervical traction. Dimensions: 40 x 49 x 30 ...
Ask for quotation

Triangular Cushion

09440
Allows a comfortable and adequate support to the patient’s head during the execution of the lumbar or cervical traction. Dimensions: 44 x 41 x 15 h cm
Ask for quotation

Semi-Cylindrical Cushion

09450
Improves comfort and support the patient at the cervical level when lying in supine position during lumbar/cervical traction treatment. Dimensions: 29.5 x 14...
Ask for quotation

Set Of Bags Weights

AC0077
Set of n. 6 different weight bags with 35 mm diameter chromed attachment ring for the Archimedes Pulley Therapy System.
Ask for quotation

Set Of Cushions

AC0078
Postural cushions made in foamed material, with synthetic leather upholstery. Used for patient positioning during tractions in a prone or supine position.
Ask for quotation

Set Of Belts

AC0079
Set of belts, are worn by the patient when performing lumbar or cervical tractions.
Ask for quotation
Technical Spec.

Technical Spec.

Head/trunk section:
sliding on tracks

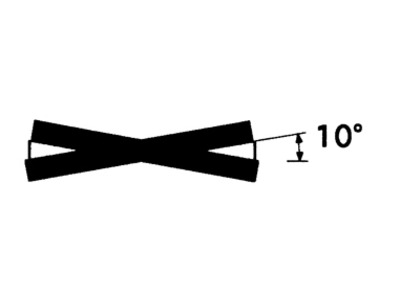

Head section lateral tilt:
10°
EUROTRAK traction unit support:
height-adjustable
Safe working load:
135 kg

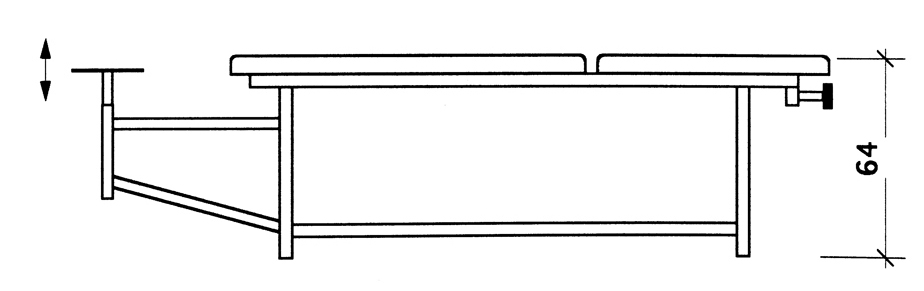

Dimensions:
190 x 70 x 64 h cm
Total size:
248 x 70 x 64 h cm
93/42/EEC class:
I
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0200279

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 scatola su bancale cm 200 x 80 x 82 h kg 105 mc 1.312
Video

Video

Set of traction belts
Documents

Documents


Vertebral tractions

Introduction - The effects of spinal traction - Types of spinal traction - Continuous traction - Intermitent mechanical traction - Manual traction - Positional traction - Active Lumbar traction - Indications and contraindications - Herniated disc with protrusion - McKenzie’s extension basics - Degenerative discopathy - Articular hypomobility (Articular dysfunction) - Contraindications for spinal traction - Lumbar traction techniques - Introduction - Traction weights and body friction - A table with mobile sections - The patient must be in relax - Traction belts - Patient’s positions - Type of traction - Prone position - Protective scoliosis - Cervical traction techniques - Introduction - Traction angles - Chin strap - Traction weights - Patient in relax - Treatment duration - Temporomandibular joint - Manual cervical traction - Unilateral cervical traction - Conclusions
Therapy manual
Document date: 16/07/2021
Language: Italian, English
DOWNLOAD
PDF 2.27 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
DOWNLOAD
PDF 104.56 KB
Register to access the content

Manual de instrucciones

Manual
Document date: 19/03/2012
Language: Spanish
DOWNLOAD
PDF 162.67 KB
Register to access the content

Manuale Istruzioni

Manual
Document date: 18/05/2011
Language: Italian
DOWNLOAD
PDF 73.21 KB
Register to access the content

User and Maintenance Manual

Manual
Document date: 18/05/2011
Language: English
DOWNLOAD
PDF 85.79 KB
Register to access the content
