You are here: Home > Hygiene Solutions > Shower Trolleys > Shower Trolley For Bariatric Use
See similar products
Request information

SHOWER TROLLEY FOR BARIATRIC USE

Configurable Product
L
D
3
3
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

The transfer trolley for bariatric use is suitable for use both in care facilities and at home. It is possible to choose some options that can suit several needs of carers or family members and that fit to the user's anthropometric characteristics.

Twin electric actuators combine to provide effortless lifting and platform tilt.

We have taken particular care in choosing materials, components and special processes, ensuring the product is long lasting and rust-free. The shower trolley is height adjustable via electric actuator or hydraulic piston. The electric version can be adjusted using the pedal control or handset. Rails can be dropped with one hand.

If needed, the length of the mattress usable space can be extended by tilting the head end rail partially and / or the foot end rail.

It is fitted with swivelling bumpers integrated into the deck structure, and it has individually braked casters with a “directional lock” system for easier transportation.

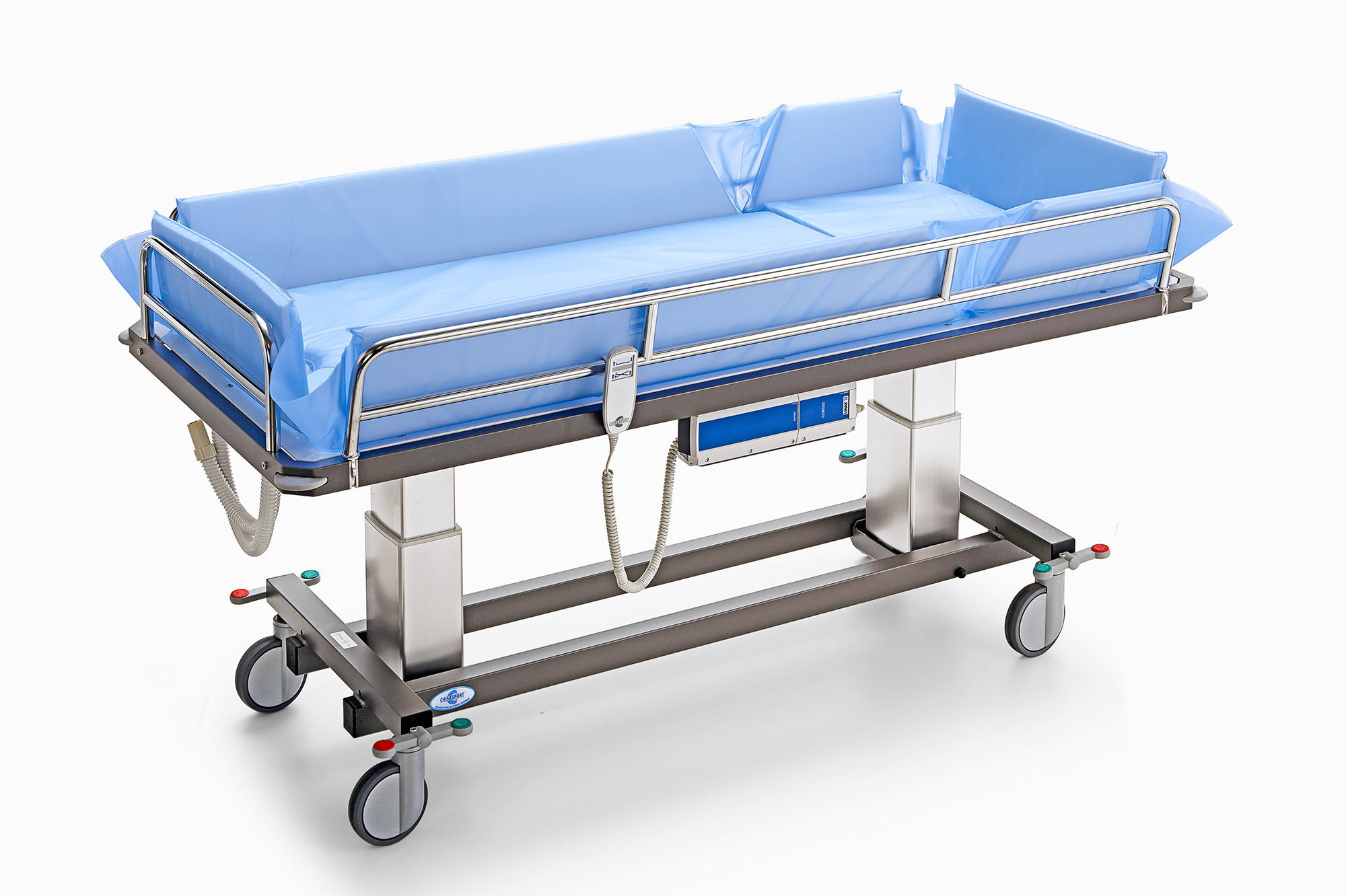

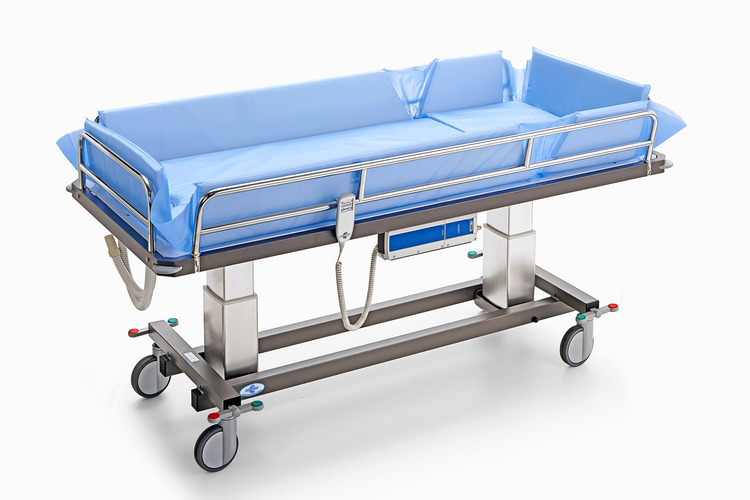

The model shown in picture correspond to the code LD33D3112.



ABOUT THE INSIDE MATTRESS

It has been recently modified to provide more comfort for the patient, thanks to a thickness for both the bottom and the arised edges. Laboratory tests have detected with the use of sensors a relevant reduction of the medium pressure and peak pressure, and a wider body surface area in contact compared to other classic mattresses.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Soft Shower Mattress Medium
SP0035
Replacement mattress for model LD32-LD33 - M (188 x 68 cm)
Ask for quotation

Soft Shower Mattress Large
SP0042
Replacement mattress for model LD32-LD33 - L (188 x 80 cm)
Ask for quotation

Wedge Soft Cushion
AC1236
Cushion with 15° tilt and dimensions cm 55 x 55 x 14/2 h
Ask for quotation

Semi-Cylindrical Soft Cushion
AC1237
Cylindrical cushion - dimensions: cm 55 x 15 x 7
Ask for quotation

Backrest Extension
AC0574
For greater support to the backrest. Available for inside width 68cm versions with "reclining backrest" and "foldable top and/or bottom rails" option.
Ask for quotation

Iv Pole For Shower Trolleys
AC0838
Stainless steel IV pole designed for shower trolleys
Ask for quotation

Drain Hose + Plug ld31-ld32-ld33
AC0892
Standard drain hose (150 cm) with plug to stop water drainaging
Ask for quotation

Spare Battery ipx5
AC0071
Additional battery to ensure the uninterrupted operation of the patient hoist. For shower trolley system and hoisting systems for pool.
Ask for quotation

Wall Battery Charger
AC0318
Professional wall-mounted battery charger. It comes with a standard SHUKO plug. By request a cable can be provided with another plug.
Ask for quotation

Additional Hand Control 1
AC0039
This additional hand control fits for therapy tables with a single eletric actuator.
Ask for quotation

Additional Control 1
AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Foot Switch Holder
AC0575
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation

Shower Mattress Straps
AC1126
Straps for quick application to all four sides of the mattress. Guarantee further stability of the rised edges of the mattress to be fixed to the side rails.
Ask for quotation

Safety Device
AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Shower Panel
XBC001
Shower panel consisting of a stainless steel support and ABS outer panel. It has vacuum breaker valves to empty the water system completely after every use, ...
Ask for quotation
Technical Spec.

Technical Spec.

Height adjustment system:
Electrical with Battery
IP protection:
X5
Supply:
Battery charger 110-220v - 50/60 Hz 500 mA
Electrical safety:
Internal supply 24V
Safe working load:
245 kg (body weight 225 kg)
Weight:
106 kg
Caster diameter:
15 cm
Caster braking system:
Central system with casters
Directional system:
included
Side rails width reduction:
included
Trendelenburg:
12°
Tilt for water discharge:
12°
Discharge hose lenght:
150 cm
Shower trolley dimensions - 80 cm width version
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R1150567
Video

Video

An overview on the main features of Chinesport shower trolleys program.
