SHOWER TROLLEY FOR ADULTS

Configurable Product
L
D
3
2





Quantity:

Description

The shower for adults is suitable for use both in care facilities and at home. It is possible to choose some options that can suit several needs of carers or family members and that fit to the user's anthropometric characteristics.

We have taken particular care in choosing materials, components and special processes, ensuring the product is long lasting and rust-free. The shower trolley is height adjustable via electric actuator or hydraulic piston. The electric version can be adjusted using the pedal control or handset.

If needed, the length of the mattress usable space can be extended by tilting the head end rail partially and / or the foot end rail. The backrest can also be easily tilted by the carer via gas spring and ergonomic control.

The mattress is in a soft material, smooth and elastic at the touch, and makes the cleaning and disinfection operations faster and efficient. The shower trolley can be also adjusted to get a Trendelenburg position as standard feature, as well as to tilt the patient platform to drain water away.

It is fitted with swivelling bumpers integrated into the deck structure. You can choose between individually braked casters or central braking system via a pedal. In both cases there is also a “directional lock” system for easier transportation.

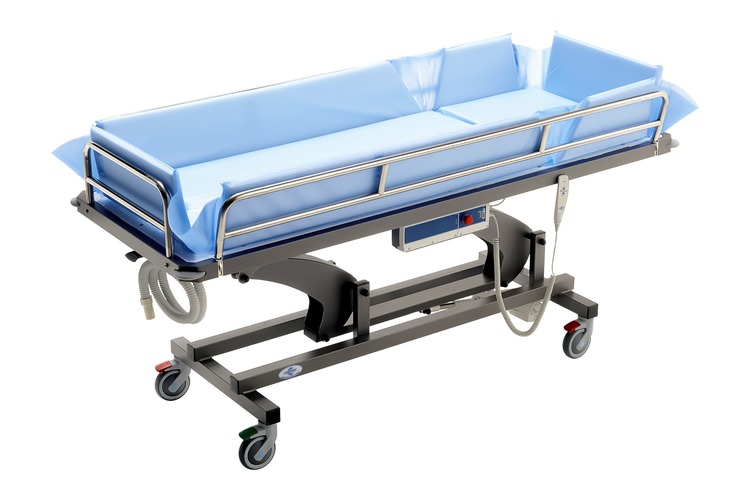

The model shown in picture correspond to the code LD32D2111.



ABOUT THE INSIDE MATTRESS

It has been recently modified to provide more comfort for the patient, thanks to a thickness for both the bottom and the arised edges. Laboratory tests have detected with the use of sensors a relevant reduction of the medium pressure and peak pressure, and a wider body surface area in contact compared to other classic mattresses.

Configurator

Configurator

HEIGHT ADJUSTMENT

This helps give greater comfort to both the user and carer during washing, as it allows to change the patient's position. The backrest can be easily tilted by the carer via gas spring and ergonomic control.
hydraulic, with double pedal, standard
C
Hydraulic piston with pedal control available on both sides. This hydraulic adjustment is ideal for situations where there is no power supply or when you need to move the table easily.
electric, with hand control
D
Ergonomic hand control with magnet. Caregivers can attach it wherever they wish on the frame metal parts. It comes with connection cable.
electric, with foot switch on support, standard
G
Control securely placed in a special holder, which has to be attached at the base of the structure. The pedal control on its holder makes the transferring easier.

INSIDE WIDTH

Various platform inside widths available to fit the user's space requirements.
inside width 68 cm
2
For users up to 188 cm tall.
inside width 80 cm
3
For larger individuals up to 188 cm tall.

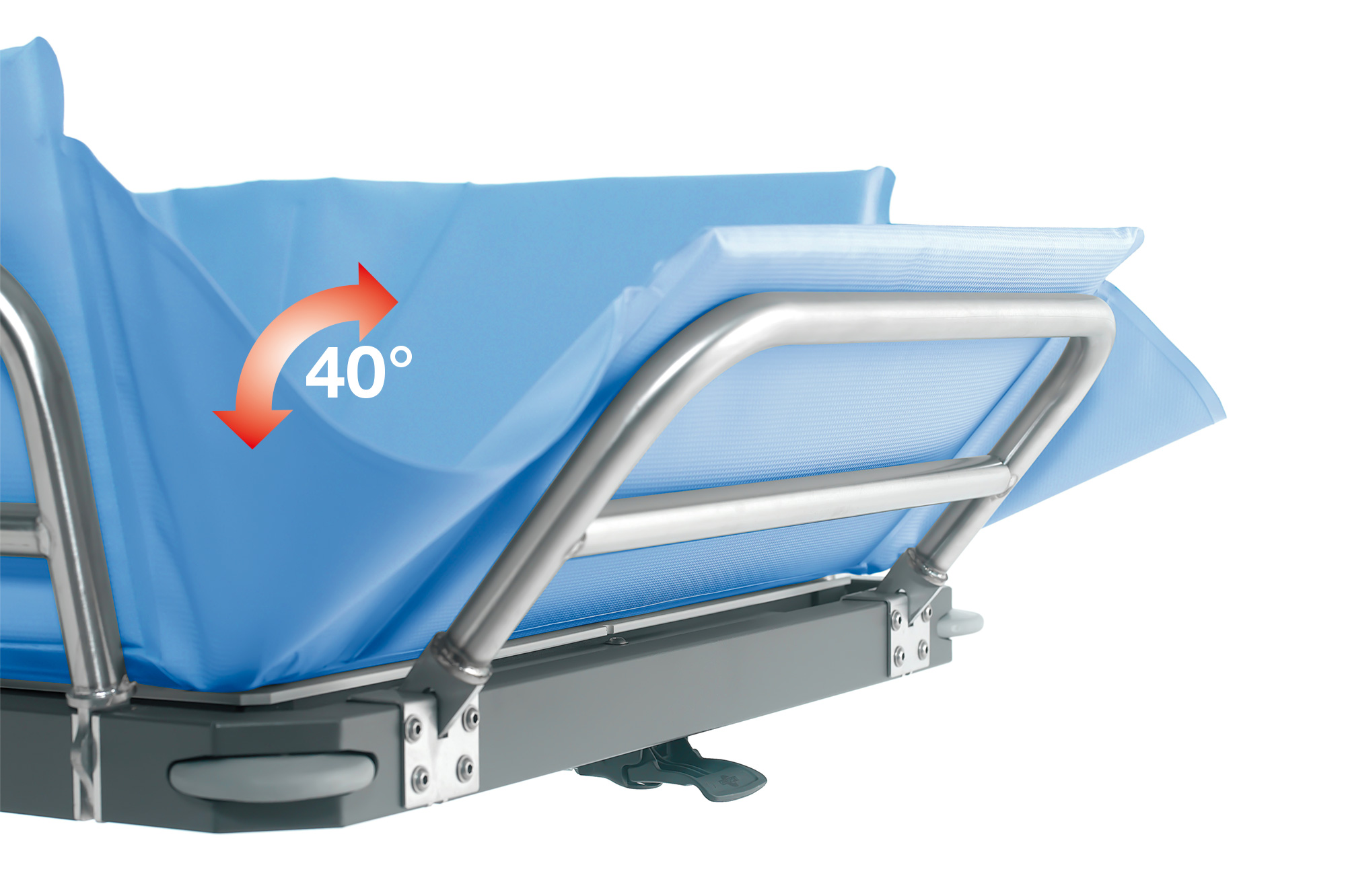

LENGTH EXTENSION

The length of the mattress usable space can be extended by tilting the head end rail partially, and tilting the foot end rail as well if required. The carer can then easily lift and tilt the rail up to a 40° angle as needed.
fixed rails on head and foot end
1
Fixed safety rails on head and foot end - they cannot be folded. The mattress inside length remains the chosen one without possibility of extendable space.

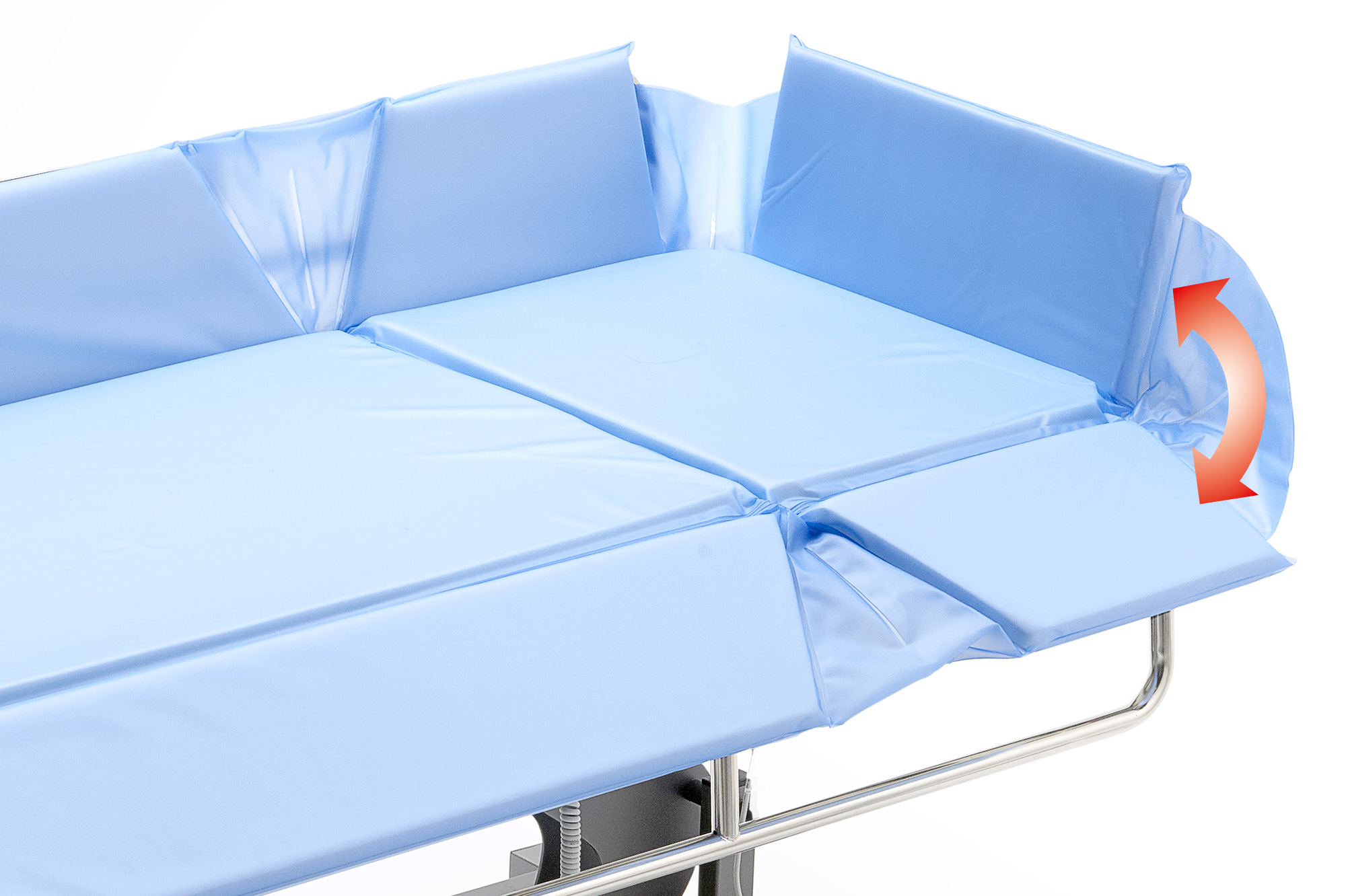

head end rail partially folding
2
The mattress usable inside space extends to a length of 7 cm.
partially folding rails on head and foot end
3
Both safety rails on the head and foot end can be partially folded. The mattress's available inside space on the length extends to a maximum of 14 cm.

BACKREST ADJUSTMENT

This helps give greater comfort to both the user and carer during washing, as it allows to change the patient's position. The backrest can be easily tilted by the carer via gas spring and ergonomic control.
non-tilting backrest
1
The patient remains in a supine position inside the mattress. The patient's head can be lifted using a special cushion, which is an accessory to be ordered separately.

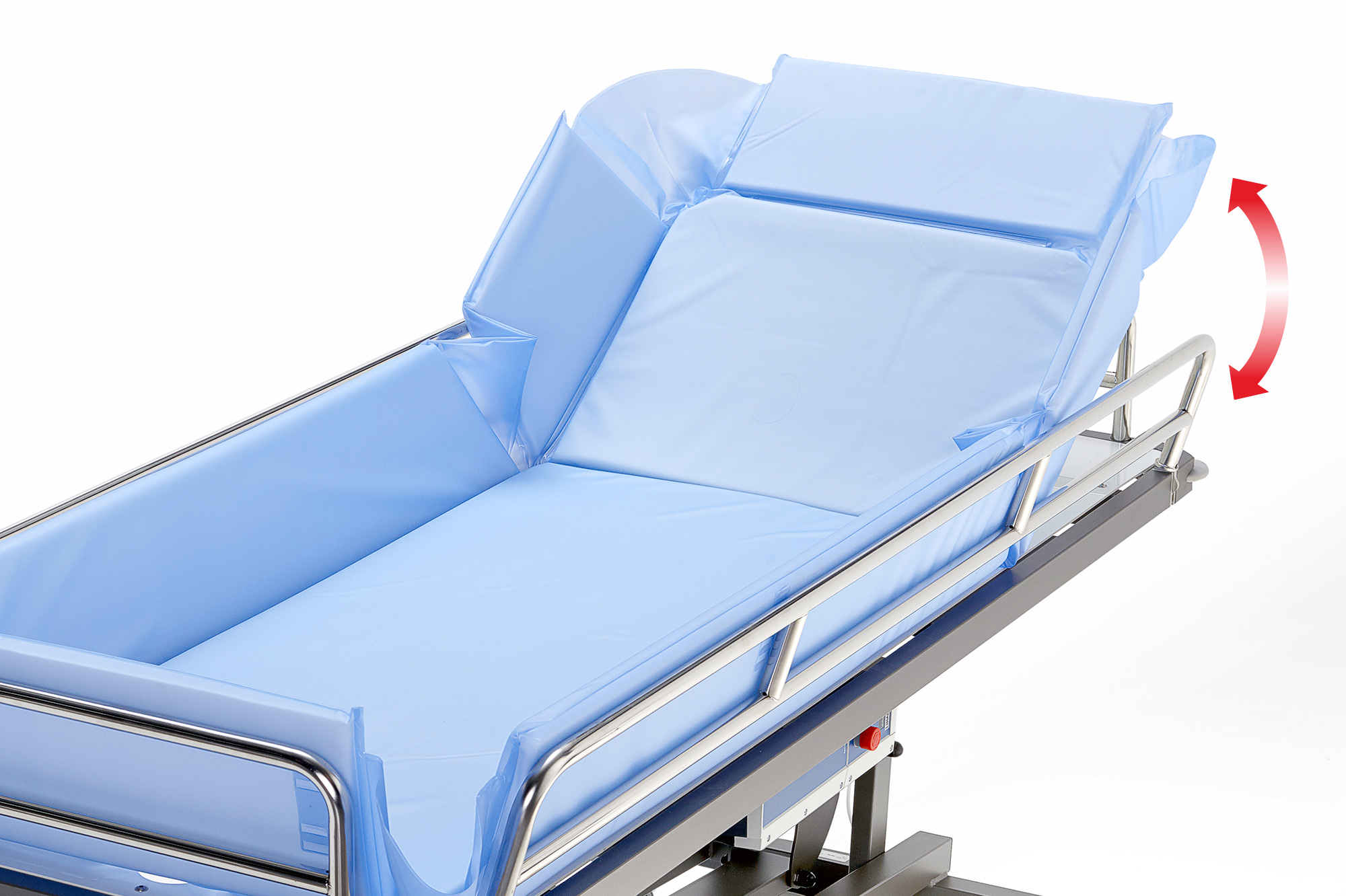

tilting backrest
2
The head end can be tilt adjusted to a 63° angle. The tilt can be locked or modified in any intermediate position. A separate accessory can also be requested to provide greater head support.

BRAKING SYSTEM

You can choose between individually braked casters or central braking system via a pedal. In both cases there is also a “directional lock” system for easier transportation on long, straight stretches.
ø 12,5 cm individual brake casters
1
Ø 12,5 cm casters with individual brake. "Directional lock" function on one caster.
ø 15 cm centralized brake system casters
2
Ø 15 cm casters with central braking system and “directional lock” function. These functions can be activated alternately using the same pedal system available on both sides of the trolley.
Accessories

Accessories

Soft Shower Mattress Medium
SP0035
Replacement mattress for model LD32-LD33 - M (188 x 68 cm)
Ask for quotation

Soft Shower Mattress Large
SP0042
Replacement mattress for model LD32-LD33 - L (188 x 80 cm)
Ask for quotation

Wedge Soft Cushion
AC1236
Cushion with 15° tilt and dimensions cm 55 x 55 x 14/2 h
Ask for quotation

Semi-Cylindrical Soft Cushion
AC1237
Cylindrical cushion - dimensions: cm 55 x 15 x 7
Ask for quotation

Backrest Extension
AC0574
For greater support to the backrest. Available for inside width 68cm versions with "reclining backrest" and "foldable top and/or bottom rails" option.
Ask for quotation

Iv Pole For Shower Trolleys
AC0838
Stainless steel IV pole designed for shower trolleys
Ask for quotation

Drain Hose + Plug ld31-ld32-ld33
AC0892
Standard drain hose (150 cm) with plug to stop water drainaging
Ask for quotation

Spare Battery ipx5
AC0071
Additional battery to ensure the uninterrupted operation of the patient hoist. For shower trolley system and hoisting systems for pool.
Ask for quotation

Wall Battery Charger
AC0318
Professional wall-mounted battery charger. It comes with a standard SHUKO plug. By request a cable can be provided with another plug.
Ask for quotation

Additional Hand Control 1
AC0039
This additional hand control fits for therapy tables with a single eletric actuator.
Ask for quotation

Additional Control 1
AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Ask for quotation

Foot Switch Holder
AC0575
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with p...
Ask for quotation

Shower Mattress Straps
AC1126
Straps for quick application to all four sides of the mattress. Guarantee further stability of the rised edges of the mattress to be fixed to the side rails.
Ask for quotation

Safety Device
AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation

Shower Panel
XBC001
Shower panel consisting of a stainless steel support and ABS outer panel. It has vacuum breaker valves to empty the water system completely after every use, ...
Ask for quotation
Technical Spec.

Technical Spec.

Height adjustment system:
Hydraulic / Electrical with Battery
IP protection:
X5
Supply:
Battery charger 110-220v - 50/60 Hz 500 mA
Electrical safety:
Internal supply 24V
Sage working load:
200 kg (body weight max 180 kg)
Weight:
106 kg
Caster diameter:
12.5 - 15 cm
Caster braking system:
Individually on each castor or centralized foot
Directional system:
included

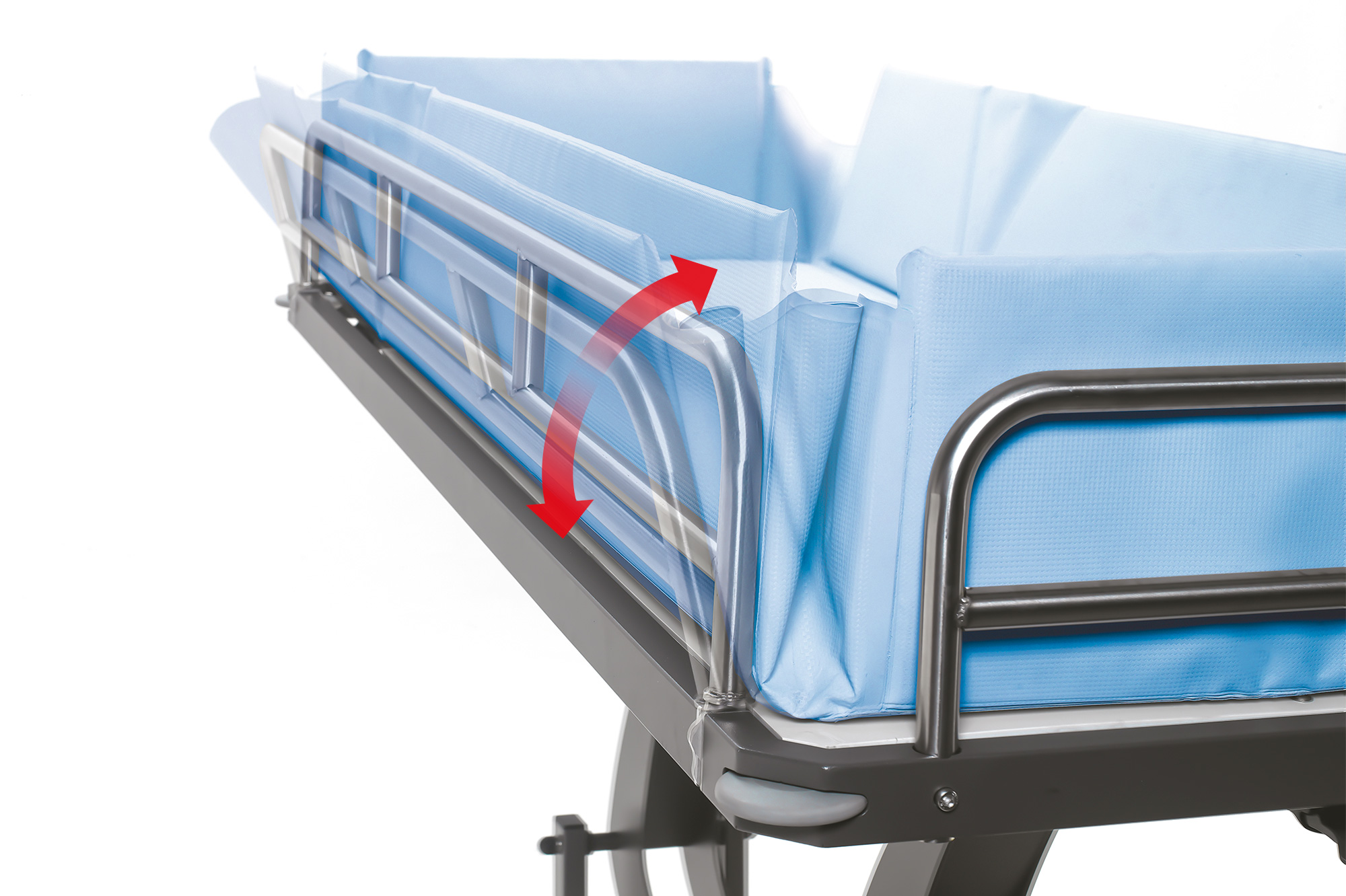

Side rails widht reduction:
included
Trendelenburg:
12°
Tilt for water discharge:
5°
Backrest/deadrest:
only on version with 68 cm width
Discharge hose lenght:
150 cm
Shower trolley dimensions - 80 cm width version
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R1150565
Video

Video

An overview on the main features of Chinesport shower trolleys program.
A complete range of shower trolleys for paediatric use, adults and bariatric use.
How to order a Chinesport configurable shower trolley.
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

Shower trolley

DICO - EU declaration of conformity
Document date: 02/08/2023
Language: English
Version: 1.0.2
DOWNLOAD
PDF 1.51 MB

Shower trolleys

IFU - Instruction of use
Document date: 09/11/2022
Language: English
Version: 4.0.0.0
DOWNLOAD
PDF 4.99 MB
