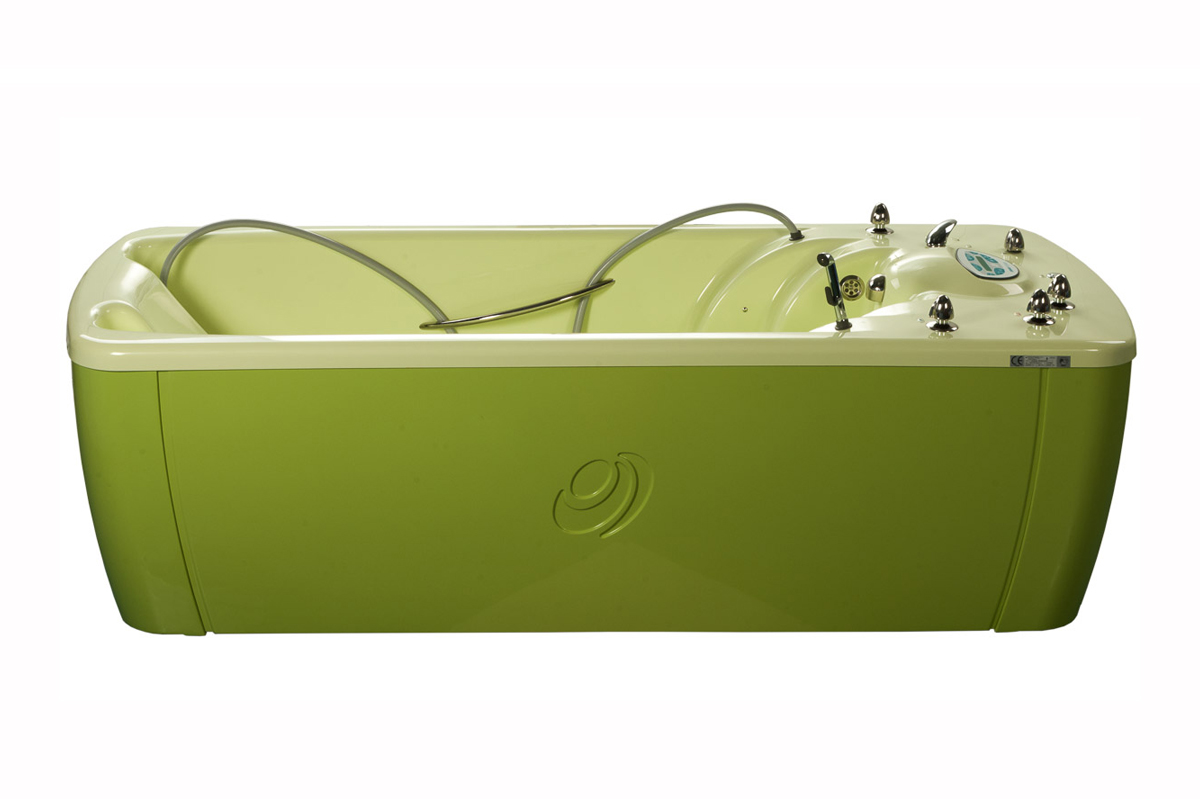

OCEAN STADARD BATH TUB

C
H
3
1
0
0
Quantity:

Description

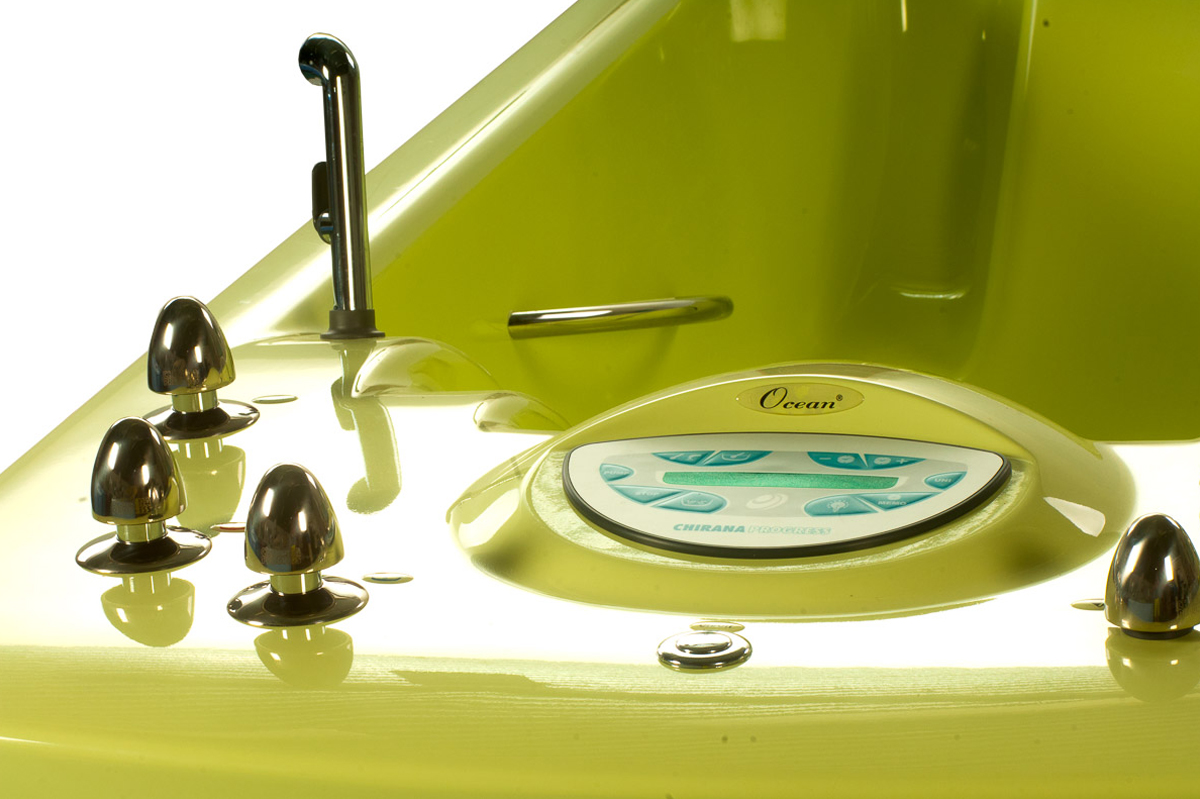

With 24 massage jetsAdjustable water jets performance. Mixture and air to the jets in the massage zone are adjustable. Electronic reading and display of the filling water temperature. Dry running electronic protection of the pump. Easy to control through a keypad with an 8-digit LED display.
The treatment time can be set between 0 and 99 minutes. Electronic reading and display of the water pressure in the hydromassage system. Massage jet nozzle with nozzle support. Nozzle pressure constantly adjusted from 0 to 450 kPA. Air mixture pressure for the nozzle jet constantly adjusted. Sanitizing hand shower with stop valve for tub cleaning. Drain system for emptying the water from the massage circuit. Nozzles rinsing. Two-step stool.



OPTIONAL

  • Chromotherapy
  • Electro-magnetic anti-scaling system
  • Water recirculation
Accessories

Accessories

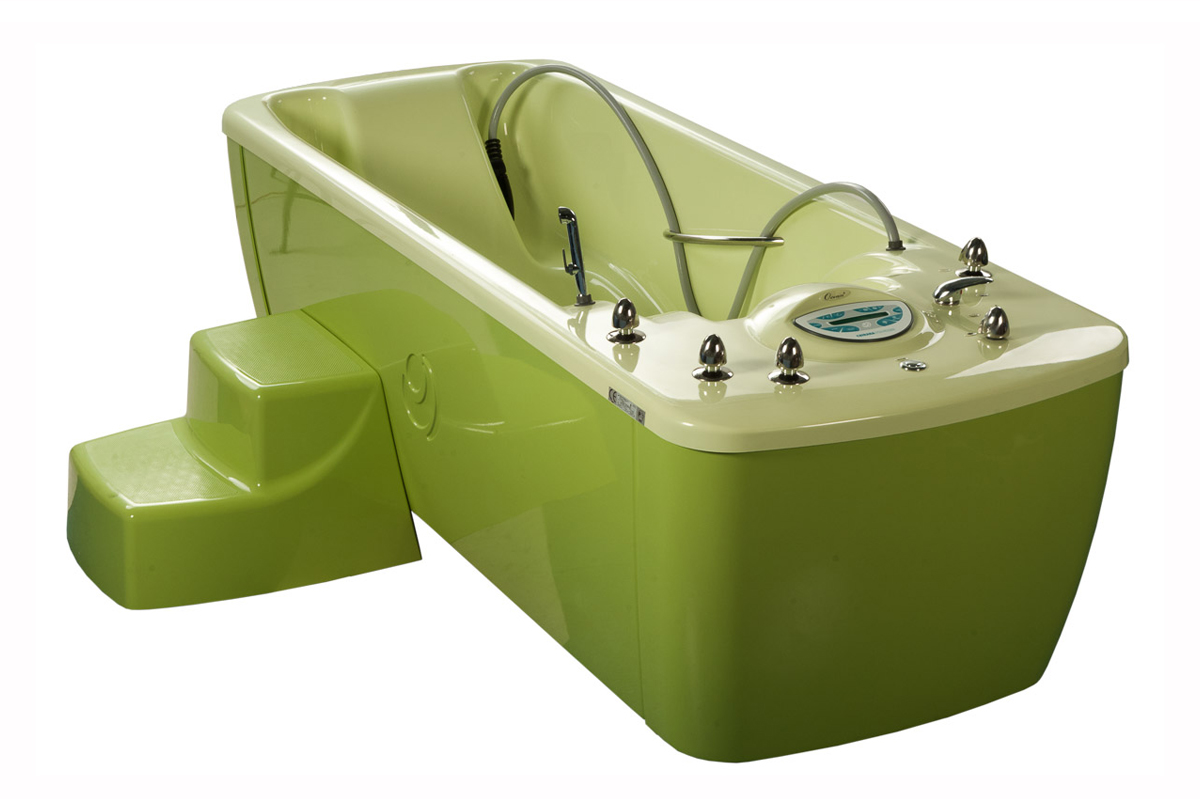

Step With Grab Rail

CH0002
Step with grab rail.
Ask for quotation

Bubble Grid

CH0005
The unit produces a gentle stimulating massage that is applied to the whole body through compressed air.
Ask for quotation

Electro-Magnetic Anti-Scaling System

CH0006
Electro-Magnetic Limescale-Removing system
Ask for quotation

Ocean 32 Chromotherapy

CH0009
code CH3100 and CH3200 only.
Ask for quotation

Ocean Water Recirculation System 1

CH0013
For Ocean, Forte and Standard tubs. Fill and drain with water recirculation system.
Ask for quotation

Grid Connector

CH0014
This unit enables the connection of the unit code CH0005 to the external compressor.
Ask for quotation
Technical Spec.

Technical Spec.

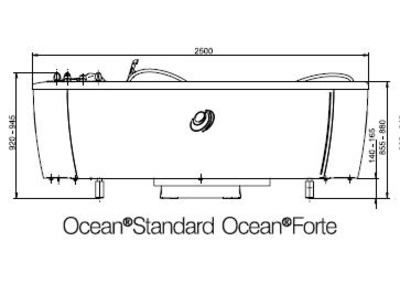

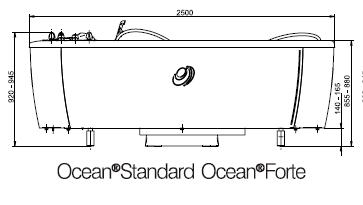

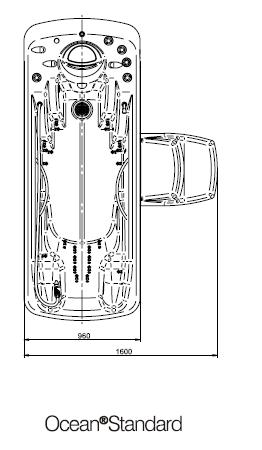

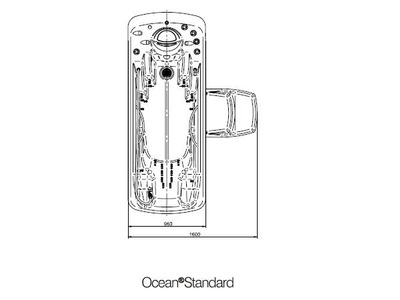

Dimensions:
250 x 96 x 92 h cm
Tub useful capacity:
280 l
Tub max. capacity:
450 l
Weight:
137 kg
Max. hot water temperature:
60°C
Pump pressure:
0-0,36 MPa
Max. pump water flow:
433 l/min
Filling time - usefull capacity:
3,5 min
Drainage time - usefull capacity:
3,1 min
Power supply:
3 x 400 V / 50(60) Hz
Power input:
2000 VA
Hot and cold water connections:
2x1"
Compressed air supply:
1 x 3/4"
Electric protection class:
I
Protection degree:
IP 54

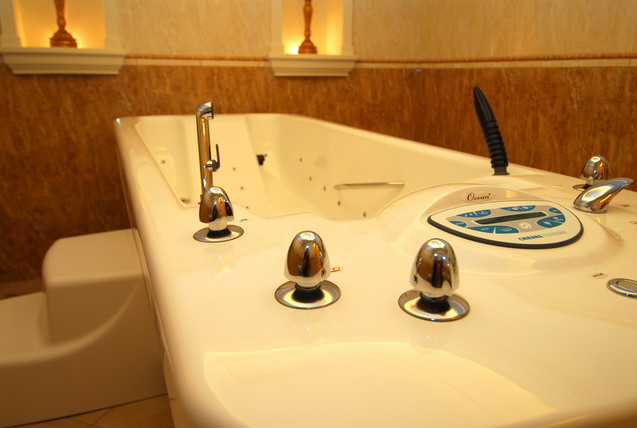

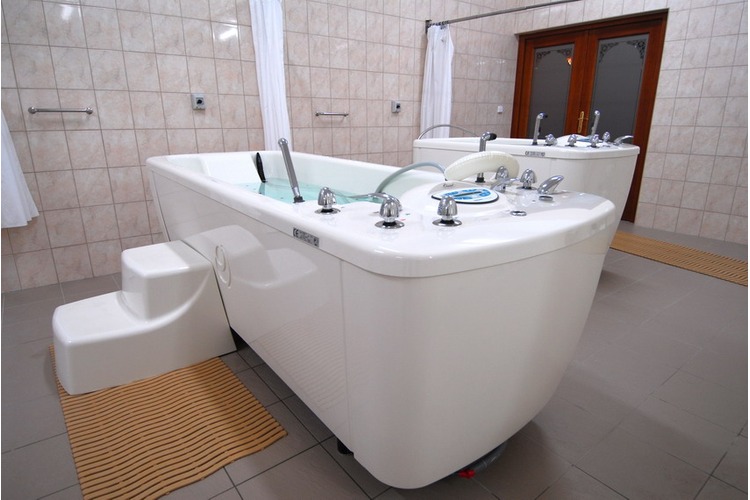

Gallery

Gallery

Documents

Documents


Declaration of conformity

Compliance statement
Document date: 19/03/2019
Language: Italian, English

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 225.8 KB
Register to access the content

User and Maintenance Manual

Manual
Document date: 17/12/2012
Language: English
DOWNLOAD
PDF 1.1 MB
Register to access the content

Brochure

Brochure
Document date: 08/09/2011
Language: English
DOWNLOAD
PDF 388.4 KB
