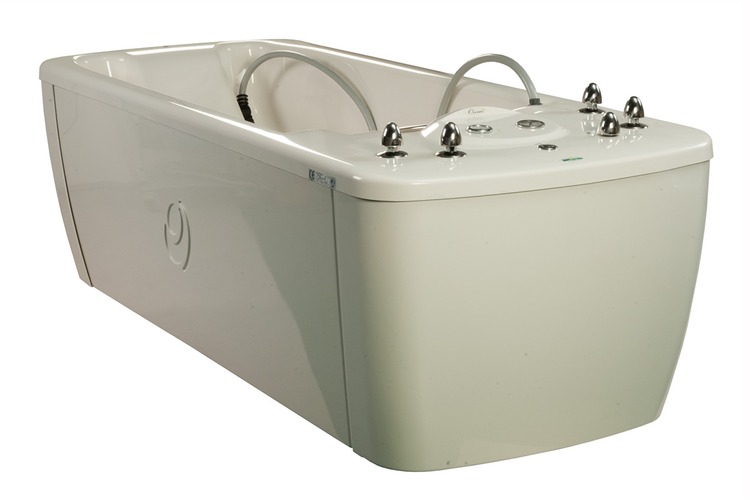

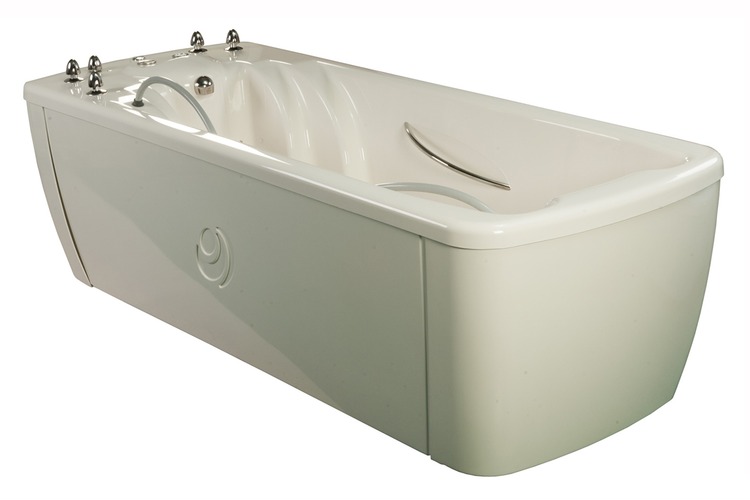

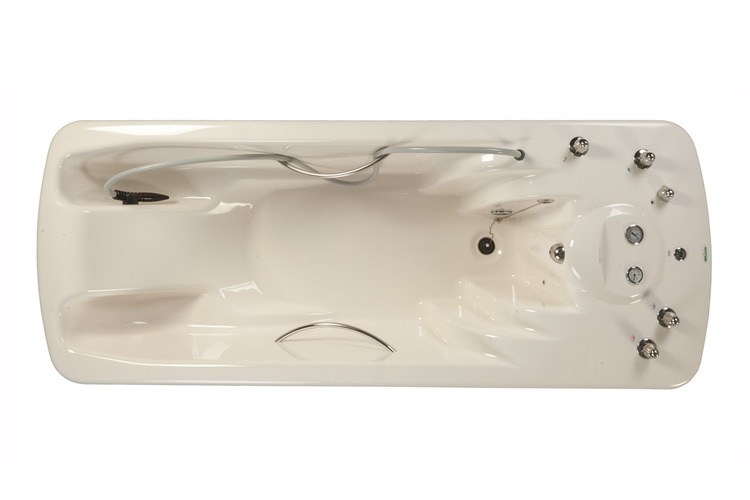

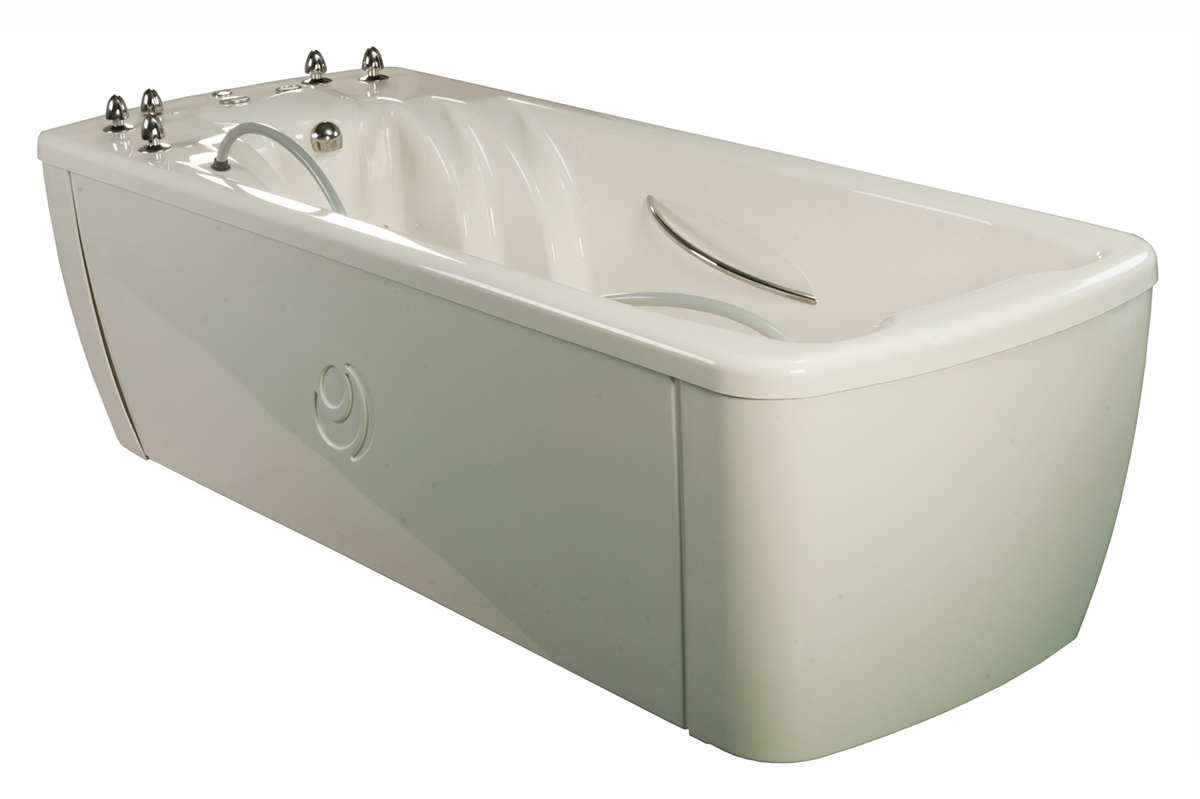

OCEAN ECONOMY BATH TUB

C
H
3
0
0
0
Discontinued

Description

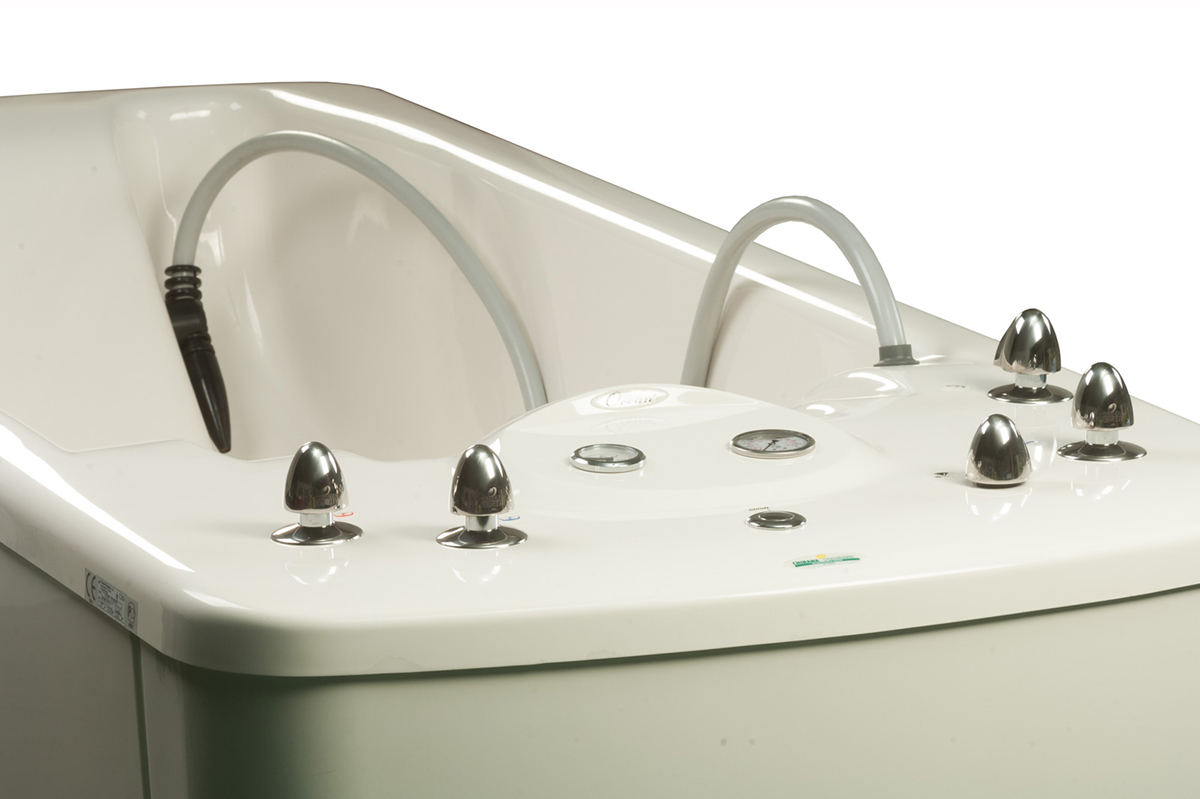

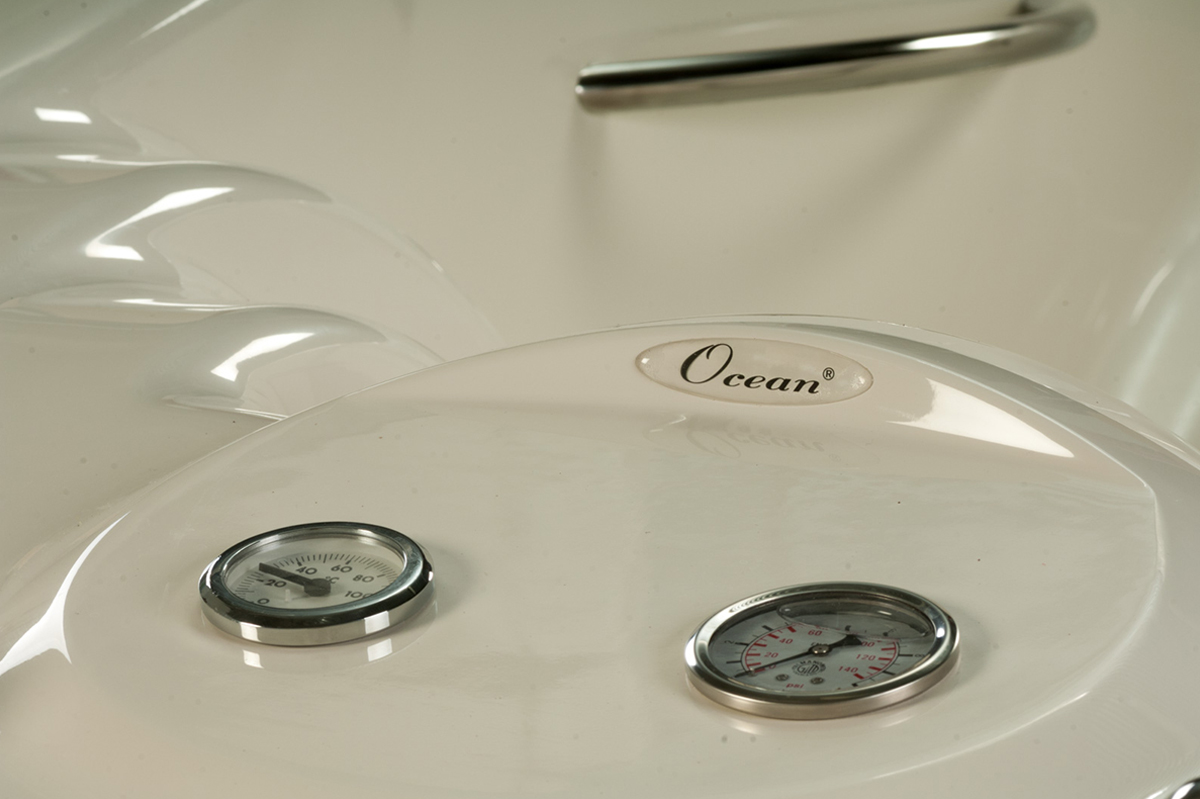

Tub with jet nozzle and support. Pressure and air mixture to the nozzle jet are constantly adjusted. Jet nozzle pressure constantly adjusted from 0 to 450 kPA. Analogue reading and display of filling water temperature. Analogue reading and display of the water pressure temperature. Sanitizing hand shower with stop valve for tub cleaning. Drain system for emptying the water from the massage circuit. Jet nozzles rinsing. Two-step stool.



OPTIONAL



  • Chromotherapy
  • Electro-magnetic anti-scaling system
  • Water recirculation
Technical Spec.

Technical Spec.

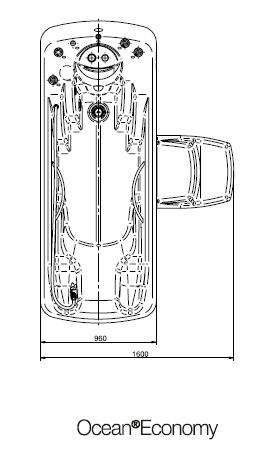

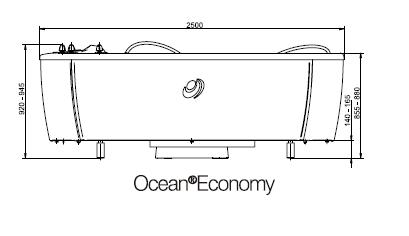

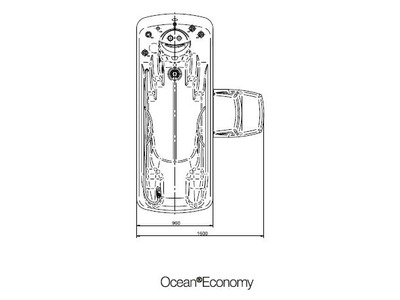

Dimensions:
250 x 96 x 92-94.5 h cm
Useful water capacity:
280 l
Max. water capacity:
450 l
Weight:
114 kg
Max. hot water temperature:
60°C
Pump pressure:
0-0,57 MPa
Max. pump water flow:
135 l/min
Filling time:
usefull capacity 3,5 min
Drainage time:
usefull capacity 3,1 min
Power supply:
3 x 400 V / 50(60) Hz
Power input:
1150 VA
Hot and cold water connections:
2x1"
Compressed air supply:
1 x 3/4"
Electric protection class:
I
Protection degree:
IP 54
Gallery

Gallery

Documents

Documents


Declaration of conformity

Compliance statement
Document date: 19/03/2019
Language: Italian, English
