ELECTRA CG BATH TUB

C
H
8
0
0
0
Quantity:

Description

This tub is used for electro-galvanic treatment on the whole body.

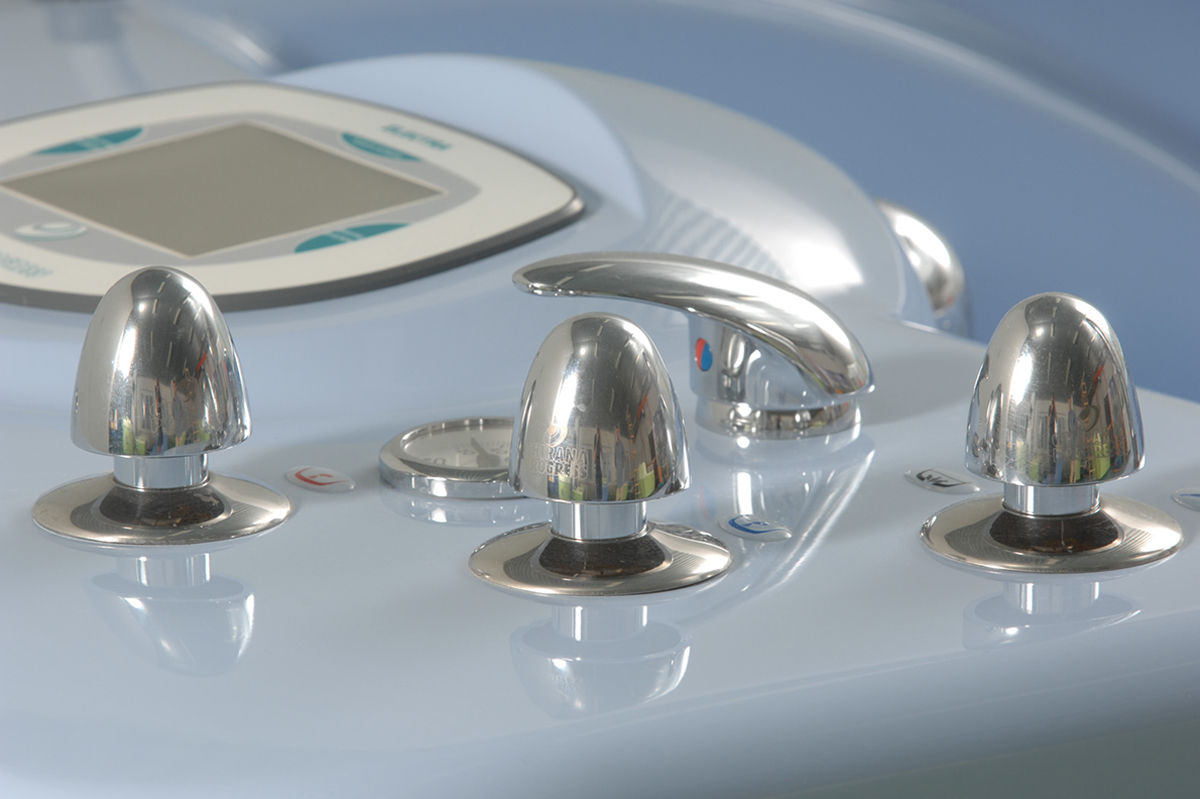

The electrodes are located on the person's sides, under his/her feet and behind his/her head. the currents that can be set are: galvanic, singl-phase, Double-phase, long term, short term. You can program and store the electrodes and currents sequence to be activated depending on the therapeutic needs. Easy control by means of a touch screen display.



Tub provided with hand shower for cleaning. Height adjustable legs. The bathtub is provided with a two-step stool.

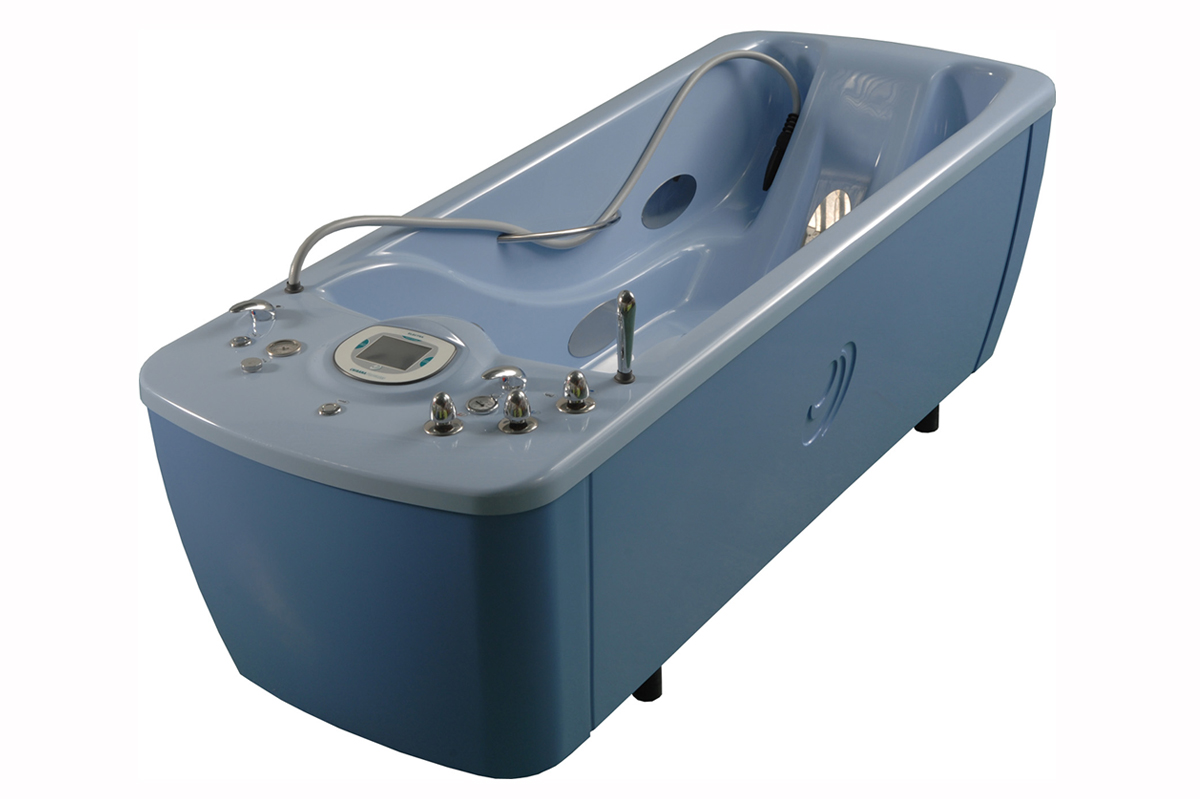

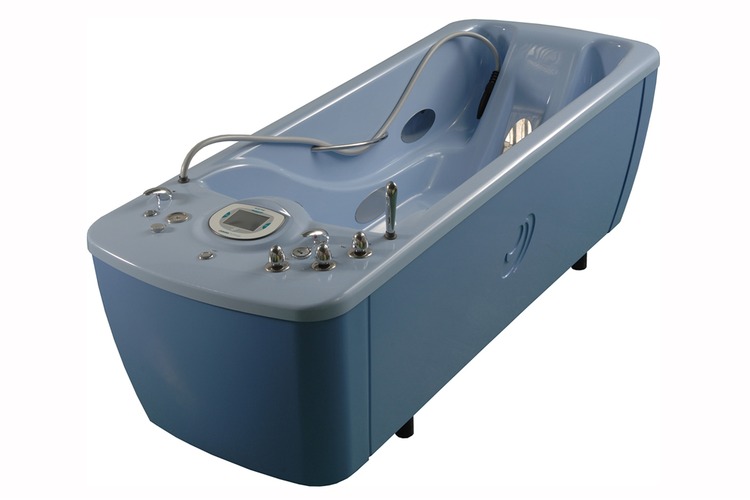

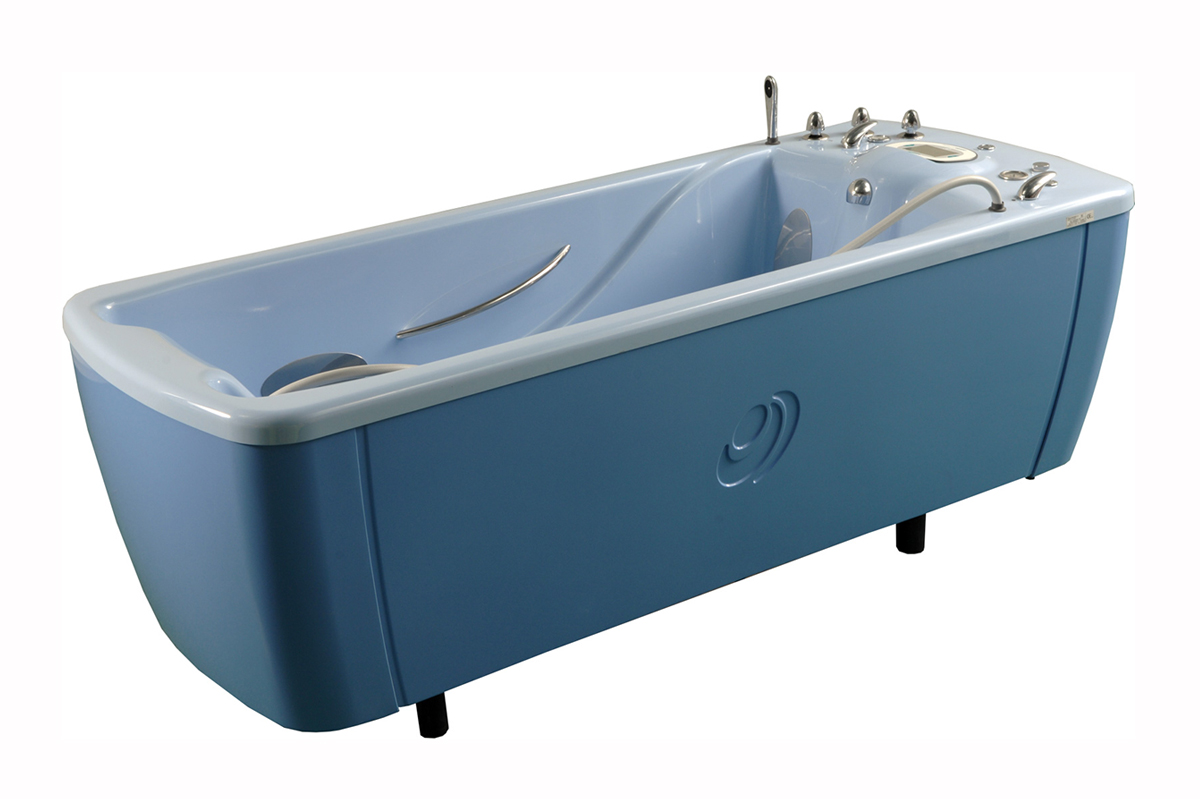

Picture represents the tub with accessory CH0015.



NOTICE: In case of order of CH0015:

  • Power supply: 3 x 400V - 50Hz
  • Power input: 1150 VA
  • Massage hose water pressure: 0.18-0.47 MPa
  • Max. pump water flow: 135 l/m
Accessories

Accessories

Jet Nozzle For Underwater Massage

CH0015
For electra CG. Continuous adjustment of pressure and air mix
Ask for quotation
Technical Spec.

Technical Spec.

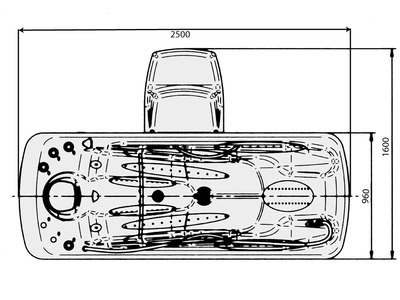

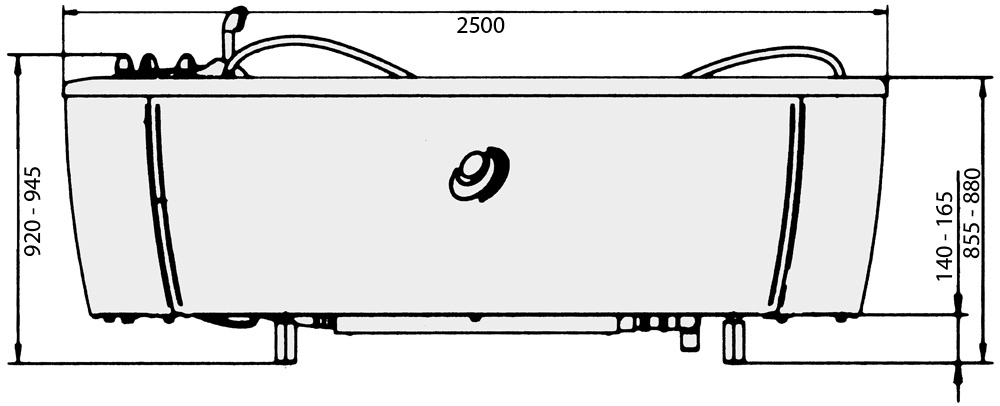

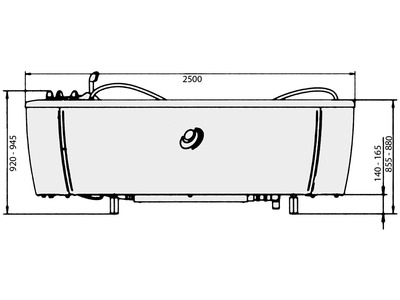

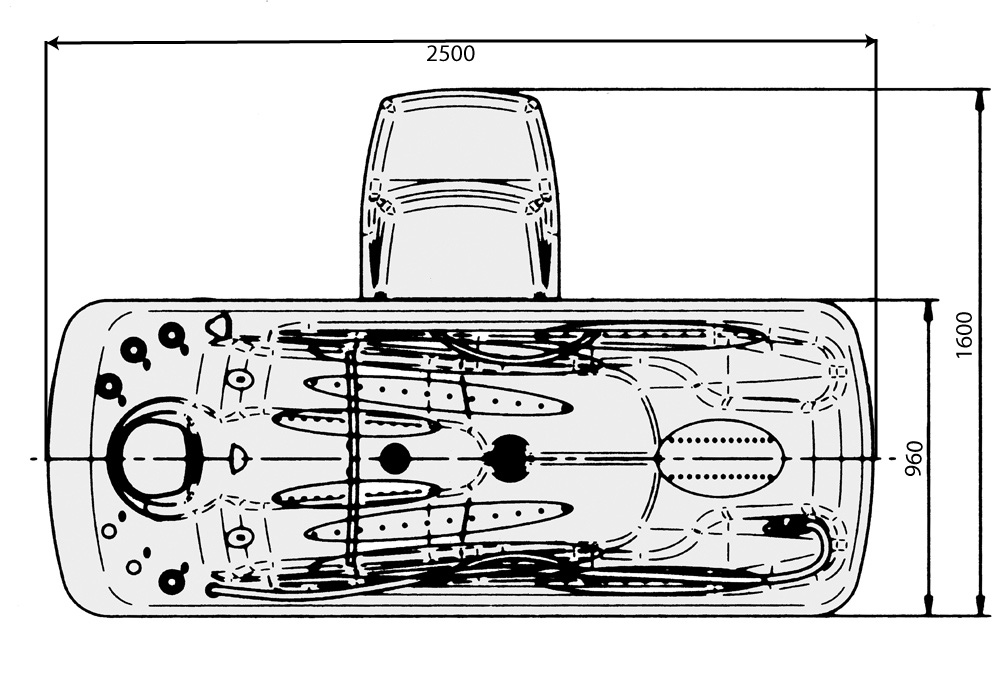

Dimensions:
250 x 96 x 92 / 94.5 h cm
Useful tub capacity:
320 l
Max. tub capacity:
450 l
Max. fill time - tub useful capacity:
3.7 min
Drain time - tub useful capacity:
2.7 min
Weight:
126 kg
Max. hot water temperature:
60°C
Power supply:
230 V - 50 Hz
Power input:
50 VA
Accurancy of current reading:
+/- 10%
Accurancy of time reading:
+/- 5"h
Current adjustment in the cells:
2 mA step
Max. speed of current change:
100 mA/s
Current range:
0-1200 mA
No. of electrodes:
9
Source polarity selection:
each electrode
Polarity indicator:
each electrode
Max. output voltage:
24 V
Partial rectification:
50 Hz mono-phase (MF)
Total rectification:
100 Hz dual-phase (DF)
1 sec MF + 1 sec DF:
CP
Electric protection class:
class I
Protection degree:
IP 54
Gallery

Gallery

Documents

Documents


Declaration of conformity

Compliance statement
Document date: 19/03/2019
Language: Italian, English

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 225.8 KB
Register to access the content

Brochure

Brochure
Document date: 08/09/2011
Language: English
DOWNLOAD
PDF 372.71 KB
