EUROTRAK

0
9
3
3
7
Quantity:

Description

EUROTRAK traction is an innovative touchscreen device made following the most sophisticated and actual technological solutions. Thanks to the large liquid crystal display (LCD) showing all functions and function keys this unit can be easily and friendly used. The EUROTRAK traction unit have a microprocessor control which allows them to have important peculiarities, such as flexibility and performance, not shared by the common traction appliances available on the market.

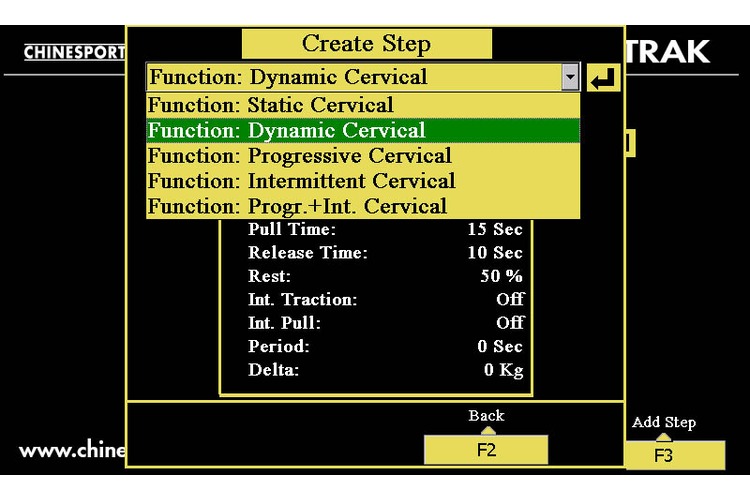

The display visualizes all the parameters set at a certain time and any parameter value may be modified extremely easily and quickly if required.  It has a 6’’ colour display with graphic interface that allows to keep under control the various stages of the treatment in real time, both during traction sessions and the pauses. Throughout their treatment, patients have access to an emergency stop button to stop traction if they wish to do so.

The unit can be used to carry out both lumbar and cervical traction; in that last case the top available force has been limited at 20kg and the switching cervical/lumbar is not allowed in casual way. Furthermore the unit can work in static, dynamic and intermittent dynamic modes. The operator has the possibility to enter customized memories with personalized codes, for instance alphanumeric codes i.e. the name of patient or disease. Each programming operation is made up of three different types of treatment which will be delivered in sequence.

Moreover, the operator can also use a large number of pre-set treatments, already largely used in many physical therapy centers.



The EUROTRAK traction unit is designed to be also used with specific therapy table made by other manufacturer. In this case the EUROTRAK traction unit needs and additional, purpose-built support frame. The technical information for the metal support plate is provided in the below technical data section.

We propose two therapy tables from our range to be combined with EUROTRAK tractions unit:

  1. the ALFATRAC model is at fixed height,
  2. the alternative BETATRAC model is featured by a frame height adjustment by means of hand control or hydraulic piston.



STANDARD ACCESSORIES

  • 2 Power cable (UK + EU)
  • 1 Emergency stop button
  • 1 Pack of screw
Accessories

Accessories

Alfatrac

09324
Traction table equipped with accessories for different traction therapies.
Ask for quotation

Electric Beta-Trac

XW001
Examination, treatment and traction table with four sections, electric height adjustment by foot pedal.
Ask for quotation
Technical Spec.

Technical Spec.

Power voltage / frequency:
110-240V, 50/60 Hz
Input power:
80 VA
Maximum output force:
90 kg (Lumbar), 20 kg (Cervical)
Minimum output force:
1 kg (Lumbar), 1 kg (Cervical)
Regulation delta:
0.1 kg
Rope length:
95 cm
LCD screen resolution:
640x480
Rope durability:
1000 hours at least
Protection class:
I-BF
Medical device class:
II A
Dimensions:
41 x 44 x 18 h cm
Weight:
15 kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
R1307599

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 66 x 61 x 34 h kg 17 mc 0.136884
Video

Video

Betatrac & Eurotrak - Unpacking and assembly
Betatrac - passive tractions table
Set of traction belts
Documents

Documents


Confirmation letter

Certificate issued by notified body TÜV
2024-05-28

Certificate
Document date: 28/05/2024
Language: English
Version: V 1.0
DOWNLOAD
PDF 489.01 KB

Lettera confirmatoria

Certificato rilasciato dall'organismo notificato TÜV
2024-05-28

Certificate
Document date: 28/05/2024
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 496.06 KB

User and maintenance manual

Manual
Document date: 21/01/2022
Language: Italian, English
Version: V 2.1

ARCHIVE DOCUMENTS
DOWNLOAD
PDF 2.22 MB
Register to access the content

Manual de uso y mantenimiento

Manual
Document date: 21/01/2022
Language: Spanish
Version: V 1.1
DOWNLOAD
PDF 2.46 MB
Register to access the content

Vertebral tractions

Introduction - The effects of spinal traction - Types of spinal traction - Continuous traction - Intermitent mechanical traction - Manual traction - Positional traction - Active Lumbar traction - Indications and contraindications - Herniated disc with protrusion - McKenzie’s extension basics - Degenerative discopathy - Articular hypomobility (Articular dysfunction) - Contraindications for spinal traction - Lumbar traction techniques - Introduction - Traction weights and body friction - A table with mobile sections - The patient must be in relax - Traction belts - Patient’s positions - Type of traction - Prone position - Protective scoliosis - Cervical traction techniques - Introduction - Traction angles - Chin strap - Traction weights - Patient in relax - Treatment duration - Temporomandibular joint - Manual cervical traction - Unilateral cervical traction - Conclusions

Brochure, Ed. July 2021, English. 56 pages.

Therapy manual
Document date: 16/07/2021
Language: Italian, English
Version: V 1.1
DOWNLOAD
PDF 2.27 MB
Register to access the content

Ce certificate

Certificate
Document date: 24/05/2021
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 1.64 MB

Declaration of conformity

Compliance statement
Document date: 15/03/2021
Language: Italian, English
Version: V 2.0
DOWNLOAD
PDF 86.61 KB
Register to access the content
