You are here: Home > Electromedical Devices > Magnetotherapy > Antidolor Pro 4s
See similar products
Request information

ANTIDOLOR PRO 4S

0
2
3
4
9
Quantity:

Description

A medical device designed to apply variable therapeutic magnetic fields. By leveraging the biological effects of magnetotherapy on the body, this device is widely used in specialized fields such as traumatology and rheumatology, proving effective in treating numerous musculoskeletal conditions. It actively stimulates cellular regeneration and is indicated for chronic pain, inflammatory disorders, and post-traumatic recovery, offering ant inflammatory, vascularizing, calcifying, and muscle-relaxing benefits.

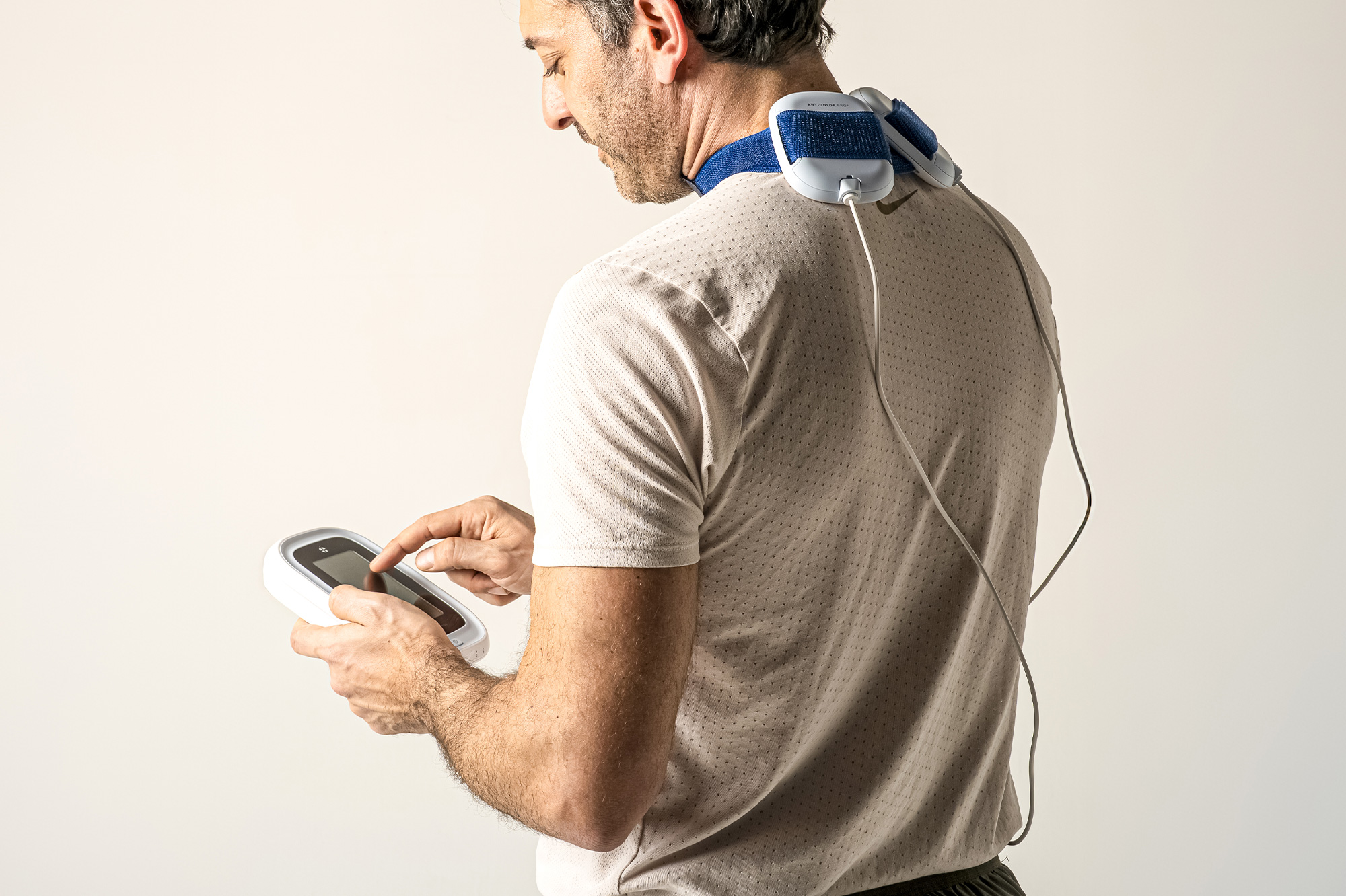

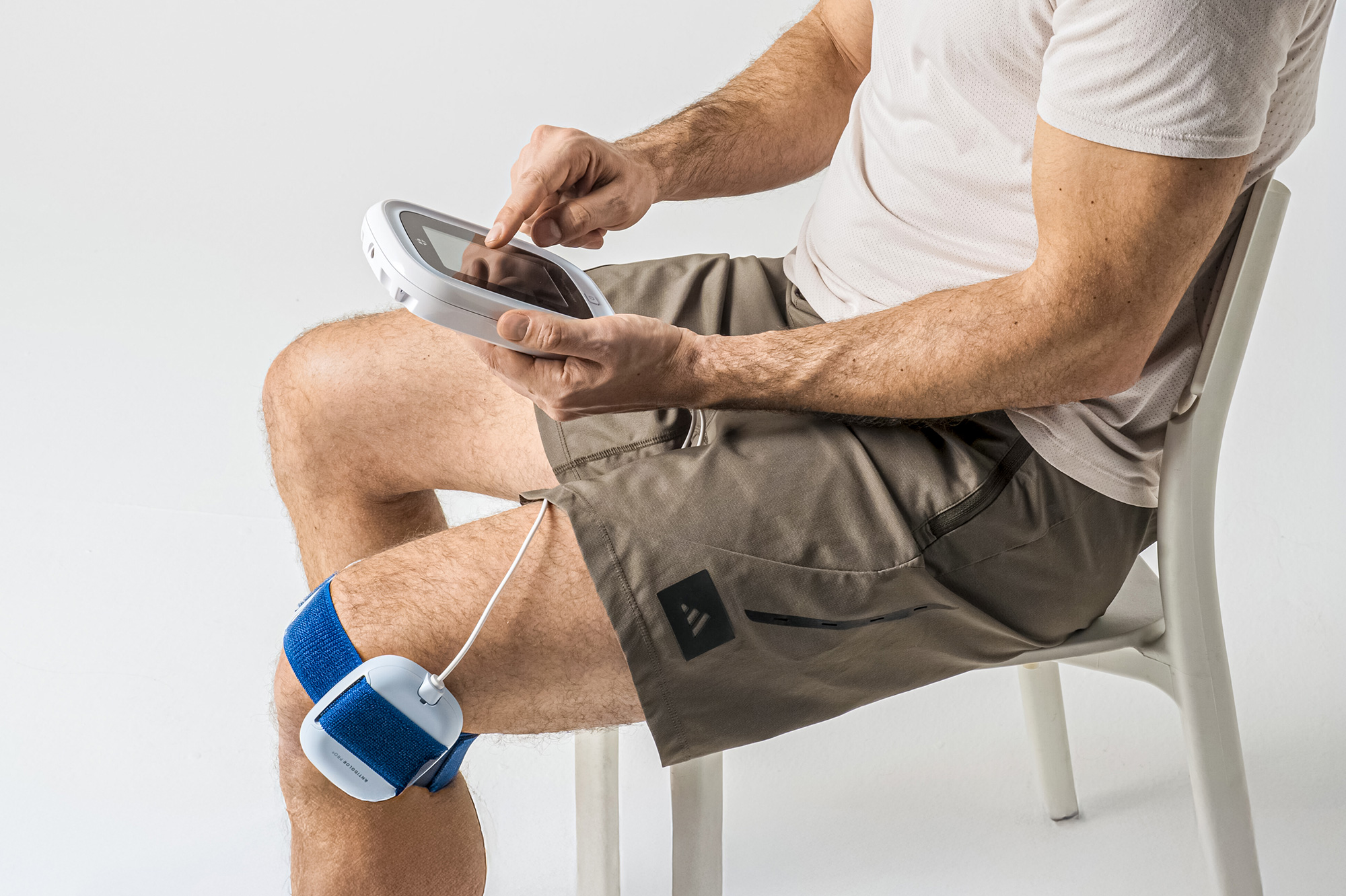

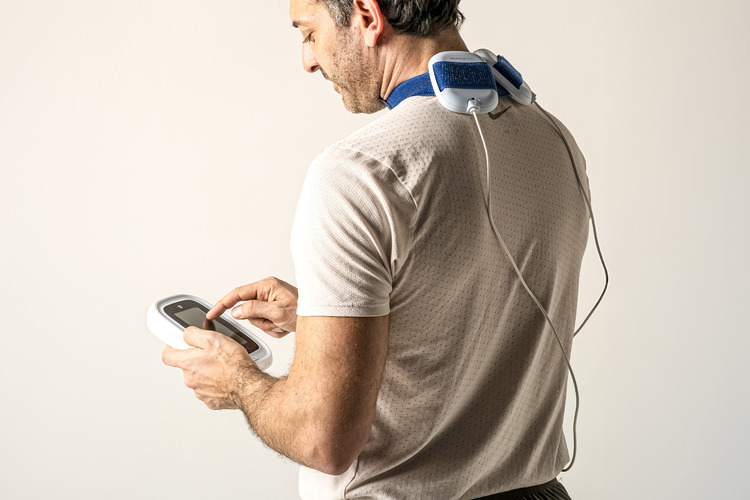

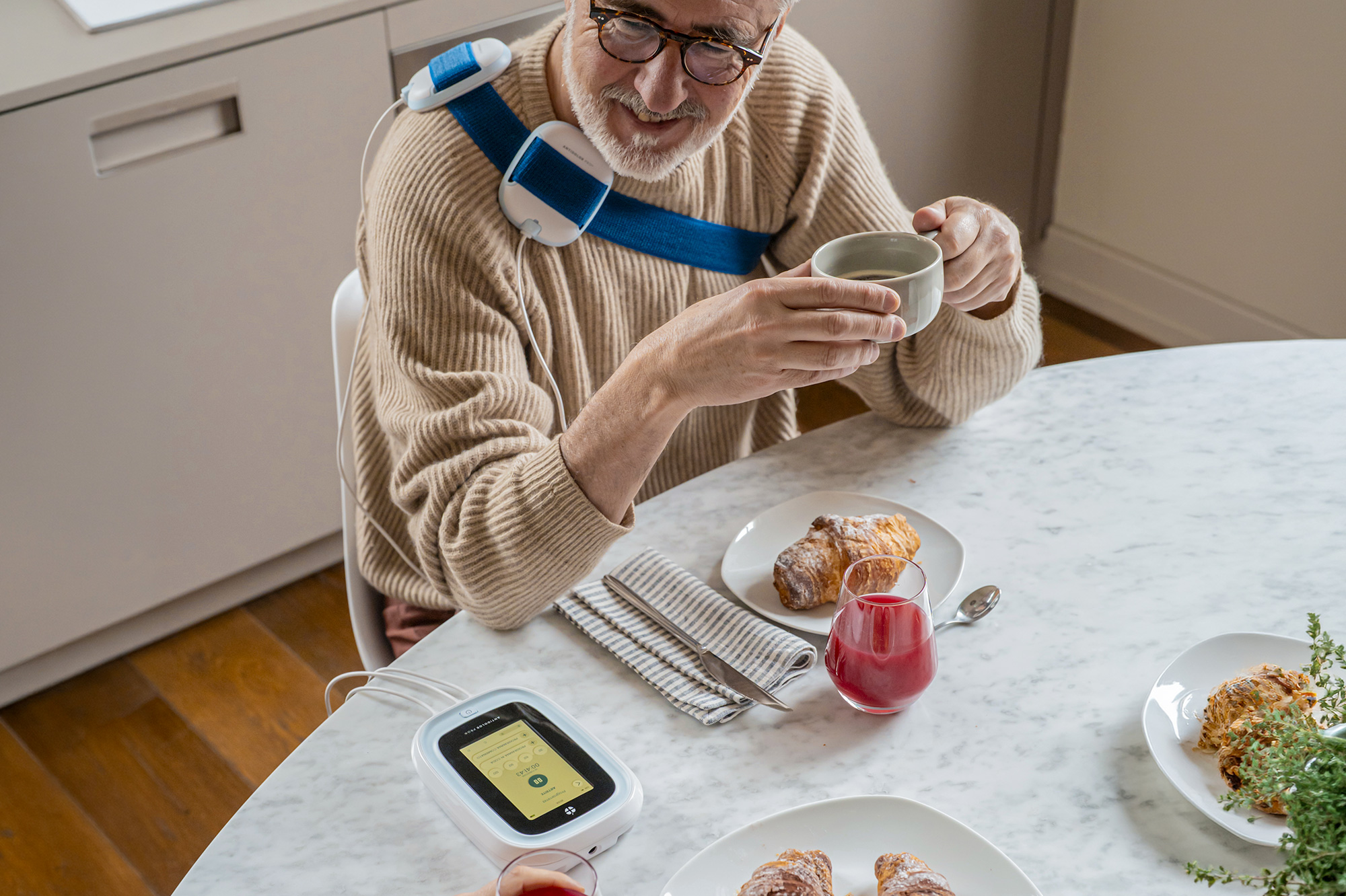

Thanks to its compact size and long-lasting battery, Antidolor Pro can be used anywhere even over clothing and during normal daily activities.

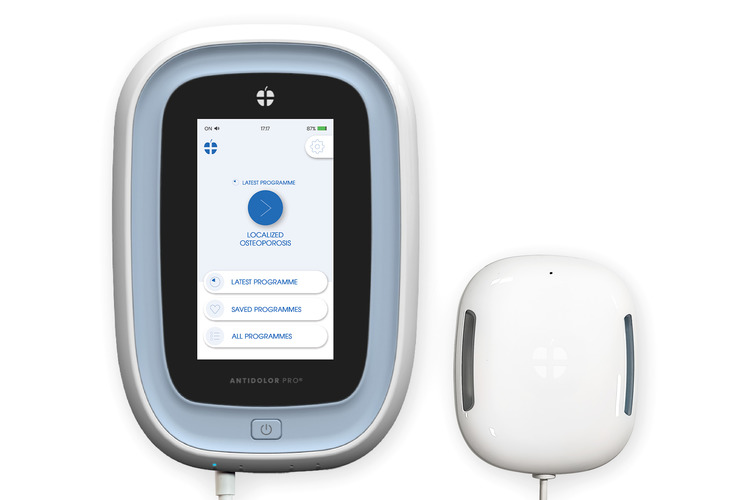

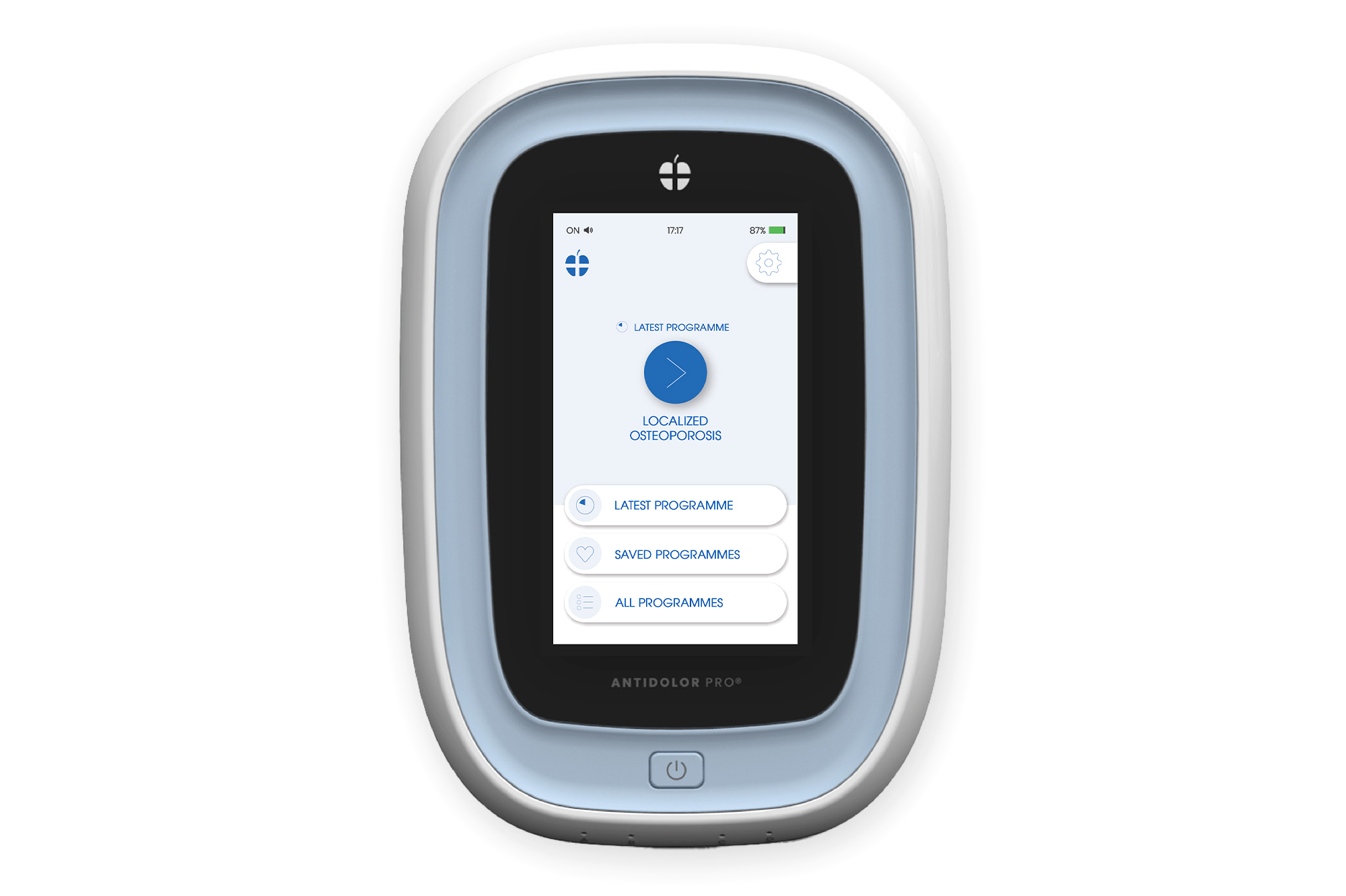

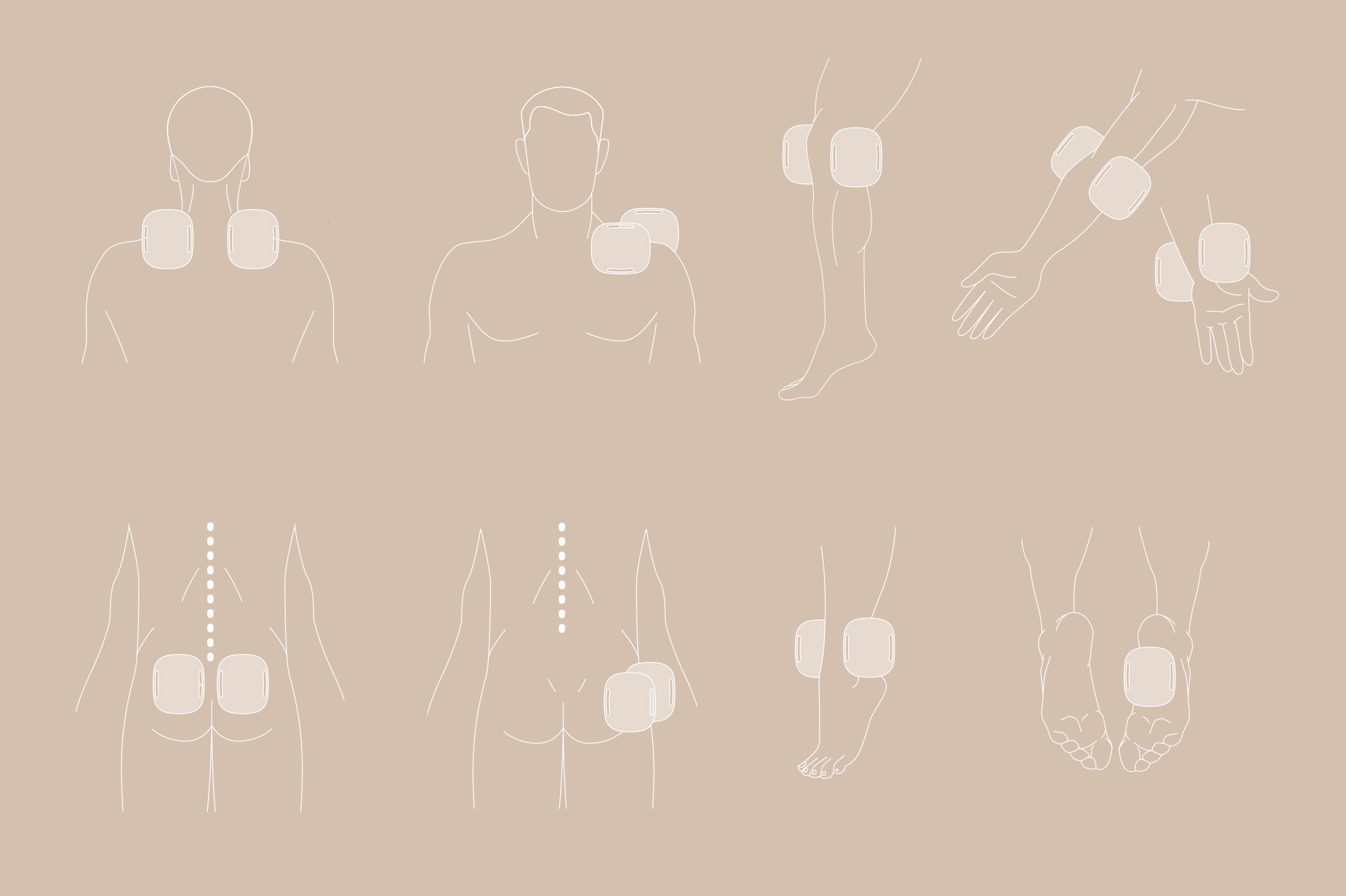

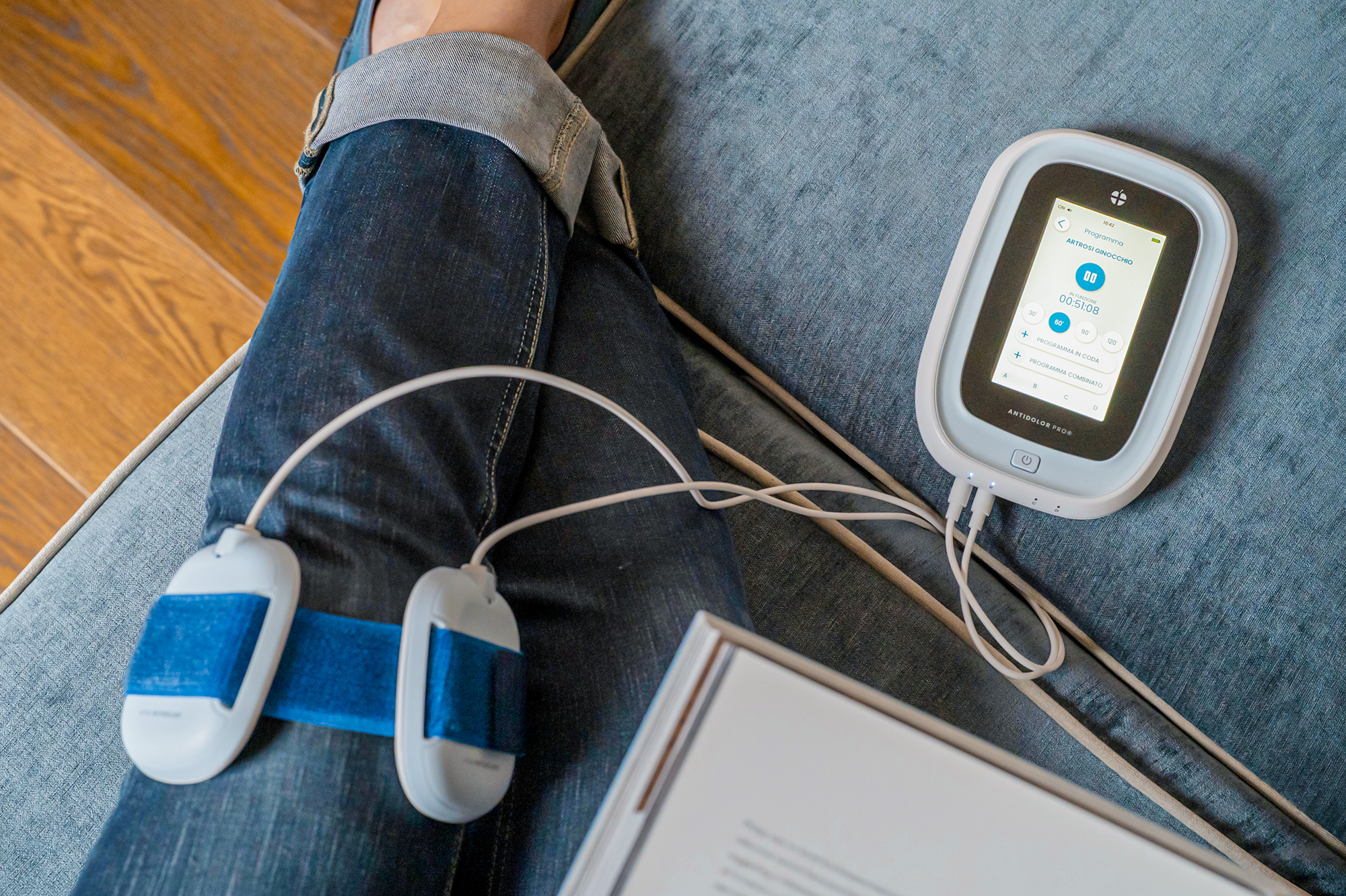

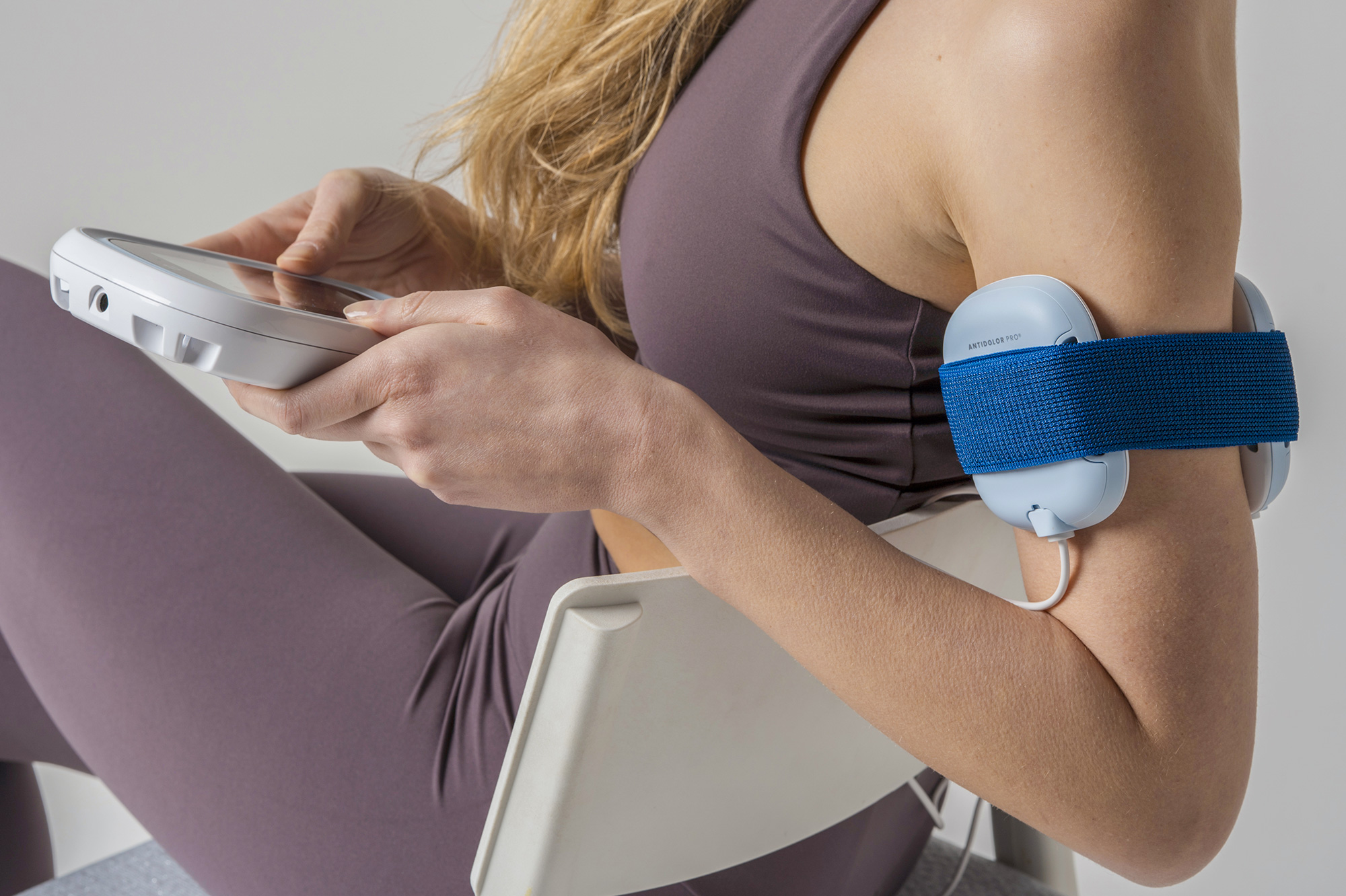

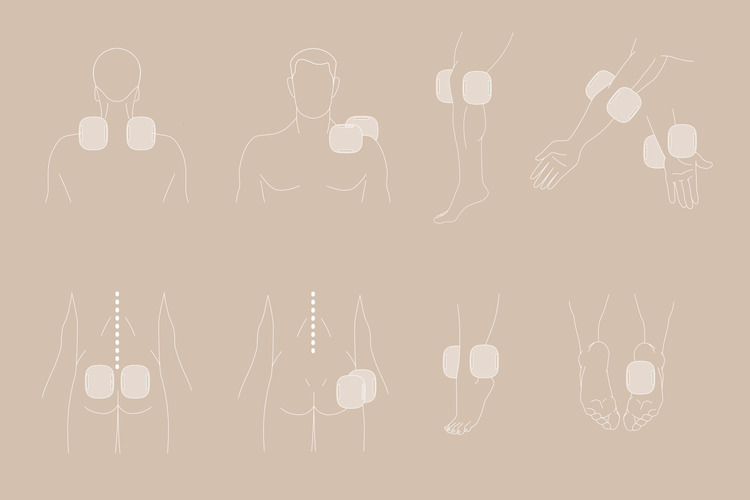

Operation is simple and intuitive; a modern touchscreen allows users to quickly set the treatment mode by selecting the therapeutic program best suited to the specific condition. The programs do not rely on fixed parameters but vary according to the pathology being treated. Antidolor Pro includes over 40 specific programs, all categorized by anatomical area to simplify selection. The device features two states, ergonomically designed solenoids for optimal therapeutic efficacy; using the included elastic strap, they can be easily positioned on any part of the body or used in conjunction with various accessories.

SUPPLIED

  • 1 magnetotherapy unit
  • 1 power adapter
  • 4 diffusers
  • 4 elastic bands
  • 1 permanent magnet
  • 1 instruction manual
  • 1 carrying case
Technical Spec.

Technical Spec.

Compatible adapter:
Mod. TR30RAM150 / CINCON or GEM30I15 / MEAN WELL
Power supply voltage:
100–240 Vac; 50/60 Hz; medical adapter
Power consumption:
0.4÷0.8 A
Output voltage:
15 Vdc 2.0 A
Rechargeable battery Li-Pol type:
11.1 Vdc 1850 mAh
Charging time:
approximately 2.5 hours
Emitters control frequency (low frequency):
from 5 to 130 Hz ±20%
High-frequency scanning:
from 100 to 5000 Hz ±20%
Radiated frequency:
13,560 MHz + harmonics
Maximum magnetic intensity (peak value):
250 [Gauss] ±20% for channel
Electrical insulation class EN 60601-1:
II / BF
Dust and liquid protection rating:
IP22
Operating environmental conditions:
temperature: +5 °C to +40 °C; Relative humidity: 15% – 93%; Pressure: 700 – 1060 hPa
Transport and storage conditions:
temperature: −25 °C to +70 °C; Relative humidity: < 93%; Pressure: 700 – 1060 hPa
Time required for the device to be ready for use, from minimum declared temperature:
30 minutes
Time required for the device to be ready for use, from maximum declared temperature:
30 minutes
Dimensions (device):
18.3 x 12.6 x 3.1 cm
Weight (device):
0.5 kg
Dimensions (diffuser):
9.6 x 8.1 x 2.3 cm
Weight (diffuser):
0.26 kg
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

User manual

Manual - past Edition
Document date: 02/02/2026
Language: English
Version: V 1.0
DOWNLOAD
PDF 4.15 MB
