REHARUNNER 02 PC

X
R
U
0
4
9
Quantity:

Description

Treadmill for rehabilitation featured by walking deck of 154.5 x 54 cm and maximum workout speed of 25.0 km/h. This treadmill is suitable for patient with maximum body weight of 220 kg. Dimensions: 210 x 80 x 150 h cm; Weight: 180 kg.



KEY FEATURES

  • Console touchscreen 10”
  • Possible tests
  • Basic and free profiles
  • Reverse walking
  • Positive inclination
  • Graphics while working out
  • All parameters displayed
  • Shock absorbing table
  • Serial interface with Trackmaster protocol
  • Transport wheels
  • Handrails covered by rubber for better grip
  • Anti-fall system (accessory)
  • Access ramp (accessory)

 SUPPLIED WITH
  • RS232 output



POSSIBLE TESTS

There are tests for the patient already pre-set, and they are especially practicle for measuring different stress tests in accordance with the objective to be reached. For example the COOPER test allows to carry out an exercise to assess the maximum distance covered in 12 minutes. Furthermore, it is possible to set the test conditions manually by the carer. The additional test conditions are 8, and the procedure is the same as for registering a free profile.

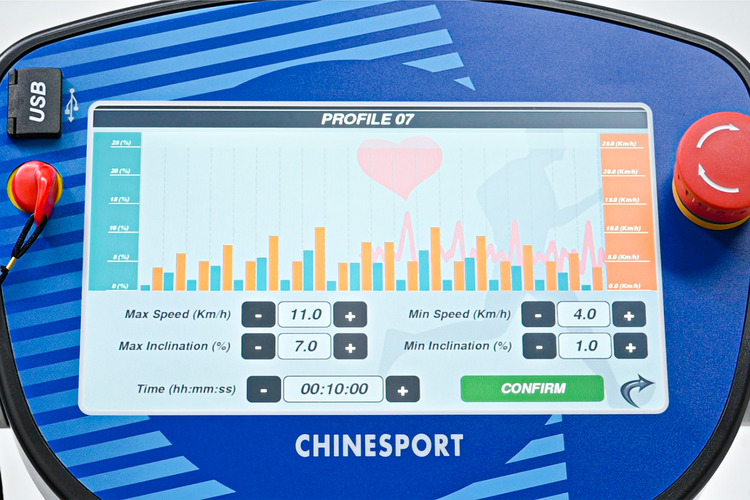

BASIC AND FREE PROFILES

There are 10 basic profiles available directly from the main menu. Furthermore, it is possible to set and memorize some exercises in a customized manual mode for a group or for single patients, since there are 100 free profiles. The saved profiled can be called out by using the arrows forward and backward and by choosing it on the touch-screen display.

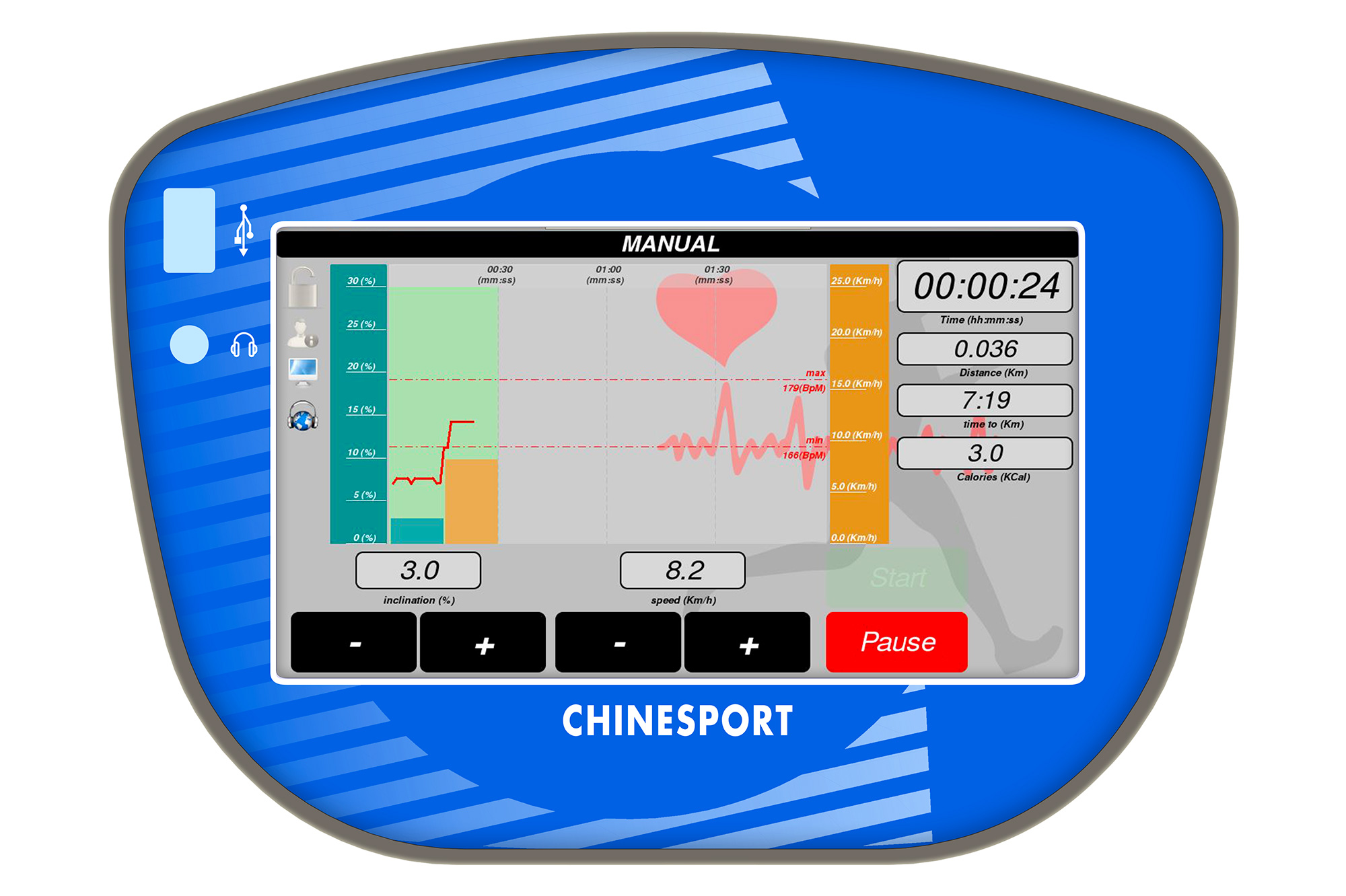

ALL PARAMETERS DISPLAYED

All parameters are displayed while carrying out an exercise with the aid of a graphic representation which shows specifically speed and tilt with green and orange columns. The software is multilingual and the measure unit for the distance covered can be set either in miles or in kilometers. Remote control from a pc or ECG is done via an RS232 cable included. All treadmills of the Reharunner series can be connected via RS232 port to the main ECG systems on PCs and electrocardiographs.







REVERSE WALKING

The most modern generation of treadmills include the two-way direction of the movement. Which means that is possible to go forward or backwards by pressing, when standing still, the button “forward” or “reverse”. The maximum backward speed has been limited at 5 km/h, and it can be set to be lower. Reverse walking can be disabled.



INCLINATION

It is possible to increase or decrease the inclination in a ±1% or ±0,5% range. Maximum tilt in positive is +25%.

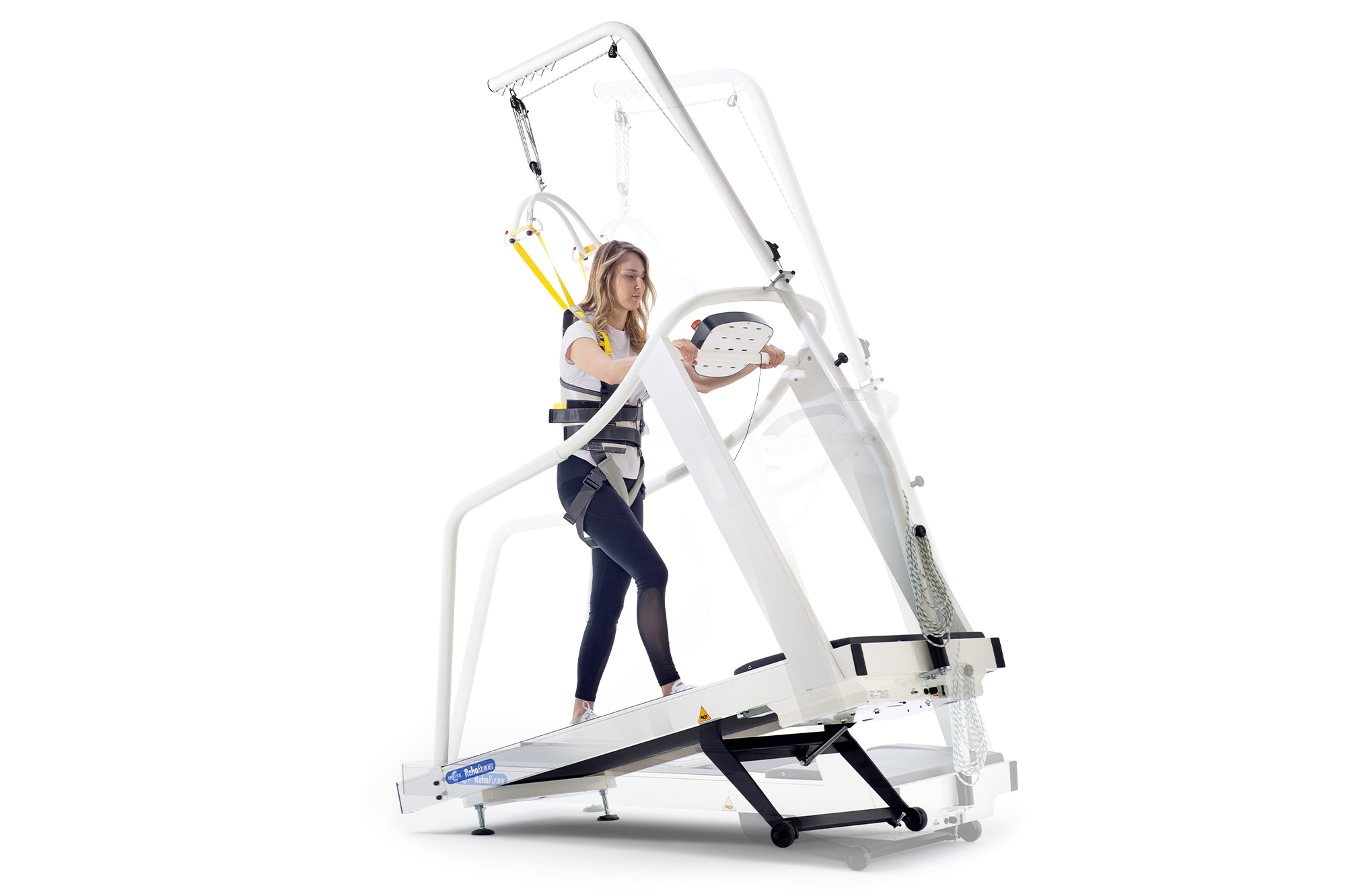

ANTI-FALL SYSTEM

You can configure the Reharunner treadmills with long fixed and then also add an anti-fall system. It’s possible to complete the anti-fall system with a walking harness available in three different sizes. This product configuration has to be specified at the order time along with other possible accessories of interest. All treadmills of the Reharunner series can be connected via RS232 port to the main ECGsystems on PCs and electrocardiographs.





HEART RATE CONTROL

All treadmills of the Runner series can be connected to an electrocardiograph / cardio spirometer via the RS232 port. When ordering, it is therefore important to inform about the manufacturer and of the model that you intend to connect to the treadmill or ergometer. The correct communication protocol must be set in the factory, and in particular the speed unit of measurement and the serial delay in milliseconds, which vary according to the software used by each device.

Note: The manufacturer models tested so far are Cardioline, Edan, Philips, Mortara, Customed, BTL, Labtech, Cosmed, Medical Econet, Fukuda, Schiller, Cardiolex, Amedtec, Norav, Neurosoft.

Accessories

Accessories

Fixed Handrails

XRU017
Long handrails for treadmills XRU049 and XRU050. These handrails also enable to apply a specific anti-fall system.
Ask for quotation

Large Underarm Supports

XRU018
Height adjustable, accessory code XRU017 or XRU029 is required. Comfortable and padded to provide strength to arms and shoulders.
Ask for quotation

Ramp 2

XRU030
For treadmill code XRU049. A safe measure to prevent the risk of patients from falling.The treadmill ramp has a length of 120cm and a maximum user weight of ...
Ask for quotation

Anti-Fall Support Reha 02

XRU020
This anti-fall support needs XRU017. It can be fitted on treadmills XRU049 or XRU050 only. Spreader bar included. Max user’s weight 150 kg
Ask for quotation

Anti-Fall System - Reha 02-2

XRU064
This anti-fall support needs XRU060. It can be fitted on treadmill XRU049 only. Spreader bar included. Max user’s weight 150 kg
Ask for quotation

Walking Harness - Small

01621
The rehab walking harness is designed for security and comfort in standing and walking during rehabilitation. Size: SMALL
Ask for quotation

Walking Harness - Medium

01622
The rehab walking harness is designed for security and comfort in standing and walking during rehabilitation. Size: MEDIUM
Ask for quotation

Walking Harness - Large

01623
The rehab walking harness is designed for security and comfort in standing and walking during rehabilitation. Size: LARGE
Ask for quotation

Adjustable Handrails - Reha 02

XRU060
The adjustable handrails for treadmill XRU049 only and has a height between 68cm and 118cm, a width of 98cm and a maximimum user weight of 150kg
Ask for quotation

Frontal Handrail - Reha 02

XRU062
Frontal handrails for XRU060 only. The frontal handrail can stabilize patient while undergoing rehabilitation gait training.
Ask for quotation

Pulse Monitoring Set

XRU065
Heart rate monitoring directly on display. Consisting of Polar BLE H10 chest strap and USB/BLE wireless antenna.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
210 x 80 x 150 h cm
Walking deck:
154.5 x 54 cm
Console:
Touchscreen 10”
Weight:
180 kg
Max user weight:
220 kg (150 kg with accessories)
Min/max workout speed:
0.1 ÷ 25.0 km/h
Max reverse motion speed:
0.1 ÷ 5 km/h
Speed increments:
0.1 km/h
Incline:
0% ÷ 25%
Emergency stop:
Button and pull-wire
Incline and speed change:
Electronic
Self-centering belt alignment system:
Yes
Self-lubricating belt system:
Yes
Isolation transformer:
1700 VA
Power motor:
3 HP
Inverter drive:
Yes
Power supply:
220/240 V - 50-60 Hz - 12 Amp
Incline auxiliary circuit supply:
18 V ac low voltage
Console auxiliary circuit supply:
12 V dc low voltage
Input power with motor running at max:
2500 VA
Rated input power:
2000 VA
Sound power:
< 30 dB
Audible tones:
When pressing keys
Shock absorbing table:
Yes
Serial interface with Trackmaster protocol:
Yes
Transport wheels:
Yes
Handrails:
rubber coated
Output:
RS232
Classification (Annex IX, MDD 93/42):
Class IIa
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 220 x 75 x 178 h kg 200 mc 2.937
