TILT TABLE 2E T

Configurable Product
L
T
2
E
1
9
{{ opzione.codice_configurazione ? opzione.codice_configurazione : ' ' }}
Quantity:

Description

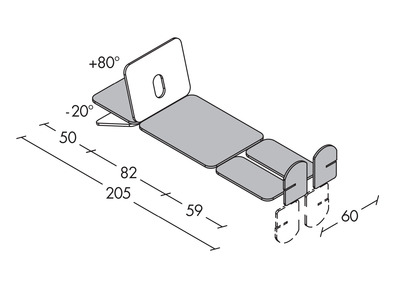

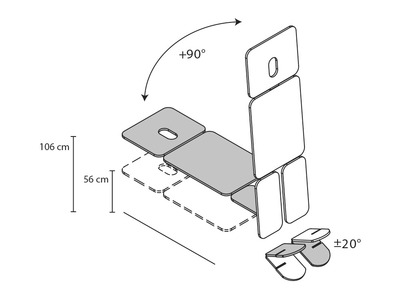

Four-section tilt table for supine position static exercises, examination and physical therapy for up to 180 kg. Can be adjusted in height and tilt up to 90°, with wall power supply, 24V low voltage, and operated by hand control. It is fitted with a tilt angle indicator which can be applied freely by the caregiver in the prefereable position. Height from ground is 56 cm. Head end section can be adjusted in positive (+80°) and in negative (-20°) by gas spring system with ergonomic lever, and it’s provided with padded plug for the nose-mouth breathing hole in the standard supply. The table does not come with any containment band, which must be chosen from among the accessories available. A central guide between the two lower limbs support sections allows for the restraining strap to be better fitted and secured. Transport is made easier by the wide diameter, braked casters, one of them being directional. Footplates can be independently adjusted by +/- 20°. A specific safety procedure is fitted to allow for the table to be lowered manually in case of power interruption.

Configurator

Configurator

{{ conf[0].descrizione_tipo }}

{{ conf[0].descrizione_breve_tipo }}
{{ opzione.codice_configurazione }}
{{ opzione.descrizione_configurazione|lowercase }}
€ {{ opzione.prezzo.prezzo|currency:"" }} No VAT
{{ opzione.codice_configurazione }}
{{ opzione.desc_breve|limitTo: 200 }}{{ opzione.desc_breve.length > 200 ? '...' : ''}}
Accessories

Accessories

Goniometer

AC1134
Goniometer with graduated scale +/- 90 degrees supplied with magnets for quick application to the tilt table's structure.
Ask for quotation

Fastening Strap

AC0005
Provides better restraint for the patient; can be fitted at the desired height by means of special guides (single piece).
Ask for quotation

Strap Cushion

AC0006
Padded cushion offering greater and more comfortable support to the patient. To be used in combination with strap code AC0005 (single piece).
Ask for quotation

Padded Trunk Strap

AC0560
A strap with a padded support for comfortable, safe, retention of the person. It is recommended for fitting at the trunk or pelvis.
Ask for quotation

Separate Leg Straps

AC0561
A strap with a padded support for positioning and stabilising an individual lower limb.
Ask for quotation

Padded Leg Strap

AC0088
A broad strap with a padded support for containing both lower limbs. It has a double fixing on the side and a system that facilitates fitting by the operator.
Ask for quotation

Shaped Strap 60

AC0913
It can be used for restraint of the torso/pelvis or for the legs. It’s specific only for option 60 cm width of the tilt table. (single piece)
Ask for quotation

Cervical Cushion

AC0087
A padded, shaped cushion for lateral containment and stabilisation of the neck. 24 colours available.
Ask for quotation

Shaped Supports

AC0003
Side supports made from soft material, adjustable in height, width and depth. (2 pieces)
Ask for quotation

Hand Grips

AC0004
Side handles to allow the patient to grip and support themselves while exercising in a static supine position. They can be adjusted in height and depth. (2 p...
Ask for quotation

Forearms Supports

AC0090
Forearm supports with hand grips for a comfortable hold.
Ask for quotation

Padded Supports

AC0517
Shaped side supports that offer a larger contact surface with the patient. Can be adjusted in height, width, and depth.
Ask for quotation

Supine Static Table

AC0081

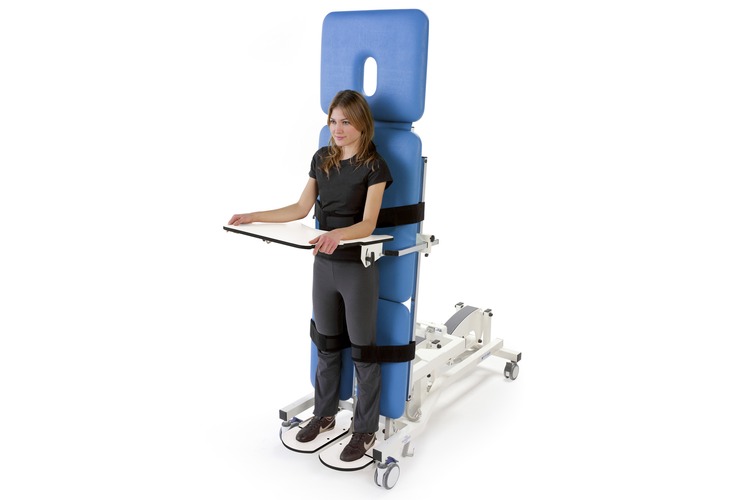

This work table can be used with one-, three- or four-section tables when the patient is using the table as a supine stander.
Ask for quotation

Intra-Extra Sandals

AC0002
Allow the foot to be adjusted for intra/extra rotation, anteroposterior, adduction and abduction and along the anteroposterior axis.
Ask for quotation

Wedge For Club Feet

AC0096
The foot rests can be adapted to provide a greater incline of the footrest that can go to -30° for extension and +10° for flexion, where required for patie...
Ask for quotation

Pulsantiera 2 Motori Aggiuntiva Tilt

AC0742
For models fitted with two motors, electric version. Ergonomic handset with magnets, attachable to metal parts of the frame of the table. It comes with power...
Ask for quotation

Safety Device

AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Ask for quotation
Technical Spec.

Technical Spec.

Number of sections:
4
Maximum safe working load:
180 kg
Tilt adjustment:
electrical
Height adjustment:
56 ÷ 106 cm
Power supply:
mains 220 V 50 / 60 Hz / 24 V 70 VA
Safety descent system:
by operators
Tilt indicator in degrees:
standard
Maximum user height:
200 cm
Caster diameter:
12,5 cm
Individual brake system:
on each wheel
Steering wheel:
standard
Padding upholstery safety class:
1 IM
Padding thickness:
4 cm
Density:
30 kg/m³
Weight:
100 kg
Gallery

Gallery

Video

Video

LT2 Tilt table series - A quick overview
LT2 Tilt table series - Presentation
LT2 Tilt table series - Accessories
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
DOWNLOAD
PDF 126.92 KB
Register to access the content

User and Maintenance Manual

Manual
Document date: 23/03/2020
Language: Italian, English
DOWNLOAD
PDF 1.12 MB
Register to access the content
