STAND-UP 400

A
V
3
1
2
1
A
3
5
5
4
G
Quantity:

Description

This assistive device with harness enables the user to assume and maintain an extreme upright position, and to move indoor with help by a caregiver.

It can be used by those who can not cooperate or are unstable when sitting, even when leaning on the handles with both hands.

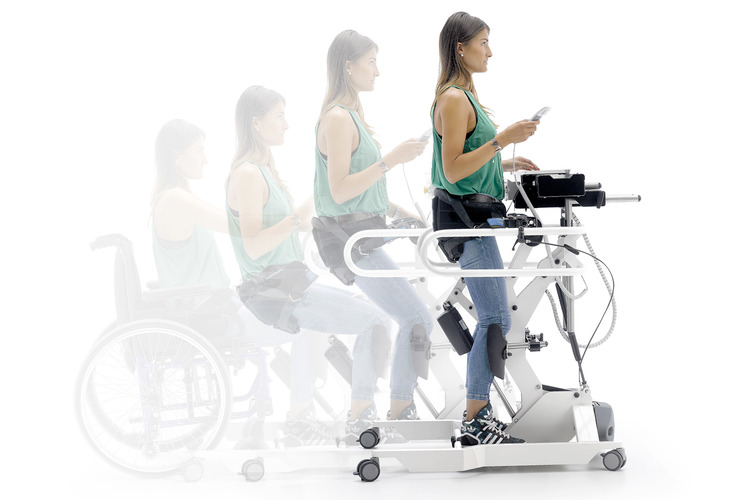

The end user is lifted into a standing position by means of a (rechargeable) battery-powered electric motor operated by hand control. The long side handles can be helpful at first stage to support the user in the transferring onto the footplates, and then for guaranteeing a safe condition during the lifting. The geometry of the lifting forces minimizes the load on the knees and hips – often frail in elderly people.  A safety switch is available to stop the lifting sequence at any time.

A series of adjustments without tools ensure the aid can be adapted to the user’s morphological characteristics. In particular, the main frame along with the knees, hand and trunk supports are immediately and smoothly adjustable to the user’s height by a second electric actuator to totally avoid any efforts by caregiver. This second actuator is activated by the same hand control.

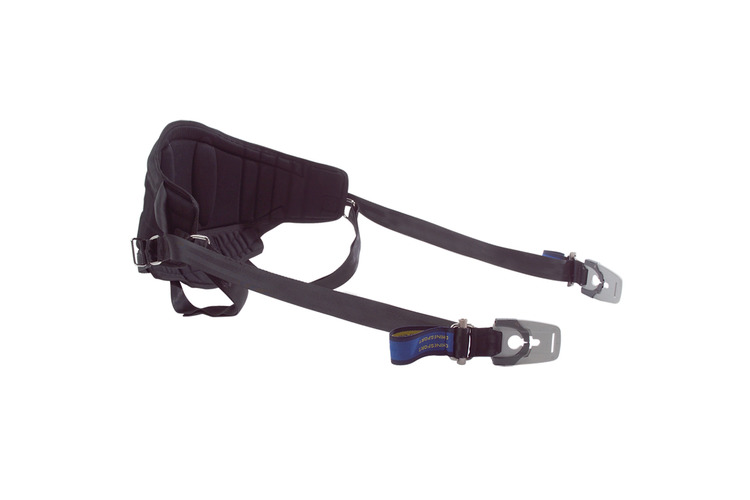

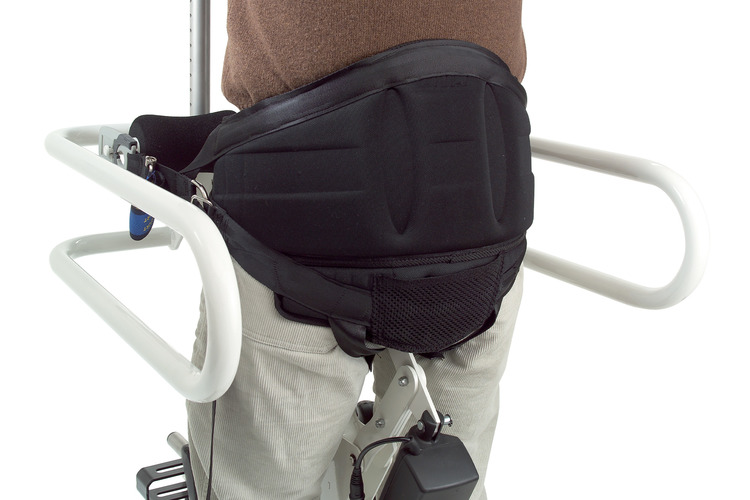

The special shape harness with clips is made of anti-slip material and can be easily put on the patient. For better stabilization at trunk and hips level the long side handles can be adjusted in width and integrated with padded elements as accessory. The device is fitted with a wide service tray adjustable in tilt. The service tray can be fitted with padded covers (please see accessories).

Other models of the STAND UP series are available as alternative to this model when a special long seat is used instead of harness for end users who are able to cooperate.

Dimensions: 103.5 x 75 x 98 ÷ 146 h cm. Weight: 64 kg. Max load: 140 kg. User height: 140 ÷ 200 cm.




NOTE
A demonstration video of the main performances, and in particular for the lifting and adjustment methods of the entire frame to the height of the end user, is available with reference to a previous version (AV115310/STAND UP 5310) corresponding to and replaced by this model.
Accessories

Accessories

Adjustable Heel Rests

AC0686
Guidance for the user on the device. They offer a back support for the feet. Adjustable in their width independently and usable only with metal footplates. U...
Ask for quotation

Coloured Paddings

AC0689
Made of soft foamed material with synthetic leather upholstery. The padding is applied to the specific metal structure. Available in three colours. Available...
Ask for quotation

Lateral Supports

AC0049
Soft supports for the lateral restraint.
Ask for quotation

Adjustable Lateral Supports

AC0702
Soft supports for the lateral restraint. Adjustable in depth along the long handles.
Ask for quotation

Leg Strap

AC0014
Leg strap to stablize the leg. Available in pairs.
Ask for quotation

Back Strap

AC0783
Back restraint strap. Applied by an assistant. One size only.
Ask for quotation

Hand Anchor

01608
This ergonomic anchor can be applied to any smooth surface to achieve greater stability and safe positioning of the hand.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
103.5 x 75 x 98 ÷ 146 h cm
Base accessibility:
63 cm (enlarged)
Front and rear wheels diameter:
Ø 7.5 cm (transfer)
Ground handling:
assisted
Type of handling:
manual
Structure height adjustment:
hydraulic
Servo-assisted verticalization:
electric
Autonomy of continuous use:
190 min
Internal / external base width:
63 - 75 cm
Capacity:
140 kg
Weight:
64 kg
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 123 x 87 x 131 h kg 83 mc 1.401831
Video

Video

STAND UP 5310
Documents

Documents


Benutzer- und Wartungshandbuch

Manual
Document date: 01/06/2018
Language: German
DOWNLOAD
PDF 2.88 MB
Register to access the content

Manual de uso y mantenimiento

Manual
Document date: 01/06/2018
Language: Spanish
DOWNLOAD
PDF 1.87 MB
Register to access the content

User and maintenance manual

Manual
Document date: 01/06/2018
Language: English
DOWNLOAD
PDF 2.03 MB
Register to access the content

Manuale d’uso e manutenzione

Manual
Document date: 01/06/2018
Language: Italian
DOWNLOAD
PDF 1.91 MB
Register to access the content

Manual de uso y mantenimiento

Manual
Document date: 01/06/2018
Language: Spanish
DOWNLOAD
PDF 1.9 MB
Register to access the content

Declaration of conformity

Compliance statement
Document date: 15/06/2016
Language: Italian, English
DOWNLOAD
PDF 100.1 KB
Register to access the content
