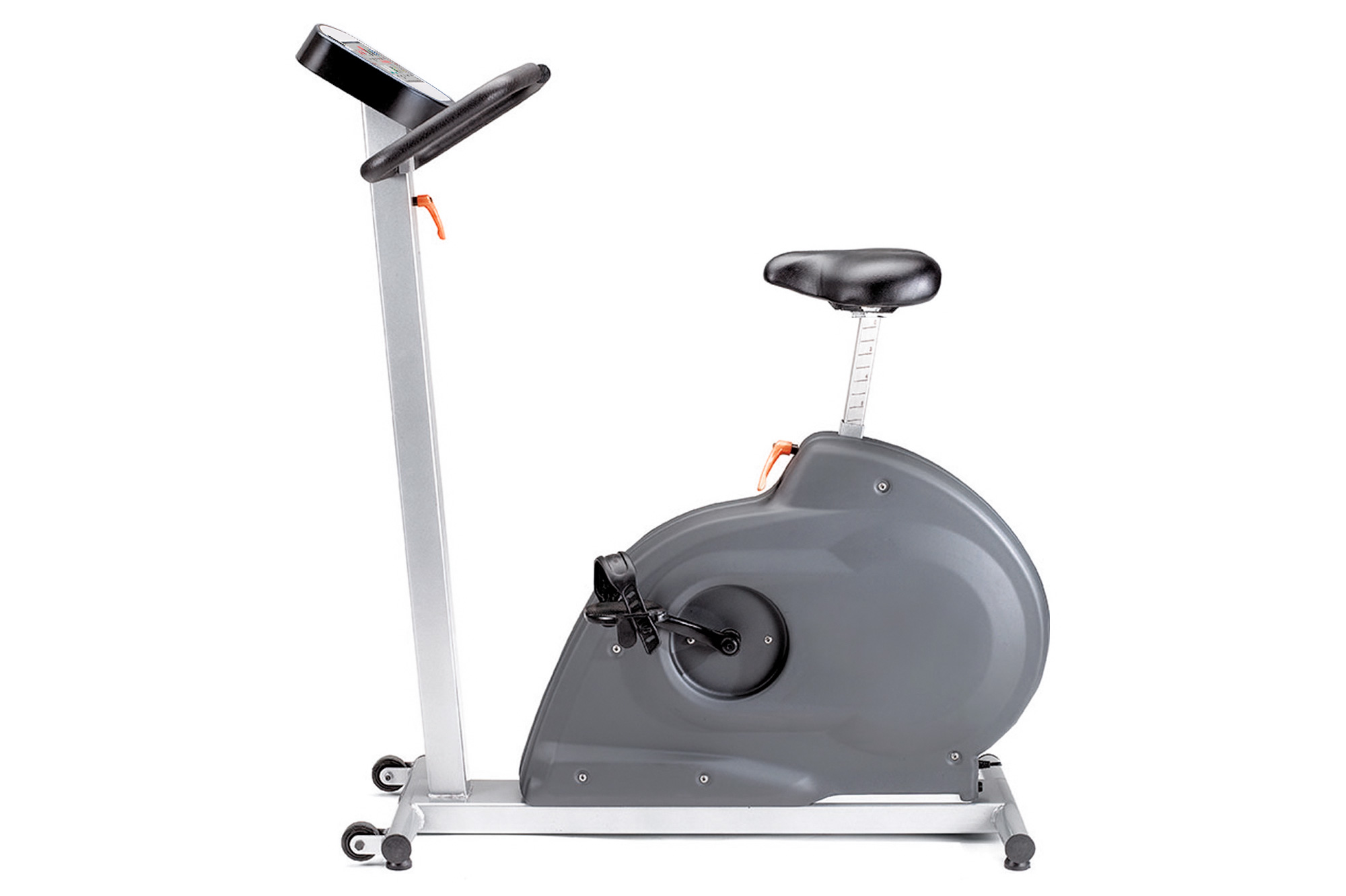

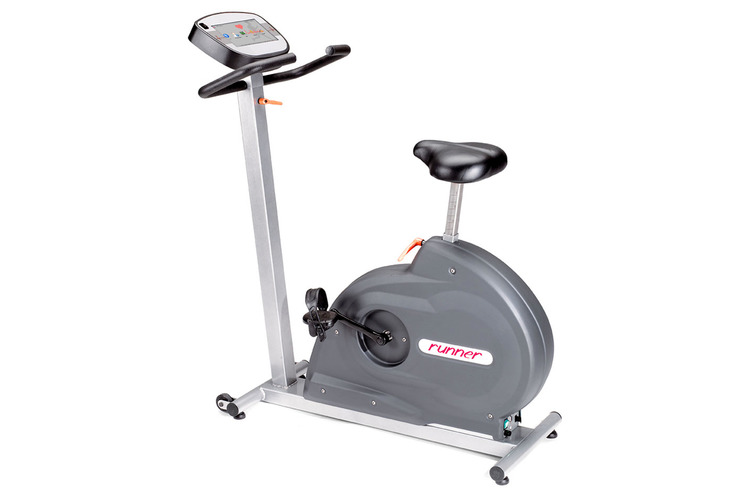

CYCLE ERGOMETER RUN 700/T

X
R
U
0
4
5
Quantity:

Description

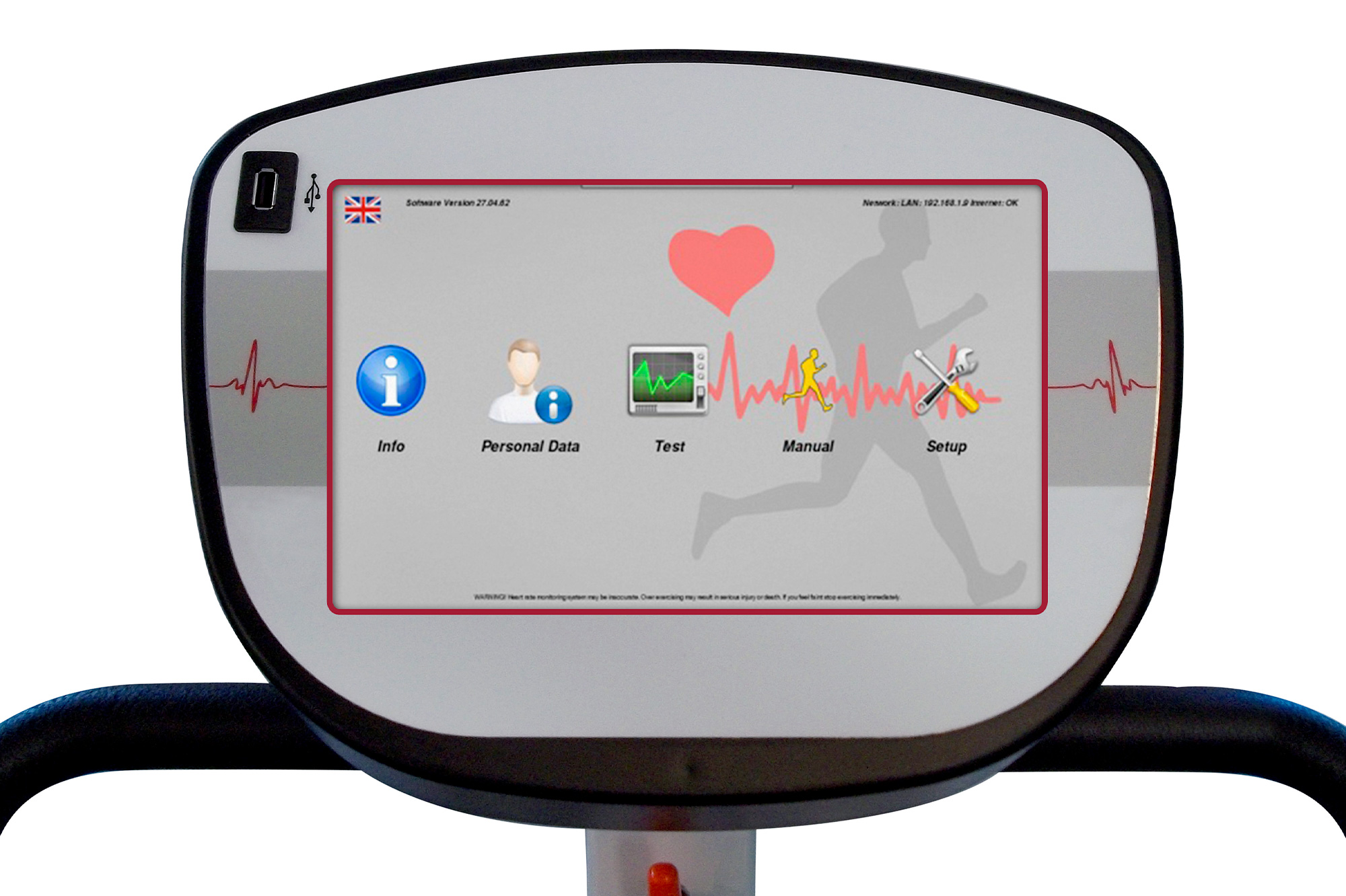

Professional cycle-ergometer conceived for cardiological stress tests with ajdustable constant resistance from 0 to 700 Watt. It's equipped with computer-controlled braking system with torque measurement speed independent or dependent by RPM. The advanced touch screen 10'' console allows the following functions:

Training

  • Remote control
  • Manual
  • Test 25Wx2, 25Wx3, 10Wx1, RAMP, 50Wx2, 30Wx2, 30Wx3, 01...109 (settable)
  • Exercise data saving on USB key


Display data

  • Time (hh:mm:ss)
  • Distance (km)
  • Time to (km)
  • Calories (Kcal)
  • Speed (km/h)
  • Watt
  • RPM



Software languages

  • Italian
  • English
  • French
  • German
  • Spanish
  • Polish



Display TFT touch screen 10” PC iMX6 DL 1GB, Micro SD 8GB, Linux OS.

Accessories

Accessories

Adjustable Pedals

XRU006
Continuously adjustable pedal radius.
Ask for quotation

Adjustable Seat 700/1400

XRU042
Allows depth adjustment of the seat.
Ask for quotation

Pulse Monitoring Set

XRU065
Heart rate monitoring directly on display. Consisting of Polar BLE H10 chest strap and USB/BLE wireless antenna.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
110 x 53 x 130 h cm
Weight:
60 kg
Max working load:
180 kg
Max speed:
3 ÷ 130 rpm
Console:
touch screen 10"
Effort variation:
electronic
Workload increment:
1 watt
Adjustable constant resistance:
0 ÷ 700 Watt
Resistance system:
electrodynamic, computer-controlled
Braking feedback system:
with load cell
Power supply:
100-240 Vac - 50/60Hz
Transmission:
chain driven
Handlebar:
360° tilt adjustable
Seat adjustment:
vertical, manual system
Transport wheels:
yes
Interface type:
RS232 and USB port
Access:
facilitated
Classification (Annex IX, MDD 93/42):
Class IIa
Gallery

Gallery

Logistics

Logistics

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA SU BANCALE cm 135 x 75 x 180 h kg 100 mc 1.8225
Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

User and maintenance manual

Manual - past Edition
Document date: 04/05/2021
Language: Italian, English
Version: V 2.0
DOWNLOAD
PDF 1.78 MB
Register to access the content

Declaration of conformity

Compliance of statement - past edition
Document date: 23/04/2020
Language: Italian, English
Version: V 1.0
DOWNLOAD
PDF 66.42 KB
Register to access the content
