ARTI REHAB

0
7
4
6
5
Quantity:

Description

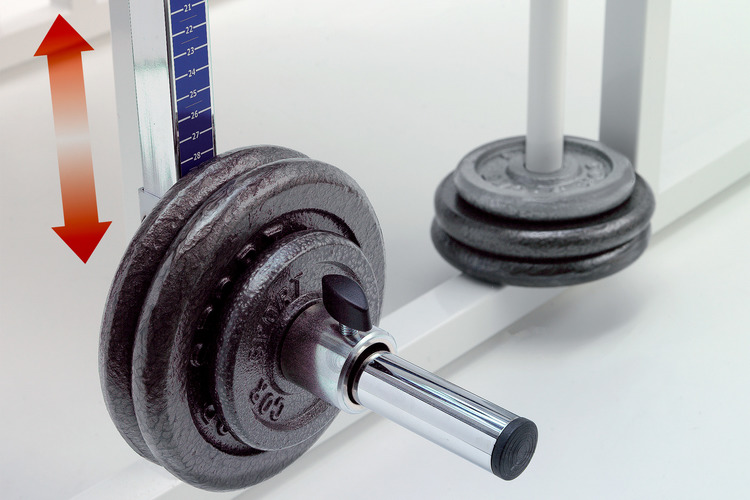

Multi-function rehabilitation chair for the lower and upper limbs and muscle exercises. The swinging arm can be used from both sides. Resistance is achieved by applying 4 weights of 2 kg each, 1 weight of 1 Kg and a weight of 0,5 Kg. It is possible to adjust the degree of resistance, exclude a movement and select each segment to be exercised. The 90° backrest can be positioned horizontally by means of servoassisted gas spring with mechanical stop to allow for exercising the limb from a prone position. The legs can be secured with a practical, adjustable padded roll system, while the feet can be secured with an adjustable length strap and fastening clips. Manual with a wide range of exercises included.

Accessories

Accessories

Additional Arm

07466
Additional support for using both limbs (right - left). Weights provided: 1 kg 1pz, 0.5 kg 1pz, 2 kg 4pz
Ask for quotation

Arti Rehab Hand Grip

AC0700
Hand grip that extends the exercises range up to the upper limbs. Applicable to the thrust arm, replacing the padded roll for lower limbs.
Ask for quotation
Technical Spec.

Technical Spec.

Overall dimensions (WxLxH):
71 x 85 x 125 h cm
Seat dimensions (WxLxH):
60.5 x 54 x 66 h cm
Backrest dimensions (WxH):
55 x 59 h cm
Safe working load:
135 kg
Tilting back rest:
-90°
Back rest adjustment:
by gas spring
Device total weight:
35 kg
Weights provided:
4 x 2 kg; 1 x 1 kg; 1 x 0,5 kg
FOR LOWER LIMBS EXERCISES
Maximum loading weight on arm:
9.5 kg
Additional loading arm:
accessory code 07466
FOR UPPER LIMBS EXERCISES
Special hand grip:
accessory code AC0700 (recommended)
Patient positions:
sitting, prone/supine
Exercises manual included:
wide range
Safe working load:
135 kg
Tilting back rest:
-90°
Back rest adjustment:
by gas spring
Total Weight of the device:
35 kg
Gallery

Gallery

Logistics

Logistics

Code Repertoire:
0200078

Weight, size and volume

Weight, size and volume (+/- 10%)
N° Package Package type Dimension Weight Volume
1 SCATOLA cm 84 x 72 x 127 h kg 58 mc 0.768096
Video

Video

Arti Rehab - Active rehabilitation device
Documents

Documents


Declaration of conformity

Compliance statement
Document date: 28/05/2021
Language: Italian, English, German, French, Spanish
DOWNLOAD
PDF 91.04 KB
Register to access the content

Therapy manual

Therapy manual
Document date: 25/05/2015
Language: Italian, English
DOWNLOAD
PDF 7.68 MB
Register to access the content

Brochure

Brochure
Document date: 27/03/2013
Language: French
DOWNLOAD
PDF 119.09 KB

Manual de instrucciones

Manual
Document date: 19/03/2012
Language: Spanish
DOWNLOAD
PDF 303.12 KB
Register to access the content

Manuale Istruzioni

Manual
Document date: 18/05/2011
Language: Italian
DOWNLOAD
PDF 182.55 KB
Register to access the content

User and Maintenance Manual

Manual
Document date: 18/05/2011
Language: English
DOWNLOAD
PDF 110.61 KB
Register to access the content
