You are here: Home > Active Exercises > Motion Line > Ergometer Body 900 Med
See similar products
Request information

ERGOMETER BODY 900 MED

X
E
M
0
4
1
Quantity:

Description

The MOTION range offers a selection of professional ergometers, which can be used to set up a complete rehabilitation unit. All machines operate independently of the mains supply, thereby enabling significant savings. The devices in the 900 MED range offer mechanical solutions and an innovative console for the most advanced training requirements.

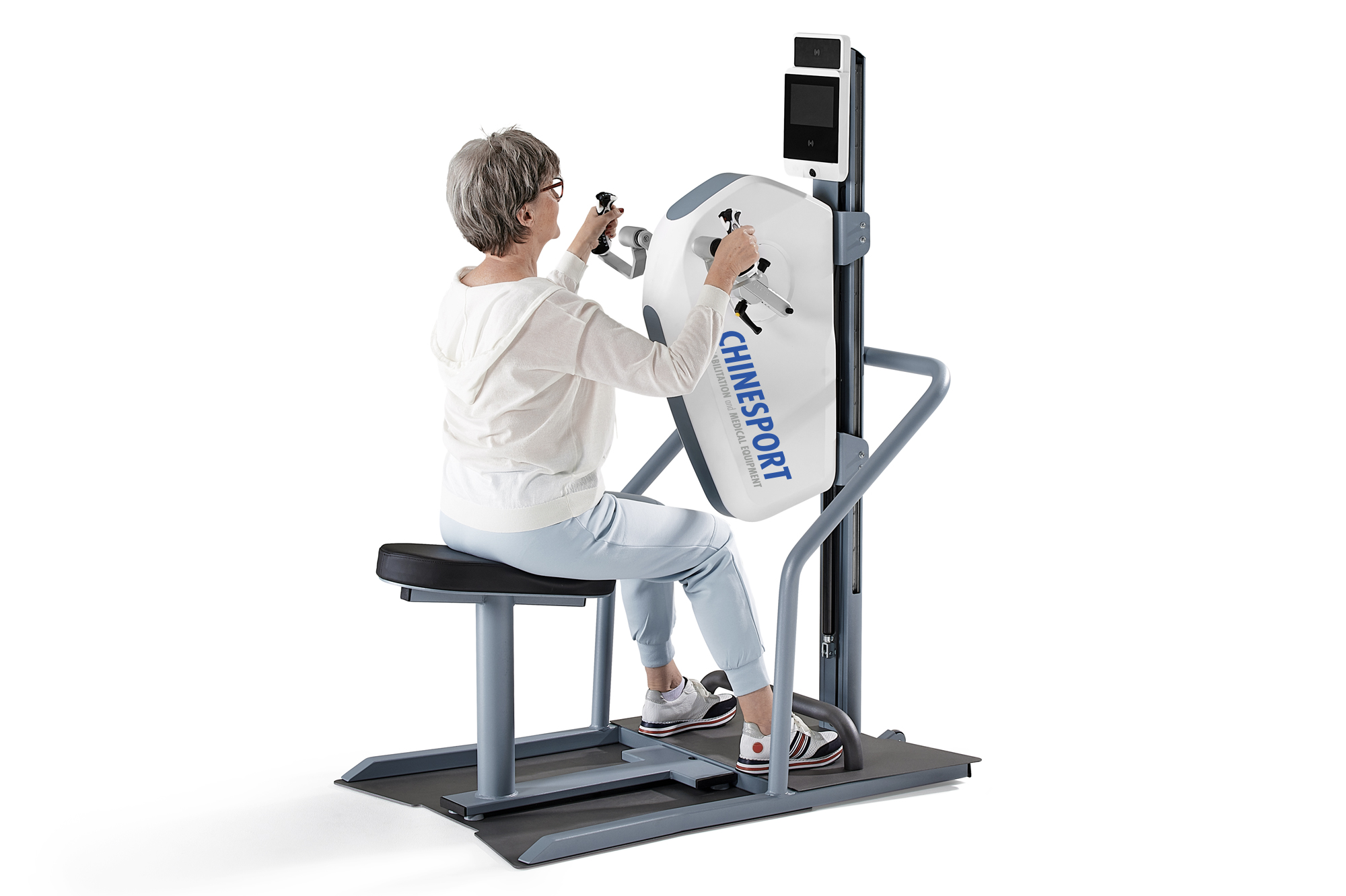

Ergometer for restoring mobility in the upper body

Features:

  • Operates independently of the mains supply
  • Control console with 7” colour touchscreen display
  • Bidirectional crank movement, synchronous or asynchronous
  • Adjustable crank (7.5 ÷ 22.5 cm) in 15 steps, tool-free
  • Ergonomic handle
  • The seat can be removed if there are permanent limitations affecting the lower limbs
  • Height-adjustable with a gas spring
  • Exercise possible whilst standing or seated
  • Wall-mounted version available on request

Console

The Motion 900 med series computer features a 7” colour touchscreen display for advanced parameter visualisation and a simple, clear navigation menu. An integrated 5 kHz/Bluetooth hybrid receiver enables rapid, interference-free identification of the heart rate monitor signal.

  • 10 selectable languages.
  • 3 programmes: Quick Start, Watts and Heart Rate.

Connection to other medical devices (ECG, spirometry, etc.) is possible via optional software.

Accessories

Accessories

Performance Package
XEM042
It increases the maximum power output to 950 watts (cycle and relax) or 550 watts (body). Allows wireless charging of other devices via Qi technology. ANT+ t...
Ask for quotation

Extra Software Package
XEM043
Adds 7 programmes to the standard package (cycle, relax, body). Symmetry assessment system and 3 games (cycle and relax). 6 assessment tests – IPN, Conconi...
Ask for quotation

Heart Rate Monitor
XEM16
Polar chest strap heart rate meter for cardio training programs.
Ask for quotation
Technical Spec.

Technical Spec.

Dimensions:
116 x 77 x 155 h cm
Weight:
98 kg
Max load:
150 kg
Resistance:
15 ÷ 500 W, 15 ÷ 140 rpm
Traction:
Single belt
Access:
Facilitated
Seat:
Depth-adjustable
LCD display:
7” colour touchscreen display
Integrated pulse receiver:
Yes
Adjustable feet:
No
Compliance:
DIN EN ISO 20957-1/5 S-A-I, DIN EN 60601-1 and 93/42/EEC
Gallery

Gallery

Documents

Documents

Use the multi-filter to see the available documentation in different languages and/or a specific type of document

User manual

Manual - past Edition
Document date: 14/09/2026
Language: English
Version: V 1.0
DOWNLOAD
PDF 901.55 KB
Register to access the content

Dichiarazione ue

Compliance of statement - past edition
Document date: 05/11/2024
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 309.13 KB
Register to access the content

Ce declaration

Compliance of statement - past edition
Document date: 14/05/2024
Language: English
Version: V 1.0
DOWNLOAD
PDF 90.23 KB
Register to access the content

Manuale utente

Manual - past Edition
Document date: 25/01/2023
Language: Italian
Version: V 1.0
DOWNLOAD
PDF 937.03 KB
Register to access the content
